Title: Duox2 Pinheader
Post by: jitster on December 10, 2005, 03:58:00 PM
Hi I just installed the pinheader on a v1.1 xbox the soldering on the bottom i did good but when i looked on the other side its a little leaning to the left would this cause a problem when i put the chip on top ? i don't have a chip to test it on because there still in the mail o and the xbox works right now
Title: Duox2 Pinheader
Post by: jitster on December 10, 2005, 08:50:00 PM
ok thanks a lot  smile.gif
Title: Duox2 Pinheader
Post by: jitster on December 12, 2005, 07:37:00 PM
ok this is a problem for me its leaning towards the left a little (pinheader) and now the chip does not get power i used the normal BT point and the alt BT point resoldered the D0 3 times check the bottom lpc soldering looks good. The xbox works fine still boots etc its o and is there away of fixing it without de soldering the pinheader as if i do that i know i will mess up...

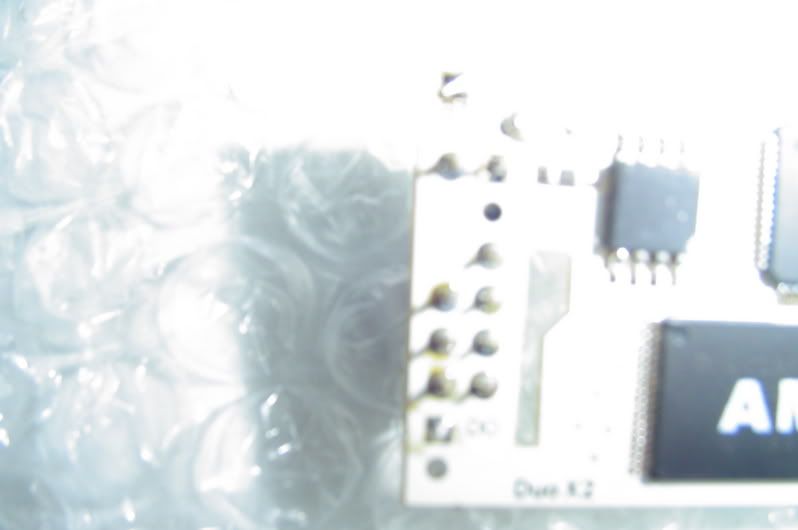

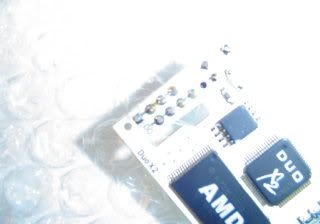

heres some pics (yes i know i suck at using the camera lol)

http://img.photobuck...NE/6c7f538c.jpg
http://img.photobuck...NE/DSC00641.jpg
http://img.photobuck...NE/DSC00644.jpg
http://img.photobuck...NE/DSC00645.jpg

The chip is not bad as i tried 3 other ones  sad.gif
Title: Duox2 Pinheader
Post by: HackDaBox on December 12, 2005, 11:44:00 PM

Hi Jitster !

See the first pic , where BT is move over one pin , now down one pin That one needs resoldering ! It's pin 2 on the LPC ! Just heat it up and add more solder !

HackDaBox !

Title: Duox2 Pinheader
Post by: HackDaBox on December 12, 2005, 11:58:00 PM
Grab a multimeter and place the red probe on pin 9 (3.3v) and the black probe on pin 2 ( ground) and set your meter to 20 DC Volts like in this pic ...

IPB Image

It should read around 3.3 volts if the headerpin is working ! If you don't have a multimeter grab one from Radio Shack as they are very cheap these days !

Maybe some pics of the pinheader would help ? But in any case you will have to heat it up and adjust it , maybe bit by bit. Or grab one pin at a time with plyers and heat the other side and pull the pin out completely ( with the xbox motherboard removed and in your knees ! )

HackDaBox !
Title: Duox2 Pinheader
Post by: jitster on December 13, 2005, 01:53:00 PM
Hey thank you sooo much hackdabox i grabed one pin at a time with plyers and heated it up on the other side and now i re installed the chip using wire method since there was some solder in the holes and now i have a working modchip and xbox THANK YOU  smile.gif  smile.gif  smile.gif  smile.gif
