Title: Debug Xbox?
Post by: TH!RDEYE on June 28, 2005, 12:49:00 PM
take pics!!!!! but yeah thats weird you stumped me. the wierdest xbox Ive ever seen was just a refurb frankenstien it had no daughterboard but it had fan on the gpu and the drive was a philips but the lpc had solder in them and the heatsink on the cpu was black... Its stumped me on what version it was  blink.gif You propably got a rare xbox or something take pics it will help everyone here. (you did do a good job describing though)
Title: Debug Xbox?
Post by: Pikkon on June 28, 2005, 01:22:00 PM
I think is a beta live debug xbox.It has a pinheader installed and just
standard 64ram.Well I dont think the recovery cd would work,its
not a standed debug/dev kit.Check all the wires and make sure
everything is plug in properly.And you can try to install a chip
on it with debug bios.I dont know if the eprom is blank or not.
Well thats all I know for now.
Title: Debug Xbox?
Post by: bgrill27 on June 28, 2005, 02:04:00 PM
That's awesome!!
Thanks for posting the pics!

I have no idea what that box is, though  dry.gif !
Title: Debug Xbox?
Post by: sapper on June 29, 2005, 02:29:00 AM
i would really like to know what that header near the fan is for.
Title: Debug Xbox?
Post by: Tobb555 on June 29, 2005, 02:36:00 AM
could this be the same motherboard as the XDK and that header connects all the extra boards. I dont know much about the special xboxes such as the XDK or debug but its a possibility.
Title: Debug Xbox?
Post by: sapper on June 29, 2005, 03:32:00 AM
but if it was xdk or debug it would be a 1.0 version mobo if im not mistaken. His is clearly a 1.1 (note thier is no daughterboard) also i believe the xdk have 128meg ram and his is 64 by the pictures.
Title: Debug Xbox?
Post by: TKramka on June 29, 2005, 08:53:00 AM
Bad DVD drive, maybe heat shock failure.  If its a Thomson, just get another one, or better yet, a new Philips.
Title: Debug Xbox?
Post by: G0t M4xx 21 on June 29, 2005, 10:44:00 AM
QUOTE(johnnysoj @ Jun 28 2005, 03:35 PM)
I've been told that this is an eval xbox.  Apparently they gave them out way back when before the xboxes were released for evaluation purposes...
Title: Debug Xbox?
Post by: Pikkon on June 29, 2005, 01:14:00 PM
Like I said before.This xbox was used to beta test xbox live games,
thats it.As for the odd connector,I cant put my finger on it.
Title: Debug Xbox?
Post by: sapper on June 29, 2005, 02:45:00 PM
if you want to sell that motherboard let me know.
Title: Debug Xbox?
Post by: JEB-101 on June 29, 2005, 06:38:00 PM
JEB
Title: Debug Xbox?
Post by: G0t M4xx 21 on June 29, 2005, 07:54:00 PM
As i look more and more at that board I see that its not a 1.0 OR a 1.1.

I'm just gonna call it 0.9

Many things about it are different from a 1.0 or 1.1, just compare it with these boards and you'll see.

All over the board, capacitors and other things are different.

the plug for the GPU fan (which is still present on 1.1-1.6) is not there.

A very odd board indeed.
Title: Debug Xbox?
Post by: G0t M4xx 21 on June 29, 2005, 08:11:00 PM

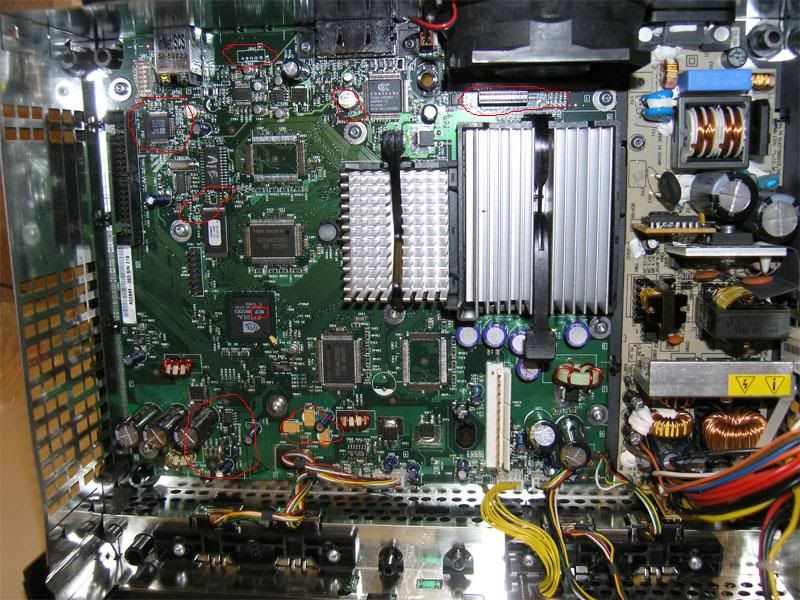

here, ive highlighted all the areas that appear to be different from a 1.0 OR 1.1 board:

user posted image

1. The area around the bottom left is totally different.

2. Just to the right of that, the use of surface mount caps instead of through hole.

3. MCP instead of MCPX

4. No eeprom

5. Different ICS chip (square)

6. Funny plug where GPU fan plug should be

7. extra cap near the video encoder

8. that plug by the CPU
Title: Debug Xbox?
Post by: M-K-E! on June 29, 2005, 08:30:00 PM
nothing special, but the ide connector has 2 peices missing that are there on the 3 boards i have sitting next to me..(2 1.0 and 1 1.3)

id be interested in buyin this, or tradin my modded box for it..

also, take off the sticker on the tsop, im curious what chip it is.
Title: Debug Xbox?
Post by: G0t M4xx 21 on June 29, 2005, 08:56:00 PM
it is interesting to note though that the board has no eeprom
Title: Debug Xbox?
Post by: networkBoy on June 30, 2005, 07:22:00 AM
QUOTE(G0t M4xx 21 @ Jun 30 2005, 04:22 AM)
here, ive highlighted all the areas that appear to be different from a 1.0 OR 1.1 board:
Title: Debug Xbox?
Post by: th3rdeye420 on June 30, 2005, 07:36:00 AM
SELL IT ON EBAY MAKE A KILLING... I CAN SEE THE TITLE NOW "XBOX VERSION 0.9 VERSION XBOX MOTHERBOARD" You'll make a pretty penny. It must be worth something casue everyone keeps throwing offers! Dont be stupid get what its worth!
Title: Debug Xbox?
Post by: cwindsor2003 on June 30, 2005, 09:41:00 AM
That is just cool as shit and has to be close to one of a kind....
Title: Debug Xbox?
Post by: TKramka on June 30, 2005, 11:27:00 AM
Just curious, will it run a standard hacked bios, or will it need a special bios?
Title: Debug Xbox?
Post by: th3rdeye420 on June 30, 2005, 11:41:00 AM
from what he said it doesnt work period!
Title: Debug Xbox?
Post by: .:Dino:. on June 30, 2005, 01:42:00 PM
wow, just wow. You sir, are lucky. You have one hell of a rare mobo right there. Keep us updated.
Title: Debug Xbox?
Post by: TKramka on June 30, 2005, 02:26:00 PM
Wow, I'd trade my TSOP'd 1.1 for that!!
Title: Debug Xbox?
Post by: johnnysoj on June 30, 2005, 02:42:00 PM
QUOTE(old engineer @ Jun 29 2005, 09:52 PM)
It isn't anything to do with Beta Live!
Title: Debug Xbox?
Post by: T-bo2498 on June 30, 2005, 05:51:00 PM
id send it to 18004myxbox and see what they have to say about it.
Title: Debug Xbox?
Post by: old engineer on July 01, 2005, 03:39:00 AM
QUOTE(johnnysoj @ Jun 30 2005, 10:53 PM)
Actually,
it says MCPX Mode 2 on the chip.



I said it's fitted with an MCP, which it is, revision XMODE2

...You can't move the 'X' over to make an MCPX, lol!!!!!!!!!!!!!!!!

Trust me, I already have two PROTOTYPE Dev Kit with motherboards fitted with XMODE2, MCP's, they pre-date the MCPX release by about three weeks.

...XMODE2 is the 'fastest' revision from early August 2001.

...Here's some other spec's for yer to chew over...

Front-side bus clock = 135 MHz
CPU clock = 742 MHz
GPU clock = 210 MHz
Memory clock = 202 MHz

...Yes you read right 742 MHz CPU, rather than the FINAL 733 MHz smile.gif

Title: Debug Xbox?
Post by: TKramka on July 01, 2005, 08:54:00 AM
Neat, an overclocked XBox, is the MCP boot block the same?  And if it was chipped, could it be used like a normal XBox, and could you take off the heatsinks and show us the CPU and GPU?
Title: Debug Xbox?
Post by: TKramka on July 01, 2005, 10:41:00 AM
Also, would a RAM upgrade take away from the value of the system, along with an X3 / TSOP flash?
Title: Debug Xbox?
Post by: JEB-101 on July 01, 2005, 12:39:00 PM
JEB

PS. is the D0 and all at the same location?
Title: Debug Xbox?
Post by: TKramka on July 01, 2005, 12:53:00 PM
It looks like the EEPROM is right by the 3 big caps on the left hand bottom corner, and if I'm not mistaken, there's a battery on board, perhaps for the RTC or its right below the crystle.  That would be incredibly cool...  And I'll up my offer, a Modded XBox, w/ a 20gb hdd, and anything else you want, like an N64 or a SNES.
Title: Debug Xbox?
Post by: heinrich on July 01, 2005, 03:54:00 PM
...no you cant just install a modchip with a modbios (at least none of the publicly released ones)...
Title: Debug Xbox?
Post by: networkBoy on July 01, 2005, 04:06:00 PM
QUOTE(TKramka @ Jul 1 2005, 09:04 PM)
And I'll up my offer, a Modded XBox, w/ a 20gb hdd, and anything else you want, like an N64 or a SNES.
Title: Debug Xbox?
Post by: d34th_r3c0n on July 01, 2005, 05:08:00 PM
you said it belonged to the company you work for?

ask how/from who/when they got it.

and i see 2 chips that could be eeprom:

1 by the capacitors in the lower left corner
2 by the AV plug

that is just based on chip size/number of leads.
Title: Debug Xbox?
Post by: brooky86 on July 01, 2005, 05:24:00 PM
Hey can someone else host these pics for a while as theyre not showing up.

Cheers
Brooky
Title: Debug Xbox?
Post by: TKramka on July 01, 2005, 07:39:00 PM
Dang!! well, maybe you'll have better luck with it.  Hope you can get it working!
Title: Debug Xbox?
Post by: theincrediblechris on July 01, 2005, 07:41:00 PM
Title: Debug Xbox?
Post by: old engineer on July 03, 2005, 01:00:00 AM
QUOTE(iamcheese @ Jul 3 2005, 05:20 AM)
those solder points where the gpu fan plug should be look like they could be solder points for a usb header or somthing like that
Title: Debug Xbox?
Post by: iamcheese on July 03, 2005, 06:23:00 PM
could you post some pics of your proto boards? if you dont want to post them here pm me the links
Title: Debug Xbox?
Post by: d34th_r3c0n on July 03, 2005, 07:14:00 PM
i'd like to see some pics of the bottom aswell
Title: Debug Xbox?
Post by: Pikkon on July 04, 2005, 02:53:00 PM
Hey old engineer,are those pics from your proto DVT3.
Title: Debug Xbox?
Post by: johnnysoj on July 12, 2005, 02:20:00 PM
Well,

I've decided to put the motherboard on Ebay.

IF you're interested, check it out here

I know some of you pm'd me about purchasing or trading it,  so if you're still interested, I figured this is the safest way to assure that neither of us get screwed in the transaction...

Moderators:  I'm not sure if I can post this here,  please let me know
if this is a problem.



Title: Debug Xbox?
Post by: Frndlylion on July 13, 2005, 11:54:00 AM
Title: Debug Xbox?
Post by: johnnysoj on July 13, 2005, 02:18:00 PM
Just the motherboard.
Title: Debug Xbox?
Post by: networkBoy on July 13, 2005, 02:21:00 PM
do you have the HDD for the board and would you consider pairing them up?
-nB
