Post by: myfranco on December 24, 2006, 08:23:00 PM
There are numerous topics going on about "how to flash a samsung". First of all, your sata chipset(can be onboard or pci card) must be compatible with samsung MS25 drives.Not all the sata chipsets are compatible with that drive.If you want to be %100 sure ,you can buy a via 6421 pci sata card.There are many ways to read the key and copy&paste but the way i do has never caused me any trouble.
To flash a samsung drive you need the following applications:
--Xtreme Boot Maker V.0.3.6 Click to Download
--Maximus Firmware Toolbox 2.0 Click to Download
--Xtreme Firmware Find it in the usual place.
Here we go :
We need to setup Xtreme Boot Maker.You can find it in the Start Menu>X-Projects.Run the program.
(IMG:http://img411.imageshack.us/img411/3241/bootmakerar9.jpg)
1-- Open your xtreme firmware(here i used 3.3 .The latest one is extreme 5.0 but i find v3.3 is good enough)

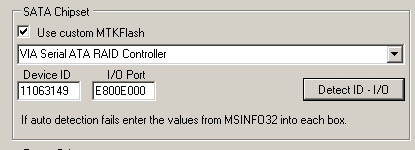

2-- Click "Use Custom Mtkflash and choose your sata controller.
3-- Hit "Detect ID -I/O"
4-- Click "Ms28 Bad Flash Compatibility" and "Apply Boke's Patch For Ms28 Drives"
5-- Choose your usb memory stick or floppy ( I recommend USB stick since floppy is not so stable everytime.It may come up with a bad sector and that may cause a bad flash.USB Stick is much less riskier)
6-- Click "Format and Make Bootable"
7-- Hit "Prepare Drive" .In about 10 seconds your usb stick or floppy is ready.
When you check your usb stick or floppy, you will see your hacked firmware in the "samsung" folder as "xtreme.bin".This binary is not ready to be flashed since we don't have our orig.bin to get the key.
Now,it's time to boot your PC from floppy or usb stick(for usb stick you need to set "boot from usb hard drive" in the bios menu.) .Plug your Xbox 360's Sata Cable to Pc's Sata Card or Onboard Sata Controller and leave it TURNED OFF".Reboot your PC and you will be in DOS Command Prompt.You can turn Xbox 360 on now.Type:
CODE
mtkflash r /m orig.bin
You will see some options.Choose your sata card and this will dump your original firmware as orig.bin. Now,take floppy or usb stick out and boot into Windows.
This time we will use Maximus Firmware Toolbox 2.0
Open Firmware Toolbox 2.0 and put your floppy or usb stick in the floppy drive or usb.
(IMG:http://img80.imageshack.us/img80/8158/fwpf4.jpg)
1--Open your orig.bin
2--Copy the key.Be sure you copy the whole key by right clicking and copy.
Close the Firmware Toolbox 2.0 and Reopen it.This time open floppy or usb stick\samsung\xtreme.bin and paste the key.You can hit "replace the key". To make sure, close and open firmware toolbox and xtreme.bin and see if your key is there.Simply put your xtreme.bin to the root of usb stick or floppy where mtkflash is located. Reboot PC. Boot into DOS and turn your 360 on. Type:
CODE
mtkflash w /m xtreme.bin
and hit enter.Choose your sata card again and finished. Don't forget to put 360's sata cable back to Samsung Drive.Check if everything went fine.
To Flash a ms28 is almost same.The only difference is to turn off 360 before choosing your sata card (right after mtkflash command) and wait for 10 sec(which is known as 10 sec trick ,turn it on. Timing is important and you may try for a couple of times for right timing.You need a via 6421 sata card for ms28.
This is the easiest way i do all the time.I never used sam...exe or kdx .Simply these 2 applications makes me sure i have the
correct key and correct mtkflash chosen. If you find easier way don't hesitate to post.
I do not take any responsibility. Do it on your own risk.
This post has been edited by myfranco: Dec 25 2006, 04:34 AM
Post by: dynt on December 24, 2006, 11:51:00 PM
Post by: Elduderino on December 25, 2006, 04:17:00 AM
Is this a problem that my hacked firmware on the 360 is without my original key from my ms28 drive??
Because everything works great and I do not have any problems....
Post by: pure_bluff on December 25, 2006, 05:13:00 AM
Does it have to be 10 seconds exactly? - not 9 or 11!
What are the dangers if its not 10 seconds?
Post by: Vounce on December 25, 2006, 06:32:00 AM
QUOTE(pure_bluff @ Dec 25 2006, 01:20 PM)
Does it have to be 10 seconds exactly? - not 9 or 11!
What are the dangers if its not 10 seconds?
The Xbox will explode into a thousand pieces!
Post by: mebuddy6 on December 25, 2006, 06:28:00 AM
Nice, simple guide. I have been looking over all for xbox fimware hacks for the past 4 hours and this is the most clear. Though I am still have problems.
The MTKflash doesn't dectect my drive. I have tried (i think) every possible option.
When I use the Extreme Boot Maker, I follow the instructions you provided. I have an Intel® ICH8R/DO/DH SATA Raid Controller, which says it is compatible. I do have 2 options for controllers, the other being my SCSI/RAID Host Controller, which says is NOT compatible.
One thing that might be causing all my problems, is that I know the RAID is supposed to be set to native/IDE, but in my setup I only have a RAID option, or a auto-dectect RAID. No native/IDE. I think that is what my problem is.
All Samsung's are either ms25 or ms28 right? How do you tell, does it matter if you have a ms25 and select the option "MS28 Bad Flash Comp" in the Xtreme Boot Maker?
Any help from anyone would be appreicaited. Merry Christmas btw!
Post by: unkdunk on December 25, 2006, 07:42:00 AM
This post has been edited by unkdunk: Dec 25 2006, 03:44 PM
Post by: myfranco on December 25, 2006, 07:50:00 AM
QUOTE
The MTKflash doesn't dectect my drive. I have tried (i think) every possible option.
When I use the Extreme Boot Maker, I follow the instructions you provided. I have an Intel® ICH8R/DO/DH SATA Raid Controller, which says it is compatible. I do have 2 options for controllers, the other being my SCSI/RAID Host Controller, which says is NOT compatible.
One thing that might be causing all my problems, is that I know the RAID is supposed to be set to native/IDE, but in my setup I only have a RAID option, or a auto-dectect RAID. No native/IDE. I think that is what my problem is.
All Samsung's are either ms25 or ms28 right? How do you tell, does it matter if you have a ms25 and select the option "MS28 Bad Flash Comp" in the Xtreme Boot Maker?
When I use the Extreme Boot Maker, I follow the instructions you provided. I have an Intel® ICH8R/DO/DH SATA Raid Controller, which says it is compatible. I do have 2 options for controllers, the other being my SCSI/RAID Host Controller, which says is NOT compatible.
One thing that might be causing all my problems, is that I know the RAID is supposed to be set to native/IDE, but in my setup I only have a RAID option, or a auto-dectect RAID. No native/IDE. I think that is what my problem is.
All Samsung's are either ms25 or ms28 right? How do you tell, does it matter if you have a ms25 and select the option "MS28 Bad Flash Comp" in the Xtreme Boot Maker?
%99 you are not able to flash your drive with that chipset since you can't disable RAID option(you can try "auto-detect raid" to see if that option is same as native mode.If there is no raid ,the controller might work as native/ide.Just a guess and worth trying)
I recommend you to buy a 6421 sata card.Cheap and problem free.
Yes there are all ms25 or ms28 and bad flash compatibility allows to to use 10 sec trick for via 6421 cards.Even if you have ms25 that will not cause any problem.
QUOTE
Nice guide, Ill be using this to do my 360.
Does it have to be 10 seconds exactly? - not 9 or 11!
What are the dangers if its not 10 seconds?
Does it have to be 10 seconds exactly? - not 9 or 11!
What are the dangers if its not 10 seconds?
The only problem could be mtkflash won't flash.I don't think i waited exactly 10 seconds to flash.It could be 9 or 12 but around 10 is okay.
QUOTE
I flashed my ms28 succesfully but did not add my orig.bin key into the hacked firmware.
Is this a problem that my hacked firmware on the 360 is without my original key from my ms28 drive??
Because everything works great and I do not have any problems....
Is this a problem that my hacked firmware on the 360 is without my original key from my ms28 drive??
Because everything works great and I do not have any problems....
You better use mtkflash r /m orig.bin to backup your key.If anything happens to your drive ,you can buy a new drive and use your key.If you have your hacked.bin in your hand there is no problem.Keep it safe.
This post has been edited by myfranco: Dec 25 2006, 03:59 PM
Post by: gli7ch on December 25, 2006, 08:30:00 AM
Post by: mebuddy6 on December 25, 2006, 09:25:00 AM
unkdunk- Are you using on on board sata, or pci. Do you have options to disable RAID completely? Where did you DL the samhack. The thing is I don't have a IDE on my motherboard, my computer is a 3 month old dualcore and doesn't have one.
Well, I just keep getting, cannot detect drive. I have turned the raid on and and switched to auto-detect. I have turned off all the sata, except the samsung one, tried turning them all on. Tried switching the xbox sata to a different plug. Tried with xbox on 1st, and with xbox off 1st. I have even attempted to hexedit the mtkflash to get it to read. frack!
When I tried to use the samhack from my boot disk, I got errors. hacked.bin doesn't exisit, cannot create.... i wonder if it's because I used the extreme book maker.
I do have a MS28, and I keep reading how it's not the same as the ms25. I think I am SOL because I don't have a IDE dvd/cd drive.
I haven't read much on ms28 success with the specs I got. Hey unkdunk, what type of specs do you have?
Thanks for the info myfranco, I guess I will have to try the PCI sata.
QUOTE(gli7ch @ Dec 25 2006, 04:37 PM)
I have tried to use Xtreme Boot Maker, but it will not dectect my on-board SATA, I have used this in conjunction with a Xecuter Connect Kit to flash HL 46D and 47D with no problem, but it will not detect SamMS28 in Windows or anywhere else
Do you have a mtk based IDE cd/dvd drive? Where you able to turn off raid? Which firmware are you using? The firmware in the vid is 3.3
THis youtube link gives a little info, but nothing clear as day.
http://www.youtube.com/watch?v=CZOMxLtCUA8
Post by: myfranco on December 25, 2006, 09:23:00 AM
On the other hand , by applying Boke's patch you don't need to have a mtk compatible ide drive plugged.You may have some ide drives or not ,xtreme boot maker will handle that.
I'm not saying samread ,samhack etc. are not good for patching the key.In this method you see your own key and a good dump. Boot maker and firmware toolbox are good partners for that.
Post by: Duke_Nukem on December 25, 2006, 12:27:00 PM
by using xtreme boot maker it shows me what i have on my board which is
-Intel® 82801FB/FBM Ultra ATA Storage Controllers 266F(not compatible with MTKFlash)
-Intel® 82801FB Ultra ATA Storage Controllers 2551(compatible)which is the one i use
my question is,its this /\ /\ chipset compatible with the ms28 somsung,i did an ms25.
from the reading i have done ther is a way of testing before you read the firmware from an ms28,by hittin ESC after you hit the Enter button to read,it should give you a Status 51 Should be 80 if everything its fine,but i get a 70.
any ideas?
BTW great tutorial
Post by: myfranco on December 25, 2006, 04:25:00 PM
QUOTE
i just flash an ms25 sammy without a problem following this tutorial,but when i try to do an ms28 it just hangs and it doesnt read it sad.gif
by using xtreme boot maker it shows me what i have on my board which is
-Intel® 82801FB/FBM Ultra ATA Storage Controllers 266F(not compatible with MTKFlash)
-Intel® 82801FB Ultra ATA Storage Controllers 2551(compatible)which is the one i use
my question is,its this /\ /\ chipset compatible with the ms28 somsung,i did an ms25.
by using xtreme boot maker it shows me what i have on my board which is
-Intel® 82801FB/FBM Ultra ATA Storage Controllers 266F(not compatible with MTKFlash)
-Intel® 82801FB Ultra ATA Storage Controllers 2551(compatible)which is the one i use
my question is,its this /\ /\ chipset compatible with the ms28 somsung,i did an ms25.
Thanks you need to buy a via 6421 sata card for flashing ms28.That's the only way if you don't want to desolder&solder the dvd drive.
Post by: dvandriesen on December 25, 2006, 06:11:00 PM
Post by: mebuddy6 on December 25, 2006, 06:12:00 PM
This post has been edited by mebuddy6: Dec 26 2006, 02:17 AM
Post by: ryrules1 on December 25, 2006, 06:32:00 PM
? thanks guys.
Post by: myfranco on December 25, 2006, 07:02:00 PM
QUOTE
if this works on older computers i have a Dell Dimension 8100 made roughly in 2001. There are no sata ports so i know i need to buy the via 6421 pci sata card but im just worried since comp is older might not be compatiable with this chipset any ideas Intel i850 Rev. AZ not sure if this can help anyone i know there are spots to put the pci sata card just not sure how this will work and if so what is a link to the card i need exactly so i dont go and get one that isnt going to work.
I think it doesn't matter as far as you have an empty pci slot and running XP.
I bought via 6421 sata card off of Ebay.com and here is the link to the supplier.It's only $18 including shipping.
Via Sata 6421
QUOTE
Ok, so no matter what chipset I have, I need the VIA6421 card if I have a ms28? To do the samread? Anyone able to do this without the 6421, and a compatible on-board sata with an samsung ms28?
Yes you have to buy this one to flash ms28.You don't need samread if you want to follow this tutorial.Nobody did that without 6421 via software(you need to desolder&solder the dvd drive if you want to try with different chipsets which has no guaranty to work)
QUOTE
I just bought a 6421 card and I have ms28 fireware, Is there anything else i need to do besides follow the tut?? Does a certain slot work better I heard people talking about the one furthest from the PC, is this true? I Also heard people taking about needing a pre-hex-editied MTKflash, is this true?
You need nothing else apart from this tutorial+6421 .Hex editing is handled by xtreme boot maker .036
Post by: mebuddy6 on December 25, 2006, 07:17:00 PM
QUOTE(mebuddy6 @ Dec 26 2006, 02:19 AM)
Ok, so no matter what chipset I have, I need the VIA6421 card if I have a ms28? To do the samread? Anyone able to do this without the 6421, and a compatible on-board sata with an samsung ms28?
Found answer.
only VIA chipsets are supported for the 10 sec trick that is required to flash a ms28 no other chipset is supported
guys start to read a bit before posting questions that have already been answered
Post by: bonsc2 on December 26, 2006, 11:32:00 AM
Maximus Firmware Toolbox 2.0 Click to Download
Post by: myfranco on December 26, 2006, 06:46:00 PM
Post by: Goozeer on December 27, 2006, 04:19:00 AM
Or do u know any easy guides for that drive?
Post by: myfranco on December 27, 2006, 04:55:00 AM
Post by: gam3r on December 29, 2006, 09:48:00 AM
Post by: xboxcave on December 29, 2006, 10:39:00 AM
This post may help others that were in my situation , where MTKflash on its own couldnt read/write to my TS-H943 MS-25 Untouched drive.
I used Intel® 82801FB Ultra ATA Storage Controllers - 2651 (SATA CHIPSET) from the drop down menu on Xtreme bootmaker 0.3.6.14 Alongside Xtreme 5.1a
my problem was i made myself a normal bootdisk in windows , copied mtkflash over and couldnt find my drive.
This program helped me loads! thankyou!
Post by: myfranco on December 29, 2006, 11:28:00 AM
QUOTE(gam3r @ Dec 29 2006, 06:55 PM)
Hi, i have a MS28 and i was wondering...when making a backup of the original firmware do i need to do the 10 second trick or will it be fine?
If you mean dumping the firmware of the drive ,yes you need 10 sec trick.
Post by: conners on December 29, 2006, 12:01:00 PM
mtkflash r/m orig.bin
as required, then it shows
1: XTREME Sec Master
Choose one drive:1
Port 7000, Master/Slave: a0
Flash Type "SST(SST39SF020)
ERR:fail to open input file!
What am i doing wrong, i`ve never done a ms25 drive before, trying to backup the original firmware, any help is thankful, cheers conners
Post by: gam3r on December 29, 2006, 12:04:00 PM
QUOTE(myfranco @ Dec 29 2006, 06:35 PM)
If you mean dumping the firmware of the drive ,yes you need 10 sec trick.
Right thanks. Your tut seems very easy to follow and i will have a go after i order a VIA card and a Torx10 screwdriver.
BTW, i have a Gigabyte DS4 motherboard with a intel chipset - SATA is controlled by ICHR8 so i am assuming it will not work without the VIA card?
Oh and by the way - when using xtreme fw 5.1 in xtreme bootmaker it gives "you have selected an unknown firmware would you like to download a firmware definition update?" - what should i do, yes or no#? if i click no it tells me to proceed with caution.
This post has been edited by gam3r: Dec 29 2006, 08:09 PM
Post by: myfranco on December 29, 2006, 12:19:00 PM
QUOTE
mtkflash r/m orig.bin
This is wrong it must be mtkflash r /m orig.bin .You have space between "r" and "/m"
QUOTE
BTW, i have a Gigabyte DS4 motherboard with a intel chipset - SATA is controlled by ICHR8 so i am assuming it will not work without the VIA card?
Oh and by the way - when using xtreme fw 5.1 in xtreme bootmaker it gives "you have selected an unknown firmware would you like to download a firmware definition update?" - what should i do, yes or no#? if i click no it tells me to proceed with caution.
Oh and by the way - when using xtreme fw 5.1 in xtreme bootmaker it gives "you have selected an unknown firmware would you like to download a firmware definition update?" - what should i do, yes or no#? if i click no it tells me to proceed with caution.
Yes you need via card.
Bootmaker gives that error even if it's 4.2 .Don't care that.After preparing floppy or memory stick just check the hacked fw with fw toolbox 3.0 and you will see it works.
This post has been edited by myfranco: Dec 29 2006, 08:21 PM
Post by: gam3r on December 29, 2006, 12:33:00 PM
QUOTE(myfranco @ Dec 29 2006, 07:26 PM)
This is wrong it must be mtkflash r /m orig.bin .You have space between "r" and "/m"
Yes you need via card.
Bootmaker gives that error even if it's 4.2 .Don't care that.After preparing floppy or memory stick just check the hacked fw with fw toolbox 3.0 and you will see it works.
So even if it says that its fine and i should continue? because in the box where it shows the name of the firmware in bootmaker it shows something like "MD5:4u79grnfdg" etc.
thanks again. i'M off to order a Torx10 and Via card. is this ok http://cgi.ebay.co.uk/3-SATA-SERIAL-ATA-ID...1QQcmdZViewItem
and is a torx10 essential to open the 360?
This post has been edited by gam3r: Dec 29 2006, 08:37 PM
Post by: conners on December 29, 2006, 01:14:00 PM
Post by: conners on December 29, 2006, 02:07:00 PM
Post by: conners on December 30, 2006, 03:20:00 AM
Post by: Iggy_NOR on December 30, 2006, 08:05:00 AM
i bought a Newlink 2-Port Serial-ATA PCI Card (1-Int / 1-Ext)) after reading that should work from the guide in http://forums.xbox-scene.com/index.php?showtopic=514944
after installing the card and starting xtreme boot maker i notice it says ALI SATA Card not anything about VIA at all. Is it recommended that i continue or get another card?
Btw, i got a samsung drive but havent checked if its ms25 or ms28 yet
Post by: conners on December 30, 2006, 09:24:00 AM
Post by: joe9000 on December 30, 2006, 10:11:00 AM
Post by: nirvanaman555 on December 30, 2006, 09:48:00 AM
http://forums.xbox-s...howtopic=575174
Post by: myfranco on December 30, 2006, 04:39:00 PM
Post by: cyclone9 on December 30, 2006, 05:14:00 PM
Post by: myfranco on December 31, 2006, 07:27:00 AM
QUOTE
shld i tick those 2 boxes if im using m25?
I always click them for both ms25&28 .Flashed over 19 360s never had a problem.Better to click.
Post by: conners on December 31, 2006, 11:49:00 AM
Post by: cyclone9 on December 31, 2006, 11:50:00 AM
Post by: myfranco on January 01, 2007, 05:55:00 AM
Post by: cyclone9 on January 01, 2007, 06:12:00 AM
I choose my SATA driver and isntall into my usb drive
so i start up my pc and xbox 360
it boot up to A:/>
I switch on my xbox 360
i type "mtkflash r /m orig.bin"
It shows 2 driver:
1 : Xtreme Pri Master
2 : Xtreme Pri Slave
So i choose 1. and it says somethign like Port at0
Post by: CaPtBlaCk on January 01, 2007, 05:23:00 PM
>>>I have a TS-H943 with MS28 f/w<<<
I have followed the instructions in this thread to the letter and every time I select the drive I get the following error message:
Port: B400, Master/Slave a0
I have tried every variation of unplugging, booting PC to command prompt, switching on 360, running mtkflash r /m orig.bin (also tired with /sata), switching 360 on or off, waiting 10 secs blah, blah
I am using a VIA SATA PCI card with a 6421A chipset ~ the 360 drive is recognised in Windows via the chipset utility program, see image below.
I have disabled all onboad SATA/IDE channels (no difference), I have an optical drive on the PCI card IDE channel, tried different SATA cables, tested PCI card independently, and reinstalled it a few times for good measure.
Here is a screen shot of a few of the settings:
I have not tried editing mtkflash separately as I seem to have a few problems grasping the fundamentals of this process
therefore any help would be greatly appreciated and all the best for 2007!Post by: mc gusto on January 01, 2007, 08:58:00 PM
Quick question, can you guys confirm if the following card is compatible:
http://www.canadacom...d...&cid=IO.570
I am having no luck dumping the flash from my samsung (not sure if its ms25 or ms28). The m/b is an asus p4c800-d with raid disabled in the bios.
The drives (2 ide and 2 sata) show up after running mtkflash but nothing happens when i try to read.
This m/b supposedly is compatible. I've been trying to figure this out for days and would rather do this myself than to pay somebody, especially if you'll be flashing more than once.
Lastly, will a 2-3ft sata cable cause any issues? I'm not really sure what the max run length is for these cables.
Tia you guys are awesome!
Post by: myfranco on January 02, 2007, 05:17:00 PM
QUOTE
I've made my usb drive as boot using the Xtreme boot maker.
I choose my SATA driver and isntall into my usb drive
so i start up my pc and xbox 360
it boot up to A:/>
I switch on my xbox 360
i type "mtkflash r /m orig.bin"
It shows 2 driver:
1 : Xtreme Pri Master
2 : Xtreme Pri Slave
So i choose 1. and it says somethign like Port at0
I choose my SATA driver and isntall into my usb drive
so i start up my pc and xbox 360
it boot up to A:/>
I switch on my xbox 360
i type "mtkflash r /m orig.bin"
It shows 2 driver:
1 : Xtreme Pri Master
2 : Xtreme Pri Slave
So i choose 1. and it says somethign like Port at0
Maybe you connected your drive to primary slave. Why don't you check the 2nd option. Otherwise,your chipset might not be compatible. I used ich5 with ms25 which seems to be compatible(no success %0) , nforce 3(success 2 times %100) tried 6421a with more than 12 times for 8 xbox 360(%100 success)
@CaPtBlaCk is your card raid version of 6421? If so find a way to disable raid.
Turn pc on , boot into dos , turn 360 on , type mtkflash r /m orig.bin ,options come up , turn off 360 , choose the corresponding option , wait around 10 sec , turn 360 on . You can try different timing too.
@mc gusto why can't you see if it is ms25 or ms28? it's written on the dvd drive label.
ONE MORE THING: DON'T USE CONNECTIVITY KIT!!!! THAT MIGHT CAUSE SUCH TROUBLES!!!
Post by: pure_bluff on January 02, 2007, 06:51:00 PM
My card has raid, but Im doing nothing different to what I done on my MS28 (only diff, mine was pref;ashed)
Any ides?
Post by: mc gusto on January 02, 2007, 07:37:00 PM
unfortunately, I cannot see the drive label as the accessing via a cutout under the harddrive.
I'll js click off both boxes (ms 28/25).
Thats ok, im going to follow ur guide and see if it works before my sata pci card arrives.
Post by: myfranco on January 03, 2007, 02:51:00 AM
Post by: gam3r on January 03, 2007, 05:57:00 AM
QUOTE(myfranco @ Dec 25 2006, 03:30 AM)
To Flash a ms28 is almost same.The only difference is to turn off 360 before choosing your sata card (right after mtkflash command) and wait for 10 sec(which is known as 10 sec trick ,turn it on. Timing is important and you may try for a couple of times for right timing.You need a via 6421 sata card for ms28.
This is the easiest way i do all the time.I never used sam...exe or kdx .Simply these 2 applications makes me sure i have the
correct key and correct mtkflash chosen. If you find easier way don't hesitate to post.
I do not take any responsibility. Do it on your own risk.
I need some clarification on this bit. So your saying if you have a MS28 you need to do this:
do the mtkflash command
turn off the 360
select the via chipset
wait 10 seconds
turn the 360 on
that right?
Post by: dbldown768 on January 03, 2007, 07:59:00 AM
QUOTE(myfranco @ Jan 3 2007, 03:22 AM)
Connectivity kits cause trouble.Open the box is the best way.If yours is ms28 you can't flash without via6421
just to clarify for myself, do you hookup the 360 drive to the pc using the power supply from the 360 while connecting the SATA port to your pc. However you need crock clips to connect the 360 chassis to the pc chassis, correct?
Where to u get these clips? radio shack or something?
Post by: gam3r on January 03, 2007, 08:50:00 AM
QUOTE(dbldown768 @ Jan 3 2007, 03:06 PM)
just to clarify for myself, do you hookup the 360 drive to the pc using the power supply from the 360 while connecting the SATA port to your pc. However you need crock clips to connect the 360 chassis to the pc chassis, correct?
Where to u get these clips? radio shack or something?
I don't think croc clips are essential, they are just to ground the 360 and protect it from static charges. If your carful and don't touch anything inside apart from the drive, and place your 360 on a surface and not carpet you should be ok, atleast i think. Same applies with PC's..
Post by: DanUK on January 03, 2007, 09:37:00 AM
QUOTE(myfranco @ Dec 25 2006, 05:30 AM)
To Flash a ms28 is almost same.The only difference is to turn off 360 before choosing your sata card (right after mtkflash command) and wait for 10 sec(which is known as 10 sec trick ,turn it on. Timing is important and you may try for a couple of times for right timing.You need a via 6421 sata card for ms28.
well i was following another tutorial and it did not mention about the ms28 needing the 10 second trick. i was sitting at my pc for ages wondering what i was doing wrong, then i found this tutorial and those few lines quoted above sorted it out for me. I thank you for your time in writing the tutorial it helped me figure out what i was doing wrong
Post by: hiros on January 03, 2007, 10:42:00 AM
Perhaps you can help me with some advice...
My DVD is a Samsung ms28 loaded with X5.1D, have been flashing successfully using your 10sec trick with VIA6421.
Now, I was flashing the X5.2 update but the write process stopped on the 2nd block at 22% and since then I'm not able to do anything with the ms28. 10sec trick no longer works.
Hooked another ms28 to test and it works fine with 10sec trick so I believe the problem is a bad flashing in my 1st ms28.
Any idea what I can try next before going for external programming?
Thanks
Post by: penfolduk on January 03, 2007, 10:52:00 AM
now i just need to know now the firmware is a spoofed MS28 will i need to use the enable800 disc and the 10sec trick to reflash it in the future?
Post by: myfranco on January 03, 2007, 06:10:00 PM
@mc gusto i see your problem but it seems that you have ms28 if you're doing everything in order.You better open your box to see what exactly it is.
@gam3r
QUOTE
do the mtkflash command
turn off the 360
select the via chipset
wait 10 seconds
turn the 360 on
turn off the 360
select the via chipset
wait 10 seconds
turn the 360 on
you're right .However,you can try different timing like 2-3-5 sec.
@dbldown768
QUOTE
do you hookup the 360 drive to the pc using the power supply from the 360 while connecting the SATA port to your pc
yes, it's how i do.I'm using a simple via6421a sata card for it. I'm not using those crock clips because i have a long sata cable and 360 and pc don't touch each other.I'm using a thick book to put 360 on. You need to be careful about it.I empty everthing on my table(especially metal ones) and i don't touch 360 during the whole process.I only use power button to turn it on&off.
@hiros bad for you.I reflashed a samsung ms25 after the bad flash using nforce3 chipset. Does your dvd drive eject? if so you need to try enable0800 disc to reflash.If it doesn't eject and 10 sec trick doesn't work, it seems that your drive needs to be reprogrammed. If there is anybody knows how to do it for ms28 ,let us know.
@penfolduk your drive is physically ms25 so that you don't need 10 sec.However,for firmware above 4.0 you need to use enable0800 disc.
Post by: schex86 on January 03, 2007, 11:18:00 PM
I finally broke down and purchased a VIA 6421A chipset SATA controller card (PCI) on eBay for $20 (including shipping). The first time I tried the method mentioned in this thread it worked like a charm. Talk about some positive feedback!!!
One note, you need to use the 10 second trick with the MS28 everytime you want to detect it, including when you read the original firmware (to get the key). I don't think that was mentioned for that portion.
Anyway, I'm very pleased with the Toshiba MS28 now that its flashed. Its a little quiter than the Hitachi, and it does a much better job at detecting media. I had 3 or 4 backups that the Hitachi just would not recognize, the Toshiba has no problems with them.
Btw, I used Xtreme Boot Maker, USB boot, flashed Xtreme 52c (dual speed/default fast).
Post by: tantatium on January 03, 2007, 11:43:00 PM
Because there are lots of different ways?
2. And will it works on nVidia Nforce4 chipsets?
Post by: hiros on January 04, 2007, 11:43:00 AM
Just to let you know that I could finally recover my bad flashed ms28 today!
Symptom:
- Had a bad flash on my ms28 when flashing X52D
- Flashing stopped at bank2 22%...
- 10sec method was no longer working
- eject tray was not working
How I could fix:
- No special trick but just perseverance with the 10sec method using VIA6421 chipset SATA...
- The procedure used was the same as 10sec method, but changed the timing slightly
- It worked when I power on the xbox360 DVD and simultaneously hit the keyboard to select VIA6421 port
- Had to try many times (>20) to get it wok but it paid off
Good luck
Post by: myfranco on January 04, 2007, 03:42:00 PM
@tantatium Yes there are lots of different ways to flash ms25 and this is one of them.Nforce 4 chipset works fine with ms25 and you can use this system.
@Hiros thanks for sharing and good you made it worked.Simultaneous hitting is a good hint for those whose drives are bricked somehow.
Post by: mc gusto on January 04, 2007, 08:12:00 PM
With all the troubles ive been having, i thought, why not.
This is what happens:
this device is not compatible with mtkflash
I guess this verifies 100% that my m/b is not compatible?
BTW, its an asus p4c800d, which works for others.
Argh...Ill keep waiting for the card to show up...
Post by: apokalypse2k3 on January 04, 2007, 11:22:00 PM
Post by: myfranco on January 05, 2007, 04:38:00 AM
QUOTE(apokalypse2k3 @ Jan 5 2007, 07:53 AM)
I bought the pci via6421a sata card, I have the ms28 drive, but when I boot my pc to dos it doesn't recognize the pci card, does anybody knows how to fix this problem
Did you follow the tutorial? Did you setup drivers for via card ? You need to turn 360 on after booting into DOS.Did xtreme boot maker find your card ?
More detail please.
Post by: gacomeau on January 05, 2007, 09:52:00 AM
Post by: gam3r on January 05, 2007, 10:17:00 AM
QUOTE(gacomeau @ Jan 5 2007, 04:23 PM)
I think myfranco deserves a lot of credit and thanks. Not only for his excellent tutorial, but also for his patience and attentiveness in answering all these questions.
Agreed. Thanks myfranco.
Just bought my VIA card off the 'bay..Hope it comes quick..
Then i will use this tut.
Post by: apokalypse2k3 on January 05, 2007, 11:46:00 AM
QUOTE(myfranco @ Jan 5 2007, 03:45 AM)
Did you follow the tutorial? Did you setup drivers for via card ? You need to turn 360 on after booting into DOS.Did xtreme boot maker find your card ?
More detail please.
Xtreme boot maker recognized the card, but the problem is when I get to dos and turn on my 360 I wont recognized the card after I type the commands. But When I try with my onboard chip wich is a ICH5 it gets detected with dos but doesn't backup the original firmware
Post by: VerbatimDL24X on January 05, 2007, 12:38:00 PM
Post by: dulath on January 05, 2007, 02:17:00 PM
One question: Do I need to have the windows drivers for the card installed in windows in order to use Xtreme Bootmaker?
Post by: Reaper527 on January 05, 2007, 01:52:00 PM
Post by: gli7ch on January 05, 2007, 05:29:00 PM
Post by: scorpionking77 on January 05, 2007, 06:06:00 PM
Post by: gallie on January 05, 2007, 06:11:00 PM
This post has been edited by gallie: Jan 6 2007, 02:13 AM
Post by: mc gusto on January 05, 2007, 10:01:00 PM
when i run mtkflash, no drives are detected (disabled all drives/raid in asus p4c800d bios).
Arghh......i could pay$40 to get this modded, but what if i want to flash again?
Post by: Millenia1x on January 05, 2007, 10:23:00 PM
my board uses an integrated VIA sata chipset so i was able to m28 flash my drive without that card
Post by: gam3r on January 06, 2007, 04:29:00 AM
QUOTE(gli7ch @ Jan 6 2007, 12:00 AM)
I have successfully flashed my Sammy ms28 with Xtrem52b.bin, My drive will read originals, but not backups. Whenever I put one in, it says Reading, then goes to Open Tray. Could a simple re-flash help my problem with maybe Xtrem52a.bin or one of the others?
Are you sure the backup you made works?
Post by: ryrules1 on January 06, 2007, 11:28:00 AM
Post by: conners on January 06, 2007, 12:48:00 PM
Post by: dulath on January 06, 2007, 02:13:00 PM
Post by: conners on January 06, 2007, 03:11:00 PM
Post by: myfranco on January 07, 2007, 11:52:00 AM
@apokalypse2k3 Could you try a clean install of Xp and setup the drivers of sata card correctly? after that try plugging or unplugging an ide dvd drive into the secondary master.I believe these kind of problems are pc related.I haven't seen any incompatible 6421 cards for ms25&28.Follow the tutorial word by word and let's see what happens.If you can,try in another computer to see what's happening.
@dulath Yes plug the card and setup the drivers correctly.It's needed.
@gli7ch I believe it's fw related.Try downgrading to 4.2 .Most people solved their problems by up&downgrading their firmwares.
@scorpionking77 If the card is not setup correctly there are two optinos: either the card is causing some trouble or you need another computer.Try another computer and let's see if it's 6421 related or not.
@mc gusto could you give the correct model and version of the card -if possible- with a link?
@ryrules1 Is it raid one or just simple $10 card? If it's a raid one you should disable raid
@conners Did you try ENABLE0800 disc? That's what i can think of.
I was away for 2 days that is why i delayed for answers.
Post by: gallie on January 07, 2007, 12:38:00 PM
Post by: myfranco on January 07, 2007, 03:51:00 PM
Post by: Millenia1x on January 07, 2007, 05:16:00 PM
you have to turn on the 360 so its detected at dos
then you have to turn it off and from the second you press enter at the mtkflash read or write you need to start the 10 second countdown, if 10 seconds dosen't work then try 13
then turn the xbox back on and it will read and dump the orig.bin or you can flash if you need to
Post by: gexamb on January 07, 2007, 05:17:00 PM
Post by: majik655 on January 07, 2007, 08:56:00 PM
QUOTE(gexamb @ Jan 7 2007, 03:48 PM)
just wondering, how do u tell the difference between the ms25 and ms28 drives? i dont want to open up the xbox just yet, waiting for my sata card. is there really a difference or somthing different or easier i can do if it was ms25 or ms28? i have one more question, i have a asus p4p8003 deluxe mobo which has 4 sata ports. my raid is diabled in the bios and i open up xtrme boot maker and i have this wierd list of controllers in the the custom box. none of my sata controllers are listed except for a scsi controller and these random pci ide controller options. and the scsi controller is not compatable. how can i see of my sata ports are comptatible? i have the intel ich5R chipset. can i make this work or i need the via card? thanks in advance.
the only way to tell is to take the xbox apart and look on the sticker on top of the dvd drive with barcode on it.
and yes the ONLY way to flash the ms28 drive WITHOUT soldering/desoldering is to have the via chipset sata card (6421) otherwise you must do the vcc trick (removal of resistor install of switch) if you do this method I can help you with the steps once you do the soldering. If not wait for your sata card..and perform the 10 second trick.
Post by: gexamb on January 07, 2007, 10:49:00 PM
Post by: knil on January 07, 2007, 10:57:00 PM
Knil
Post by: KarlosB on January 08, 2007, 12:05:00 AM
hope this helps mate.just a small note for more info, after version 4? of xtreme, by default they used ms28 FW, with new xtreme
use the bat file with xtreme 5.2 and make sure you select ms25! (report as ms25 / option B ) this should make it work perfect, hope i helped you.
Post by: gexamb on January 08, 2007, 12:24:00 AM
QUOTE(gexamb @ Jan 7 2007, 09:20 PM)
thanks for the quick reply majik. well lets say i have the ms25 and i can use other sata chipsets. how can i find out if my sata is compatible with the drive? becuz my sata controller/chipset is not even detected in xtreme bootmaker in the first place. so can i do everything i need to following the tut and just find out if it works when i get in dos or do i really need the device id and the i/o info?
anyone?
Post by: KarlosB on January 08, 2007, 01:02:00 AM
Post by: apokalypse2k3 on January 08, 2007, 01:03:00 AM
Post by: knil on January 08, 2007, 12:56:00 AM
QUOTE(KarlosB @ Jan 8 2007, 07:36 AM)
i think this error means you flashed the drive with the wrong drive version, for example MS25 flashed to ms28, you need to make sure when you flash it, its flashed with ms25 compatability
hope this helps mate.just a small note for more info, after version 4? of xtreme, by default they used ms28 FW, with new xtreme
use the bat file with xtreme 5.2 and make sure you select ms25! (report as ms25 / option B ) this should make it work perfect, hope i helped you.
yep tried this and it worked perfectly Thanks alot KarlosB!
Post by: Millenia1x on January 08, 2007, 04:48:00 AM
QUOTE(gexamb @ Jan 8 2007, 06:20 AM)
thanks for the quick reply majik. well lets say i have the ms25 and i can use other sata chipsets. how can i find out if my sata is compatible with the drive? becuz my sata controller/chipset is not even detected in xtreme bootmaker in the first place. so can i do everything i need to following the tut and just find out if it works when i get in dos or do i really need the device id and the i/o info?
open the computer and find the sata controller
then do some research on it
but i don't see a point
you have scsi
buy the card
Post by: gexamb on January 08, 2007, 01:42:00 PM
update: just bought the card
http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=200065742164#ebayphotohosting
is it ok?
Post by: myfranco on January 09, 2007, 02:04:00 PM
Post by: Tortuga2112 on January 10, 2007, 03:19:00 PM
whenever I try to insert the FW , it keeps opening up to a FW folder with a bunch of bin files in it .
If I select one of the files , it says unknown firmware. anyone know where I went wrong?
Post by: Tortuga2112 on January 10, 2007, 03:12:00 PM
img 1
img 2
img 3
img 4
img 5
Post by: myfranco on January 10, 2007, 04:57:00 PM
Post by: Tortuga2112 on January 10, 2007, 04:57:00 PM
Post by: SimCox on January 11, 2007, 05:17:00 AM
when it comes to backing up the firmware
this is what im getting
please wait...
Drive Scaned:
1: XTREME Pri Master
2: XTREME Pri Slave
choose one drive:1
Port be00, Master/Slave: a0
then computer just freezes..
im using the following pci sata controller
Silicon Image SIL3512
anyone lend us a hand?
Post by: Tortuga2112 on January 11, 2007, 12:52:00 PM
here's where I screwed up. the tutorial said to replace the key. don't ask me why , but when I put in the key, I noticed a bunch of F's in the window. and I think I flashed that to my drive as the key.
"Close the Firmware Toolbox 2.0 and Reopen it.This time open floppy or usb stick\samsung\xtreme.bin and paste the key.You can hit "replace the key". To make sure, close and open firmware toolbox and xtreme.bin and see if your key is there.Simply put your xtreme.bin to the root of usb stick or floppy where mtkflash is located. Reboot PC. Boot into DOS and turn your 360 on. Type:
CODE " mtkflash w /m xtreme.bin"
and hit enter.Choose your sata card again and finished"
when I flashed the drive , all seemed to go well, but when it wouldn't play the games anymore , I went back over the steps I took. I tried replacing the key again, this time I'm sure I got it right.
however, when I try to flash the drive, I get this
screenshot
http://i46.photobuck...12/IMG_0100.jpg
I select #3 and it just hangs there. the first time I did it I immediately saw it counting the progress of the flash.
can someone tell me how to correct the situation?
I tried it again and the next time it only gave me two options
1.master
2.slave
I couldn't see the #3 .xtreme master option
help...
for some reason the link to the screenshot wasn't working so just copy and paste the url in.
Post by: Tortuga2112 on January 11, 2007, 02:05:00 PM
Post by: myfranco on January 12, 2007, 03:19:00 AM
@Tortuga2112 Why didn't you check your key? Those F's are not your key and i hope you didn't check your orig.bin and checked your hacked.bin . Try to open your orig.bin with fw toolbox and if you still see those F's i'm afraid you really screwed up.
If you flashed with fw 4.x and over you need to unlock the fw with enable0800 disc.Burn it to a dual layer(if it's 4.x) or single layer(if it's 5.x) connect your 360's sata to pc and put the disc and let it spin for 15 sec then take it out and go on with the flashing process.You can find enable0800.iso in the older fw folder(like 4.x or 3.x) .
Post by: Tortuga2112 on January 12, 2007, 11:09:00 AM
I got it worked out. fortunately I didn't overwrite the original FW. so I went back a step and re entered the key .
at first it wouldn't flash , but I flashed the original FW back ( used the 10 second method)and then I used the new 5.2 fw and it went smoothly .
I'm now trying to flash my friend's samsung , its an ms 28 FW drive. I've dumped the original fw , but when trying to flash the new fw to the drive , I keep getting "failed to open input file " .
I've tried different timing(10 sec, 11 ,12 ,13 etc.) but it doesn't seem to make a difference. I'm going to try another floppy and see if it works.
I don't understand why it read the original fw fine but can't flash the new one. from what I've been reading , the command or file name might be typed incorrectly or something. but I did the exact same procedure for the ms 25 , and for the dumping of the fw from the ms 28.
have you had this error before? the posts that I read from guys with the same problem sometimes changed their timing (10 sec ,11 etc.)to solve it but I doubt that's going to work here.
Post by: Tortuga2112 on January 12, 2007, 01:31:00 PM
did the ten second thing and it worked perfectly. not sure if it was the floppy , i suspect it was moving the xtreme.bin out of the samsung folder, though.
thanks franco.
Post by: 2001s4ny on January 12, 2007, 03:24:00 PM
Post by: myfranco on January 13, 2007, 03:25:00 AM
@2001s4ny if your sata chipset is compatible, there won't be any problem.
Post by: DarkRaven on January 13, 2007, 10:02:00 AM
Just flashed my first 360 without any problems using your guide.
Appreciate all your efforts you put in to writing it for us noobs!
Post by: zuul on January 13, 2007, 04:14:00 PM
Both have been done according to the instructions but for some reason my PC won't have it.
I set the pc to start from USB. Start the PC and the pendrive light comes on, I then get a message saying that the sata ports can't detect anything because I have disconnected everything until I get the dos screen to start flashing the drive. I hit F1 to continue with the pendrive, the pendrive light comes on, then goes off and nothing happens.
Using the NTFS4DOS cd, it starts to boot then comes up with a message which says UMB's unavailable........ invalid opcode at F118.................................. and that's the end of that.
I've tried the cd on my laptop and it runs fine but the laptop doesn't have a sata port so it's no good to me.
Has anybody come across this problem and if so, how did you overcome it. I've tried every possible way I can for the last 6 hours and I am still no closer to getting this done.
Thanks
Post by: myfranco on January 13, 2007, 06:16:00 PM
Post by: zuul on January 14, 2007, 06:30:00 AM
I've tried a different USB port and still no joy. I'm still puzzled about the ntfsdos cd not working. Does anyone know what this Invaldi Opcode message is. I've tried downloading different ntfsdos files and it does the same in each.
The disk works with my laptop but it has no sata ports. Could I buy a usb to sata cable?
Thanks
Post by: myfranco on January 14, 2007, 04:23:00 PM
Post by: Tortuga2112 on January 15, 2007, 05:40:00 AM
have you used the ntfsdos cd method? I'd like to use that instead of the floppy. I don't really trust the floppy.
and I don't see an option to boot from usb in my bios.
I just wanted to know if you had to do any hex editing if I used the ntfs cd.
or can I just run the cd and use samread and samhack and done?
Post by: myfranco on January 15, 2007, 01:20:00 PM
Post by: gam3r on January 15, 2007, 02:14:00 PM
QUOTE(myfranco @ Jan 15 2007, 07:51 PM)
Honestly speaking i've never used ntfs cd.I've used pen drive and it always worked fine.You can at least try to read the original firmware from floppy to see if it works.After that, you better use a quality disc to write the firmware.
Just a quick noob question, all i got is a 16MB pendrive. Is this suffiecient to carry out this process?
Post by: Mutilated on January 15, 2007, 02:15:00 PM
Port: 1f0, Master/Slave: a0
I have a MS25, VIA VT6421A card and flashing from 3.3
Ideas?
Post by: myfranco on January 15, 2007, 04:44:00 PM
@Mutilated The reason of this topic is extreme boot maker + firmware toolbox and mtkflash.I'm not using samread&samhack. Therefore,i can't help you about that. However,try turning 360 on after pc is booted into dos.
Post by: Mutilated on January 15, 2007, 05:04:00 PM
QUOTE(myfranco @ Jan 16 2007, 12:15 AM)
@Mutilated The reason of this topic is extreme boot maker + firmware toolbox and mtkflash.I'm not using samread&samhack. Therefore,i can't help you about that. However,try turning 360 on after pc is booted into dos.
You didnt read my post very good
I said i tried samread/samhack first but now im trying your way and all i get is:
Port: 1f0, Master/Slave: a0
Hope you can help, upgrading from 3.3 to 5.2b
Post by: Mutilated on January 16, 2007, 03:24:00 AM
Post by: myfranco on January 16, 2007, 04:54:00 PM
Post by: Albut35 on January 16, 2007, 06:54:00 PM
Post by: myfranco on January 17, 2007, 11:20:00 AM
Post by: Albut35 on January 17, 2007, 01:00:00 PM
QUOTE(myfranco @ Jan 17 2007, 12:51 PM)
It's a raid card.Better if you buy a non-raid ,it makes it easier.
Ok thanks, I heard that this one will do the job just fine http://www.newegg.co...N82E16815124022, it has a VIA VT6421L chipset and is non-RAID. I think I'll buy it tonight if you guys approve of it!
Post by: myfranco on January 17, 2007, 06:10:00 PM
BTW THOSE WHO HAVE PROBLEMS WITH VIA 6421 CARDS ,CHANGE YOUR PCI SLOTS AND GET ANOTHER SATA CABLE.IF POSSIBLE TAKE YOUR SOUND CARDS ,INTERNAL MODEMS , TV CARDS OFF TO AVOID THE CONFLICT.THAT WILL BE THE ANSWER FOR MOST PEOPLE.
Post by: Albut35 on January 17, 2007, 06:24:00 PM
QUOTE(myfranco @ Jan 17 2007, 07:41 PM)
You can buy it.You're good to go.
BTW THOSE WHO HAVE PROBLEMS WITH VIA 6421 CARDS ,CHANGE YOUR PCI SLOTS AND GET ANOTHER SATA CABLE.IF POSSIBLE TAKE YOUR SOUND CARDS ,INTERNAL MODEMS , TV CARDS OFF TO AVOID THE CONFLICT.THAT WILL BE THE ANSWER FOR MOST PEOPLE.
Alright. sweet, sounds good. Thanks for the help man!
Post by: xboxbman on January 18, 2007, 06:05:00 AM
Post by: ex-box on January 18, 2007, 02:27:00 PM
QUOTE(Albut35 @ Jan 17 2007, 09:07 PM)
Ok thanks, I heard that this one will do the job just fine http://www.newegg.co...N82E16815124022, it has a VIA VT6421L chipset and is non-RAID. I think I'll buy it tonight if you guys approve of it!
I just got another one from newegg today. It seams that after the 3 week back order and almost double the price price hike, I got a VT6421A chipset on it.
I have not tried it out yet, maybe tonight when i get home. has anyone else tried the VT6421A yet? (I am sure this has been asked 1000 times, I have not had time to research this yet, I am at work) I saw a guy on newwgg said it worked, I rather have that confirmed here.
Post by: myfranco on January 18, 2007, 04:57:00 PM
QUOTE
this tutorial worked perfect. Mods, add this to the tutorial section. It's simple, and works flawlessly!
Thanks it's already added to the tutorial section.
QUOTE
I just got another one from newegg today. It seams that after the 3 week back order and almost double the price price hike, I got a VT6421A chipset on it.
I have not tried it out yet, maybe tonight when i get home. has anyone else tried the VT6421A yet? (I am sure this has been asked 1000 times, I have not had time to research this yet, I am at work) I saw a guy on newwgg said it worked, I rather have that confirmed here.
I have not tried it out yet, maybe tonight when i get home. has anyone else tried the VT6421A yet? (I am sure this has been asked 1000 times, I have not had time to research this yet, I am at work) I saw a guy on newwgg said it worked, I rather have that confirmed here.
Many people including me use via 6421A card.It's good to go.
Post by: shpankey on January 19, 2007, 02:56:00 PM
you should really update it to add that. that cost me a couple hours research.
Post by: myfranco on January 19, 2007, 05:15:00 PM
QUOTE
To Flash a ms28 is almost same.The only difference is to turn off 360 before choosing your sata card (right after mtkflash command) and wait for 10 sec(which is known as 10 sec trick ,turn it on. Timing is important and you may try for a couple of times for right timing.You need a via 6421 sata card for ms28.
Already mentioned in the first post
Post by: shotgunsteve on January 19, 2007, 06:28:00 PM
Post by: ex-box on January 19, 2007, 08:16:00 PM
QUOTE(schex86 @ Jan 4 2007, 06:49 AM)
One note, you need to use the 10 second trick with the MS28 everytime you want to detect it, including when you read the original firmware (to get the key). I don't think that was mentioned for that portion.
glad You mentioned that, I was stuck untill i saw your post,
Edit:
QUOTE(shpankey @ Jan 19 2007, 10:27 PM)
this tut worked great except for one part where you missed the step about using the 10 second trick when dumping the original bin file.
you should really update it to add that. that cost me a couple hours research.
LOL now i see your post, yeah i wasted a few hours myself.
Post by: myfranco on January 20, 2007, 09:10:00 PM
QUOTE
is this chip set ok to flash with a ms25 drive? Intel® 82801FR SATA AHCI Controller
I'm not sure if your sata controller is compatible.Better to check it first or order a via6421 sata card.
Post by: shotgunsteve on January 20, 2007, 09:20:00 PM
Post by: myfranco on January 21, 2007, 06:54:00 AM
QUOTE
how do you check if it works?
Well you can search that in the forum,find the sata controller and see if another compatible mainboard is using it or you can try to flash to see it.I haven't used such a board and i don't know if it works or not.
Post by: dyb on January 22, 2007, 02:26:00 PM
edit : i have a ms25
Post by: gam3r on January 22, 2007, 02:43:00 PM
QUOTE(dyb @ Jan 22 2007, 08:57 PM)
i just hate my luck , so i followed it but when it scans for drives to make the orig.bin it only finds the USB drive , and nothing else, doing something wrong or am i just to unlucky? tryed on my intel p965 chipset and nforce4 chipset
edit : i have a ms25
you need to purchase a via vt6421a card.
Post by: myfranco on January 22, 2007, 07:33:00 PM
Post by: lavos on January 23, 2007, 07:32:00 PM
I can´t flash my drive or backup the firm cause drive no appear in list:
What I need to do?
Post by: myfranco on January 23, 2007, 08:21:00 PM
Did you setup latest mainboard drivers and updated your sata drivers?
Did you use 10 sec trick (write mtkflash command but not hit enter ,turn off 360,choose the option and wait around 10 sec -Between 4-10 - and turn 360 on)
Post by: lavos on January 24, 2007, 04:06:00 AM
)Sata drivers ok
The bios setup has a option called SATA BOOT ROM , and nothing more, no Sata ou raid mode
Should I put the option Sata Boot Rom Enabled ou Disabled?
I´m trying with boot maker 0.3.4 and no success , drive isn´t recognized, or not listed
The link to boot maker 0.3.6 is in maintenance
anyone can sends to me please?!
I´ll try again with boot maker 0.3.6 (if i find...lol )
Sorry my english, I´m brazilian
Post by: myfranco on January 24, 2007, 06:44:00 AM
http://konsolenprofis.de/downloads/download.php?id=1507
Follow my tutorial and don't forget 10 sec trick.
Take care.
Post by: lavos on January 24, 2007, 08:31:00 AM
I will translate your tutorial (with credits!) to portuguese
Post by: herbsman on January 24, 2007, 09:56:00 AM
worked a treat for me anyway
thankyou myfranco myhero
Post by: McDaniel on January 24, 2007, 10:07:00 AM
Purely because of teh detect IO button doesnt work throus MSINFO32 errors, and im not sure how to find out the range
Post by: Bravo1 on January 24, 2007, 11:35:00 AM
Unfortunately I don't remember how I was able to get it to work after a week of trial and error.
But I just upgraded my board to the A8N SLI Deluxe and it won't recognize my friends MS25.
It seems to hang after it gets to the Select XTREME Master or Slave.
I am using the USB method, using 5.2b, and made a new bootable drive using the Xtreme Boot Maker.
It selected my NForce 4 chipset correctly and formated the pen drive without any issues.
Here are the steps that I did...
1. Plugged 360 SATA into the SATA1 drive on the board. Nothing else is plugged into any SATA or IDE slots.
2. Started 360 and waited 15 seconds for it to fully boot.
3. Started PC and booted off USB drive.
4. At the prompt, typed in SAMREAD xxxxxxxx xxxxxx
5. Brings up screen to select either 1: XTREME PRI MASTER and 2: XTREME PRI SLAVE.
6. Select 1 since the MS25 is the only thing plugged into the system on the SATA1.
7. Stops right there and doesn't read the drive.
Any suggestions on what to do now?
Post by: myfranco on January 24, 2007, 01:22:00 PM
BTW Bravo1 you need to use enable0800 disc for firmwares 4.x or above.Just burn it into a DVD+R DL and plug 360's sata to pc,put the disc and wait for 15 sec and go on with the rest of the flashing.
4.x or above have firmware guard and you need to use enable0800 disc unless you don't have a via6421 sata card.
@Lavos just sent me the link in Portuguese
@Herbsman thank you.
Post by: Bravo1 on January 24, 2007, 02:10:00 PM
QUOTE(myfranco @ Jan 24 2007, 11:53 AM)
BTW Bravo1 you need to use enable0800 disc for firmwares 4.x or above.Just burn it into a DVD+R DL and plug 360's sata to pc,put the disc and wait for 15 sec and go on with the rest of the flashing.
4.x or above have firmware guard and you need to use enable0800 disc unless you don't have a via6421 sata card.
The MS25 drive is not flashed yet so I was trying to get the firmware so I can extract the key.
Would I still use the 0800 disc?
Thanks for all your help!
Post by: Chancer on January 24, 2007, 02:19:00 PM
The poster of this is trying to help people out here and doing a good job of it too. If I come across any more members being abusive towards people offering help either in this thread via PM or anywhere, they will immediately lose posting rights here.
The posts concerned have been removed and the Pm message has been acted on.
Please appreciate the time and effort people give helping others and if you are unable to understand how to do something be courteous in asking for help.
Thank you for helping others here myfranco, your efforts are appreciated
Post by: myfranco on January 24, 2007, 02:42:00 PM
@Bravo1 you were talking about two different Xboxes.Just misunderstood.
If you haven't flashed it before -as i believe nforce 4 chipset is compatible with ms25- i recommend you turning 360 on after your pc is done with booting.Try using hexedited mtkflash as i stated in my very first topic.
Read the first post carefully and double check if you have a good orig.bin with maximus firmware toolbox 2.0.
Let's see what happens.
Post by: Bravo1 on January 24, 2007, 02:57:00 PM
QUOTE(myfranco @ Jan 24 2007, 01:13 PM)
Thank you Chancer.It's very much appreciated.
@Bravo1 you were talking about two different Xboxes.Just misunderstood.
If you haven't flashed it before -as i believe nforce 4 chipset is compatible with ms25- i recommend you turning 360 on after your pc is done with booting.Try using hexedited mtkflash as i stated in my very first topic.
Read the first post carefully and double check if you have a good orig.bin with maximus firmware toolbox 2.0.
Let's see what happens.
Yes, it is another 360, not mine which I flashed fine.
Sounds good. I'll give it a try this evening when I get home. Cheers!
Post by: ex-box on January 24, 2007, 03:45:00 PM
QUOTE(rikitydj @ Jan 24 2007, 04:08 PM)
this tutorial doesnt work, jus tried it for ages, it rubbish.
It works fine, I have done 3 drives with it. It sounds like Your attitude is rubbish.
the only problem with the tutorial is the missing step of 10 seconds when you dump a ms28. and it is mentioned later if you read the replies.
Post by: d70 on January 24, 2007, 08:02:00 PM
1: Xtreme Pri Master
2: Xtreme Pri Slave
3: NV nForce3 Pri Master
4: NV nForce3 Pri Slave
No matter which one I choose it gets stuck at Port: 9f0, Master/Slave: a0. There is a 10 second waiting rule that I need to follow. Please advice. thanks.
I have an ECS nForce3-A with onboard SATA chipset.
Post by: gestahl on January 25, 2007, 07:00:00 AM
wasn't even expecting to get it to work today since it was a pci raid card , and couldn't be turned off but after some tweaking and stuff ended up working .
cheers
btw .. just saw ur post d70 , do you have a via pci sata card ? you won't be able to flash ur drive with the nforce chipset , cheers
Post by: moocher962 on January 25, 2007, 01:57:00 PM
You are doing a great job helping people out it seems. I was wondering if you could help me? Here is my setup:
xbox 360 premium, sata cable extension , samsung ms28, rosewill VT6421A with newest driver, raid disabled
I went by the 'textbook' turorial:
I used a usb stick formatted with the xtreme boot maker 3.6. Turned on PC, booted to dos. Powered on 360 and detected it. did the 10 second trick, and the flash went perfect. I used samread/samhack. Went perfectt. It then ran a program called Keycheck, to verify the hack.bin was patched with the key from orig.bin. Then It said something like "success, now remove sata, power cycle xbox and PC". So I did just that. I then connected back up my PC hard drive (using onboard sata), put in the activate.iso disc which i burned on a dual layer dvd+r, and let it spin for about 10 seconds. It starts to Scan Devices. Then I get an error!
HardWare Initiate failed, Please Check Device!!!
The bios does not be installed. Press <g> to continue!
If I press g, it does nothing. I tried to wait a shorter and longer lenth when booting, but same error. I'm assuming my hardware is setup fine, since it let me flash the drive. I'm just trying to get into windows so I can see the drive and start making a backup. Should I try the onboard SATA, (ich6 chipset), or maybe boot to windows and then hotplug the 360 after running activate.iso. Is there a difference between activate iso and xtreme0800.iso? Hope you can help out dude!!
Thanks a bunch
Post by: myfranco on January 25, 2007, 02:54:00 PM
QUOTE
So I did just that. I then connected back up my PC hard drive (using onboard sata), put in the activate.iso disc which i burned on a dual layer dvd+r, and let it spin for about 10 seconds. It starts to Scan Devices. Then I get an error!
I've never heard about activate.iso. You need enable0800.iso burnt into a Dual Layer Dvd+R.Put into the 360's drive, let it spin for 15sec then go on with flashing.
@d70 gestach is right.Just look up the previous posts where i gave the link for that card.
Post by: d70 on January 25, 2007, 07:38:00 PM
QUOTE(gestahl @ Jan 25 2007, 08:31 AM)
thanks franco , worked great
wasn't even expecting to get it to work today since it was a pci raid card , and couldn't be turned off but after some tweaking and stuff ended up working .
cheers
btw .. just saw ur post d70 , do you have a via pci sata card ? you won't be able to flash ur drive with the nforce chipset , cheers
So to flash a Samsung drive with ms28 firmware, I need to have a VIA VT6421L or A card period, correct? Tutorials always say compatible SATA chipsets and stuff and I thought my nForce 3 onboard SATA was compatible but turned out false. Can someobdy explain this?
Anyway, moving forward, I'm getting http://www.newegg.com/Product/Product.asp?Item=N82E16815124023 from Newegg. It's a raid card. gestahl, is this the card you have? If so, could you let me know you tweaked it to work? Thanks.
Post by: myfranco on January 26, 2007, 01:27:00 PM
QUOTE
So to flash a Samsung drive with ms28 firmware, I need to have a VIA VT6421L or A card period, correct? Tutorials always say compatible SATA chipsets and stuff and I thought my nForce 3 onboard SATA was compatible but turned out false. Can someobdy explain this?
Anyway, moving forward, I'm getting this card from Newegg. It's a raid card. gestahl, is this the card you have? If so, could you let me know you tweaked it to work? Thanks.
Anyway, moving forward, I'm getting this card from Newegg. It's a raid card. gestahl, is this the card you have? If so, could you let me know you tweaked it to work? Thanks.
Your sata controller is fully compatible with ms25 but not with ms28.The card you're buying is a raid card.It works with ms28 but you need to disable raid.I'm sure you can see how to disable raid in its manual.If you can find the same card without raid go for it.
Post by: Zlatan on January 27, 2007, 02:37:00 AM
I also saw somebody writing about RAID. Does the card have to have RAID, or should it be disabled if it exists?
Post by: BlackBurN on January 27, 2007, 09:34:00 AM
i can flash ms28 with motherboard w/ VIA chipset ?!
or only with thoses via 6421 pci cards ?!
thx
Post by: gaming fanboy on January 27, 2007, 10:57:00 AM
QUOTE(BlackBurN @ Jan 27 2007, 05:05 PM)
hi myfranco...
i can flash ms28 with motherboard w/ VIA chipset ?!
or only with thoses via 6421 pci cards ?!
thx
only way to find out is to try it, but i wouldnt worry it it dont work, i got my card for 30 dollar with overnight ship
Post by: BlackBurN on January 27, 2007, 11:15:00 AM
QUOTE(gaming fanboy @ Jan 27 2007, 06:28 PM)
only way to find out is to try it, but i wouldnt worry it it dont work, i got my card for 30 dollar with overnight ship
i agree, its so cheap a 6421 card...
but i am from south america......... here i cant find anywhere one pci card with this chipset via
Post by: myfranco on January 27, 2007, 02:32:00 PM
QUOTE
i agree, its so cheap a 6421 card...
but i am from south america......... here i cant find anywhere one pci card with this chipset via
but i am from south america......... here i cant find anywhere one pci card with this chipset via
You can order from ebay too.That's the easiest solution.You can check my previous posts.I gave a link to the card i bought.
Post by: lpezster on January 28, 2007, 12:18:00 PM
Would that MB work with MS25? It does say "Chipset Type VIA UniChrome Pro K8M800 / VIA VT8237R"
And that's VIA, but i am confused, any help would be apreciated.
edit: yea, and xtreme boot maker doesnt say sata, it just say VIA VT8237R RAID controller, and some other things.
Do i need another OS? Becouse i am running Vista, if thats any problem.
Post by: myfranco on January 28, 2007, 03:31:00 PM
Post by: lpezster on January 29, 2007, 06:09:00 AM
QUOTE(myfranco @ Jan 28 2007, 11:02 PM)
I haven't setup vista ,i have Xp.I don't know if it works with vista.However,that card -as far as i know- works with ms25. It's via8237 chipset which is compatible.You need to disable raid from bios menu though.
Thanks!
But scan I/o ports doesnt work, i guess that's vista fault. My main computer with SATA have Vista, i am gonna have to fix dualboot then, i'll get around to it soon.
Post by: DuBob4432 on January 29, 2007, 09:36:00 AM
QUOTE(Albut35 @ Jan 17 2007, 01:07 PM)
Ok thanks, I heard that this one will do the job just fine http://www.newegg.com/Product/Product.asp?Item=N82E16815124022, it has a VIA VT6421L chipset and is non-RAID. I think I'll buy it tonight if you guys approve of it!
a buddy of mine bought this card and got a raid one....
he says nowhere in the manual is any info about disabling raid.
should he just buy one from one of the ebay places over in the uk? since the egg seems to be sending out the raid version even though they are marked as non-raid, even the sticker says non-raid....
please advise
Post by: myfranco on January 29, 2007, 10:18:00 AM
QUOTE
a buddy of mine bought this card and got a raid one....
he says nowhere in the manual is any info about disabling raid.
should he just buy one from one of the ebay places over in the uk? since the egg seems to be sending out the raid version even though they are marked as non-raid, even the sticker says non-raid....
please advise
he says nowhere in the manual is any info about disabling raid.
should he just buy one from one of the ebay places over in the uk? since the egg seems to be sending out the raid version even though they are marked as non-raid, even the sticker says non-raid....
please advise
Has he tried it? If it works ,no need to buy a new one.I haven't used many of those 6421 cards since i bought from ebay the simpliest and cheapest one.That works fine.
Post by: DuBob4432 on January 29, 2007, 11:01:00 AM
QUOTE(myfranco @ Jan 29 2007, 09:49 AM)
Has he tried it? If it works ,no need to buy a new one.I haven't used many of those 6421 cards since i bought from ebay the simpliest and cheapest one.That works fine.
instead of risking it he is going to just buy one of the 6421 non raid cards from ebay...cheaper than replacing a 360 drive if it comes to that...
Post by: gestahl on January 29, 2007, 11:42:00 AM
I have a non raid and a raid card , flashed my 1st ms28 with the raid one and had no real trouble , other than having to switch pci port because it wasn't working on the original one and turning xbox on before the pc .
I just use a samsung dvd drive with kreon firmware to backup my games anyway .
I suggest your friend to try it , worst that can happen is it not recognizing the drive under dos and not be able to read the firmware , it won't damage it as per my experience .
Hope it helps , cheers
Post by: myfranco on January 29, 2007, 01:13:00 PM
Post by: Pikeyp on January 29, 2007, 01:30:00 PM
I need your help guys...
I have today used the textbook method and V5.2d FW (is this the best one to use?) to flash my Sammy MS25 drive everything seemed to go ok but i am getting a "please put this disc into an Xbox 360 Drive" error.
I still have the key safe so can anyone tell me what i am doing wrong or is it better to try it again with Myfranco's method or can i just use the orig.bin file and inject it in some other way?
If so do i need to do anything else as it is preflashed now with textbooks method?.
Your help would be much appreciated...
Thanks in advance....
Post by: myfranco on January 29, 2007, 05:54:00 PM
Post by: DuBob4432 on January 29, 2007, 09:53:00 PM
QUOTE(gestahl @ Jan 29 2007, 11:13 AM)
Hello dubob he shouldn't need to do it , only issue with it being a raid card is that you won't be able to get it working under windows , wich is not needed if he just wants to flash it , just install latest drivers and then proceed into dos just like a non raid card .
I have a non raid and a raid card , flashed my 1st ms28 with the raid one and had no real trouble , other than having to switch pci port because it wasn't working on the original one and turning xbox on before the pc .
I just use a samsung dvd drive with kreon firmware to backup my games anyway .
I suggest your friend to try it , worst that can happen is it not recognizing the drive under dos and not be able to read the firmware , it won't damage it as per my experience .
Hope it helps , cheers
i will convey the info but i think he ordered a 6421a card and a 6421l card, both non-raid. he got them cheap so it is not big deal, and he can use them in other computers anyway that he has (has a couple old machines that don't have sata on them and needed a card for them anyway since he doesn't want to buy pata hdds anymore). i set him up with one of the samsung/kreon odd i sell
Post by: Pikeyp on January 30, 2007, 04:37:00 AM
QUOTE(myfranco @ Jan 30 2007, 12:25 AM)
It seems that you haven't injected the key.You can use my method in the very first post.You need to use enable0800 disc to unlock firmguard
Hi Myfranco.
Thanks for your reply.
I have now tried again using the Enable/activate iso and have reflashed the drive using the textbook method again and extrem 5.2d
I have checked the key is in the Extrem firmware and it is but i am still getting the error "Please put this disc into a 360 to play" and i also get it using Xbox 1 originals too it says "please insert this disc into an xbox to play".
There is definately numbers and letters that the key is made up of but it looks like the drive is bricked to me but i don't know how....
If the drive is bricked would it still read the Enable disc?
If the key is incorrect and that is the only one i have is there any way to check it is right or recover it to the correct key or am i stuffed....
Your help is greatly appreciated....
Post by: Pikeyp on January 30, 2007, 10:31:00 AM
I forgot to mention that i checked both the original and the hacked firmware with toolbox v3 and this is what it displays...
Original.bin
[/img]Hacked.bin
Can anyone confirm that this is correct?
What is the Spoofed part?
Thanks.....
Post by: lpezster on January 30, 2007, 10:55:00 AM
Post by: Pikeyp on January 30, 2007, 12:11:00 PM
Sorry to push but is there anyone out there who can help me with my problem above.
I am pulling my hair out as to why it won't play anything in the drive?
Is it because it was already flashed?
If so do i need to reflash back to original sammy Firmware 1st (i unfortunately do not have a copy of this).
Then apply the Extreme?
Anyone know where i can get one from?( without posting a link of course).
Thanks.....
Post by: gestahl on January 30, 2007, 12:21:00 PM
Cheers
Post by: Pikeyp on January 30, 2007, 12:47:00 PM
I have Pm'd you back.
Does anyone think flashing back to original will sort it for me?
If so would i use textbooks method again?
Or another?
Thanks...
Post by: lpezster on January 30, 2007, 01:15:00 PM
Post by: mastfoe on January 30, 2007, 04:51:00 PM
Post by: myfranco on January 30, 2007, 06:09:00 PM
QUOTE
I flashed my sammy 28 with (samread and samhack) is there any thing wrong with that way of flashing because my drive doesn't want to show in windows so i cant rip anything. is that the problem>?
If your originals and backups play fine ,no problem.Your via card might be raid enabled which doesn't allow you to boot into windows.
Post by: mastfoe on January 30, 2007, 11:08:00 PM
QUOTE(myfranco @ Jan 31 2007, 01:40 AM)
If your originals and backups play fine ,no problem.Your via card might be raid enabled which doesn't allow you to boot into windows.
What sata card will work? my pc has onboard sata that doesn't read the drive correctly it was giving me a (xtreme sec slave but with my via pci card it would read correctly (xtreme pri mstr) then i was able to flash. but using ether onboard or pci sata i get no window play. is there a way around that please help thanks. my originals play fine i havn't got a chance to make a backup yet .
Post by: DuBob4432 on January 31, 2007, 12:29:00 AM
QUOTE(mastfoe @ Jan 30 2007, 10:39 PM)
What sata card will work? my pc has onboard sata that doesn't read the drive correctly it was giving me a (xtreme sec slave but with my via pci card it would read correctly (xtreme pri mstr) then i was able to flash. but using ether onboard or pci sata i get no window play. is there a way around that please help thanks. my originals play fine i havn't got a chance to make a backup yet .
pick up one of the samsung flashed sh-d162c/d163a drives for the pc
Post by: mastfoe on January 31, 2007, 03:13:00 AM
Post by: Pikeyp on January 31, 2007, 03:25:00 AM
regards...
Post by: DuBob4432 on January 31, 2007, 10:29:00 AM
QUOTE(mastfoe @ Jan 31 2007, 02:44 AM)
where can i pick up one of those drives samsung sh-d162c/d163a
i sell them, should have some of the black sh-d162c in today or tomorrow - $55 shipped to the lower 48 flashed and tested
they work excellent!!! with xbc it is so easy
Post by: gestahl on January 31, 2007, 11:15:00 AM
Post by: DuBob4432 on January 31, 2007, 12:04:00 PM
QUOTE(gestahl @ Jan 31 2007, 10:46 AM)
wow i bought mine for 17$ , where are u from ? i saw them cheap both in portugal and spain , think the spanish site ships worldwide , not sure
US....and some of the places oversees that my buddies have used don't do the best packaging that lead to bad drives, thus i found a place that ships very well, and then i flash them and test every drive to verify it can rip one of my orginals.
Post by: myfranco on January 31, 2007, 05:11:00 PM
Post by: DuBob4432 on January 31, 2007, 09:47:00 PM
QUOTE(myfranco @ Jan 31 2007, 04:42 PM)
Ok guys stop advertising
not advertising, just answering a question
Post by: gestahl on January 31, 2007, 11:44:00 PM
Post by: myfranco on February 02, 2007, 04:06:00 AM
TURN 360 ON AFTER YOU BOOT INTO DOS.THAT'S THE COMMON PROBLEM.
Post by: gestahl on February 02, 2007, 11:32:00 AM
guess if it's not working ppl should try both ways
Post by: powaking on February 02, 2007, 12:09:00 PM
- Boot into DOS
- Turn on the Xbox
- Run the MTK command
- Once you see your drive (Xtreme) in the list TURN OFF the XBox
- Select Xtreme and then immediately TURN ON the xbox
- Dumping/Flashing should start immediately
Post by: myfranco on February 02, 2007, 04:49:00 PM
Post by: oldhack on February 03, 2007, 11:09:00 PM
QUOTE(Millenia1x @ Jan 7 2007, 04:47 PM)
i bet everyone who can't flash with a ms28 and has a via chipset isn't doing the 10 sec trick correctly
you have to turn on the 360 so its detected at dos
then you have to turn it off and from the second you press enter at the mtkflash read or write you need to start the 10 second countdown, if 10 seconds dosen't work then try 13
then turn the xbox back on and it will read and dump the orig.bin or you can flash if you need to
Do you mean a via chipset on-board or a PCI card with via chipset? Many people in this thread are claiming that you can not flash the ms28 without buying the VIA 6421 PCI card. I'd like to know if you were successful using an on-board via sata chipset for flashing the ms28 and what version of the via chipset you have.
Post by: CrazyAmericans on February 04, 2007, 12:07:00 AM
Post by: myfranco on February 04, 2007, 05:07:00 AM
QUOTE
Myfranco, I have gone by your TUT for the samsung and all I gotta say is THANKS, by far the simplest tut ever! Ever have had a problem with a 360 FW so far, only question do you have a TUT on the other drives as well? hehe, alright thanks alot!
Thank you.Hitachi drives are easy to flash and there are tutorials about it.I prefer to not touch it for a while.
Post by: myfranco on February 06, 2007, 07:41:00 PM
QUOTE
Do you mean a via chipset on-board or a PCI card with via chipset? Many people in this thread are claiming that you can not flash the ms28 without buying the VIA 6421 PCI card. I'd like to know if you were successful using an on-board via sata chipset for flashing the ms28 and what version of the via chipset you have.
As far as i know, via 8237 can be used to flash ms28.
Post by: Iggy_NOR on February 10, 2007, 04:08:00 AM
Post by: RamboULW on February 10, 2007, 05:53:00 AM
Post by: renyer on February 10, 2007, 05:58:00 PM
Flashed OK, but when I put a DVD on X360 a message of error shows: Please put this DVD into a XBOX 360.
What I did wrong?
If I back to original firmware the problem will be solved?
Thanks.
Post by: Hyprkookeez on February 10, 2007, 09:23:00 PM
I get to mtkflash okay, and the 28 drive is detected okay, but as soon as i type mtkflash r /m and choose the right one, it doesn't do anything.
I've tried with a connectivety kit and through the regular xbox.
Will i have to invest in a Via sata card?
Post by: typan on February 10, 2007, 09:28:00 PM
Post by: Gateway0 on February 11, 2007, 09:38:00 AM
Can Someone help ME???
thanks
Post by: myfranco on February 11, 2007, 05:48:00 PM
QUOTE
just wanted to say thanks for this tutorial, i salute you
QUOTE
First time flashing an XBOX360, and i decided to go by your tutorial. It worked a charm =) No problems what so ever.
Glad to see them working.
QUOTE
Problem with my MS25. sad.gif
Flashed OK, but when I put a DVD on X360 a message of error shows: Please put this DVD into a XBOX 360. sad.gif
What I did wrong? sad.gif
If I back to original firmware the problem will be solved?
Thanks.
Flashed OK, but when I put a DVD on X360 a message of error shows: Please put this DVD into a XBOX 360. sad.gif
What I did wrong? sad.gif
If I back to original firmware the problem will be solved?
Thanks.
You forgot to copy your key.Copy your key from your orig.bin to xtreme.bin and reflash with xtreme.bin.If you get confused ,follow my first post on this topic.
QUOTE
I've got some troubles with Nforce 430/410 Chipset.
I get to mtkflash okay, and the 28 drive is detected okay, but as soon as i type mtkflash r /m and choose the right one, it doesn't do anything.
I've tried with a connectivety kit and through the regular xbox.
Will i have to invest in a Via sata card?
I get to mtkflash okay, and the 28 drive is detected okay, but as soon as i type mtkflash r /m and choose the right one, it doesn't do anything.
I've tried with a connectivety kit and through the regular xbox.
Will i have to invest in a Via sata card?
No you don't have to.I'm the wholesaler of via sata controllers and trying to sell them here.
Why would i insist otherwise?
QUOTE
Hi to all, been reading this "to Flash Ms25&ms28" and I would like to add I have no problems flushing MS25 or MS28 with my onboard Intel ICH5 SATA chipset but require to do the 10 sec trick when it comes to the MS28 drives. One thing I would like to know, how do you reflush a MS28 drive back to the original FW?
First of all,you need via cards.Read these posts carefully and you'll see plenty of links to vendors.
QUOTE
Hi every one. I have a problem with my orig.bin file, I have a MS25 drive and when i extracted the orig.bin file from the drive into a floppy and opened Maximus Firmware Toolbox 2.0 it show me an error "Firmware version NOT SUPPORTED or not a valid firmware file" what can that be?
Can Someone help ME???
thanks
Can Someone help ME???
thanks
Replied to your P.M.
Post by: myfranco on February 12, 2007, 03:50:00 PM
Post by: fulltimes420 on February 13, 2007, 07:12:00 PM
QUOTE
Hi to all, been reading this "to Flash Ms25&ms28" and I would like to add I have no problems flushing MS25 or MS28 with my onboard Intel ICH5 SATA chipset but require to do the 10 sec trick when it comes to the MS28 drives. One thing I would like to know, how do you reflush a MS28 drive back to the original FW?
First of all,you need via cards.Read these posts carefully and you'll see plenty of links to vendors.
--
I think you misread what this dude wrote.. he is saying he flashed a ms28 using his onboard sata controller, which is not a VIA card. Or are you saying that in order to flash it back to original, you need the VIA card?
This excites me cause I have the same sata chipset and was just about to buy a card. I will try my roommates ms28 with my ICH5 chipset and 10 second rule and post up my results (or is this old news?)
ps, Thank you a ton for the tutorial, it is simple and works great.
Post by: (>Stormy<) on February 13, 2007, 09:12:00 PM
I am using the recommended newegg VIA controller card. I am attached to the 2nd SATA port to the Xbox360 DVD (Samsung MS-28).
Boot into DOS after relevant steps.
Turn on Xbox360 with SATA connected to drive. Type the mtkflash r /m orig.bin. Presented with this:
please wait...
Drive Scaned:
1: XTREME Pri Master
choose one drive:
Now if I hit "1" this happens-
1: XTREME Pri Master
choose one drive: Drive Scaned:
1: XTREME Pri Master
choose one drive: 0Drive Scaned
and no matter what I do that happens forever until I hit ESC key and return to prompt. I also just didn't turn on the Xbox360 at all and of course this same thing happened which makes me think the VIA isn't seeing the drive at all. Please advise.
Post by: (>Stormy<) on February 13, 2007, 09:46:00 PM
QUOTE((>Stormy<) @ Feb 14 2007, 04:43 AM)
I require assistance. Thanks.
I am using the recommended newegg VIA controller card. I am attached to the 2nd SATA port to the Xbox360 DVD (Samsung MS-28).
Boot into DOS after relevant steps.
Turn on Xbox360 with SATA connected to drive. Type the mtkflash r /m orig.bin. Presented with this:
please wait...
Drive Scaned:
1: XTREME Pri Master
choose one drive:
Now if I hit "1" this happens-
1: XTREME Pri Master
choose one drive: Drive Scaned:
1: XTREME Pri Master
choose one drive: 0Drive Scaned
and no matter what I do that happens forever until I hit ESC key and return to prompt. I also just didn't turn on the Xbox360 at all and of course this same thing happened which makes me think the VIA isn't seeing the drive at all. Please advise.
Holy crap. I figured it out. NUMLOCK YOU MOTHER!@#$%^!
Post by: tension on February 14, 2007, 05:28:00 AM
I know my drive is a Samsung but I havn't opened it up yet so I don't know if its a MS25 or MS28.
I took a screenshot of Xtreme Boot Maker and I was wondering since my onboard SATA has been detected if it would work with a MS28 drive ? If not I will go and buy a VIA card.
Note that I am using Xtreme Boot Maker v0.5.0.0 because I tried V0.3.6.14220 and when I try to load the firmware it wouldn't load and I get an "unknown firmware" error.
Also one last noobie question, which option of the Xtreme Firmware is most common ? A,B,C or D ? From reading Textbook's PDF file I would of went with option A but from what I've been reading options B and C seem more common.
Post by: myfranco on February 14, 2007, 06:41:00 PM
@tension 0.36 is giving that error,there is nothing to worry. I believe ichx are good to go if it's ms25.
Post by: tension on February 15, 2007, 12:27:00 AM
I followed the intructions from this guide word for word (I have a MS25) and it works perfectly first go!
Post by: November on February 17, 2007, 03:00:00 PM
After following the instructions to make the disc it comes time to boot to DOS. I restart, have my system off and boot w the floppy. It goes like this:
Starting Windows 98...
Please choose an interpreter(ie C:\WINDOWS\Command.com
I'm aware it's on the floppy but it's not picking it up for some reason...
I'm not sure exactly what to do from here.... Any suggestions please?
If you're curious if I followed the bootfloppy making instructions I have. It's not hard to click some checks and select the same visuals in the drop downs listed.
Nic
-ciao
Post by: cesium on February 18, 2007, 03:19:00 PM
Post by: myfranco on February 18, 2007, 07:02:00 PM
Post by: xXBigDaddyXx18 on February 18, 2007, 09:38:00 PM
http://imageshack.us
http://imageshack.us
Is there a way to fix this?
Post by: scrano on February 19, 2007, 12:25:00 AM
Post by: myfranco on February 19, 2007, 06:07:00 AM
Post by: xXBigDaddyXx18 on February 19, 2007, 10:12:00 PM
What dose it mean? It got the ORIG.bin off perfectly.
Post by: xXBigDaddyXx18 on February 20, 2007, 07:55:00 AM
Post by: myfranco on February 20, 2007, 07:58:00 AM
--Boot into dos with 360 on.
--Type mtkflash w /m xtreme.bin BUT be sure that xtreme.bin and mtkflash.exe are in the same folder.Normally,xtreme boot maker puts xtreme.bin into the samsung folder.That's why,you're getting unable to open input file because xtreme.bin is not there
Either copy xtreme.bin into the root or type:mtkflash w /m samsung\xtreme.bin .That will point the file.
--After mtkflash command turn 360 off.Choose xtreme primary master or whatever the option is ,wait around 10 sec (or try different timing if it doesn't work such as 5-8 sec) then turn 360 on. That must work.
Post by: xXBigDaddyXx18 on February 20, 2007, 11:37:00 AM
Post by: DuBob4432 on February 20, 2007, 11:49:00 PM
shouldn't i be seeing the via chipset in the options? i have read pretty much this whole tutorial but i may have missed something.
i have tried 2 known working 6421A cards, both ports and at this point this is where i am at. i have xtreme boot maker 3.6.x and am going to be flashing to 5.2d. hopefully.
i have unplugged all other drives on this machine and still get the same results. i have followed the many videos correctly with starting the 360 when i see the dos prompt or even right as i start up the machine with the exact same results.
i tried to try it on another machine but errored out when looking for the i/o addresses, and yes i have the most current versions of .net (both 1.1 and 2.x) and have tried it running both win2kpro and xp pro.
any light shared would be greatly appreciated
Post by: DuBob4432 on February 21, 2007, 01:14:00 AM
QUOTE(DuBob4432 @ Feb 20 2007, 11:20 PM)
just a quick question, after setting it all up and booting from the usb device, i get the choices of ide pri slave, ide sec master and xtreme pri master.
shouldn't i be seeing the via chipset in the options? i have read pretty much this whole tutorial but i may have missed something.
i have tried 2 known working 6421A cards, both ports and at this point this is where i am at. i have xtreme boot maker 3.6.x and am going to be flashing to 5.2d. hopefully.
i have unplugged all other drives on this machine and still get the same results. i have followed the many videos correctly with starting the 360 when i see the dos prompt or even right as i start up the machine with the exact same results.
i tried to try it on another machine but errored out when looking for the i/o addresses, and yes i have the most current versions of .net (both 1.1 and 2.x) and have tried it running both win2kpro and xp pro.
any light shared would be greatly appreciated
UPDATE - just to see what would happen i selected the XTREME pri master option and low and behold it worked (actually i had a floppy in the drive for testing and i hit the 3 and it started to read the firmware without the 10sec trick, it just read it to my surprise, then i did it the "correct" way with a usb drive - don't want to flash from a floppy if i don't have too. i also used the /sata switch too just to make sure. i don't know if i missed this in all the reading but am glad i tried it out. and i have tested it to work with both backups and orginals, both of which seem to boot at the same speed
i really hope this helps somebody out as it took me nearly 3hrs to figure it out....
Post by: myfranco on February 21, 2007, 06:18:00 AM
QUOTE
i get the choices of ide pri slave, ide sec master and xtreme pri master.
Good you made it worked. xtreme pri master is the sata controller where 360 is plugged.Anyway,you figured that out No prob
Post by: DuBob4432 on February 21, 2007, 07:13:00 AM
QUOTE(myfranco @ Feb 21 2007, 05:49 AM)
Good you made it worked. xtreme pri master is the sata controller where 360 is plugged.Anyway,you figured that out No prob
myfranco - do you think you could ask the mods to add that part in about the xtreme pri master as i was looking for the card itself - as in 6421 or something to that effect like i have seen on the videos....being that i do have access to 4 running machines (3 desktops and a laptop that had the videos and this tut on it
) here and have 3 cards i was able to test it out, but somebody who only has 1 machine may find that since it is not showing up as their 6421 card they are screwed. on my very first try i saw the xtreme pri master but went ahead with hours of trying to figure out how i could get it to say the actual 6421 card, or any chipset for that matter. i thouhg it had to do with the fact that my main rig has 15k scsi hdds, along with ide hdds and optical drives....and i was plugging/unplugging stuff for quite some time. so instead of 5mins, it was many hours....just a thought
Post by: sandwichman on February 21, 2007, 03:45:00 PM
i tried flashing my ms25 yesterday to no avail :-(.
i have a nforce4 chipset and i tried using the x360sam method but the weird thing was it couldn't detect my drive while in Dos
i thought nforce4 chipsets were compatible, i followed textbook's tutorial BTW
if i were to use this tut instead will it make a difference?
please help:-)
Post by: myfranco on February 21, 2007, 05:34:00 PM
QUOTE
hi,
i tried flashing my ms25 yesterday to no avail :-(.
i have a nforce4 chipset and i tried using the x360sam method but the weird thing was it couldn't detect my drive while in Dos
i thought nforce4 chipsets were compatible, i followed textbook's tutorial BTW
if i were to use this tut instead will it make a difference?
please help:-)
i tried flashing my ms25 yesterday to no avail :-(.
i have a nforce4 chipset and i tried using the x360sam method but the weird thing was it couldn't detect my drive while in Dos
i thought nforce4 chipsets were compatible, i followed textbook's tutorial BTW
if i were to use this tut instead will it make a difference?
please help:-)
It will take 5 minutes or yours.It's worth to try
@DuBob4432 i have plenty of things to add to my first post.I need a couple of hours to put them together and i'll ask for it from Mods.
Post by: sandwichman on February 22, 2007, 05:17:00 AM
QUOTE(myfranco @ Feb 22 2007, 12:05 AM)
It will take 5 minutes or yours.It's worth to try
hi, should i remove x360sam from my fashdrive before i boot
thanks for the reply btw
Post by: myfranco on February 22, 2007, 01:26:00 PM
Post by: sandwichman on February 22, 2007, 04:55:00 PM
flashed it,thanks for the help and great TUT....really easy to follow
Post by: Grav87 on February 22, 2007, 05:32:00 PM
I ordered a rosewill card from newegg that should arrive in a few days, but I want to know if the unresponsiveness is due to the wrong chipset or something else.
Post by: DuBob4432 on February 22, 2007, 07:17:00 PM
QUOTE(Grav87 @ Feb 22 2007, 05:03 PM)
OK I had some definate crap happen to me at every turn of trying to flash my ms28. Short version is that I got to the prompt via NTFS4DOS, put in the command "mtkflash r /m orig.bat" after guiding the system to my thumbdrive where the files were located. Unfortunately as soon as the menu came up and I was about to select my sata port, nothing i pressed on teh keybpard registered. I am using Nforce 4 onboard sata, so it probably wouldn't have worked anyway, but is that what is supposed to happen if its not the VIA chipset?
I ordered a rosewill card from newegg that should arrive in a few days, but I want to know if the unresponsiveness is due to the wrong chipset or something else.
hell, when i was messing around with mine, if i didn't have it on the correct connector nothing would show up and it was on a 6421A card, hope this helps
Post by: Grav87 on February 22, 2007, 07:25:00 PM
QUOTE(DuBob4432 @ Feb 22 2007, 08:48 PM)
hell, when i was messing around with mine, if i didn't have it on the correct connector nothing would show up and it was on a 6421A card, hope this helps
Well I had it connected to what was labelled as SATA1 on my motherboard, so I dunno.
Post by: DuBob4432 on February 22, 2007, 09:19:00 PM
QUOTE(Grav87 @ Feb 22 2007, 06:56 PM)
Well I had it connected to what was labelled as SATA1 on my motherboard, so I dunno.
i don't have the hardware you do so i may be way off, and hopefully others will more experience chime in, but shuoldn't you be reading it to orig.bin and not orig.bat? again, i could be wrong but something to ponder, hopefully myfranco will help us out
Post by: Grav87 on February 22, 2007, 09:30:00 PM
QUOTE(DuBob4432 @ Feb 22 2007, 10:50 PM)
i don't have the hardware you do so i may be way off, and hopefully others will more experience chime in, but shuoldn't you be reading it to orig.bin and not orig.bat? again, i could be wrong but something to ponder, hopefully myfranco will help us out
Yeah, I used orig.bin, I just wasn't paying attention when posting that. Yeah, hopefully somebody will chime iun on this before my new SATA card arrives in the next few days so I'll know exactly what to do.
Post by: kreeeee on February 23, 2007, 03:00:00 PM
MS28 by the way.
Post by: myfranco on February 23, 2007, 08:22:00 PM
QUOTE
I always get the error code 80 when I try to do it with either floppy or USB and with a VIA6421A chipset PCI card. Any ideas?
MS28 by the way.
MS28 by the way.
Have you tried 10 sec trick.If not ,i recommend you to read previous posts and get a database for yorself for known problems.
Post by: PlayStation3Br on February 23, 2007, 09:23:00 PM
I remove the power cable of all other devices, IDE DVD, IDE HD, and using only the PCI to SATA to connect the Xbox 360 drive to PC, and using MTKFLASH R /M ORIG.BIN , i see the message, NO DRIVES DETECTED.-
I not pass the first stage of Hacking this MS28. I using the same adaptor and motherboard (ASUS A7N8X Deluxe) to Hacking a Hitachi, with sucessful.
Help man's.
Post by: slayerspud on February 24, 2007, 03:29:00 AM
A few questions though, how do i set my pc to boot from USB?
And will this method work if i follow it exactly but use the 10second trick.
Finally is this the card i want http://cgi.ebay.co.uk/ws/eBayISAPI.dll?ViewItem&item=170079011226 and is this the dvd burner i want, http://www.microdirect.co.uk/Productinfo.aspx?ProductID=13028
Post by: DuBob4432 on February 24, 2007, 08:19:00 AM
QUOTE(slayerspud @ Feb 24 2007, 03:00 AM)
Nice tutorial, i will be following it to flash my MS28.
A few questions though, how do i set my pc to boot from USB?
And will this method work if i follow it exactly but use the 10second trick.
Finally is this the card i want http://cgi.ebay.co.uk/ws/eBayISAPI.dll?ViewItem&item=170079011226 and is this the dvd burner i want, http://www.microdirect.co.uk/Productinfo.aspx?ProductID=13028
yes, it says it in the tut to how to do the ms28 - just a bit further down. and that card should work - don't let them fool you - the 6421A card is not rare, it is the new chipset replacing the 6421L card (just an fyi) and you could probably get one cheaper since it is in british pounds ( i can't remember where you are from) so the syba from newegg wouuld work fine.
getting your computer to bott via the usb will be somewhere in the bios - like boot from other device, boot from removeable media, etc. definately make the usb drive first and give it a go so that when your stuff gets there you know how to boot via floppy.
also, when i did my 28 the option to boot from a particualar chipset wasn't an option once booted from the 360 - mine said boot from xtreme pri master, so another fyi
Post by: MastaZ on February 24, 2007, 11:58:00 AM
And it says "the device is not compatible with mtkflash" when i try Dectect ID with xtreme boot maker, but i prepared the bootdisk without doing selecting a motherboard, Is it possible to do so?
Post by: myfranco on February 25, 2007, 02:02:00 PM
QUOTE
I using a PCI to SATA adaptor, and my drive not is detected.
I remove the power cable of all other devices, IDE DVD, IDE HD, and using only the PCI to SATA to connect the Xbox 360 drive to PC, and using MTKFLASH R /M ORIG.BIN , i see the message, NO DRIVES DETECTED.-
I not pass the first stage of Hacking this MS28. I using the same adaptor and motherboard (ASUS A7N8X Deluxe) to Hacking a Hitachi, with sucessful.
Help man's.
I remove the power cable of all other devices, IDE DVD, IDE HD, and using only the PCI to SATA to connect the Xbox 360 drive to PC, and using MTKFLASH R /M ORIG.BIN , i see the message, NO DRIVES DETECTED.-
I not pass the first stage of Hacking this MS28. I using the same adaptor and motherboard (ASUS A7N8X Deluxe) to Hacking a Hitachi, with sucessful.
Help man's.
If you have a ms28 you should certainly buy a via6421 card.Read the previous posts you will find lots of info.
QUOTE
Nice tutorial, i will be following it to flash my MS28.
A few questions though, how do i set my pc to boot from USB?
And will this method work if i follow it exactly but use the 10second trick.
Finally is this the card i want Ebay and is this the dvd burner i want, Dvd burner
A few questions though, how do i set my pc to boot from USB?
And will this method work if i follow it exactly but use the 10second trick.
Finally is this the card i want Ebay and is this the dvd burner i want, Dvd burner
It's really overpriced.They are just advertising the card more than what it is.Buy a simple via6421 card and you'll be fine.
QUOTE
i got a Samsung MS25 but when i try to add the .bin file on 360 firmware toolbox it says "firmware version not supported or not a valid firmware file" anyone knows why ? :S
And it says "the device is not compatible with mtkflash" when i try Dectect ID with xtreme boot maker, but i prepared the bootdisk without doing selecting a motherboard, Is it possible to do so?
And it says "the device is not compatible with mtkflash" when i try Dectect ID with xtreme boot maker, but i prepared the bootdisk without doing selecting a motherboard, Is it possible to do so?
"Firmware version not supported" is not an error.It's because that firmware (probably 5.2) is not in its own database.
"the device is not compatible with mtkflash" is an error.It seems that your drivers are not up to date.You better download the latest drivers for your motherboard.
Post by: zenkiS14 on February 26, 2007, 07:06:00 PM
Post by: Fatsu on February 27, 2007, 03:19:00 AM
i am so frustrated..
Tried with two motherboards, one asus k8s-la salmon with a sis 964 chipset which has native support with mktflash..no go after running the command, it would hang there and I get 00 should be 70. After finding the supported guide it said does not work on sata 1 and 2 use 3 and 4. instead.well i only have two ports...decided to move on
So tried on motherboard #2 which is MSI K8N NEO3-F NFORCE4. the drive shows up in bios.. Disconnected ./disabled all ide channels drive hooked up to sata 1. followed the guide used xtreme boot maker 3.6.14220
chipset : NVIDIA nForce4 Serial ATA Controller
Device Id: 10DE0054 I/O port : 09F00970
Same error it just hangs doing nothing, get "error 00 should be 70". i am stumped and out of ideas I tried diffrent timing, waiting 20 seconds even a minute etc etc. Throwing in the towel for today..
it wil not read the firmware! Any solutions with getting these chipsets to work? (other than buying another card and vcc)
Post by: myfranco on February 27, 2007, 03:56:00 AM
QUOTE
dvd drive ts-h943, h/w : 007, ver: A, f/w=ms28
it wil not read the firmware! Any solutions with getting these chipsets to work? (other than buying another card and vcc)
it wil not read the firmware! Any solutions with getting these chipsets to work? (other than buying another card and vcc)
No way.You have to buy via 6421 sata card or a motherboard with via8237 or vcc trick.
Post by: twistedangel on February 27, 2007, 06:37:00 AM
I'm hoping you can help me.
I have a ms25 drive. My mobo is a gigabyte 81945p pro which I believe is ICH7? In extreme boot maker the only option whcih it will fill in the fields for without error is ITE IT8212 ATA RAID Controller. Hopefully that is my sata?
after booting, I can see that my mobo is recognising the drive when it does the ide scans etc..but after typing mtkflash r /m orig.bin the prog hangs and doesnt appear to be finding the drive.
Any suggestions?
Post by: Fatsu on February 27, 2007, 09:38:00 AM
QUOTE(myfranco @ Feb 27 2007, 11:27 AM)
No way.You have to buy via 6421 sata card or a motherboard with via8237 or vcc trick.
What about this guide by textbook, he says you can use numerous chipsets..I believe the nforce 4 i have is a sil 3114 which is lsited to work as wel las my other motherboard sis 964..
http://www.360mods.net/News/print/sid=44.html
Post by: Grav87 on February 27, 2007, 09:50:00 AM
QUOTE(Fatsu @ Feb 27 2007, 11:09 AM)
What about this guide by textbook, he says you can use numerous chipsets..I believe the nforce 4 i have is a sil 3114 which is lsited to work as wel las my other motherboard sis 964..
http://www.360mods.net/News/print/sid=44.html
I beleive thats the compatibility list for MS25 flashing. MS28 NEEDS the VIA6421 chipset. I just ordered http://www.newegg.com/Product/Product.asp?Item=N82E16816132009 from Newegg, and in the reviews nearly every other person says "used to flash my 360."
Post by: Fatsu on February 27, 2007, 10:03:00 AM
QUOTE(Grav87 @ Feb 27 2007, 05:21 PM)
I beleive thats the compatibility list for MS25 flashing. MS28 NEEDS the VIA6421 chipset. I just ordered http://www.newegg.com/Product/Product.asp?Item=N82E16816132009 from Newegg, and in the reviews nearly every other person says "used to flash my 360."
3days or so from order to ship status...Hmm to wait or not to wait....good things come to those who wait..you snooze you loose.. cognitive dissonance detected....mental meltdown imminent.
Ah well time for vcc I suppose, hopefully I don't brick the drive.
Just to make sure vcc will work with other chipsets?
Thnx for the help
Post by: myfranco on February 27, 2007, 01:26:00 PM
Why are you taking such risks? If you have ms25 or ms28, via6421 is perfect.It only costs $20 including shipping and you're fine. Don't try vcc trick or lose time if your onboard sata is incompatible. It's your personal choice to do whatever you want to do but you're risking it for $20. Wait for 3 days plug it and follow the tutorial.
Post by: Fatsu on February 27, 2007, 01:35:00 PM
I boot with xbox on first, the drive detects..i d othe mktflash r /m orig.bin
it detects my sata chans..and then i flip the switch and press enter
and it still just hangs
except that instead of 00 shoudl be 70 like before I get 80 should be 70
Okay tested on the sis 964 get the same results..
it detects the sis 964 chipset..switch the vcc to off..press enter wait a lil and switch on...it keeps hangign there
escape out and now it also says
port: ac00 master/slave: a0
Status=80, should be 70
ERR: user break
What am I doing wrong?
Post by: Fatsu on February 27, 2007, 03:20:00 PM
QUOTE(myfranco @ Feb 27 2007, 08:57 PM)
twistedangel and fatsu
Why are you taking such risks? If you have ms25 or ms28, via6421 is perfect.It only costs $20 including shipping and you're fine. Don't try vcc trick or lose time if your onboard sata is incompatible. It's your personal choice to do whatever you want to do but you're risking it for $20. Wait for 3 days plug it and follow the tutorial.
Its not really a risk if you know what your doing
. This on a scale of 1-10 if you have soldering expereince 10 being the hardest is about a 3, just have to be careful not to take the pad off, and do not attempt without proper tools. I already have the switch soldered drive closed and connected mounted by some hot glue to the top of the drive.I have had no problems with any other drives and my chipsets, and I'm more of an instant gratification type of person. I really hate waiting, plus always the risk of delays etc, could be next week by the time I get my card. it doesnt seem like the local retail stores have any via based sata cards(from searching thier sites best buy, office depot, staples, compusa)..I need to call up some computer shops and see what is available.
What does error 80 mean?
Post by: twistedangel on February 27, 2007, 05:04:00 PM
Thanks for your reply.
I actually successfully flashed today after a little more research.
I used the samsung auto flasher but replaced the mtkflash in the /firmware/general folder with the ich7/intel mtkflash..this then worked faultlessly and I've tested the machine for hours now with no problems.
I hope this will help other noobs like myslef.
My mobo was gigabyte 81945p pro which is ich7r chipset. my drive was an ms25. I used samsung autoflasher and replaced the mtkflash as above.
Thanks to you guys for your help.
Post by: Fatsu on February 27, 2007, 05:53:00 PM
I went ahead and ordered a card from tekgems hopefully it will come before the end of the week.
I should note I was also able to get "status = 51, should be 70" on top of that 80 after VCC ...
During tons of reading I saw that some ppl even with 6421 cards were getting as far as I was with the same error codes and symptoms, couldnt read/flash... The solution: they used the original dvd sata cable which is like 1inch and it started workign where before it hanged and gave those errors... must have had the connectivity kit as there is no way i would be able to hook that up to xbox power and my mobo.
I am thinking of splicing the extra dvd power cable i have to a 12volt once I find the pinout diagrams..but it's too much hassle already. Might do that if the card doesn't get here by saturday. Will let you knwo how it goes.
Thanks for the help.
Post by: myfranco on February 28, 2007, 05:44:00 PM
Via6421 controller was mentioned many times.I'm busy nowadays and i'll update my very first topic when i have time.All those infos would be found there.
Post by: hckeyfan99 on March 01, 2007, 01:37:00 AM
Trying all day with MS-28 connected into VIA 6421L sata card and waiting until into DOS to power up XBox and could not get drive to recognize or connect that way. Then was able to follow rest of tut by myfranco and was smooth as silk!
Thanks a bunch guys!!
Post by: johnny666x on March 01, 2007, 05:10:00 AM
I have an ASUS P4C800-E Deluxe mobo and have a TS-H943A MS25 dvd-drive that im flashing
I tried xtreme boot maker 3.6 and 5.3 but i got the same errors with both when i try to DETECT ID/IO PORT
It's something about msinfo and not able to parse, etc...
any ideas??
Post by: myfranco on March 01, 2007, 05:51:00 AM
Post by: johnny666x on March 05, 2007, 01:04:00 PM
BUT here is my problem when i just tried flashing my drive
i start the first part of flashing the drive when booting from my USB drive.
I type "SAMREAD ____ ____" (that being the SN)
IT SAYS THT DIRECTORIES ALREADY EXIST, ETC ...then..
it has a couple of bright blue lines where it sayssomething like "origianl firmware for xbox 360 - backups\sn\orig.bin" "master.....etc", "New....etc...hacked.fw"
THEN:
"/BACKUP/(first part of SN)/(2nd part of SN)/ORIG.BIN not found!! ABORTING!!"
but in the above bright blue lines where it says what it's doing it said that it wrote the ORIG.BIN,etc. I checked the usb drive in another pc but it's not there (the folders are- but not the file)
ANY IDEAS ABOUT WHAT IM DOING WRONG?
************************it says no drive detected************************************
I HAVE BOTH MY XBOX AND PC TURNED ON AND CONNECTED THE SATA WHEN I GOT TO THE DOS PROMPT
thanks!
Post by: devilspy on March 05, 2007, 04:42:00 PM
Thanks myfranco.
Post by: myfranco on March 06, 2007, 11:03:00 AM
@devilspy glad you made it worked.You're welcome.
Post by: sunkist09 on March 07, 2007, 10:54:00 AM
Post by: myfranco on March 08, 2007, 03:33:00 PM
Post by: ScrewinGates on March 12, 2007, 08:03:00 PM
Post by: myfranco on March 13, 2007, 05:30:00 AM
Enjoy your games
Post by: SMP_Homer on March 15, 2007, 06:51:00 PM
Xtreme Bootmaker... I couldn't get it to detect my I/O ports, and I tried hundreds of times. I launched MSINFO32, and then hit detect, and it came up each time that was open....
I had to start the PC, 360 DVD plugged in and powered on, otherwise DOS/PC would hang (and constantly beep) if I turned the xbox on after the PC was powered on. It would beep after the flash as well
10 seconds trick.... more like .10 seconds. I'd select the # corresponding to the sata card, and I'd have to hit the power on button right away (1 hand on the keyboard, the other hand on power button for the 360)
Post by: MickRick on March 16, 2007, 01:07:00 PM
Good work my man. You have taken all the hassle and confusion out of doing this.
Post by: myfranco on March 17, 2007, 09:03:00 PM
As simple as possible
That's what i wanted.
Post by: psp-pirate on March 18, 2007, 06:00:00 PM
you have explained it in simple step by step.
big cheers m8.ur a star...
Post by: myfranco on March 19, 2007, 03:37:00 PM
Post by: sunkist09 on March 19, 2007, 03:45:00 PM
Post by: myfranco on March 21, 2007, 06:48:00 AM
Post by: dada_a on March 21, 2007, 05:12:00 PM
i have done the instructions proprley but every time an error face me after i choose thr port
the error is (port: ec00, master/slave: b0)
N.B
the sata chip is ich5,and the drive is ms28
and after it detects the drive the following appears:
1:ich5 pri master
2:ich5 pri slave
if u plz respond to this msg as soon as possible coz we have been trying for days and nothing works
thx
Post by: myfranco on March 22, 2007, 06:01:00 AM
Post by: windsorguy13 on March 28, 2007, 07:12:00 AM
- Brian
Post by: mylo on April 01, 2007, 01:37:00 PM
I have a via 6421 sata card
And have flashed a few hitachi drives before
I boot to usb type in mtkflash r /m ORIG.BIN
and if i have an ide dvd drive plugged in it detects 2 drives however not one of the drives detected has via 6421 in the name, and if i only have my samsung drive plugged in it doesnt detect any.
I try dumping the firmware from the drive i think is the samsung and do the 10 second drive and nothing happens it doesnt even attempt to dump the f/w
I have made many attempts at the ten second trick
I also have a friend with the same problem
any suggestions?
cheers
Post by: myfranco on April 02, 2007, 05:40:00 PM
Post by: sha on April 03, 2007, 10:43:00 AM
QUOTE(MickRick @ Mar 16 2007, 11:38 AM)
I bought one of these, from the same seller, http://cgi.ebay.co.uk/SATA-Serial-ATA-II-eSATA-PCI-Controller-Raid-Card_W0QQitemZ140096146570QQcategoryZ90715QQrdZ1QQcmdZViewItem and had my MS28 drive flashed in 30mins from installing the card to booting the 360 up again, just by following this tut.
Good work my man. You have taken all the hassle and confusion out of doing this.
QUOTE(myfranco @ Apr 2 2007, 04:11 PM)
How did you prepare your usb stick? Can you tell me all those processes you've made?
MickRick and MyFranko,
I purchased the same card in you link via e-bay (VIA-VT6421A) what did you do to get the card detected/listed? I am using the USB method and followed Myfranco's directions with the new version of Xtreme Boot Maker Version: 0.5.3 (RC1). The VIA-VT6421A is detected by Windows and within the Xtreme Boot Maker Software. It however is not detected when booting from the USB drive. Is there anything I need to set in the computers BIOS I am using an IBM A50 computer.
I read something on Grim's forum thread for troubleshooting.
Do I need to enter: MTKFlash r /m sata orig.bin
Thank in advance.
Post by: trick91 on April 03, 2007, 11:03:00 AM
Anyone have any more ideas?
Post by: trick91 on April 03, 2007, 11:32:00 AM
QUOTE(trick91 @ Apr 3 2007, 05:34 PM)
im having some problems also. i bought this pci card: SYBA SY-VIA-150 SATA Controller VIA 6421L. Installed it in my machine. Xtreme Bookmaker recognizes it, checked all the proper boxes, made a floppy. Problem is when i boot the floppy and run the mtkflash r /m orign.bin command, the only drive it lists is my floppy drive to choose from. Ive tried turning the 360 on at different points also, like before DOS, and after its turned on, but no luck. I unplugged all the IDE drives also with no luck. I just also tried on my brothers computer with this PCI card, but again, MTKflash dosent recognize it.
Anyone have any more ideas?
nevermind lol, i never knew the XTREME Primary Port was the drive lol, i thought it was my disk drive for some reason. anyway works perfect, nice tutorial
Post by: myfranco on April 03, 2007, 06:07:00 PM
QUOTE
nevermind lol, i never knew the XTREME Primary Port was the drive lol, i thought it was my disk drive for some reason. anyway works perfect, nice tutorial
That was exactly what i was planing to say
@Sha what are the options you see when you type mtkflash r /m orig.bin .It must be Xtreme primary master(slave)
Post by: MickRick on April 04, 2007, 10:26:00 AM
Post by: sha on April 04, 2007, 11:22:00 AM
QUOTE(myfranco @ Apr 3 2007, 04:38 PM)
That was exactly what i was planing to say
@Sha what are the options you see when you type mtkflash r /m orig.bin .It must be Xtreme primary master(slave)
Never mind I got it to work last night. However I did find some other tutorial information insightful.
I suggest updating your main post to include.
Disconnect all IDE and SATA devices.
After typing: mtkflash r /m orig.bin Then (Turn off your 360)
Select the Xtreme Flasher Master Then (Wait 10 seconds then turn on your 360)
Also I noticed with the initial flash it stopped at 1 percent. I waited for about a minute and hit escape. Then went through the same flash routine until it finished. The second time it went to 8 percent. I did it again and it finished. On the fourth attempt it flashed 100 percent on the first try.
Post by: myfranco on April 05, 2007, 03:09:00 AM
Post by: pookgai on April 05, 2007, 04:18:00 PM
Post by: myfranco on April 06, 2007, 11:00:00 AM
Post by: mylo on April 06, 2007, 06:13:00 PM
QUOTE(myfranco @ Apr 3 2007, 12:11 AM)
How did you prepare your usb stick? Can you tell me all those processes you've made?
sorry for the late reply,
i prepaired it using extreme bootmaker, i ticked the options and selected my sata chipset, i also used the xtreme 5.2 b firmware, i also loaded the latested customised files on to my usb, cant remember which 2 but i know it added a keylogger file
cheers
Post by: myfranco on April 07, 2007, 01:40:00 PM
If you see no problem about it then thick all the options and make it detect via 6421 chipset in bootmaker.After that turn pc off and unplug whatever you have as dvd and hard drive.Turn 360 on and then your pc.Type mtkflash r /m orig.bin and if you see xtreme master ,you're done.If you have ms28,right before choosing extreme master turn 360 off,hit your choice then wait 10 sec(5-10 sec) and turn 360 on.I see no reason to not be able to flash your drive.If you have raid controller on your pc try to disable it and use the internal connection of 6421 not external one.
Cheers
Post by: mylo on April 08, 2007, 06:10:00 PM
but still cant get it to detect my drive, anything else i have to do before booting to usb?
like put it into mode b or something ?
cheers
Post by: Hercules Man on April 08, 2007, 09:02:00 PM
dont use a floppy disk, too risky, .
i would disable ide channels in bios if you can't boot from usb pen
also do not choose to boot usb pen from a popup boot menu, change to first boot device in bios.
Nforce4 no good for samsung, but worked on Hitachi for me
make sure you got an av cable plugged into your 360 or it will power itself off because it dont think its being used.
if your still not sure, look for textbooks guide, i think its a adobe .pdf document.
Good luck, and dont forget, dont blame me if you smoke your xbox's ass
H MAn
Post by: 7inby on April 09, 2007, 02:33:00 AM
using the
Xtreme Boot Maker V.0.3.6 for creating mtkflash files for you orig.bin backup.
Not using the Maximus Firmware Toolbox 2.0 cuz I would flash it with the xtreme52 cmd-prompt.
And finally flash the xbox360 firmware ?
(I still dont know if I have the ms25 or the ms28 ;/)
Post by: mylo on April 09, 2007, 06:33:00 AM
should i have a cd in the tray to get it detectable?
Post by: 7inby on April 09, 2007, 12:42:00 PM
Post by: myfranco on April 09, 2007, 03:45:00 PM
Post by: mylo on April 10, 2007, 04:48:00 AM
Post by: joshwaan2k on April 10, 2007, 07:10:00 PM
I followed your guide and I've successfully updated my MS28 to 5.2A.
I bought a Via 6421L chipset card and it work straight away so easy.
It's pretty much as easy as flashing my other MS25 DVDROM.
Cheers
Josh
Post by: dmanjohn on April 10, 2007, 09:09:00 PM
Post by: manse on April 11, 2007, 09:33:00 AM
Excellent guide, very easy to follow - thanx
Post by: myfranco on April 11, 2007, 01:04:00 PM
Post by: dannywhac on April 11, 2007, 01:15:00 PM
One other thing I noticed is that if I had a loose sata cable attached to the Via pci card before shutting down, it wouldn't register the xbox drive during mtkflash. Had to plug one in after shutdown.....
Also (although I think it doesn't matter) but you don't need to use Boke's patch if it's a Sammy MS25 drive?
Hope this helps you....
And - Crackin' guide!
Post by: eatshitanddie on April 11, 2007, 07:09:00 PM
Post by: dannywhac on April 14, 2007, 02:00:00 AM
Just thought this might be worth mentioning.....
Post by: brpn on April 14, 2007, 06:19:00 PM
worked perfect the first time.thanks
Post by: JagStone on April 15, 2007, 02:20:00 PM
Either way, I can read ms25s now. Pity the original, broken drive has now stopped working altogether
Won't even eject now, looks like I have to drag its EEPROM off manually
Stone
Post by: Pilsbury on April 15, 2007, 06:51:00 PM
I successfully flashed an ms28 drive using the via 6421. Dumping and flashing xtremefw was fine. I used the newest xtreme boot maker that came with xread and xflash commands. No problems there. Also I used a usb pen drive to boot into.
Here is the problem. I tried doing a second 360 the exact same way, nothing dif. I was able to dump the orig.bin using samread. I then continued on and power cycled the 360 to attempt xflash. at the moment I turned off the 360 right before choosing the Via xtreme option, it appeared to be flashing the drive, but how is this possible if the 360 was off. I tried the whole process of flashing over, and now it appears my 360 has no fw at all on it and cannot do anything. Obviously I can't dump the fw, cuz there isn't any there to dump. I retried the flash and also with dif timings, no luck. I think it was a problem somewhere using xread and sam hack off the newest xtreme bootmaker cuz I opend orig.bin with 360 fw toolbox and I do have the original keys there. But when I opened the modified bin, it gave me an error. the filesize was 0 kb. It appears that the hacked fw never made it. So I picked up on the tutorial from myfranco and stated off with copying the key from orig.bin and pasting it to xtreme 5.2, wich is wat I had selected in bootmaker without issues. I them reopened the hacked fw with toolbox, and it had the keys from my orig.bin, so I was good to go. I then contnued on by booting into dos from the pendrive and used mtkflash as such, and it does nothing. It's frozen , can't flash. I tried dif timings again, and still no luck. Is my drive dead because it has no fw on it? It seems impossible , thats the whole purpose of flashing no? Anyways under mtkflash i do see the via xtreme option, I have tried with all my hd's and dvdroms plugged in and unplugged, same outcome.
Is there someone that I could maybe send my drive to for them to flash it for me. I still have the orig.bin that got dumped from it. Or do you think it's dead. Also is it possible to buy a replacement "virgin" dvdrom , preferably toshiba, and flash that with my orig.bin keys??
Any help will be greatly appreciated !!!
BTW when I boot the 360 up , it gives me the error code 65 i think it is. The one for bad fw or something.
Post by: myfranco on April 16, 2007, 05:27:00 AM
There is a topic going on.If you like ,you can have a look.Seems that the same problem
link
Post by: Pilsbury on April 16, 2007, 07:24:00 PM
Thank you so much for the info and getting the reply up so fast. I don't really understand too much what is going on in that other link you posted, but I have a new question... will doing the vcc trick work you think, on my "dead" ms28 drive? And might you point me where I can get my drive reprogrammed, that might be my only solution. I will never use sam read or xread again. Gonna stick with what you suggest in your tut. MTKFLASH from now on, and replacing the keys myself. Only way to be sure it ALL gets done correctly prior to the flash.
Post by: myfranco on April 17, 2007, 01:53:00 AM
If you like to be reprogrammed,there are many people in USA and UK who can do it.Check the link below and i hope your problem is solved ASAP.Vcc trick doesn't work in your case,sorry.
link
Among them this guy is flashing for $10 for 360.You can just send the pcb of your dvd drive and your problem will be solved.As you have the key there won't be any problem.
link
Post by: Pilsbury on April 17, 2007, 07:36:00 AM
As always, thank you again myfranco for all the info you have given so far on my situation. I just pm'd xtreme 360fw and am waiting to hear from him with all the details. It sounds to me like this was the best option to do. Glad that there are people like the both of you who know their stuff. Again, I can't thank you enough. I will keep you posted to see if I get my 360 up and runnin'.
Post by: Pilsbury on April 17, 2007, 06:02:00 PM
Post by: onefastgsxr777 on April 18, 2007, 08:37:00 PM
Post by: dannywhac on April 19, 2007, 12:46:00 PM
The addition of the "/sata" in the command line saw me ms28 drive after that. If that doesn't work: you say you boot into dos and then wait 10 seconds to turn on the 360 - in DOS you should enter the read firmware command line (the mtkflash orig.bin line) with the 360 turned on, press "enter" and when the options to select primary/secondary sata devices comes up turn off the 360, select your sata option (1 or 2 etc) and count 10 seconds, then boot the console - also you might want to try the via6421a or via 6421l pci board if this fails - the ms28 i think generally won't be seen with any other chipset (see the faqs at the top of this forum)
@xbox_shadow: maybe that your current setup won't see the ms28/25 - always best to start with a via6421 pci card and then troubleshoot from there - only costs a few £/$'s
No expert myself obviously and I hope this helps.....
Post by: myfranco on April 20, 2007, 03:38:00 PM
@Pilsbury you're welcome.Both drives seems to have same media recognition since firmwares are very stable now.
@onefastgsxr777 you didn't exactly get 10 sec trick.Turn 360 on then turn pc on , type mtkflash r /m orig.bin ,hit enter ,when the options comes up , turn 360 off, select 2nd option,wait for 10 sec(can be between 7-10) then turn 360 on.
@xbox_shadow it seems that your sata drivers are not setup.You can download from its web site and create a disk and setup it.You can just flash ms25 but you need to buy via 6421 sata card for ms28.
Post by: partonbp on April 20, 2007, 04:29:00 PM
(Im not sure if this has been said somewhere in the rest of the post,
but I was lucky enough to only have to read to 8 pages before I got mine working.
And the more its said the easier it is for people to find.)
I bought a VIA VT6421 set it up in windows and made my boot disk, but when booting from to DOS and running mtkflash it could not find the drive.
I thought that from all the other posts I read that the card was no good as it was a cheap raid card(no manual or website for support) and had no ability to disable raid.
All that was needed to make it work in DOS was to load the latest VIA drivers in windows before creating the boot disk.
I used VIA 5.30c from the via site
VIA Drivers
Or Direct Link to 5.30c
Post by: dannywhac on April 21, 2007, 02:45:00 AM
QUOTE(onefastgsxr777 @ Apr 20 2007, 11:35 PM)
ok so I do mkflash then turn off the box choose the 2nd option then wait 10 sendonds and turn one the box
Thats what you need to do
Post by: myfranco on April 21, 2007, 03:33:00 PM
@banner everybody knows textbook's tutorial.It's another way for flashing and he's one of the pros too.
Post by: DuBob4432 on April 23, 2007, 12:51:00 AM
my concerns are -
1. should i upgrade to the new version of xbm?
2. w/ the extreme f/w i have d/ld from the usual place, there is a version that says 52c_ms25.bin (or something like that) and also xtreme52c.bin (i personally have good luck with the C version and therefore continue to use it). now with my ms28s i choose the xtreme52c.bin and all is good. when i select the 52c_ms25.bin in xbm 3.x i get an error in xbm stating that the chosen firmware is not correct and to be careful. when i select the xtreme52c.bin it comes up ok.
3. the issue is that once i have read the original firmware, firmware toolbox 2.0 shows the original is from a ms25 and shows the key. this is exptected as it is a ms25 drive. now when i open up the firmware that is on the usb flashdrive that is created w/ the xtreme52c.bin from within xbm, it shows that it will be for the ms28, which concerns me.
4. is the goal to make the drive a ms28 or keep it a ms25? if the goal is to keep the drive a ms25, how is that accomplished with the given tools? do i need new tools?
i have searched and have not had luck finding an answer to the situation i have, so please assist
thanks in advance,
bob
Post by: myfranco on April 23, 2007, 04:57:00 AM
1. no you don't have to.I'm still using 0.36.
2.That's an error message you can ignore.That firmware is not in the database of xbm therefore is giving that error.
3.Put your orig.bin into xtreme52 folder and double click "Make Xtreme firmware.cmd" choose "c" and "b" for 5.2c and ms25 spoofing.
4.if it's a ms25 drive,you need to spoof as a ms25.Xtreme52 is ms28 based firmware and if you don't spoof,you get E66 error. Just do the 3rd option.
BTW,it's not important what firmware you choose with xbm.Choose whatever you like and when you dump orig.bin just do the 3rd option and copy new bin file which is created with "Make Xtreme firmware.cmd" into memory stick.Check if the key is copied with toolbox 2.0 or 3.0
Post by: DuBob4432 on April 23, 2007, 12:48:00 PM
QUOTE(myfranco @ Apr 23 2007, 04:04 AM)
@DuBob4432
1. no you don't have to.I'm still using 0.36.
2.That's an error message you can ignore.That firmware is not in the database of xbm therefore is giving that error.
3.Put your orig.bin into xtreme52 folder and double click "Make Xtreme firmware.cmd" choose "c" and "b" for 5.2c and ms25 spoofing.
4.if it's a ms25 drive,you need to spoof as a ms25.Xtreme52 is ms28 based firmware and if you don't spoof,you get E66 error. Just do the 3rd option.
BTW,it's not important what firmware you choose with xbm.Choose whatever you like and when you dump orig.bin just do the 3rd option and copy new bin file which is created with "Make Xtreme firmware.cmd" into memory stick.Check if the key is copied with toolbox 2.0 or 3.0
thanks, will do
Post by: myfranco on April 24, 2007, 01:26:00 PM
Post by: myfranco on April 25, 2007, 02:23:00 PM
1- You can update via drivers as you mentioned but be sure to recreate the floppy with new drivers setup
2- Before selecting primary master ,turn 360 off,Wait for 7-10 sec and turn 360 on.
3- You can use mtkflash r /m /sata orig.bin but be sure you have enough space in the floppy(you need 256k).You can delete samsung folder to be sure.
4- Try turning 360 on before pc or vice versa. Keep both machines turn off and first turn 360 on wait for 20 sec then turn pc on.Do it the other way too.
I see no reason to not be able to flash this way.I flashed more than 30 times(about 20 boxes with several firmware updates) and i never had any of these problems. I think i usually turn 360 on before pc.
Keep me posted.Cheers
Post by: DuBob4432 on April 25, 2007, 07:53:00 PM
QUOTE(myfranco @ Apr 25 2007, 01:30 PM)
Your via card is working fine.If you extreme primary master,you're using the good port.When it comes to solution:
1- You can update via drivers as you mentioned but be sure to recreate the floppy with new drivers setup
2- Before selecting primary master ,turn 360 off,Wait for 7-10 sec and turn 360 on.
3- You can use mtkflash r /m /sata orig.bin but be sure you have enough space in the floppy(you need 256k).You can delete samsung folder to be sure.
4- Try turning 360 on before pc or vice versa. Keep both machines turn off and first turn 360 on wait for 20 sec then turn pc on.Do it the other way too.
I see no reason to not be able to flash this way.I flashed more than 30 times(about 20 boxes with several firmware updates) and i never had any of these problems. I think i usually turn 360 on before pc.
Keep me posted.Cheers
worked like a charm
just out of curiosity, i wonder what the most popular version of the f/w is - a, b, c or d?
Post by: MichaelBMcGee on April 25, 2007, 08:49:00 PM
Post by: myfranco on April 26, 2007, 03:33:00 AM
@MichaelBMcGee I never used ntfs boot cd.I'm sure there is somebody to help here.
Post by: Snout on April 26, 2007, 08:33:00 AM
I had probs getting mtkflash to see my VIA SATA card, after a few hours I swapped PCI slots and plugged the DVD Rom into port one and its done
Thanks again m8....
Post by: gorefluff on April 26, 2007, 09:22:00 AM
Post by: myfranco on April 26, 2007, 05:22:00 PM
@gorefluff yes you're right.Only via6421 and onboard 8237 can be used to flash ms28.
Post by: myfranco on April 27, 2007, 02:12:00 AM
Post by: myfranco on April 27, 2007, 04:34:00 PM
Post by: ezooculteric on April 29, 2007, 01:02:00 AM
I have TS ms28 and Via onboard sata.
With the first attemp im read dvdrom flash, but when i reboot my system to DOS (to load hached flash) and switch on my box, there is a message:
"An internal stack overflow has caused this session to be halted
Change The stacks settings in your config.sys file and then try again"
and my PC freeze
What's im doing worng? ;(((((
Post by: champmcx on August 27, 2007, 03:40:00 PM
thanks
Post by: myfranco on August 27, 2007, 04:57:00 PM
Post by: hyptonic on August 27, 2007, 06:11:00 PM
QUOTE(paulo88 @ Jul 30 2007, 05:40 PM)
ok.. I now get my pc to boot from the USB keydrive and I get the DOS prompt.
I then turn on my 360 and type in
mtkflash r /m /sata orig.bin
but all that appears is
1: IDE SEC Master
2: IDE SEC Slave
Does this mean that my on board SATA is not compatible ?
im having the same issue although i have the via 6421, its installed correctly also it shows in the device manager.
Post by: hyptonic on August 27, 2007, 09:35:00 PM
Post by: rojohacker on September 13, 2007, 01:20:00 PM
I fallowed you tutorial with my ms28 xbox 360 and I flashed successfully.
I have the 5.3 xtreme I've been playing online for a 6 months already no problems no ban and nothing so far.
But I want to flashed with the IXTREME 1.2 But i don't know if i have to drop the orig.bin again.
Because i already have the key of my XBOX 360 .
So would like to know if i just patch the Hacked bin Ixtreme 1.2 with my key and then reflash it again or what else do i have to do ?
Thanks.
Post by: donaldsell on September 17, 2007, 05:33:00 PM
I AM HAVING TROUBBLE WITH MS25 BEING SEEN WITH A BLASTER 360 CONNECTED TO A VIA6421
Post by: myfranco on September 18, 2007, 05:32:00 PM
QUOTE(rojohacker @ Sep 13 2007, 10:20 PM)
One question for mr Franco.
I fallowed you tutorial with my ms28 xbox 360 and I flashed successfully.
I have the 5.3 xtreme I've been playing online for a 6 months already no problems no ban and nothing so far.
But I want to flashed with the IXTREME 1.2 But i don't know if i have to drop the orig.bin again.
Because i already have the key of my XBOX 360 .
So would like to know if i just patch the Hacked bin Ixtreme 1.2 with my key and then reflash it again or what else do i have to do ?
Thanks.
Yes,just patching the key is enough. ixtreme 1.2 has slow and fast loading options so that choose the file you like and patch your key then flash it.
QUOTE(donaldsell @ Sep 18 2007, 02:33 AM)
http://forums.xbox-scene.com/index.php?sho...p;#entry4110603
I AM HAVING TROUBBLE WITH MS25 BEING SEEN WITH A BLASTER 360 CONNECTED TO A VIA6421
Answered in your topic.Hope it helps
Post by: champmcx on September 21, 2007, 04:48:00 AM
I have just got my replacment dvd drive and had all the firmware ready got the usb bootable drive working went to get my orig.bin with mtkflash r/m orig.bin and it say failed to open input file after selecting my VIA8237
please someone tell me what to do
thanks champ.
This post has been edited by champmcx: Sep 21 2007, 11:48 AM
Post by: champmcx on September 21, 2007, 06:18:00 AM
any ideas guys thanks
Post by: duygo on September 21, 2007, 06:33:00 AM
i have a problem using my new ordered via vt6421 pci-sata card.
When i push the button 'list SCSI Controller' i get 4 choices: 2 uninteresting Controller, my onboard sil3112 and the via vt6421 Raid Controller.
if i choose the via one, xbm cant find the corresponding ID. Only the IO is listed. Then i get the error: 'an error occoured while querying for WMI data: allgemeiner fehler'.
with iprep i can make a boot disk, but then my pc wont boot to dos.
with xbm i cant make a boot disk with following error: "index and length refer to a location within the string. Parameter name: length".
so, does someone has a idea how to fix this problem?
thx a lot...
duygo
ps: there is only one more pci card connected.
virtuall drives are off.
Post by: champmcx on September 21, 2007, 07:42:00 AM
wooooooooo gaming again
thanks a million
(IMG:style_emoticons/default/biggrin.gif) champ (IMG:style_emoticons/default/biggrin.gif)
Post by: myfranco on September 21, 2007, 09:19:00 AM
QUOTE(champmcx @ Sep 21 2007, 04:42 PM)
yeah woo its done cant belive it was a silly space in the mtkflash r /m xteme.bin i kept putting r/m not r /m just want to say thanks for everyones help could not have dont it with out you xbox scene rules all
wooooooooo gaming again
thanks a million
(IMG:style_emoticons/default/biggrin.gif) champ (IMG:style_emoticons/default/biggrin.gif)
I was about to say that you haven't used space but you figured it out (IMG:style_emoticons/default/biggrin.gif)
Happy gaming
QUOTE(duygo @ Sep 21 2007, 03:33 PM)
hi there!!
i have a problem using my new ordered via vt6421 pci-sata card.
When i push the button 'list SCSI Controller' i get 4 choices: 2 uninteresting Controller, my onboard sil3112 and the via vt6421 Raid Controller.
if i choose the via one, xbm cant find the corresponding ID. Only the IO is listed. Then i get the error: 'an error occoured while querying for WMI data: allgemeiner fehler'.
with iprep i can make a boot disk, but then my pc wont boot to dos.
with xbm i cant make a boot disk with following error: "index and length refer to a location within the string. Parameter name: length".
so, does someone has a idea how to fix this problem?
thx a lot...
duygo
ps: there is only one more pci card connected.
virtuall drives are off.
This is the first time i've heard this error.If net framework 2.0 and via drivers are installed,i recommend you to check the official forum of XBM.
Post by: duygo on September 21, 2007, 10:42:00 AM
the problem was, that windows assigned two deviced on one irq. i disabled my onboard sound and then xbm filled both fields right.
now i got another problem.
i connected my xbox to the via adapter and after booting while detecting the ide drives, my pc went in to a black mask. after severel secs it said something like 'devices not known. bios not installed'.
after passing this text, xbm booted and i typed xRead. after that, i was only able to choose between ide master and ide slave.
next i'll try to update my bios.
does someone has a other theory??(IMG:style_emoticons/default/smile.gif)
greets
Post by: duygo on September 22, 2007, 08:36:00 AM
unfortunately im still not able to solve my problem yet.
my pc stills says 'HardWare Initiate failed, Please Check Device!!! The Bios does not be installed. Press <g> to continue!'
i tried several things(updating bios, changes sata cable, ...)
even this thread couldnt help me: http://forums.xbox-scene.com/index.php?showtopic=621196
maybe there is s.o. out there who can help me.
bb
Post by: cyclone9 on September 23, 2007, 08:05:00 PM
Post by: myfranco on September 24, 2007, 11:27:00 AM
QUOTE(cyclone9 @ Sep 24 2007, 05:05 AM)
i have x5.3 on my xbox ..but now iwan flash to i1.2 ..do i need to flash to my original firmware file 1st??
No you don't need that.Use your orig.bin to prepare ixtreme and flash it.
QUOTE
hi again
unfortunately im still not able to solve my problem yet.
my pc stills says 'HardWare Initiate failed, Please Check Device!!! The Bios does not be installed. Press <g> to continue!'
i tried several things(updating bios, changes sata cable, ...)
even this thread couldnt help me: http://forums.xbox-scene.com/index.php?showtopic=621196
maybe there is s.o. out there who can help me.
unfortunately im still not able to solve my problem yet.
my pc stills says 'HardWare Initiate failed, Please Check Device!!! The Bios does not be installed. Press <g> to continue!'
i tried several things(updating bios, changes sata cable, ...)
even this thread couldnt help me: http://forums.xbox-scene.com/index.php?showtopic=621196
maybe there is s.o. out there who can help me.
It seems that computer related.Update your bios and use latest drivers for all your components as well as via card.If the problem continues,you better try another computer.
Post by: duygo on September 25, 2007, 08:14:00 AM
QUOTE
QUOTE
hi again
unfortunately im still not able to solve my problem yet.
my pc stills says 'HardWare Initiate failed, Please Check Device!!! The Bios does not be installed. Press <g> to continue!'
i tried several things(updating bios, changes sata cable, ...)
even this thread couldnt help me: http://forums.xbox-scene.com/index.php?showtopic=621196
maybe there is s.o. out there who can help me.
unfortunately im still not able to solve my problem yet.
my pc stills says 'HardWare Initiate failed, Please Check Device!!! The Bios does not be installed. Press <g> to continue!'
i tried several things(updating bios, changes sata cable, ...)
even this thread couldnt help me: http://forums.xbox-scene.com/index.php?showtopic=621196
maybe there is s.o. out there who can help me.
It seems that computer related.Update your bios and use latest drivers for all your components as well as via card.If the problem continues,you better try another computer.
finally i tried it at three computers, with all the same result. i dont know whether its the sata card or something strange with my ms28 - but dont care now, i allready ordered a modchip to give it an end.
thanks for help!!
cu
Post by: cabbage360 on September 27, 2007, 10:11:00 AM
Have a few questions about flashing the ms28.
Will this 10 sec trick work on a via 8237 chipset or do i have to buy that pci card.
Also iv bin trying to run this extreme boot maker on my vista Os and i get an error saying something about an instance not available or something like that cant really remember not home to see it again.
Well maybe one Question lol but yea
Post by: myfranco on September 27, 2007, 04:28:00 PM
QUOTE(cabbage360 @ Sep 27 2007, 07:11 PM)
hello all
Have a few questions about flashing the ms28.
Will this 10 sec trick work on a via 8237 chipset or do i have to buy that pci card.
Also iv bin trying to run this extreme boot maker on my vista Os and i get an error saying something about an instance not available or something like that cant really remember not home to see it again.
Well maybe one Question lol but yea
Yes you can use via8237.
I recommend you XP.Forget about that crappy platform.
Post by: ryrules1 on September 27, 2007, 04:40:00 PM
P.S. im pretty sure i dont have my original bin
Post by: myfranco on September 28, 2007, 02:23:00 PM
QUOTE
I flashed my 360 way back when 5.0a was brand new. I haven't been involved in the 360 since and would like to know how exactly i got about flashing ixtreme 1.2, can i just flash it the same way? would that do any damage? I cant exactly follow your explanation for a simlar problem on page 32 maybe im just to out of the lingo.
P.S. im pretty sure i dont have my original bin
P.S. im pretty sure i dont have my original bin
If you have any firmware with your key no prob.Just flash 1.2 ixtreme with XBM and bypass the error message that your firmware is not recognised(when opening 1.2 with XBM).
Post by: cabbage360 on September 28, 2007, 04:26:00 PM
but yea i got it all sorted did the 10 sec trick and it worked great i was having issues cuz i guess i was not using the right mtkflash with taht recovery thing i dl and use iprep and it worked great.
Now i have another issue with one of my friends xbox i flashed his way back when and lost the orig FW and wanted to reflash it with the brand new FW. Now he has the ms25 so yea simple, when i do mtkflash r /m orig.bin it just pauses. Now a friend told me that when u flash with extreme guess u cant read off of it is there anyway i can get the SS key from the drive at all.
Thanks u guys rock
This post has been edited by cabbage360: Sep 28 2007, 11:28 PM
Post by: cyclone9 on September 28, 2007, 07:17:00 PM
i plug into my PC PCI...my pc and sata hd doesnt detect?
does that mean it spoil?
Post by: myfranco on September 29, 2007, 03:49:00 AM
QUOTE(cabbage360 @ Sep 29 2007, 01:26 AM)
yea i know vista is horrible.
but yea i got it all sorted did the 10 sec trick and it worked great i was having issues cuz i guess i was not using the right mtkflash with taht recovery thing i dl and use iprep and it worked great.
Now i have another issue with one of my friends xbox i flashed his way back when and lost the orig FW and wanted to reflash it with the brand new FW. Now he has the ms25 so yea simple, when i do mtkflash r /m orig.bin it just pauses. Now a friend told me that when u flash with extreme guess u cant read off of it is there anyway i can get the SS key from the drive at all.
Thanks u guys rock
You need 10 sec trick like ms28
QUOTE
I got a VIA VT6421L SATA PCI
i plug into my PC PCI...my pc and sata hd doesnt detect?
does that mean it spoil?
i plug into my PC PCI...my pc and sata hd doesnt detect?
does that mean it spoil?
If you setup its drivers and plug a sata hd and it doesn't detect,either sata cable is malfunctionning or the card is down.
Post by: cabbage360 on September 29, 2007, 08:30:00 AM
Now i cam to another stop. A friend of mine pops up with a BenQ VAD6038. Now i really never herd of this drive at all have bin doin small research around the net about it but all i find is soldering. Me and soldering dont mix, is there a way to get it to read and write without soldering anything.
Plz help lol Thanks
Post by: myfranco on September 29, 2007, 06:05:00 PM
QUOTE(cabbage360 @ Sep 29 2007, 05:30 PM)
Ok got that figured out thanks for your help worked great.
Now i cam to another stop. A friend of mine pops up with a BenQ VAD6038. Now i really never herd of this drive at all have bin doin small research around the net about it but all i find is soldering. Me and soldering dont mix, is there a way to get it to read and write without soldering anything.
Plz help lol Thanks
No way,you have to be mixed (IMG:style_emoticons/default/smile.gif)
It's not possible at the moment.
Post by: cyclone9 on September 29, 2007, 06:30:00 PM
i try iprep but it say " No Valid Firmware"
Post by: PollardHimself on September 30, 2007, 08:22:00 AM
Post by: myfranco on September 30, 2007, 01:59:00 PM
QUOTE(PollardHimself @ Sep 30 2007, 05:22 PM)
ive done everything except inserting my key into the firmware i already flashed it and it seems to be working fine but i havent check any of my backups, i used ixtreme firmware should it work without inserting my key?
If you flashed the drive and originals are working,it's ok.Backups would work too.
QUOTE
do i need to put my keys into the fw ixtreme1.2c ?
i try iprep but it say " No Valid Firmware"
i try iprep but it say " No Valid Firmware"
Prepare the firmware with ixtreme and flash it with XBM.I don't trust iprep,samtool etc..The purpose of the topic is to be %100 sure with XBM and mtkflash
Post by: budmanv24 on October 01, 2007, 11:51:00 AM
Post by: myfranco on October 02, 2007, 04:37:00 PM
QUOTE(budmanv24 @ Oct 1 2007, 08:51 PM)
I have a 360 console with a bad dvd drive. I tried switching out the drive with one from annother xbox, using the logic board from the broken drive and it will play dvds now but not games. Both drives are samsung ms25's. I'm thinking that maybe someone before me already screwed with the dvd drive and installed one from another unit without flashing it. Is there anyway to fix this?
You don't have the key and you can't restore it without having its key.Can you talk to the guy who sold you?
Post by: killernoob on October 03, 2007, 11:36:00 PM
Any help will be much appriciated.
Post by: myfranco on October 04, 2007, 03:18:00 AM
QUOTE(killernoob @ Oct 4 2007, 08:36 AM)
I have a question I was wondering could I make bootable SD card instead of USB?
Any help will be much appriciated.
I don't think sd card reader could be booted.However,you may try it
Post by: killernoob on October 04, 2007, 10:41:00 PM
I used xtreme 3.3 is there any advantage using newer version?
Since I dont go online with my xbox360 I am thinking this should be fine.
This is the easiest tut by far I have seen. (IMG:style_emoticons/default/biggrin.gif)
Post by: myfranco on October 05, 2007, 07:42:00 AM
QUOTE(killernoob @ Oct 5 2007, 07:41 AM)
Thanks for the reply myfranco I used my 512mb sd card and flashed my drive with not problem.
I used xtreme 3.3 is there any advantage using newer version?
Since I dont go online with my xbox360 I am thinking this should be fine.
This is the easiest tut by far I have seen.
Thanks.If you don't go online, 3.3 will be fine.
Post by: zenkiS14 on October 05, 2007, 10:08:00 AM
Post by: myfranco on October 05, 2007, 04:06:00 PM
QUOTE(zenkiS14 @ Oct 5 2007, 07:08 PM)
If I havent said it before, I'll say it now. This is the best and easiest guide to follow. I used this method with dozens of 360 and works great. Thanks for a easy and simple guide.
Thanks
Post by: killernoob on October 08, 2007, 10:28:00 AM
Post by: killernoob on October 09, 2007, 10:46:00 AM
Post by: RichMR2 on October 10, 2007, 04:14:00 AM
Post by: killernoob on October 10, 2007, 10:46:00 AM
my backups offline life is good.
Post by: caster420 on October 10, 2007, 10:59:00 AM
QUOTE(killernoob @ Oct 9 2007, 12:46 PM)
I have tried to use 0800 disc on single layer which ixtreme 1.2c supports
iXtreme does not support SL media - same goes for the enable 0800 disc.
Caster.
Post by: myfranco on October 10, 2007, 03:59:00 PM
Post by: RichMR2 on October 11, 2007, 01:35:00 AM
Very basic quick run through is...
Open iPrep
Select the fw
Select USB stick and tick the box to make it bootable
Reboot PC and boot from USB
Plug PC Sata in to 360's drive
Power on 360
Dump fw (iDump 1234567 12345)
Select Sata device
Reboot PC & Xbox
Flash fw (iFlash 1234567 12345)
Reboot PC from HDD
Remove sata from pc to 360 & connect 360 back to 360
Turn on 360 & test
Copy ALL files from USB stick and burn to a CD.
It took me 10-15 mins (including taking the 360 apart for the first time too, and 5 mins was searching for the lost torx driver!!)
Post by: Left4Dead on October 11, 2007, 08:37:00 AM
QUOTE(RichMR2 @ Oct 11 2007, 02:35 AM)
I have to say that using the Samsung instructions in the textbook was easier than this one.
Very basic quick run through is...
Open iPrep
Select the fw
Select USB stick and tick the box to make it bootable
Reboot PC and boot from USB
Plug PC Sata in to 360's drive
Power on 360
Dump fw (iDump 1234567 12345)
Select Sata device
Reboot PC & Xbox
Flash fw (iFlash 1234567 12345)
Reboot PC from HDD
Remove sata from pc to 360 & connect 360 back to 360
Turn on 360 & test
Copy ALL files from USB stick and burn to a CD.
It took me 10-15 mins (including taking the 360 apart for the first time too, and 5 mins was searching for the lost torx driver!!)
That works great except for the fact when it was in the middle of flashing bank 3 it hung at 00% forever. This makes a nice drive(paperweight) I have the sata card 6421 , have the orig.bin, have mtkflash w/iprep, have been tring to fix for 3 days now. No problem reconizing the drive from MTKFLASH
1.IDE Sec Master
2.XTREME Pri Master
Then at this point is where I have tried a million combantions.
10sec trick, press 2, then turn on 360, watching the clock 10 sec, I just can not get flash ORIG.Bin to Start.
And yes i do have my ORIG.BIN Idump worked fine.
Is this just a dead drive now??? By the way I am in IT.
Post by: RichMR2 on October 11, 2007, 09:27:00 AM
If it is seeing the drive then surely it is flashable/recoverable somehow? (sorry I can't help there, I've only just started reading about this stuff).
Post by: Left4Dead on October 11, 2007, 08:56:00 AM
QUOTE(RichMR2 @ Oct 11 2007, 10:27 AM)
Mine went through with no problems at all although I wasn't watching the progress when flashing the banks so no idea how long it was on bank 3 for. It wasn't that long though.
If it is seeing the drive then surely it is flashable/recoverable somehow? (sorry I can't help there, I've only just started reading about this stuff).
Rich,
Funny thing is I have done about 5 360 with no issues. Over the past year. After the Bank 3 hung we had no options except reboot.
Causing drive to not funtion. I have also heard the Rom can be corrected. But I may be eaiser to just get a new DVD Drive and flash with Iprep using The previous idump backup files.
L4D
Post by: RichMR2 on October 11, 2007, 09:36:00 AM
Post by: myfranco on October 12, 2007, 12:29:00 AM
QUOTE(Left4Dead @ Oct 11 2007, 06:32 PM)
Rich,
Funny thing is I have done about 5 360 with no issues. Over the past year. After the Bank 3 hung we had no options except reboot.
Causing drive to not funtion. I have also heard the Rom can be corrected. But I may be eaiser to just get a new DVD Drive and flash with Iprep using The previous idump backup files.
L4D
You can use mtkflash E to erase the firmware then you can flash without 10 sec for ms25(with 10 sec for ms28).It's impossible to brick a samsung while flashing even though flashing goes wrong.Try mtkflash E two times to make sure it's erased(do it with 2 reboots)
RichMR2 believe it or not,iprep has issues.Using mtkflash is the best way to flash
Post by: misterhoangdai on October 14, 2007, 04:53:00 PM
Post by: myfranco on October 14, 2007, 06:22:00 PM
Post by: MBMOLER on October 23, 2007, 02:07:00 AM
Post by: myfranco on October 23, 2007, 02:52:00 PM
QUOTE(MBMOLER @ Oct 23 2007, 11:07 AM)
Hi my xbox was flashed when i got it a year ago so i dont have any keys,kan i follow this tut from the start and use ixteme v1.2 to flash?
Yes.You first dump your firmware,get the key with maximus firmware toolbox 4.5 and prepare the firmware with ixtreme and finally flash it
Post by: MBMOLER on October 25, 2007, 03:33:00 AM
This post has been edited by MBMOLER: Oct 25 2007, 10:36 AM
Post by: myfranco on October 25, 2007, 12:38:00 PM
QUOTE(MBMOLER @ Oct 25 2007, 12:33 PM)
so i follow the tut step by step and use toolboks 4.5 instead of 2.0? do you have a link for toolboks 4.5
Yes you can use.Just google it or download it from torrent
Post by: Drexon on October 25, 2007, 01:43:00 PM
Post by: myfranco on October 25, 2007, 01:48:00 PM
Post by: MBMOLER on October 28, 2007, 03:05:00 PM
Post by: babablue on November 01, 2007, 01:49:00 AM
mtkflash r/m/sata orig.bin
drive scanned
1: ...
2: ...
3: XTREME Pri Master
i choose 3 and then get
port : bc00 master/slave : a0 <---my problem is that it stays on this last line forever. i have no idea what is wrong. please any help will be appreciated. thanks
Post by: slaycon on November 03, 2007, 04:01:00 PM
thanks for the tutorial. Flashed ms25 with ease.
However, I got an interesting situation with a ms28 that I tried to flash.
Followed your tutorial to the T. Everything went well as far as reading and writing hacked firmware (xtreme 3.3). I assumed everything went well.
Power cycled xbox 360 still connected to PC (using a pci sata controller with via 6421 raid) and xbox 360 went into the dashboard. (this was done accidentally, I forgot to unplug the SATA cable leading to the PC and plug the xbox's sata cable back into the xbox's dvd drive) No biggie. So I powered everything down unplugged the sata from the pc and the back of the xbox and plugged in the xbox's sata cable into the back of the ms28 drive. I rebooted xbox then I get error 66 with solid red light in the right bottom corner. Here is the quirky part: when I take the xbox's sata cable out of the ms28 and connect the xbox back to the pc with a normal sata cable the xbox boots into the dashboard without the error. I flashed it back to the original firmware using your method and everything is back to normal. I tried to whole process again with fresh download of hacked firmware xtreme 3.3 and I get the same results. I am back to original firmware.
all my files are from xbins so they should be fine.
I think my problem is that my xbox is refurbished. It seems to have been refurbished by microsoft (recently purchased from Microcenter). Originally, it must of had a different model of dvd drive that broke and when it was sent to be refurbished they replaced whatever dvd drive with a ms28. Is there any way to tell from the motherboard what the original dvd drive's model was? I assume I can overcome this by spoofing the hacked firmware but there are like 7 or 8 different dvd drives for the xbox. You got any suggestions? Thanks in advance.
Post by: myfranco on November 03, 2007, 04:36:00 PM
QUOTE(MBMOLER @ Oct 28 2007, 11:05 PM)
hi when i follow the link to extreme bootmaker i can only find a newer version can i use that the same way?
Of course.
QUOTE
hi, i bought my 36o preflashed close to a year ago. i decided to follow this tutorial and get the key. i followed all the instructions up till this point
mtkflash r/m/sata orig.bin
drive scanned
1: ...
2: ...
3: XTREME Pri Master
i choose 3 and then get
port : bc00 master/slave : a0 <---my problem is that it stays on this last line forever. i have no idea what is wrong. please any help will be appreciated. thanks
mtkflash r/m/sata orig.bin
drive scanned
1: ...
2: ...
3: XTREME Pri Master
i choose 3 and then get
port : bc00 master/slave : a0 <---my problem is that it stays on this last line forever. i have no idea what is wrong. please any help will be appreciated. thanks
You need to have a via 6421 sata card to flash ms28.However,even if you have a ms25,as it's flashed,you need to unlock the firmware guard so that you need via 6421 again(you can do it with enable0800 disk for ms25 but i highly recommend a via card for the easiest flashing)
QUOTE
myfranco,
thanks for the tutorial. Flashed ms25 with ease.
However, I got an interesting situation with a ms28 that I tried to flash.
Followed your tutorial to the T. Everything went well as far as reading and writing hacked firmware (xtreme 3.3). I assumed everything went well.
Power cycled xbox 360 still connected to PC (using a pci sata controller with via 6421 raid) and xbox 360 went into the dashboard. (this was done accidentally, I forgot to unplug the SATA cable leading to the PC and plug the xbox's sata cable back into the xbox's dvd drive) No biggie. So I powered everything down unplugged the sata from the pc and the back of the xbox and plugged in the xbox's sata cable into the back of the ms28 drive. I rebooted xbox then I get error 66 with solid red light in the right bottom corner. Here is the quirky part: when I take the xbox's sata cable out of the ms28 and connect the xbox back to the pc with a normal sata cable the xbox boots into the dashboard without the error. I flashed it back to the original firmware using your method and everything is back to normal. I tried to whole process again with fresh download of hacked firmware xtreme 3.3 and I get the same results. I am back to original firmware.
all my files are from xbins so they should be fine.
I think my problem is that my xbox is refurbished. It seems to have been refurbished by microsoft (recently purchased from Microcenter). Originally, it must of had a different model of dvd drive that broke and when it was sent to be refurbished they replaced whatever dvd drive with a ms28. Is there any way to tell from the motherboard what the original dvd drive's model was? I assume I can overcome this by spoofing the hacked firmware but there are like 7 or 8 different dvd drives for the xbox. You got any suggestions? Thanks in advance.
thanks for the tutorial. Flashed ms25 with ease.
However, I got an interesting situation with a ms28 that I tried to flash.
Followed your tutorial to the T. Everything went well as far as reading and writing hacked firmware (xtreme 3.3). I assumed everything went well.
Power cycled xbox 360 still connected to PC (using a pci sata controller with via 6421 raid) and xbox 360 went into the dashboard. (this was done accidentally, I forgot to unplug the SATA cable leading to the PC and plug the xbox's sata cable back into the xbox's dvd drive) No biggie. So I powered everything down unplugged the sata from the pc and the back of the xbox and plugged in the xbox's sata cable into the back of the ms28 drive. I rebooted xbox then I get error 66 with solid red light in the right bottom corner. Here is the quirky part: when I take the xbox's sata cable out of the ms28 and connect the xbox back to the pc with a normal sata cable the xbox boots into the dashboard without the error. I flashed it back to the original firmware using your method and everything is back to normal. I tried to whole process again with fresh download of hacked firmware xtreme 3.3 and I get the same results. I am back to original firmware.
all my files are from xbins so they should be fine.
I think my problem is that my xbox is refurbished. It seems to have been refurbished by microsoft (recently purchased from Microcenter). Originally, it must of had a different model of dvd drive that broke and when it was sent to be refurbished they replaced whatever dvd drive with a ms28. Is there any way to tell from the motherboard what the original dvd drive's model was? I assume I can overcome this by spoofing the hacked firmware but there are like 7 or 8 different dvd drives for the xbox. You got any suggestions? Thanks in advance.
If you have a ms28,i recommend you to use ixtreme 1.2revc from xbins.Just put your orig.bin into fast or quiet folder of ixtreme1.2 and create the hacked firmware which is ix12.bin.After that,you can flash that firmware and you should be fine.Your problem is the drive is reported as ms25 so that you get E66.
Post by: myfranco on November 04, 2007, 07:30:00 AM
QUOTE(rexxpro @ Nov 4 2007, 07:15 AM)
HI,
nice tut.
can I ask though. will a bad flash of a ms28 work with a via vt8237 ob chipset or does it only work with a via 6421?
also is flashing with the ixtreme firmware done in the same way?
Thanks.Yes.Both of them(8237ob or 6421 sata card)
Post by: TE1F3R on November 04, 2007, 10:45:00 PM
Post by: rexxpro on November 05, 2007, 05:26:00 AM
QUOTE(TE1F3R @ Nov 5 2007, 04:21 PM)
im looking to flash my samsung with Xtreme53 is this tutorial good to follow if i wanna do this?
This is a very good tutorial to use.
the only question I have which I forgot to ask is if you use Xtreme Boot Maker V0.5.3 instead of the V0.3.6 it does not have the Ms28 Bad Flash Compatibility option. It does have the apply bokes patch.
it is now that the ms28 bad flash compatibility is selected by default and it can not be changed in the later version?
Post by: garan81 on November 05, 2007, 05:49:00 PM
today I recieved my via card so I installed and updated the drivers, I iprep my usb pen with the latest FW followed an excellent tut and that was successful, I changed my boot sequence and was able to get to my dos screen also removed any other drivers and disabled my sil3114 onboard Raid. Hooked my 360 up in what ive learnt the right way...
First I tried iDump (serial) but that just says general failure writing drive C
I then enter mtkflash r /m orig.bin and am given the option of choosing only 1: EXTREME Pri Master
wich i choose and it fails...
so i tried the 10sec trick a few times and it failed and stopped on 1%
any ideas on why it aint working?? Like i say ive tried looking but ive been at this all day...would be awesome to get some prof. help!!!
thanks
Post by: myfranco on November 06, 2007, 05:20:00 AM
QUOTE(rexxpro @ Nov 5 2007, 03:02 PM)
This is a very good tutorial to use.
the only question I have which I forgot to ask is if you use Xtreme Boot Maker V0.5.3 instead of the V0.3.6 it does not have the Ms28 Bad Flash Compatibility option. It does have the apply bokes patch.
it is now that the ms28 bad flash compatibility is selected by default and it can not be changed in the later version?
They're both same.you can use 0.5.3
QUOTE
ok have a ms25 a via vt6421a pci sata card, ive read read and read on what might be going wrong but cant figure it out maybe someone could help...
today I recieved my via card so I installed and updated the drivers, I iprep my usb pen with the latest FW followed an excellent tut and that was successful, I changed my boot sequence and was able to get to my dos screen also removed any other drivers and disabled my sil3114 onboard Raid. Hooked my 360 up in what ive learnt the right way...
First I tried iDump (serial) but that just says general failure writing drive C
I then enter mtkflash r /m orig.bin and am given the option of choosing only 1: EXTREME Pri Master
wich i choose and it fails...
so i tried the 10sec trick a few times and it failed and stopped on 1%
any ideas on why it aint working?? Like i say ive tried looking but ive been at this all day...would be awesome to get some prof. help!!!
thanks
today I recieved my via card so I installed and updated the drivers, I iprep my usb pen with the latest FW followed an excellent tut and that was successful, I changed my boot sequence and was able to get to my dos screen also removed any other drivers and disabled my sil3114 onboard Raid. Hooked my 360 up in what ive learnt the right way...
First I tried iDump (serial) but that just says general failure writing drive C
I then enter mtkflash r /m orig.bin and am given the option of choosing only 1: EXTREME Pri Master
wich i choose and it fails...
so i tried the 10sec trick a few times and it failed and stopped on 1%
any ideas on why it aint working?? Like i say ive tried looking but ive been at this all day...would be awesome to get some prof. help!!!
thanks
I don't use iprep,idump,samxxx etc..
The best one is mtkflash.If your drive was flashed before,try this:
Prepare your usb stick with the tutorial i've made.
Turn 360 on and then pc
Try mtkflash r /m orig.bin
choose the port and see what happens.If this doesn't work,turn pc on first to dos and then 360
try same thing again.
If those don't work at all,you need to use 10 sec trick.Before chooisng your port,turn 360 off and choose your port.Count to 10 and turn 360 on.
Post by: cypher21 on November 06, 2007, 06:12:00 AM
QUOTE(garan81 @ Nov 6 2007, 02:05 PM)
i have xbm but it never recognises my the latest fw...what fw do you recommend...also this xbox will never go online
thanks pal
newest firwmare can be used with iprep (newer version of xbm)
if you never go online with that box, i'd use xtreme 5.3
Post by: garan81 on November 06, 2007, 06:15:00 AM
Post by: myfranco on November 06, 2007, 07:08:00 PM
QUOTE(cypher21 @ Nov 6 2007, 03:48 PM)
newest firwmare can be used with iprep (newer version of xbm)
if you never go online with that box, i'd use xtreme 5.3
it doesn't matter.Just skip the error box and go on with xbm.
QUOTE
tried them all and its still sticking on 01%...any ideas what it could be? do i need to hexedit?
try different sata cable.I recommend using your hard drive's cable.
Post by: Astronutty on November 08, 2007, 02:38:00 PM
MyFranco, you are very patient and have made an excellent tutorial.
I wish to present you with my highest honor, six Xbox's
.Steve
Post by: babe69 on November 11, 2007, 06:55:00 PM
so my usb stick is ready
boot pc
dos command appear
C:\> it is not supposed to be F: (since my usb stick is f ) ??
cause when i entered my mtkflash command , all i got is ide master ?? that is my main hdd i think
so it not work
also if i do not turn on xbox i see ide master
ide slave
i have the sata vt6421 card with ms28 drive
any help will be appreciate
thx
Post by: Abacadaba on November 12, 2007, 03:20:00 PM
I am having a bit of a problem though. My computer wont write to the USB port in Dos mode. I have read this thread and scanned the forums. I could not find anything although I was rather exhausted and frustrated after a while.
I'm using a Verbatim 1GB flash drive. I have a NForce 4 Mobo (Asus A8N-SLI Deluxe) and a m-25 disk drive. I unplugged all drives from the mobo. It recognizes the M-25.
This is the error...
QUOTE
C:\>mtkflash r /m orig.bin
MTKFLASH by Joseph Lin, MTK 1998 (ver 1.83c)
please wait...
Drive Scaned:
1: XTREME Prim Master
2: XTREME Pri Slave
choose one drive:1
Port 9f0, Master/Slave: a0
Flash Type : "SST(SST39SF020)"
Reading.....01%
General failure writing drive C
Abort, Retry, Ignore, Fail?R
Reading.....02%
General failure writing drive C
Abort, Retry, Ignore, Fail?
MTKFLASH by Joseph Lin, MTK 1998 (ver 1.83c)
please wait...
Drive Scaned:
1: XTREME Prim Master
2: XTREME Pri Slave
choose one drive:1
Port 9f0, Master/Slave: a0
Flash Type : "SST(SST39SF020)"
Reading.....01%
General failure writing drive C
Abort, Retry, Ignore, Fail?R
Reading.....02%
General failure writing drive C
Abort, Retry, Ignore, Fail?
If I keep hitting Retry or Ignore it will go up to 100% then reset back to 1%. It makes a file called "orig.bin" on the flash drive but its only 1kb.
Any recommendations would be great, sorry if I missed the answer for this somewhere.
Post by: babe69 on November 12, 2007, 06:51:00 PM
QUOTE(babe69 @ Nov 11 2007, 10:23 PM)
so here what i have do while waiting
when mtkflash r /m orig.bin
i got 1- IDE SEC MASTER which is i think is my main hdd
after trying couples times the command i finally got 1- IDE SEC MASTER
2- IDE SEC SLAVE must be xbox360
so turn off xbox , choose 2 ( got port:170 master/slave : b0 )
wait 10 sec.
turn on xbox
wait wait wait ...........nothing appear
so hitting esc then got status 51 should be 70
trying the mtkflash r /m orig.bin again and again only got 1-IDE SEC MASTER
what's wrong ??
thanks for the help
problem solved !!
for thoses who have problem in dos when sata card not detected , with vt6421 raid
DO NOT PLUS THE SATA CABLE ON THE SLUT BEHIND THE PC , PLUG IT ON THE PLUG INSIDE THE PC .
result : sata detected and easy to flash
bye
Post by: myfranco on November 12, 2007, 08:56:00 PM
QUOTE(Astronutty @ Nov 9 2007, 12:14 AM)
I've read every post in this thread, took me around 6 hours (in between students needing my assistance). I tried to answer the questions that came up in my own mind, then see if I was correct when myfranco responded. It has been a great learning experience.
MyFranco, you are very patient and have made an excellent tutorial.
I wish to present you with my highest honor, six Xbox's
.Steve
Thank you for your compliment.I wish i could get those 6 xboxes
QUOTE(babe69 @ Nov 13 2007, 04:27 AM)
problem solved !!
for thoses who have problem in dos when sata card not detected , with vt6421 raid
DO NOT PLUS THE SATA CABLE ON THE SLUT BEHIND THE PC , PLUG IT ON THE PLUG INSIDE THE PC .
result : sata detected and easy to flash
bye
That is what i was going to say.I mentioned that somewhere on the previous pages.However,it's good to have solved the problem and reported here.
slot NOT slut
QUOTE(Abacadaba @ Nov 13 2007, 12:56 AM)
First, thank you for posting a great tutorial.
I am having a bit of a problem though. My computer wont write to the USB port in Dos mode. I have read this thread and scanned the forums. I could not find anything although I was rather exhausted and frustrated after a while.
I'm using a Verbatim 1GB flash drive. I have a NForce 4 Mobo (Asus A8N-SLI Deluxe) and a m-25 disk drive. I unplugged all drives from the mobo. It recognizes the M-25.
This is the error...
If I keep hitting Retry or Ignore it will go up to 100% then reset back to 1%. It makes a file called "orig.bin" on the flash drive but its only 1kb.
Any recommendations would be great, sorry if I missed the answer for this somewhere.
I think there are two things causing trouble:
1- Your flash disk might have bad sector(s).You can check that by formatting it and copying a file like 700-800mb and then copy it back to your harddrive.
2-Your sata cable might be broken.Try your harddrive's sata cable or any sata cable that works.
Post by: Abacadaba on November 12, 2007, 11:30:00 PM
QUOTE(myfranco @ Nov 12 2007, 10:32 PM)
I think there are two things causing trouble:
1- Your flash disk might have bad sector(s).You can check that by formatting it and copying a file like 700-800mb and then copy it back to your harddrive.
2-Your sata cable might be broken.Try your harddrive's sata cable or any sata cable that works.
Checked on both of those. I copied over a 800mb file to the flash and then back to HD, no bytes were missing and it worked fine. I used 3 different SATA cables, including the one on my HD right now. No go.
Thank you for the suggestions though.
Could this be it? Although its not in RAID, according to Asus's website, my MoBo uses Sillicon Image RAID drivers (Silicon Image 3114 SATA RAID driver V1.1.9.9 for Windows XP(WHQL)/2K/2003). I was confused since it is a NForce 4 SLI chipset. The manual has this in it under mobo spec summary:
[Storage]
NVIDIA nForce 4 SLI chipset Supports:
- 2 Ultra DMA 133/100/66/33
- 4 Serial ATA 3Gb/s drivers
- RAID 0, RAID 1, RAID 1 +0 and JBOD that spans across the Serial ATA and Parallel ATA drives.
Silicon Image 3114R RAID contoller supports:
- 4 x Serial ATA with RAID 0, RAID 1, RAID 1 +0 and RAID 5 Configuration
Later in the manual is lists internal connections as:
4. Serial ATA connectors (7-pin SATA 1, SATA 2, SATA 3, SATA 4) [nForce]
5. Serial ATA RAID connection (7-pin SATA_RAID1, SATA_RAID2, SATA_RAID3, SATA_RAID4) [Silicon Image]
Post by: Abacadaba on November 13, 2007, 12:23:00 AM
I switched back and forth between:
This walk through on Flash Drive and Floppy drive using every suggestion I could find.
Textbooks walk though on flash, CD & HD, and finally on Floppy.
This took around 20 hours of time.
Keep at it and eventually something will work.
Thanks again for the help.
Post by: myfranco on November 13, 2007, 07:27:00 AM
Doesn't matter whose tutorial you follow.It only matters which one works for you
Post by: poisonous on November 14, 2007, 07:28:00 AM
just new trying to find out how to flash my console.
I have got the latest version of Xtreme boot maker. v5.0.3 (rc3). have loaded Xtreme 5.3.
When I click on the general options tab it says no device configured.
when I click on the use custom controller. should I then select standard dual pci ide controller?
the mb has via vt8237 chipset.
thank you for your help and hard work on this tutorial
Post by: myfranco on November 14, 2007, 10:24:00 AM
QUOTE(Rick21 @ Nov 14 2007, 03:00 PM)
Does this tutorial work for Ixtreme firmware too?
In a few hours im gonna flash my MS28 for the first time, so forgive me if this is already asked but im checking just to be sure and because i think im gonna use this tut if it works for Ixtreme too
Yes of course.Get the multispeed ixtreme 1.3(the latest) and choose one of the firmwares inside the zip folder.Ignore the error XBM giving.
QUOTE
Hi,
just new trying to find out how to flash my console.
I have got the latest version of Xtreme boot maker. v5.0.3 (rc3). have loaded Xtreme 5.3.
When I click on the general options tab it says no device configured.
when I click on the use custom controller. should I then select standard dual pci ide controller?
the mb has via vt8237 chipset.
thank you for your help and hard work on this tutorial
just new trying to find out how to flash my console.
I have got the latest version of Xtreme boot maker. v5.0.3 (rc3). have loaded Xtreme 5.3.
When I click on the general options tab it says no device configured.
when I click on the use custom controller. should I then select standard dual pci ide controller?
the mb has via vt8237 chipset.
thank you for your help and hard work on this tutorial
I'm still using 0.3.6 and i think you need to open a firmware first.There must be a via controller tab to select.
If you want ,you can add these two screenshots and we can decide what to do
Edit reason:Typo
Post by: poisonous on November 14, 2007, 11:14:00 PM
QUOTE(myfranco @ Nov 15 2007, 04:00 AM)
Yes of course.Get the multispeed ixtreme 1.3(the latest) and choose one of the firmwares inside the zip folder.Ignore the error XBM giving.
I'm still using 0.3.6 and i think you need to open a firmware first.There must be a via controller tab to select.
If you want ,you can add these two screenshots and we can decide what to do
Edit reason:Typo
All is good thanks. I selected the standard dual pci ide controller as it was the only 1 to work and give me the chanel id in xtreme boot maker. I made my boot drive with Xtreme 5.3c. I chose c as it starts as default fast to read dvd+rw DL.
when I typed the mtkflash command, I got 2 options. extreme controller and via vt8237. I chose the first 1. It read my firmware. then back to windows to use xbox firmware toolbox ver2.0. extracted my key. backed it up. wrote it down. emailed it etc. then opened the 5.3 firmware and pasted and replaced the key. flashed my ms28 drive and it said it was done sucessfully.
tested with back of my moh airbourne assult and working fine.
I am just dl an arcade game from xbox live atm. so that is still working as well
cheers
Post by: myfranco on November 15, 2007, 05:27:00 AM
QUOTE(ourmuse @ Nov 15 2007, 02:11 AM)
Help!!! I'm using this tutorial to the tee and still can't get the ms28 to recognize. I bought the freaking 6421 card to use in my nforce 4 board and no luck..what am i doing wrong? I flashed a ms25 without the card and it worked fine..but I need to flash this ms28.
You need to setup its drivers and use the interior port of via 6421.Ms28 is firmware locked and you can unlock it by:
-mtkflash r /m orig.bin enter
-Before chooisng extreme primary or secondary master turn 360 off
-Make your selection
-Wait 10 sec and tur 360 on.
you do the same for flashing too.This is called "10 sec trick"
It can be different timing sometime such as ~12-15-18 sec.
Post by: MaxMOrz on November 15, 2007, 03:31:00 PM
Post by: myfranco on November 16, 2007, 10:42:00 AM
QUOTE(ourmuse @ Nov 16 2007, 02:44 AM)
Wow, I feel dumb...I must have read the tutorial a hundred times...I read about the 10 second trick but must not have understood it fully... It worked, (thanks) but now I have a new problem...I burned some games (backups of originals of course) I used memorex and they don't seem to be working...I used nero for one and roxio for two of them. None of them worked...well they were trying to read but one came out as a mixed media disc, one said unreadable (nero one) and the other wanted t update, did and then said the disc was dirty (which it isnt)
It's good you could flash.
You need to use clonecd or imgburn.While burning you need to choose the *.dvd file for the layerbreak.Most people use imgburn(free and easy)
QUOTE(MaxMOrz @ Nov 16 2007, 01:07 AM)
Hi everyubody...i need to flash my samsung ms28...but with what program?and do i need a sata card if I have a sata in my motherbord?Can anyvdoy explane me step be step?
Everything was explained step by step.
you need to buy a via 6421 sata card first.You better read posts here and you can flash it by yourself.
Post by: myfranco on November 16, 2007, 04:14:00 PM
QUOTE(cronaldo @ Nov 17 2007, 01:09 AM)
I need help.
Ive succesfully managed to flash a MS28 in the past.
But now im trying to do it again for a friend but have a problem.
I have the correct vi 6421 chipset and mange to make a usb boot disc using xtreme bootmaker.
The problem I have now is when i boot into dos and choose the xtreme drive to read the firmware from it just keeps on asking me again and again everytime I choose that option.
In the past when I chose that opetion it read the firmware. It is not doing it thistime.
"""-mtkflash r /m orig.bin enter
-Before chooisng extreme primary or secondary master turn 360 off
-Make your selection
-Wait 10 sec and tur 360 on."""
Are you doing this? 10 sec trick?
Post by: daytona on November 17, 2007, 09:12:00 AM
QUOTE(daytona @ Nov 17 2007, 04:40 PM)
Hey guys,
Whats the difference b/w the ixtreme and the extreme firmware?
thx
Sorry, I meant xtreme and ixtreme...I see xtreme 53 and ixtreme 1.3 as the latest, whats the difference?
Post by: RaFaMp on November 17, 2007, 09:40:00 AM
Post by: cronaldo on November 17, 2007, 12:59:00 PM
ive got it reading. was something to do with my settings of pc.
ive managed to read the firmware from the ms28.
now im trying to write i get msg saying ERR: fail to open input file.
I am doing the 10 sec trick and spellings are correct.
any ideas?
thanks
all solved...xtreme.bin was in incorect directory.
thanks again for all your help.
Post by: daytona on November 19, 2007, 08:22:00 AM
Is the bokes patch mandatory for the MS25 drives are well?
Thanks
Post by: myfranco on November 20, 2007, 08:47:00 PM
QUOTE(daytona @ Nov 19 2007, 05:58 PM)
Hey guys,
Is the bokes patch mandatory for the MS25 drives are well?
Thanks
while reflashing yes.You better click it.
Post by: Brownstone80 on December 06, 2007, 02:36:00 PM
Post by: myfranco on December 06, 2007, 08:20:00 PM
QUOTE(Opus00 @ Dec 6 2007, 11:32 PM)
Hi myfranco
I've been reading a lot around the forum for a sollution to my problem, but to no avail. I'm sure you are getting tired off all these noobish questions, but here goes:
I have a ms25, xblaster NE and nforce4 (X16 AMD) chipset. I have the xblaster set to the following: PC, mode off, power on.
I have tried samsung autoflasher, newest iprep and xtremebootmaker 0.3.6 on both usb stick and floppy. Custom firmware: ixtreme 1.3.
When I run mtkflash r /m orig.bin (or equivalent) it finds the drive, but when I select it (master) it's adress and location (a090 and a0) pops up, and then nothing happens...
When i press esc to halt the operation it says "00 should be 70"
I have tried all the different channels on the S-ATA controller, and different s-ata cables.
I power up the xbox360 after booting into dos.
I have tried once with the s-ata cable connected directly to the drive while using the autoflasher.
I don't konw what more to do, and I'm getting pretty frustrated here. After what i've gathered the ms25 should be the easiest one to flash...
I can't find the VIA s-ata controller here in Norway, but I guess I could always import it.
I'm gonna try flashing it at a friend tomorrow. He has a standard nforce4 chipset.
Thanks
Most possibly,your drive is already flashed.If so,you can not directly flash your drive without unlocking the firmware.For now and your future problems,i recommend you to buy a via 6421 sata card.If you can't buy it at the moment,find an old firmware pack like 3.x or 4.x and burn the enable.iso into a dual layer dvd.Before mtkflashing,put that dvd into xbox 360 and wait for 15 sec(sata cable is connected to pc).After that,mtkflash will be unlocked.
QUOTE(Brownstone80 @ Dec 7 2007, 12:12 AM)
I Have a m25 drive and I have flashed 1.3 to my it and when I boot up the xbox I get a red light on light 4 and an error 66. So I have read some post and it says to try different firmwares. Problem is...Now I cannot read or write to my drive. I have tried the 10 sec trick a few times, but no go. Any other things I can try?
You can try different timings like 15,20 sec.If you have your orig.bin and can create a hacked.bin with it,you can erase the firmware by:
mtkflash e
you need to do it two times to make sure you erase the firmware.After that,no 10 sec trick is needed since you will have a ms25 without firmware.However,You can try without 10 sec trick now to see if the firmware is corrupted.
Post by: RichMR2 on December 07, 2007, 03:25:00 AM
QUOTE(thepiecesfit @ Dec 7 2007, 07:24 AM)
Interesting tutorial but the latest iprep does all and more with a single program.
A) make boot disk on thumb drive
boot from thumb driveC) type in one command to read firmware, turn on drive , turn off do 10 second trick /reboot another to write firmware repeat the 10 second trick. no switches or complicated steps.
Why do all that work? When one program does it all
That's exactly how I did it and still do it. Only had 1 problem and that was when it didn't spoof my MS25 (user error, I must have overlooked the question when it asked) but even that was easily fixable. iPrep does work wonders but there are some who it doesn't work for so it does help to have another way of doing it.
Post by: Opus00 on December 07, 2007, 09:13:00 AM
QUOTE(myfranco @ Dec 7 2007, 04:56 AM)
Most possibly,your drive is already flashed.If so,you can not directly flash your drive without unlocking the firmware.For now and your future problems,i recommend you to buy a via 6421 sata card.If you can't buy it at the moment,find an old firmware pack like 3.x or 4.x and burn the enable.iso into a dual layer dvd.Before mtkflashing,put that dvd into xbox 360 and wait for 15 sec(sata cable is connected to pc).After that,mtkflash will be unlocked.
You can try different timings like 15,20 sec.If you have your orig.bin and can create a hacked.bin with it,you can erase the firmware by:
mtkflash e
you need to do it two times to make sure you erase the firmware.After that,no 10 sec trick is needed since you will have a ms25 without firmware.However,You can try without 10 sec trick now to see if the firmware is corrupted.
I don't think it's been flashed before, since it's brand new... I know I'm the first one to open it, and break the microsoft sticker.
Post by: myfranco on December 08, 2007, 02:05:00 PM
QUOTE(thepiecesfit @ Dec 7 2007, 09:24 AM)
Interesting tutorial but the latest iprep does all and more with a single program.
A) make boot disk on thumb drive
boot from thumb driveC) type in one command to read firmware, turn on drive , turn off do 10 second trick /reboot another to write firmware repeat the 10 second trick. no switches or complicated steps.
Why do all that work? When one program does it all
Really? I didn't know that.You're very smart guy.We need guys like you in this forum.We're looking forward to seeing your iprep tutorial with pictures.Ahh i forgot,there will be lots of questions about anyting goes wrong.I'm sure you can respond to all these questions with hundreds of p.m. a year.
BTW,did you check when this topic has started and iprep came out? Would give you a hint.
Post by: greg07 on December 17, 2007, 07:16:00 PM
Btw, Myfranco, thank you for your guide!
Post by: Cliffdawg on January 03, 2008, 04:44:00 PM
QUOTE(gam3r @ Dec 29 2006, 03:09 PM)
and is a torx10 essential to open the 360?
Yes it is essential to open the 360 in my opinion. The screws are tight and you need the right tool to unscrew them. However, There is another option. You can use a flat head screwdriver if the head is small enough, but I doubt the average person will have such a tiny flat head. So just go to home depot like I did and buy one for $5 because I tried and I don't think anything else will work (alan wrench, etc...)
Post by: jon10110 on March 20, 2008, 01:53:00 PM
Post by: ghostsofdecepticon420 on April 06, 2008, 09:56:00 PM
Here's what I got:
I have an XFX 680i motherboard with an Nforce 590/570/550 Onboard SATA controller. I am assuming this chipset should work with the MS25's based on what I've read here and elsewhere. I used Xtreme Boot Maker 3.5 to create my USB flash with no problems (seemingly). I used the first sata selection in conjunction with the first in my device manager:
After the USB was prepped, I restarted, booted to the USB ran "mtkflash r /m orig.bin"
Got the select one drive with 2 XTREME choices - 1 and 2. (I made sure to disconnect EVERYTHING except the XBOX drive and the USB drive!) Either selection gives me the I/o address and either a0 or b0 and it just sits there.
I have spent the last 3 days reading every single post on this thread and tried everything: replaced sata cables, tried every sata port, tried every sata controller selection in XBM, tried the 5-10-15-20-30 etc second trick, tried powering the xbox on before powering the pc on and after booting to dos.
I am at a point where I am about to give up. Honestly I don't want to have to buy an extra SATA card if I don't have to, but if it's necessary.....
I looked in my bios and RAID is disabled. But what about the 'eSata' options. SHould they be turned off?
Also, I noticed that the one SATA HD that I have (and used that sata connection to the XBOX) is on the secondary channel of the first SATA controller. Would this be an issue as well?
Any help is greatly appreciated! And thanks again for a kickass tutorial! Short, sweet and to the point.
Post by: ghostsofdecepticon420 on April 07, 2008, 08:11:00 AM
Post by: ghostsofdecepticon420 on April 08, 2008, 08:42:00 AM
Post by: Pathogenic on July 03, 2008, 11:02:00 AM
Post by: Pathogenic on July 25, 2008, 02:42:00 PM
Post by: J-UNIT on August 10, 2008, 08:38:00 PM
Trying to flash an M25 but I'm getting nowhere. First, Xtreme boot maker v3.6 fails to make a bootable drive. Is this program compatible with iXtreme 1.4? I then tried with bootable CD with NTFS4Dos with files on Hard Drive, went to the correct directory, typed the "read"command mtkflash r /m original.bin, displays 2 options (IDE Pri Master and XTREME Pri Master). I select option 2, then Port: c800, Master/slave: a0 comes up and it just hangs there. If I hit ESC it says Status=41, should be 70, ERR:user break.
So frustrating! Please, what is the latest method? Why do I get the fail to make bootable drive? The same happens with iPrep. Working with the VIA chipset.
Post by: Derfuhrer on August 11, 2008, 10:01:00 AM
Anyone else have this trouble??
Post by: Astronutty on August 23, 2008, 03:59:00 PM
I flashed my Ms28 end of last year successfully, which eventually RRoD on me. I got a new Xbox360 and the DVD drive went bad. Now moving the Ms28 into new Xbox360. Using my new drive key I replaced the old key. Then I flashed the Ms28 using the "Myfranco" method.
I selected "1 xtreme Primary" and it flashed all banks then asked me to reboot PC. I turned it off. I turned off the Xbox360 and hooked up the SATA back to the console.
When booting the Xbox360, it gives one red indicator in the lower right quadrant (Xbox360 is horizontal) and does not give any video out.
Possible reasons why?
1: Did I need to erase the Ms28 firmware first?
2: Is my hacked firmware source unreliable? (Usual places)
3: ??
Thanks in advance for any feedback.
Post by: gsalmon4 on January 12, 2009, 06:53:00 AM
Post by: CloudX77 on August 18, 2009, 09:38:00 PM
