Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 20, 2006, 08:58:00 AM

Editing MTKFlash to Work With Your SATA Chipset
3 Step Guide to Get Your Drive Recognized

Will my Chipset work?
What drive do you have?
Hitachi: most likely but you wont be able to use mtkflash so you have no need for this tut.
MS25: as long as its not a sil then yes it will.
MS28: as long as its not a sil you can use the vcc trick, altho its a lot easier if you have a via sata chipset and use the 10sec trick.

Note: This TUT is Out Dated, Please Try Xtreme Bootmaker Before Continuing (link)

Stuff you will need
HEX Editor (Hex Workshop is Recommended)
SATA Controller Card or an Onboard SATA Controller (Should tell you in your mobo/computer specs/manual)
If you do not have a SATA Controller You can most likely find one at your local Computer store or online (The Best to get is a Via VT6421l, Find the Best Price on Froogle)

1. Finding out What SATA Chipset You Have
If you have a SATA Controller Card it should say on the Box, In the Manual or on The Chip itself, If you have a Onboard Check your mobo/Computer Manufacturers Website

Example:
Onboard: VIA KM400 / 8237 = VIA 8237 SATA Chipset
SATA Controller Card: VIA 6421

2. Finding The Correct Values
Install your SATA Controller's Driver (If it isn't Already Installed).

You will need to Open up MSInfo32.exe (Start>Run, Type "MSinfo32.exe" w/o Quotes, Press OK), with MSinfo open (Should Look Something Like This) Click the + next to "Components", Click the + next to "Storage" Now Click on SCSI (Some Chipsets Have this Info under IDE) You Should See Something That looks Like This

Name   Serial ATA Controller
Manufacturer
Status   OK
PNP Device ID   PCI\VEN_2211&DEV_4433&SUBSYS_31491106&REV_80\3&61AAA01&0&78
I/O Port   0x00006655-0x000066A2
I/O Port   0x00000000-0x00000003
I/O Port   0x00008877-0x000088A4
I/O Port   0x00000000-0x00000003
I/O Port   0x00000000-0x0000000F
I/O Port   0x00000000-0x000000FF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\driver.sys (5.1.2600.201, 74.63 KB (76,416 bytes), 5/15/2006 7:00 AM)

All of that Should Look Different in Your Info, Next to Name it Should Say Something About "Serial ATA" if it Doesn't Try Scrolling Down, Make Sure Your in the Right Place or Check in IDE,
What You Are looking For in This is 8bytes (16 Numbers/Letters) That MTKFlash Can Identify Your Chipset with, The First 4bytes are Found in The "PNP Device ID" (2 Numbers/Letters = one byte)

PNP Device ID   PCI\VEN_2211&DEV_4433&SUBSYS_31491106&REV_80\3&61AAA01&0&78

So From This Example Your Line So Far Should be 11223344 (Need it Explained Better? Click Here)
The Next 4Bytes are Found in 2 Different Lines of "I/O Port" Hex Values, You Want to Identify The 2 Lines That Have a 7Byte Difference (These are Commonly the 1st and 3rd Lines), Extract the Last 4 Digits of the First Section of Numbers/Letters from Them and Swap the 2 Bytes (As You did with The "PNP Device ID" Line)

I/O Port   0x00006655-0x000066A2
I/O Port   0x00008877-0x000088A4

This is Only Known to Work if You Use The 2 "I/O Port" lines With a Difference of 7 in Order (as Shown Above) (Altho some Don't have a Difference of 7, In this Case Just Use lines 1 and 3 as if they had a Difference of 7), As They are Values for The Master and Slave Channels of The SATA Controller,
So in this Example Your line Should be 55667788 (Need it Explained Better? Click Here),
Put Together The 4bytes of Hex (8 Numbers/Letters) That You Have From The "PNP Device ID" Line and the 4 You have from The "I/O Port" Lines and You Have The Values You Need to Insert in to Your MTKFlash.exe File.

3. Injecting Chipset's Hex Values

Now Open up MTKFlash.exe in Your Hex Editor (Hex Workshop: Right Click on the file and Click "Hex Edit using Hex Workshop"), Your Hex Editor Should have a Goto Function (Hex Workshop: Ctrl+g (If your Hex Editing Program doesn't have this Function Scroll to the Bottom and look for Chipset Names) Open it and put in B370 in Hex, Make Sure You have it "Start at the Beginning" of the file, Once here you should See in the Text part, The Names of ChipSets ICH5,VIA8237,NV NForce3,ect. (Should Look Something Like This),
If Your Chipset is in Here that's Good You can compare the Actual Hex Value's to the ones "On File" and if There not the Same Change What you Need to, The Info for a Chipset is 1byte (2 00's In Hex) Before the Name of That Chipset (in TXT),If Your Chipset is Not Here You Can Just Edit one That is (I do Not Recommend Creating a New one), For Example Say i Have a VIA8237 Chipset These are The Values That i Would Edit (Don't Edit the 00 in RED)

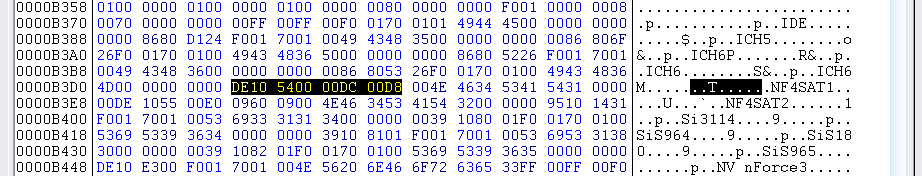

IPB Image

To Conclude the Example's in Step 2 (Don't Edit The Selected 00's)

I know there's still a lot of people having trouble getting mtkflash to recognize there 360 drive, although this is not a tutorial on getting your drive recognized I am here to help so for all of you guys still having trouble try these steps:

1.Unplug Sata Cable

2.Boot to dos

3.Boot to dash

4.Connect Sata Cable

5.Run "MTKFlash r /m /sata orig.bin" (if your chipset info shows up here Select it, if it doesn't continue with 6 and 7)

6.Hit ESC

7.Run "MTKFlash r /m sata orig.bin"

make sure to only select the name of your chipset(or the one that you edited the values in under), if it doesn't show up the 2x then try a 3 time, if it still hasn't shown up then you need to go back to editing mtkflash(try editing in "F001 7001" as the last 4 digits)

If you are Having Problems Dumping/Flashing your MS28 Drives Firmware and Have a Via Chipset Try These Steps

1. After Running MTKFlash (with your chipset as an option) Turn off your Drive

2. Select your Chipset in MTKFlash

3. Quickly Turn the Drive Back on (you only have 10sec After making the selection to turn the drive back on)

I have Heard of Limited Success using this Method on Chipsets Other then VIA

I Recommend using a Newer (Brand New is the Best) Floppy disk as you will be writing your firmware on to it and will need it to be error free and i suggest that you only write to your drive from your hdd or Thumb Drive not a floppy (you want the lease amount of errors when writing back)

Write from HDD Mini-TUT

1. put the file you want to write and your edited MTKFlash in the main Dir of your hdd (usually C:\)

2.1. If you have a Fat Partition: Run dos, at the A:\ Prompt type "C:\" (with out quotes) and you should now have a C:\ prompt

2.2 if you have a NTFS Partition: Download NTFS Dos <download link>, extract all the files from the zip file to the floppy, boot in to dos, type "ntfsdos" (without quotes) and hit enter, it will run and mount your hdd (usually D:) then type in the drive letter (Example: D:\) and hit enter,

3. now Run MTKFlash and Flash your TS Drives Firmware

Credits:
Geremia (XBH)
Everyone at XS and XBH
A Special Thanks to Commodore4Eva

If you Have Any Questions/Comments Feal Free To Email me [email protected]

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: nachomans on May 20, 2006, 10:30:00 PM

Excellent work...

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: gords on May 21, 2006, 12:56:00 AM

Yes great tute, helped me get MTKFlash working on my mobo.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: geebee on May 21, 2006, 02:06:00 AM

i have added this to the big tutorial...great work Grim

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: fredward on May 23, 2006, 05:18:00 PM

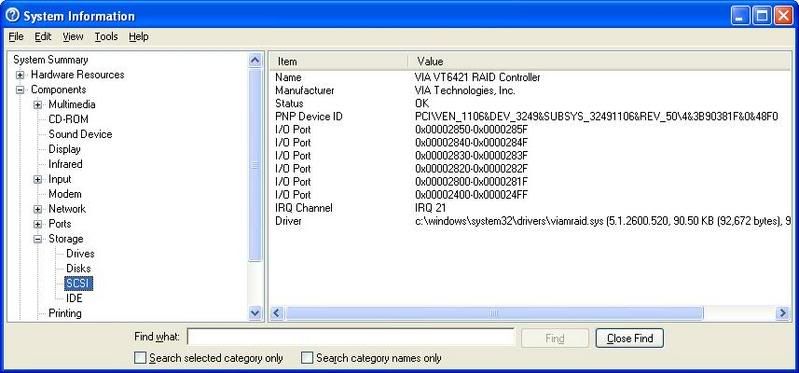

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&267A616A&0&60
I/O Port   0x0000B000-0x0000B00F
I/O Port   0x0000A800-0x0000A80F
I/O Port   0x0000A400-0x0000A40F
I/O Port   0x0000A000-0x0000A00F
I/O Port   0x00009800-0x0000981F
I/O Port   0x00009400-0x000094FF
IRQ Channel   IRQ 17

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: BALLIN5 on May 23, 2006, 07:24:00 PM

i guess i have no scsi driver installed on my computer because i get no information at all when selecting system information components ans then selecting scsi the information is blank! I currently have a sata harddrive connected and its my main harddrive but system info doesnt like to show me anything!

I have a ms-7184 motherboard and a ati ixp 450 southbridge now where do i get the drivers for viewing sata system info so i could have my 360 drive found when using mtkflash!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: oisuxx on May 23, 2006, 08:18:00 PM

im having some trouble

since it wass 2 sets of numbers i cant tell which way to chang em

PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_18991019&REV_80\3&13C0B0C5&0&78

so it sould be 60119413

then

I/O Port   0x0000B400-0x0000B407
I/O Port   0x0000B800-0x0000B803

004b008b?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: macmanx on May 23, 2006, 07:50:00 PM

QUOTE(oisuxx @ May 24 2006, 02:49 AM)

im having some trouble

since it wass 2 sets of numbers i cant tell which way to chang em
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_18991019&REV_80\3&13C0B0C5&0&78

so it sould be 60119413

then

I/O Port   0x0000B400-0x0000B407
I/O Port   0x0000B800-0x0000B803

004b008b?

You should have:
06114931

And:
00B400B8

The problem though is that your I/O Port's may not be right (their difference is greater than 7). Can you provide all your I/O Ports?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: smash_linux on May 23, 2006, 08:42:00 PM

I/O Port   0x00009400-0x0000943F
I/O Port   0x00009000-0x0000900F
I/O Port   0x00008800-0x0000887F

Which one of these I/O Port have a difference of 7?

Thanks!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: macmanx on May 23, 2006, 09:25:00 PM

QUOTE(smash_linux @ May 24 2006, 03:13 AM)

I/O Port   0x00009400-0x0000943F
I/O Port   0x00009000-0x0000900F
I/O Port   0x00008800-0x0000887F

Which one of these I/O Port have a difference of 7?

Thanks!

None of them do. Can you provide a a text read out of all the information listed under the SCSI section?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: fredward on May 23, 2006, 10:07:00 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: smash_linux on May 23, 2006, 09:34:00 PM

QUOTE(macmanx @ May 23 2006, 11:32 PM)

None of them do. Can you provide a a text read out of all the information listed under the SCSI section?

Name   WinXP Promise FastTrak 376 Controller
Manufacturer   Promise Technology
Status   OK
PNP Device ID   PCI\VEN_105A&DEV_3376&SUBSYS_809E1043&REV_02\3&61AAA01&0&70
I/O Port   0x00009400-0x0000943F
I/O Port   0x00009000-0x0000900F
I/O Port   0x00008800-0x0000887F
Memory Address   0xDB000000-0xDB000FFF
Memory Address   0xDA800000-0xDA81FFFF
IRQ Channel   IRQ 16
Driver   c:\windows\system32\drivers\fasttx2k.sys ( 1.00.0.15, 133.25 KB (136,448 bytes), 21/04/2004 8:22 PM)

My mobo is a P4S8X with a SiS 963 chipset. I tried to find someone that has that mobo but didn't find anything on the board. Thanks.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 24, 2006, 01:42:00 AM

i am working on a solution to this, if i find a fix i will have a mod amend my post

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: dUUden on May 24, 2006, 04:56:00 AM

How dou u see the 7 byte difference in

I/O Port 0x00006655-0x00006662
I/O Port 0x00008877-0x00008884

ok im just a bit slow (IMG:style_emoticons/default/tongue.gif)

6662-6555=7 duh

This post has been edited by dUUden: May 24 2006, 12:01 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 24, 2006, 04:22:00 AM

QUOTE(dUUden @ May 24 2006, 03:27 AM)

How dou u see the 7 byte difference in

I/O Port 0x00006655-0x00006662
I/O Port 0x00008877-0x00008884

ya that isent really right in hex

6655+7=666D
8877+7=888E

but i think that would have confused people that dont understand hex

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 24, 2006, 05:13:00 AM

QUOTE(Geremia From HBX)

in most cases you don't even need to edit the primary and secondary I/O address value, just leave them at F0 01 70 01 and change only the device and vendor ID, mtkflash should identify itself the I/O address.
It works for my VT8237 onboard sata and VT6421L pci sata, with or without sata bios loaded (not important)
About VIA, controller bios hangs on drive recognition, so if you are unable to disable the controller bios, simply don't connect nothing to the sata ports during boot, just connect the sata dvdrom prior to run mtkflash (for flashing) or after windows completely loaded (for SS dumping, drive unlocking doesn't work for via, at leat for my 2 controllers)(latest VIA drivers needed).

so for those of you without a 7byte difference (with your card listed in mtkflash) just leave the last 4bytes alone and use only "PNP Device ID" line Values, for those of you with out your card listed in MTKFlash you can try using the hex above as the last 4bytes

CODE

F001 7001

If it doesn't work then you probably have a card that is not and will not be supported, there's a possibility of it being supported in the future but i would just go get a $10 SATA controller card if i was you

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: dUUden on May 24, 2006, 05:33:00 AM

Ok i got a Asrock p4vt8 mobo with VIA VT8237 soundbridge chipset
Msinfo32.exe looks like this:

----------------------------------------------------------------------------------------------------------------------------
Namn   VIA SATA RAID Controller
Tillverkare   VIA Technologies, Inc.
Status   OK
PNP-enhets-ID   PCI\VEN_1106&DEV_3149&SUBSYS_31491849&REV_80\3&61AAA01&0&78
I/O-port   0x0000EC00-0x0000EC07
I/O-port   0x0000E800-0x0000E803
I/O-port   0x0000E400-0x0000E407
I/O-port   0x0000E000-0x0000E003
I/O-port   0x0000DC00-0x0000DC0F
I/O-port   0x0000D800-0x0000D8FF
IRQ-kanal   IRQ 20
Drivrutin   e:\windows\system32\drivers\viamraid.sys (5.1.2600.520, 90,50 kB (92 672 byte), 2006-05-24 12:51)
----------------------------------------------------------------------------------------------------------------------------
First 4 bytes from "PNP" = 06 11 49 31 right?

Second 4 bytes from "I/O" = 00 EC 00 E4 right ?

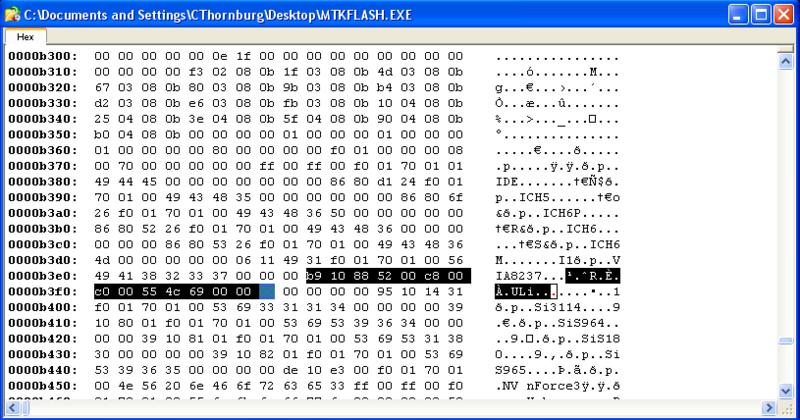

after editing mtkflash.exi in hex workshop it looks like this (green lines modified):

http://putfile.com/pic.php?pic=5/14308210193.jpg&s=f5 (putfile wont work)

But when i look at ur images u have edited some text before VIA8237 where does that come from ?

Cause when i do mtkflash.exe /sata it says no device found as usual

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 24, 2006, 06:13:00 AM

QUOTE(dUUden @ May 24 2006, 04:40 AM)

when i look at ur images u have edited some text before VIA8237 where does that come from ?

Cause when i do mtkflash.exe /sata it says no device found as usual

every file can be viewed in txt and every 1 txt letter has 2 heximental values, therfor when you edit in hex you change the txt values

Reminder: this is a tut to edit MTKFlash to get it to work with your SATA hardware (Not your XBOX 360 Drive)
You have to eather HotSwap while in dos or you can "boot in to dos, turn on xbox360 (with power atached), connect SATA cable to TS drive, Run MTKFlash"

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: conrad_vig on May 24, 2006, 06:21:00 AM

I was having the same problems with detection as well.
This is what i did, also this flasher works with the via pci cards as i have the same numbers as below

http://rapidshare.de/files/21260871/MTKFLASH.EXE.html

PNP-enhets-ID PCI\VEN_1106&DEV_3149&SUBSYS_31491849&REV_80\3&61AAA01&0&78
I/O-port 0x0000EC00-0x0000EC07
I/O-port 0x0000E800-0x0000E803
I/O-port 0x0000E400-0x0000E407
I/O-port 0x0000E000-0x0000E003
I/O-port 0x0000DC00-0x0000DC0F
I/O-port 0x0000D800-0x0000D8FF

Disable all ide channels in bios
shutdown pc, then take out all ide cables.
plug in a sata hdd drive on to port 0 (i used xbox360 drive)
boot pc and this hdd will get detected
type in the comand mtkflash r /m orig.bin
power xbox 360 up with no sata cable, leave for 20 secs
take sata cable out of hdd and plug in to tosh dvd
hit return and pick channel 0 this will now read from dvd drive.

This worked for me and it looks like i have the same via card as others
just use the mtkflash link as i tried others and edited ones but this is the only one that would read

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: dUUden on May 24, 2006, 07:18:00 AM

I get No Drive Detected with my samsung sata disc too with the mtkflash i edited and the mtk flash from raphidshare

Pice of crap hw i got

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 24, 2006, 07:36:00 AM

QUOTE(dUUden @ May 24 2006, 06:25 AM)

I get No Drive Detected with my samsung sata disc too with the mtkflash i edited and the mtk flash from raphidshare

Pice of crap hw i got

i wouldn't get angry if i was you, i sent in my 360(with TS) in for repair saturday before last, just before this "Hack" came out, with problems that i could probably fix, and i know i'm getting a Hitachi (i just know it don't ask y), so if anyone has the right to be mad its me (not because i wanna burn games i just wanna hack it)

HW??

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: dUUden on May 24, 2006, 07:45:00 AM

hardware... getting a Hitachi in return sounds nice or not but atleast they have start working on firmwire to the hitachi/LG drive

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 24, 2006, 09:03:00 AM

i have had major problems with 360's with the hitachi drive (it shuts in the middle of game play(most of the time), this will be my 7th one (only had 2 TS's)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: geebee on May 24, 2006, 09:12:00 AM

QUOTE(Grim187 @ May 24 2006, 04:10 PM)

i have had major problems with 360's with the hitachi drive (it shuts in the middle of game play(most of the time), this will be my 7th one (only had 2 TS's)

you are not supposed to run around shaking them whilst playing a game you know?

And you do not need to clean inside with washing up liquid...

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 24, 2006, 10:18:00 AM

QUOTE(geebee @ May 24 2006, 08:19 AM)

you are not supposed to run around shaking them whilst playing a game you know?

And you do not need to clean inside with washing up liquid...

stop playin me like I'm a retard, I've had major problems and minor problems ether way its an annoyance, i could spend money to fix it and break my warranty or i could get M$ to fix it and give me money hmmm witch one will i choose, well we know your choise

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: FOOLVER on May 24, 2006, 10:38:00 AM

SIS964 CHIPSET

is this a good job ?

SEE IMAGES:
http://web.tiscali.it/foolv/1sata.jpg
http://web.tiscali.it/foolv/2sata.jpg

downlod modded mtkflash : http://web.tiscali.it/foolv/mtkflash_sis964.zip

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 24, 2006, 11:33:00 AM

QUOTE(FOOLVER @ May 24 2006, 09:45 AM)

SIS964 CHIPSET

is this a good job ?

SEE IMAGES:
http://web.tiscali.it/foolv/1sata.jpg
http://web.tiscali.it/foolv/2sata.jpg
downlod modded mtkflash : http://web.tiscali.i...lash_sis964.zip

wow you got a lot of PCI IDE controllers i don't see any SATA controllers tho, have you tested it?, are you sure your in Components>Storage>SCSI?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: hawke12 on May 24, 2006, 12:18:00 PM

Name   Intel® 82801GB/GR/GH (ICH7 Family) Serial ATA Storage Controller - 27C0
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27C0&SUBSYS_5049107B&REV_01\3&61AAA01&1&FA
I/O Port   0x000030C8-0x000030CF
I/O Port   0x000030E4-0x000030E7
I/O Port   0x000030C0-0x000030C7
I/O Port   0x000030E0-0x000030E3
I/O Port   0x000030A0-0x000030AF
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 4/13/2005 2:56 PM)

PLease help, I don't understand how to figure the diff, of 7? This is what I guessed it to be using the first 2 lines: PNP Device ID 8680c027
!/O port C830E430

Thx in Advance.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: FOOLVER on May 24, 2006, 02:05:00 PM

QUOTE(Grim187 @ May 24 2006, 07:40 PM)

wow you got a lot of PCI IDE controllers i don't see any SATA controllers tho, have you tested it?, are you sure your in Components>Storage>SCSI?

i havent pci cards, i just have 2 ide and 2 sata ports embedded in the motherboard: asus/compaq K8S-LA

SCSI folder is empty

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: hawke12 on May 24, 2006, 02:42:00 PM

Thanks Anyways people, I figured it out, I used only the PNP code as stated above, and worked like a charm. thx again.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: danolimitpro on May 24, 2006, 07:47:00 PM

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&2E98101C&0&50F0
I/O Port   0x0000A400-0x0000A40F
I/O Port   0x0000A000-0x0000A00F
I/O Port   0x00009C00-0x00009C0F
I/O Port   0x00009800-0x0000980F
I/O Port   0x00009400-0x0000941F
I/O Port   0x00009000-0x000090FF
IRQ Channel   IRQ 22
Driver   d:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 5/24/2006 5:06 PM)

i got the pnp device id number which would be 06 11 49 32

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Lilflip21 on May 25, 2006, 08:49:00 AM

Just a couple quick questions and any help would be greatly appreciated i have a sony vaio with no floppy drive not even a spot to connect one on the motherboard so i gotta boot from cd or memstick and for some reason when ever i try memstick it freezes but the problem is this sony has ide cd-rom drives and 4 sata ports (intel ich6) for the hard drives... but everything i read says disconnect all ide channels but then i cant't boot and this is my only pc with sata... but whenever i run mkflash and pick eiether master or slave it just hangs... any ideas do i need to edit mkflash or am i just screwed on this pc since i gotta boot from an ide drive... and if thats the case could i format a sata hd and boot from that with just dos on it...? thanks in advance

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 25, 2006, 09:20:00 AM

QUOTE(danolimitpro @ May 24 2006, 06:54 PM)

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&2E98101C&0&50F0
I/O Port   0x0000A400-0x0000A40F
I/O Port   0x0000A000-0x0000A00F
I/O Port   0x00009C00-0x00009C0F
I/O Port   0x00009800-0x0000980F
I/O Port   0x00009400-0x0000941F
I/O Port   0x00009000-0x000090FF
IRQ Channel   IRQ 22
Driver   d:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 5/24/2006 5:06 PM)
i got the pnp device id number which would be 06 11 49 32

correct this will be all you need to use

QUOTE(Lilflip21)

your SATA controller might be for HDD's only if so then Trying to get it to read a DVD ROM drive is pointless, assuming that it dose support DVD ROM drives make a Boot CD with NTFS dos and leave a edited Version of MTKFlash in the main Dir of your hdd (C:\), when in dos type NTFSdos.exe it will mount your HDD (mine is usually D:) type in your Driver letter with a : after it (D:) it will now switch to this Dir run MTKFlash and there you go

P.S. the people talking about Removing all the ide cables are having trouble getting it to detect the SATA channels (because its made for IDE channels) try /SATA

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: brandogg on May 25, 2006, 09:32:00 AM

My SATA controller is Silicon Image SIL3112A - which is apparently different from SIL3112, anyone know if it will work? I read on a different tutorial that the NF7S is "compatible", which is what I have. I'd just like some clarification please.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 25, 2006, 09:41:00 AM

QUOTE(brandogg @ May 25 2006, 08:39 AM)

you should be able to Flash the UDMA bios and get it working

QUOTE(Helltick)

Since I'm waiting for my Via PCI..I decided to play with my SIL3112 PCI. It seems this card, purchased only a month ago is way out of date (BIOS and Driver) many new advancments for IDE..perhaps flashing using the modified MTK_NF4 ?

From the readme:

2. Zip File Contents

IDE BIOS for add-in cards is contained in this zip file.
3. Summary of Changes in 4.2.70 from 4.2.50
3.2 CD-ROM boot issues

3.2.1 Resolved CD-ROM boot order issue arising from PCI controllers preceding the SiI3112

3.2.2 Resolved CD-ROM boot issue in multi CD-ROM systems
3.3 BIOS reporting issues

3.3.1 Resolved BIOS hang in response to corrupt RAID meta data

3.3.2 Resolved incorrect display of a RAID volume within the device list after a member is dropped

3.3.3 Resolved incorrect volume geometry parameter reporting for a RAID volume with a missing member
3.4 New features

3.4.1 Implemented boot support for native SATA CD-ROM devices

3.4.2 Update BIOS for BIOS EDD 3 support

3.4.3 Extended RAID volume support for 2TB volumes
4. Known problems

4.2.1 SiI3112 BIOS will not detect Lite-on DVD

4.2.2 SiI3112 compatibility problems found with EPOX 8KDA3J Rev 2.x motherboard( nVidia nForce3, socket 754 )
5. Programming the SiI3112 BIOS

5.2.1 Verify the SiI3112 driver version to be SATALink 1.2.0.57. If the driver version precedes either of those noted, download the latest driver from www.siliconimage.com.

a. Right click on My Computer and select Manage

b. Select Device Manager from the Computer Management tree

c. Expand the SCSI and RAID controllers set of items

d. Right click on the Silicon Image SiI3112 SATALink Controller and select Properties from the pop-up menu

e. Select the Drivers tab

f. Find Driver Version reported on the tab

5.2.2 Ensure that a hard disk drive or an SV2000 is plugged into one of the SiI3112 SATA ports.

5.2.3 Launch the Silicon Image ATA Controllers application from the Windows Control Panel.

5.2.4 Click the Flash BIOS tab

5.2.5 Click the Browse button and select the b4250.bin file

5.2.6 Click the Program Flash button

Note: The firmware download should take less than five minutes to complete.

SIL3112 BIOS:

http://www.siliconimage.com/support/supportsearchresults.aspx?pid=63&cid=15&ctid=2&

SIL3112 Drivers:

http://www.siliconimage.com/search/searchresults.aspx?keyword=driver (http://www.siliconimage.com/support/supportsearchresults.aspx?pid=63&cid=15&ctid=2&)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: brandogg on May 25, 2006, 09:48:00 AM

Right - the tutorial I saw lists SIL3112 as not working, but its listed as a PCI SATA controller - mine is built in. ANd please forgive my ignorance, but where could I find that UDMA BIOS (thank God I've got a spare BIOS chip since a bad flash a few months ago)?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Dom334 on May 25, 2006, 10:06:00 AM

hi there been following these forums for a while now but im mostly a reader not a poster
im wondering if someone could help me out
ive tried atleast 50+times now to flash my drive without look cant even get the original bin file from the drive
ok this is my specs

asus a8n-sli premium nforce 4 with onboard sil3114 sata
i also have a via vt621 pci sata raid card
ts drive hw04 with firmware ms25 as stated on drive itself
ive edited mtkflash many times before using the method in the tutorial 1stly for the nforce 4 and also for the via chipset pci card
am i doing something wrong cause when ever i type mtkflash r /m orig.bin or other variations of that inc mtkflash r /sata /m orig.bin etc it asks to pick a channel and always shows either via or the nf4sat2 depending which 1 i use but then which ever i choose it just has a flashing _ but nothing else
ive tried hotswopping and many variations of booting xbox with and without sata attached just always same thing
at 1st i thought it was my mobo sata at fault so i went and bought a pci card with the exact chitset said to work ie via vt6421

here is my drives id no.s etc and how i entered them into mtkflash can someone have a look and tell me if anything ive done is wrong

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&13699180&0&3848
I/O Port   0x00008000-0x0000800F
I/O Port   0x00008400-0x0000840F
I/O Port   0x00008800-0x0000880F
I/O Port   0x00008C00-0x00008C0F
I/O Port   0x00009000-0x0000901F
I/O Port   0x00009400-0x000094FF
IRQ Channel   IRQ 17
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 25/05/2006 12:44)

so i altered mtkflash to be 0611 4932 0080 0088
and my nforce 4 which shows 2 lots

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0054&SUBSYS_815A1043&REV_F3\3&2411E6FE&0&38
I/O Port   0x000009F0-0x000009F7
I/O Port   0x00000BF0-0x00000BF3
I/O Port   0x00000970-0x00000977
I/O Port   0x00000B70-0x00000B73
I/O Port   0x0000D800-0x0000D80F
Memory Address   0xDA002000-0xDA002FFF
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 18/08/2005 17:52)

altered mtkflash to be de10 5400 f009 7009

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0055&SUBSYS_815A1043&REV_F3\3&2411E6FE&0&40
I/O Port   0x000009E0-0x000009E7
I/O Port   0x00000BE0-0x00000BE3
I/O Port   0x00000960-0x00000967
I/O Port   0x00000B60-0x00000B63
I/O Port   0x0000C400-0x0000C40F
Memory Address   0xDA001000-0xDA001FFF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 18/08/2005 17:52)

altered mtkflash to be de10 5500 e009 6009

only difference from tutorial is that the 2 nforce4 above were in my ide part not scsi

im starting to think either im makeing a mistake somewhere or my drive cant be flashed
please help
if theres any more info needed just let me know and ill sort

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: brandogg on May 25, 2006, 10:13:00 AM

I think I misinterpreted your post. Sorry to look like a moron. Thanks for your help.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 25, 2006, 10:32:00 AM

QUOTE(Dom334 @ May 25 2006, 09:13 AM)

first off i thank you for reading up good before posting,
try using This and just use every option on every slot (IE plug drive in to slot 1 and try MTKFlash option 1,2,3,4,5,6 plug drive in to Slot 2 and try MTKFlash option 1,2,3,4,5,6 etc.), make sure you have RAID and Bootrom disabled in your cosmos and you have unplugged all other drives (Including ide) (excluding what you need to run MTKFlash and Dump the firmware)

QUOTE(brandogg @ May 25 2006, 09:20 AM)

I think I misinterpreted your post. Sorry to look like a moron. Thanks for your help.

Thats alright its alot to read and we all make mistakes (i have alot on XBH, you really have to think about what they say)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: methman on May 25, 2006, 10:38:00 AM

QUOTE(danolimitpro @ May 25 2006, 02:54 AM)

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&2E98101C&0&50F0
I/O Port   0x0000A400-0x0000A40F
I/O Port   0x0000A000-0x0000A00F
I/O Port   0x00009C00-0x00009C0F
I/O Port   0x00009800-0x0000980F
I/O Port   0x00009400-0x0000941F
I/O Port   0x00009000-0x000090FF
IRQ Channel   IRQ 22
Driver   d:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 5/24/2006 5:06 PM)
i got the pnp device id number which would be 06 11 49 32

Hey Grim... I have the same type of info with an 16 byte difference on the first 4 ports. The card has 1 IDE and 2 SATA. I've edited the mtkflash every which way possible including just using the device ID of 06 11 49 32 and leaving the IO at 00F0 0070 like suggested in other posts. I've tried two computers and mtkflash always freezes with Port: 9800 text. Any other ideas?

Danolimitpro have you had any success?

Thanks for any help or info guys.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 25, 2006, 10:52:00 AM

QUOTE(methman @ May 25 2006, 09:45 AM)

The only info on the matter that i can find it to just use the First 4Bytes and leave the last 4Bytes as they are, i have noticed there's 2 different kinds of endings

CODE

F0017001

and

CODE

32017001

so i would find both these and anymore that you can find (my hex workshop doesnt line it up right so it gives me a headache trying to find them) and insert your first 4bytes (From "PNP Device ID" line) in before them, on the SATA devices that don't have a amount of 7 in hex difference

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: methman on May 25, 2006, 11:01:00 AM

QUOTE(Grim187 @ May 25 2006, 05:59 PM)

The only info on the matter that i can find it to just use the First 4Bytes and leave the last 4Bytes as they are, i have noticed there's 2 different kinds of endings

CODE

F0017001

and

CODE

32017001

Thanks for the help Grim. So to clarify you recommend going through the different chipsets which have an ending of F001 7001 and 3201 7001 in MTKFlash and edit the PNP IDs to my 0611 4932 ID? Thanks Grim.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 25, 2006, 11:33:00 AM

QUOTE(methman @ May 25 2006, 10:08 AM)

you just have to find 1 of each, if you change all of emm it will reconize all of emm and give you way to many options

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: methman on May 25, 2006, 11:44:00 AM

QUOTE(Grim187 @ May 25 2006, 06:40 PM)

you just have to find 1 of each, if you change all of emm it will reconize all of emm and give you way to many options

Thanks for the quick response and help Grim. I'll give it a shot later on tonight and report back. I'm thinking the chipset should work since it's a supported VIA but who knows. When you mention options what options do you mean. Usually as soon as I type:

mtkflash r /m orig.bin

It automatically goes to attempt to download the firmware and crashes with the Port: 9800 text. Thanks Grim.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: BaDaBo on May 25, 2006, 11:46:00 AM

Dear Mister Grim,

I hope you can answer some of my questions...while trying to backup the original firmware of the Samsung drive...nothing happened at all. I was wondering if my motherbaord supports transfering firmware from the xbox dvd drive..so that the SATA is not limited to hdd's only. My motherbaord is a: MSI K8N Neo Platinum. The stats are:

An IDE controller on the NVIDIA nForce3 250Gb chipset provides IDE HDD/CD-ROM with PIO,
Bus Master and Ultra DMA133/100/66 operation modes.
- Can connect up to 4 IDE devices

4 S-ATA RAID controller and dual channel ATA 133/100/66/33 master mode EIDE controller.

I would also like to know where in the bios i can change RAID to IDE.. however the DVD drive from the Xbox 360 is recognised as fourth master...beside it there is IDE written... I hope you can answer my silly questions...would save a lot of time and trouble (hexing).. if i know my motherboard is supported...

Cheers...

Bas

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 25, 2006, 11:51:00 AM

QUOTE(methman @ May 25 2006, 10:51 AM)

are you sure you have MTKFlash.typ in the same dir (or on floppy/cd/thumb drive) as MTKFlash and named the same (ie MTKFlash1.exe, MTKFlash1.typ)

QUOTE(methman)

i aligned it alittle bit better and it looks like theres only one

CODE

F001 7001

sorry for the mix up

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: methman on May 25, 2006, 12:23:00 PM

QUOTE(Grim187 @ May 25 2006, 06:58 PM)

are you sure you have MTKFlash.typ in the same dir (or on floppy/cd/thumb drive) as MTKFlash and named the same (ie MTKFlash1.exe, MTKFlash1.typ)
i aligned it alittle bit better and it looks like theres only one

CODE

F001 7001

sorry for the mix up

I do have the MTKFLash.typ in the same directory as the floppy. The only time I've received options is if I leave my IDE ports enabled and then I'll get 3 options.

1. IDE Primary
2. IDE Secondary
3. Samsung Drive

When I disable the IDE drives I believe MTKFlash automatically selects the Samsung drive since it's the only option available. Thanks Grim.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 25, 2006, 01:08:00 PM

QUOTE(methman @ May 25 2006, 11:30 AM)

just to make sure your booting the 360 and dos separately then hooking the 360 up and executing MTKFlash?,
have you tried /sata?, Have you tried Hotswaping?,have you tried leaving just one DVD ROM drive connected to the ide Chain?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Lilflip21 on May 25, 2006, 02:44:00 PM

I keep getting the same result or lack of result...
it gives me an options of ich6 primary or icha6 secondary and no matter which i pick it just drops down a line and hangs... iv tried hot swapping and every combination of drives connected/disconnected i can think of... i dont have a floppy drive my intel 915gag/d915psy mobo setup doesnt have a floppy port even on it so iv tried booting from cd and runningmtkflash on there and i've switched over to a hd and tried running off there but i get the same result... could anyone pardon my ignorance and tell me if this http://support.intel.com/products/motherboard/d915gag/index.htm can even handle this 360 drive... p.s. this says it has a floppy controller but mine is a sony version with no floppy controller... gotta love sony huh?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Lilflip21 on May 25, 2006, 03:07:00 PM

sorry typo... it gives me icha6p primary or icha6p secondary as options no matter which i select it drops down one line and hangs... thank you for any advice

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 25, 2006, 07:18:00 PM

QUOTE(Lilflip21 @ May 25 2006, 02:14 PM)

sorry typo... it gives me icha6p primary or icha6p secondary as options no matter which i select it drops down one line and hangs... thank you for any advice

ICH6P is confirmed not working, sorry

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: lamer01 on May 25, 2006, 08:11:00 PM

ATI RS480 chipset with SATA showing up as channel 2 and 3 in the bios.

msinfo32 shows the following under SCSI:

Name   VAX347S SCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   PCI\VAX347S\0000
Driver   c:\windows\system32\drivers\vax347s.sys (3.47.0.0 built by: WinDDK, 5.13 KB (5,248 bytes), 10/15/2005 4:17 PM)

Under IDE it shows this:

Name   Standard Dual Channel PCI IDE Controller
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCI\VEN_1002&DEV_437A&SUBSYS_1B341019&REV_00\3&61AAA01&0&88
I/O Port   0x0000FF00-0x0000FF07
I/O Port   0x0000FE00-0x0000FE03
I/O Port   0x0000FD00-0x0000FD07
I/O Port   0x0000FC00-0x0000FC03
I/O Port   0x0000FB00-0x0000FB0F
Memory Address   0xFE02F000-0xFE02F1FF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/23/2001 1:00 PM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&137C67FA&0&0
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/3/2004 10:59 PM)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&137C67FA&0&1
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/3/2004 10:59 PM)

Name   Standard Dual Channel PCI IDE Controller
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCI\VEN_1002&DEV_4379&SUBSYS_1B341019&REV_00\3&61AAA01&0&90
I/O Port   0x0000FA00-0x0000FA07
I/O Port   0x0000F900-0x0000F903
I/O Port   0x0000F800-0x0000F807
I/O Port   0x0000F700-0x0000F703
I/O Port   0x0000F600-0x0000F60F
Memory Address   0xFE02E000-0xFE02E1FF
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/23/2001 1:00 PM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&388AD848&0&0
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/3/2004 10:59 PM)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&388AD848&0&1
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/3/2004 10:59 PM)

Name   ATI IDE Controller
Manufacturer   ATI Technologies Inc
Status   OK
PNP Device ID   PCI\VEN_1002&DEV_4376&SUBSYS_1B341019&REV_00\3&61AAA01&0&A1
I/O Port   0x0000F400-0x0000F40F
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/23/2001 1:00 PM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&2B330B6B&0&0
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/3/2004 10:59 PM)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&2B330B6B&0&1
I/O Port   0x00000170-0x00000177
I/O Port   0x00000376-0x00000376
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/3/2004 10:59 PM)

I figured it's the ATI IDE Controller so I changed the Nforce 3 entry in mtkflash to this:

02107643F0017001

and still no luck.

Any ideas?

Thanks

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 25, 2006, 08:51:00 PM

QUOTE(lamer01 @ May 25 2006, 07:18 PM)

ATI RS480 chipset with SATA showing up as channel 2 and 3 in the bios.

I figured it's the ATI IDE Controller so I changed the Nforce 3 entry in mtkflash to this:

02107643F0017001
and still no luck.
Any ideas?
Thanks

try

CODE

0210 7643 2B33 0B6B

if that dosent work then you will probly need a pci card

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: lamer01 on May 25, 2006, 09:05:00 PM

QUOTE(Grim187 @ May 26 2006, 03:58 AM)

try

CODE

0210 7643 2B33 0B6B

if that dosent work then you will probly need a pci card

Thanks Grim, I will try that. How did you come up with the 2B33 0B6B number?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 25, 2006, 09:19:00 PM

heres somthing that might be helpfull

QUOTE(garyopa at XBH)

I found to be able to flash the Samsung:

1: DON'T WANT TO HAVE THE DRIVE APPEAR IN THE BIOS

2: Go into the BIOS configuration and make sure SATA is set to NON-RAID

3: Boot up your system to the DOS prompt, with the SATA plugged into the 360, but the 360 TURNED OFF

4: Then turn on the 360 system (remember to have the VIDEO CABLE plugged IN ALSO)

5: Type in the "MTKflash r /m backup.bin" command, and you will see only two selections both IDE, no SATA.

6: Select one of the IDE ports, and then press CTRL-C and the program will abort and return to DOS prompt.

7: Type in the "MTKflash r /m backup.bin" again, and NOW you will see the third selection which is "SATA".

8: Select it, and sit back and watch your Samsung drive firmware being dumped.

That's all it it for those with VIA chipset

QUOTE(lamer01 @ May 25 2006, 08:12 PM)

Thanks Grim, I will try that. How did you come up with the 2B33 0B6B number?

PNP Device ID PCIIDE\IDECHANNEL\4&2B330B6B&0&1
it the right ammount of numbers, so its worth a try

QUOTE(Lilflip21 @ May 25 2006, 02:14 PM)

sorry typo... it gives me icha6p primary or icha6p secondary as options no matter which i select it drops down one line and hangs... thank you for any advice

make an informed decision about what Chipset you get Click Here

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: lamer01 on May 25, 2006, 09:46:00 PM

QUOTE(Grim187 @ May 26 2006, 04:26 AM)

heres somthing that might be helpfull
,
PNP Device ID PCIIDE\IDECHANNEL\4&2B330B6B&0&1
it the right ammount of numbers, so its worth a try
make an informed decision about what Chipset you get http://www.xboxhacker.net/index.php?option=com_smf&Itemid=33&topic=883.0

No dice. Thanks

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Dom334 on May 26, 2006, 07:46:00 AM

cheers for the help grim but still no go
finds sata port but regardless of what i press it just hangs with flashing _

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: JethroTul on May 26, 2006, 08:07:00 AM

shit just found out that my ASUS p4s8x-MX with sata controller has a silicon chipset

SiS 964 South Bridge:
*2 x Serial ATA, RAID 0, RAID 1, JBOD
*2 x UltraDMA 133/100/66/33

will this work with Hitachi ?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 26, 2006, 08:29:00 AM

Right click Save as for the people with "VIA VT6421 SATA RAID CONTROLLER PCI" this has worked before hopefully it will work for you guys too

QUOTE(Dom334 @ May 26 2006, 06:53 AM)

cheers for the help grim but still no go
finds sata port but regardless of what i press it just hangs with flashing _

try your sil chipset look on page 3 for quoted instructions

QUOTE(JethroTul @ May 26 2006, 07:14 AM)

shit just found out that my ASUS p4s8x-MX with sata controller has a silicon chipset

SiS 964 South Bridge:
*2 x Serial ATA, RAID 0, RAID 1, JBOD
*2 x UltraDMA 133/100/66/33

will this work with Hitachi ?

im not sure what works and dosent work with hitachi because i havent done any research on it outside of This

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ravabelly on May 26, 2006, 08:39:00 AM

hello ppl, can i get your help?

I have a Sata chipset - Intel 82801GR/GH Sata Raid controller on an ABIT AL8 motherboard.

Can anyone confirm that this sata controller works with mtkflash? (read as much as I can on the forum)

I've tried editing mtkflash with hex editor and still no joy (altho I'm not convinced I knew what I was doing!)

The error message I keep getting is as follows:- "Failed to identify flash type" and the 360 led flashes until I swith it off.

Any help wud b much appreciated.

Thanx in advance

PS. Just realised my mistake - Chipset = Intel ICH7R Express Chipset (AL8)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 26, 2006, 09:08:00 AM

QUOTE(ravabelly @ May 26 2006, 07:46 AM)

ya i know alot of people that are haveing this problem, im not realy %100 on the solution to it, whats your sata in msinfo?, have you tryed booting dos then booting the 360 and hooking up the drive and runing mtkflash?, what firmware version do you have?

have you disabled all IDE channels and dissconnected all IDE Devices?

Also have you tryed "/SATA"?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ravabelly on May 26, 2006, 09:11:00 AM

QUOTE(Grim187 @ May 26 2006, 04:10 PM)

Thanks for the reply!!

Here's me sata info:-

Name   Intel® 82801GR/GH SATA RAID Controller
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27C3&SUBSYS_105D147B&REV_01\3&2411E6FE&0&FA
I/O Port   0x0000FA00-0x0000FA07
I/O Port   0x0000F900-0x0000F903
I/O Port   0x0000F800-0x0000F807
I/O Port   0x0000F700-0x0000F703
I/O Port   0x0000F600-0x0000F61F
Memory Address   0xFDFFE000-0xFDFFE3FF
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\iastor.sys (5.0.0.1026, 847.75 KB (868,096 bytes), 04/05/2005 15:57)
I havent unplugged IDE devices tho (dvdrom & dvd-r), also i got a promise ultra 133 ide controller, u rekon i shud unplug that unall?
firmware version of what?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 26, 2006, 09:20:00 AM

QUOTE(ravabelly @ May 26 2006, 08:18 AM)

Thanks for the reply!!
I havent unplugged IDE devices tho (dvdrom & dvd-r), also i got a promise ultra 133 ide controller, u rekon i shud unplug that unall?
firmware version of what?

Use This if your worryed you dident edit right
the firmware version of your 360 TS drive (it should say on the top)
dont just unplug your IDE devices Dissable them in your cosmos, also make sure you dont have any other SATA devices pluged in

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ravabelly on May 26, 2006, 09:23:00 AM

QUOTE(Grim187 @ May 26 2006, 04:27 PM)

http://www.1001megs.com/members/grim187/MTKFLASHICH7R.zip
the firmware version of your 360 TS drive (it should say on the top)
dont just unplug your IDE devices Dissable them in your cosmos, also make sure you dont have any other SATA devices pluged in

Thanks for the file will try it in a mo, the f/w = ms25.

Cheers

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Dom334 on May 26, 2006, 11:20:00 AM

QUOTE(ravabelly @ May 26 2006, 04:30 PM)

Thanks for the file will try it in a mo, the f/w = ms25.

Cheers

seems like its the fw 25 thats the prob as we both have same problems with xbox360 but different computer mobo,s

is there anyone thats managed to flash a fw 25 drive also my hardware version is 04

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Lilflip21 on May 26, 2006, 12:55:00 PM

trying to find a sata card i can just buy and throw in and this is the only one i can find around here since my built in sata ich6p aint working... anyone know if this card would work ... adaptect ...cause i would love to just rent that from bestbuy for the night and return it.. thanks for any info

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 26, 2006, 01:13:00 PM

QUOTE(Lilflip21 @ May 26 2006, 12:02 PM)

well if your gonna rent it then find out, it doesnt say anything about the chipset so i don't know, check my post 1 page back about making a informed decision when buying a sata controller card

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Lilflip21 on May 26, 2006, 03:44:00 PM

hey grim sorry to keep bothering you but i found out that adaptec card has a sil3112 chipset... im finding some info on that but nothing too sure... got any advice on that chipset... think its woth a shot.. thanks again buddy i really wanna get this working this weekend

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 26, 2006, 04:26:00 PM

QUOTE(Lilflip21 @ May 26 2006, 02:51 PM)

QUOTE

Name RocketRAID 1520 S-ATA Controller
Manufacturer HighPoint

PNP Device ID PCI\VEN_1103&DEV_0005&SUBSYS_00011103&REV_02\4&2AF9ED5&0&00F0
I/O Port 0x0000DC00-0x0000DC07
I/O Port 0x0000D880-0x0000D883
I/O Port 0x0000D800-0x0000D807
I/O Port 0x0000D480-0x0000D483
I/O Port 0x0000D000-0x0000D0FF
IRQ Channel IRQ 21
Driver c:\windows\system32\drivers\hpt3xx.sys (v2.36s, 40.97 KB (41,957 bytes), 10/12/2004 6:03 PM)

http://rapidshare.de...d_1520.rar.html

This PCI sata card works great for reading/writing FW with this edited mtkflash. Drive isnt detected in windows before/after flashing.

QUOTE

DETAILS:Fry's Electronics
Manufacturer: PPA Int'l: Parts, Peripherals & Accessories
UPC: 33250 00130
Fry's PLU: 3812387
instore price: $29.99+tax
online price: $24.99+ Overnight shipping was only $3 more than ground to buy online *http://shop2.outpost.com/product/3812387
confirmed working :yes
chipset: via vt6421
hex edited mtKflash to use with via vt6421 sata card for use on the sata master channel 0 which is the internal port. by Tbirdguy
the via 6421 with the hex edit mtkflash works perfect and i do recommend it to anyone looking for a pci sata card
http://rapidshare.de...ASHvia.zip.html

Found Here

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: i_am_ugf on May 26, 2006, 05:05:00 PM

Name   Marvell RAID 614x
Manufacturer   Marvell Inc.
Status   OK
PNP Device ID   PCI\VEN_11AB&DEV_6141&SUBSYS_81D61043&REV_01\4&186DEF45&0&00E5
I/O Port   0x00009C00-0x00009C07
I/O Port   0x00009880-0x00009883
I/O Port   0x00009800-0x0000983F
I/O Port   0x00009480-0x0000949F
Memory Address   0xFA7FFC00-0xFA7FFFFF
IRQ Channel   IRQ 17
Driver   c:\windows\system32\drivers\mv614x.sys (, 33.63 KB (34,432 bytes), 27/5/2006 00:06)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&41721A99&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 19/5/2006 16:34)

Can someone help me out? my sata is based on ICH7r

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 26, 2006, 05:16:00 PM

QUOTE(i_am_ugf @ May 26 2006, 04:12 PM)

you want me to help you out you have to tell me what your problem is

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: i_am_ugf on May 26, 2006, 05:36:00 PM

i figure out the first part that is AB114161 but i cant figureout the second part to edit with hex editor
I changed the mtkflash with the hex editor disable all ide and just plug in the toshiba dvd rom...with the edited ide the comp was like frozen with the original mtkflash it said nothing was found..

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: icechilly on May 26, 2006, 05:36:00 PM

little help needed here.

i went under msinfo and into SCSI but there is nothing listed there. but i know my chip is VT6237R if that makes any difference in solving my problem.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 26, 2006, 06:09:00 PM

QUOTE(i_am_ugf @ May 26 2006, 04:43 PM)

CODE

009C 0098

QUOTE(icechilly @ May 26 2006, 04:43 PM)

little help needed here.

i went under msinfo and into SCSI but there is nothing listed there. but i know my chip is VT6237R if that makes any difference in solving my problem.

look around a little bit more its not always in SCSI, have you installed your SATA controllers driver?

If i keep getting n00b questions then i will stop answering questions,
READ THE HOLE THREAD BEFORE POSTING

I suggest if anyone has anymore problems e-mail me

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: icechilly on May 26, 2006, 07:10:00 PM

woah, no need to be busting out the red font.

just installed my drivers, lol cant believe i missed that

anyway i got it all working now thanks for the help!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 26, 2006, 07:17:00 PM

QUOTE(icechilly @ May 26 2006, 06:17 PM)

woah, no need to be busting out the red font.

just installed my drivers, lol cant believe i missed that
anyway i got it all working now thanks for the help!

well it is in the tut, for future ref read over the tut more then once and then refer to it as you go along the steps

Statement to everyone: Try to Refrain from asking questions that have been already answered

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: lamer01 on May 26, 2006, 07:57:00 PM

QUOTE(Grim187 @ May 26 2006, 03:58 AM)

try

CODE

0210 7643 2B33 0B6B

if that dosent work then you will probly need a pci card

Grim, thanx. I got a little further this time.
I used the numbers from the 1st and 2nd controller entry and I replaced ICHP5 with
02107A4300FF00FD
and ICHP6 with
0210794300FA00F8.

I turned off the regular IDE in the bios and now mktflash says it found something.
Depending on where I have the drive plugged in I get the following:
1. ICHP5: Master
2. ICHP5: Slave

or

1. ICHP6: Master
2. ICHP6: Slave

No matter what I pick though, I get somekind of a port: ### and another number and then the pc is frozen.

The port:### looks like the ports in the numbers above like 00FF or 00FD or 00FA 00F8 and the code is a0 or b0.
I think I am getting closer.

lamer01

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 26, 2006, 08:07:00 PM

QUOTE(lamer01 @ May 26 2006, 07:04 PM)

the problem is your ide channels are a little bit to buddy buddy with your SATA channels, try disabling all ide channels in your cosmos and using this

CODE

0210 7643 F001 7001

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: lamer01 on May 26, 2006, 08:47:00 PM

QUOTE(Grim187 @ May 27 2006, 03:14 AM)

the problem is your ide channels are a little bit to buddy buddy with your SATA channels, try disabling all ide channels in your cosmos and using this

CODE

0210 7643 F001 7001

Thanks Grim. I have that in there as well. I used the nforce 3 entry for that one. Basically I entered all the controllers (3 of them) that show up in msinfo into mtkflash. Am I confusing mtkflash?

lamer01

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: RWill55904 on May 27, 2006, 01:46:00 AM

Hello Grim.

I have an Gigabyte K8U-989 Atx Motherboard
360 Toshiba Drive FW:MS 25 Feb 2006

Here are my driver specs for my sata chipset

Name   ALi SATA/RAID Controller (M5289)
Manufacturer   ALi Corporation
Status   OK
PNP Device ID   PCI\VEN_10B9&DEV_5289&SUBSYS_B0031458&REV_10\3&13C0B0C5&0&71
I/O Port   0x0000D400-0x0000D407
I/O Port   0x0000D800-0x0000D803
I/O Port   0x0000DC00-0x0000DC07
I/O Port   0x0000E000-0x0000E003
I/O Port   0x0000E400-0x0000E40F
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\m5289.sys (5.029, 50.63 KB (51,840 bytes), 5/27/2006 1:22 AM)

I cant get my mktflash to recognize the drive to dump the firmware, I spent most of the night, reading the post. I have booted with all IDE channels disabled, Connected XBOX Toshiba Drive with sata no power,
boot to floppy, then power up the 360 when I get the prompt. Type in the mtkflash r backup.bin. Also tried the /sata command. None of these work. I am sure this can work if I can get some help on this hex edit ( which I am not too familiar with by the way.) I was wondering could you use my info to make a screenshot of how it would look correctly in Hexedit? Or if you can edit MKTFlash for me and email it to me if possible or post on a share site like rapidshare?

I know I`m asking alot, but I dont want to brick it,and I will use the info you give me to get this down..
I can do everything hacking the Xbox ( i post on slayers forum all the time) I was just hoping you can lend a 360 N00b a helping hand?

Thanks
RWill55904

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 27, 2006, 07:44:00 AM

QUOTE(RWill55904 @ May 27 2006, 12:53 AM)

Hello Grim.

I have an Gigabyte K8U-989 Atx Motherboard
360 Toshiba Drive FW:MS 25 Feb 2006

Here are my driver specs for my sata chipset

I cant get my mktflash to recognize the drive to dump the firmware, I spent most of the night, reading the post. I have booted with all IDE channels disabled, Connected XBOX Toshiba Drive with sata no power,
boot to floppy, then power up the 360 when I get the prompt. Type in the mtkflash r backup.bin. Also tried the /sata command. None of these work. I am sure this can work if I can get some help on this hex edit ( which I am not too familiar with by the way.) I was wondering could you use my info to make a screenshot of how it would look correctly in Hexedit? Or if you can edit MKTFlash for me and email it to me if possible or post on a share site like rapidshare?

I know I`m asking alot, but I dont want to brick it,and I will use the info you give me to get this down..
I can do everything hacking the Xbox ( i post on slayers forum all the time) I was just hoping you can lend a 360 N00b a helping hand?

Thanks
RWill55904

Geremia over at XBH has a ALI card that he got to work its got a little bit different specs other wise i would give you the link to his, but it is known that some ALI cards work, guess you just gotta keep trying
MTKFlash for your ALI SATA Chipset
also try booting with all IDE channels enabled but only one drive hooked up (DVD drive),if you can disable Bootrom in the bios then you don't need to hot swap or Boot dos and the 360 separately (when booting separately make sure you have the 360 SATA connected to the 360)
Right now not even being able to get it detected in windows you couldn't make it a brick if you wanted to(well at least not without a hammer)

Hope this Helps

P.S. i don't use those post-it now Websites, i have my own from www.1001megs.com

Edit: Spelling

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: i_am_ugf on May 27, 2006, 08:04:00 AM

Tried to flash today with ich5 chipset...when it ype mtkflash r/m origin.bin i get the option for master and slave and when i press either of them i get failed to open input file.
Also in msinfo32.exe the ich5 doesnt appear on the scsi at all
pls help me out

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: i_am_ugf on May 27, 2006, 08:35:00 AM

Name   Intel® 82801EB Ultra ATA Storage Controllers
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_24DB&SUBSYS_24D217F2&REV_02\3&13C0B0C5&0&F9
I/O Port   0x0000F000-0x0000F00F
Memory Address   0xFEBFFC00-0xFEBFFFFF
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/23/2001 3:00 PM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&371145FE&0&0
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
IRQ Channel   IRQ 14
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/3/2004 10:59 PM)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&371145FE&0&1
I/O Port   0x00000170-0x00000177
I/O Port   0x00000376-0x00000376
IRQ Channel   IRQ 15
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/3/2004 10:59 PM)

Name   Intel® 82801EB Ultra ATA Storage Controllers
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_24D1&SUBSYS_24D117F2&REV_02\3&13C0B0C5&0&FA
I/O Port   0x0000C000-0x0000C007
I/O Port   0x0000C400-0x0000C403
I/O Port   0x0000C800-0x0000C807
I/O Port   0x0000CC00-0x0000CC03
I/O Port   0x0000D000-0x0000D00F
IRQ Channel   IRQ 18
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/23/2001 3:00 PM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&E5C5E24&0&0
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/3/2004 10:59 PM)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&E5C5E24&0&1
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/3/2004 10:59 PM)

these are my ide

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: mpowerluke on May 27, 2006, 08:45:00 AM

I am using this board:

A8N32-SLI Deluxe

My Chipset:

Nvidia NForce4 SLIx16

MY "Storage"

NVIDIA Nforce4 "supports":
2 x ultra DMA 133/100/66/33 connectors for up to 4 IDE devices
4 x Serial ATA devices (3 Gb/s)
NVIDIA for RAID 0, RAID 1, RAID 0+1, RAID 5, and
JBOD configuration that spans across Serial ATA drives

I ALSO HAVE:

Silicon Image 3132 SATA controller "supports":
1 x Internal Serial ATA device (3 Gb/s)
1 x External Serial ATA device (3 Gb/s)
(for SATA On-The-Go)
RAID 0 and RAID 1 configurations.

~~~
I am using an Nforce4 and also a regular mtkflash.exe file.

My best reslut so far....

I can disable everything but the floppy and xbox drive in the bios

I am able to recognize the drive with mtkflash

I select master sata

Then the cursor will either hang or it will give some port info...

Has ANYON actually gotten the board/chipset to work?

Here is my "system information"
**listed under IDE, NOT scsi**

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0054&SUBSYS_815A1043&REV_F3\3&267A616A&0&80
I/O Port   0x0000DC00-0x0000DC07
I/O Port   0x0000D880-0x0000D883
I/O Port   0x0000D800-0x0000D807
I/O Port   0x0000D480-0x0000D483
I/O Port   0x0000D400-0x0000D40F
Memory Address   0xFEBFC000-0xFEBFCFFF
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 4/24/2006 8:17 PM)

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0055&SUBSYS_815A1043&REV_F3\3&267A616A&0&88
I/O Port   0x0000D080-0x0000D087
I/O Port   0x0000D000-0x0000D003
I/O Port   0x0000CC00-0x0000CC07
I/O Port   0x0000C880-0x0000C883
I/O Port   0x0000C800-0x0000C80F
Memory Address   0xFEBFB000-0xFEBFBFFF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 4/24/2006 8:17 PM)

***THIS IS WHAT I HAVE UNDER SCSI***

Name   Silicon Image SiI 3132 SoftRaid 5 Controller
Manufacturer   Silicon Image
Status   OK
PNP Device ID   PCI\VEN_1095&DEV_3132&SUBSYS_81771043&REV_01\4&E2974D5&0&0010
Memory Address   0xF47FFC00-0xF47FFC7F
Memory Address   0xF47F8000-0xF47FBFFF
I/O Port   0x0000AC00-0x0000AC7F
IRQ Channel   IRQ 16
Driver   c:\windows\system32\drivers\si3132r5.sys (1, 4, 3, 0, 195.00 KB (199,680 bytes), 1/12/2006 10:41 AM)

Thanks in advance!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 27, 2006, 09:11:00 AM

QUOTE(lamer01 @ May 26 2006, 07:54 PM)

Could Be

QUOTE(i_am_ugf @ May 27 2006, 07:42 AM)

these are my ide

non of those are SATA controllers

QUOTE(mpowerluke @ May 27 2006, 07:52 AM)

Have you even tried to Edit MTKFlash, i don't see that you have nor do i see a question relevant to Editing MTKFlash so y are you posting?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: i_am_ugf on May 27, 2006, 10:01:00 AM

Name   Intel® 82801G (ICH7 Family) Ultra ATA Storage Controllers - 27DF
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27DF&SUBSYS_81791043&REV_01\3&11583659&0&F9
I/O Port   0x0000FFA0-0x0000FFAF
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 23/8/2001 15:00)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&A663227&0&0
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
IRQ Channel   IRQ 14
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 3/8/2004 22:59)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&A663227&0&1
I/O Port   0x00000170-0x00000177
I/O Port   0x00000376-0x00000376
IRQ Channel   IRQ 15
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 3/8/2004 22:59)

Name   Intel® 82801GB/GR/GH (ICH7 Family) Serial ATA Storage Controller - 27C0
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27C0&SUBSYS_26011043&REV_01\3&11583659&0&FA
I/O Port   0x0000E400-0x0000E407
I/O Port   0x0000E080-0x0000E083
I/O Port   0x0000E000-0x0000E007
I/O Port   0x0000DC00-0x0000DC03
I/O Port   0x0000D880-0x0000D88F
Memory Address   0xFEBFB800-0xFEBFBBFF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 23/8/2001 15:00)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&3803E7E3&0&0
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 3/8/2004 22:59)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&3803E7E3&0&1
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 3/8/2004 22:59)

THIS IS ME IDE

AND THIS SCSI

Name   Marvell RAID 614x
Manufacturer   Marvell Inc.
Status   OK
PNP Device ID   PCI\VEN_11AB&DEV_6141&SUBSYS_81D61043&REV_01\4&186DEF45&0&00E5
I/O Port   0x00009C00-0x00009C07
I/O Port   0x00009880-0x00009883
I/O Port   0x00009800-0x0000983F
I/O Port   0x00009480-0x0000949F
Memory Address   0xFA7FFC00-0xFA7FFFFF
IRQ Channel   IRQ 17
Driver   c:\windows\system32\drivers\mv614x.sys (, 33.63 KB (34,432 bytes), 27/5/2006 00:06)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&41721A99&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 19/5/2006 16:34)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 27, 2006, 10:35:00 AM

QUOTE(i_am_ugf @ May 27 2006, 09:08 AM)

Name   Intel® 82801GB/GR/GH (ICH7 Family) Serial ATA Storage Controller - 27C0
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27C0&SUBSYS_26011043&REV_01\3&11583659&0&FA
I/O Port   0x0000E400-0x0000E407
I/O Port   0x0000E080-0x0000E083
I/O Port   0x0000E000-0x0000E007
I/O Port   0x0000DC00-0x0000DC03
I/O Port   0x0000D880-0x0000D88F
Memory Address   0xFEBFB800-0xFEBFBBFF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 23/8/2001 15:00)

THIS IS ME IDE

AND THIS SCSI

Name   Marvell RAID 614x
Manufacturer   Marvell Inc.
Status   OK
PNP Device ID   PCI\VEN_11AB&DEV_6141&SUBSYS_81D61043&REV_01\4&186DEF45&0&00E5
I/O Port   0x00009C00-0x00009C07
I/O Port   0x00009880-0x00009883
I/O Port   0x00009800-0x0000983F
I/O Port   0x00009480-0x0000949F
Memory Address   0xFA7FFC00-0xFA7FFFFF
IRQ Channel   IRQ 17
Driver   c:\windows\system32\drivers\mv614x.sys (, 33.63 KB (34,432 bytes), 27/5/2006 00:06)

Here
as usual disable Bootrom and RAID in your bios' Cosmos

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: i_am_ugf on May 27, 2006, 11:26:00 AM

it sees the ich7 now but when i put mtkflash r/m origin.bin it says fail to input file
Anu idea what may be wrong??

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: i_am_ugf on May 27, 2006, 11:57:00 AM

err SSt (SST39SR020)
fail to input file

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 27, 2006, 12:33:00 PM

QUOTE(i_am_ugf @ May 27 2006, 11:04 AM)

err SSt (SST39SR020)
fail to input file

you still have RAID enabled or you SATA controller doesnt support Reading a Writing Firmware

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: RWill55904 on May 27, 2006, 03:33:00 PM

Thanks Grim for the feedback. I finally got mines to recognize and flash

Heres how I done it

I was pulling my hair out trying to get this to work.But I found the solution thanks to Grim and a Lot of patience..

Hook up your Toshiba DVD Drive (no Power) to the sata channel that your hard drive was on.Make sure that no other IDE devices are connected.

Load up your boot floppy,make sure to use the MKT flash for ALI chipset! (Do a little reading in Grims forum,he posts a link to it)

Dont ask me why it works this way it just does!

when you get to the prompt A:> POWER UP YOUR XBOX!
Then type in dir (dos commmand for directory)

It will list all the files on your floppy

From here at the next prompt type

mktflash r backup.bin

It should begin to backup your firmware file!

Follow the same steps when you go to flash the firmware, but use the flash command
mktflash w xtreme.bin (you should have edited this with the security key from you original firmware.

Thats it !

I tried this on TWO different ALi chipset and they both worked with this procedure,

I hope this helps everyone who has been having issues with this chipset!

Thanks again to Commodore4Eva for the formware and Grim for the assistance!!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: typod on May 27, 2006, 04:11:00 PM

Hi,

Not sure of this will help anyone but I have edited mtkflash to use the following SATA controller.

Name      Intel® 82801GB/GR/GH (ICH7 Family) Serial ATA Storage Controller - 27C0
PNP Device ID   PCI\VEN_8086&DEV_27C0&SUBSYS_B0021458&REV_01\3&13C0B0C5&0&FA
I/O Port      0x0000F000-0x0000F00F

I have a Gigabyte GA975x motherboard.

I tested this and it now flashes the DVD drive. It brings the ICH7 controller up as ICH6 as that is the entry I modified.

http://rapidshare.de...KFLASH.exe.html

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 27, 2006, 04:40:00 PM

Glad to hear you guys got it working, if you would please post your Edited MTKFlash and SATA controller onboard/card info Here it would be greatly appreciated

This post has been edited by Grim187: May 27 2006, 11:52 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: spfdz on May 27, 2006, 04:53:00 PM

Do we ABSOLUTELY NEED to use a floppy? Can't we boot from a IDE cdrom ?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 27, 2006, 04:57:00 PM

QUOTE(spfdz @ May 27 2006, 04:00 PM)

Do we ABSOLUTELY NEED to use a floppy? Can't we boot from a IDE cdrom ?

ya but then you will need to run from your hdd (if you don't have a FAT partition you will need NTFSdos.exe (Google)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: i_am_ugf on May 27, 2006, 05:09:00 PM

(you still have RAID enabled or you SATA controller doesnt support Reading a Writing Firmware)
Am i doing something wrong in the bios...i have the serial ata enhance mode ide only and disabled all other raid
what am i doing wrong??

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: i_am_ugf on May 27, 2006, 05:27:00 PM

this is how goes
i did a mtkflash r orig.bin and i backed up my firmware... am i good to continue or i must do mtkflash r/m orig.bin??i keep getting that error with r/m

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Iron Mike on May 27, 2006, 05:44:00 PM

QUOTE(Dom334 @ May 25 2006, 05:13 PM)

hi there been following these forums for a while now but im mostly a reader not a poster
im wondering if someone could help me out
ive tried atleast 50+times now to flash my drive without look cant even get the original bin file from the drive
ok this is my specs

asus a8n-sli premium nforce 4 with onboard sil3114 sata
i also have a via vt621 pci sata raid card
ts drive hw04 with firmware ms25 as stated on drive itself
ive edited mtkflash many times before using the method in the tutorial 1stly for the nforce 4 and also for the via chipset pci card
am i doing something wrong cause when ever i type mtkflash r /m orig.bin or other variations of that inc mtkflash r /sata /m orig.bin etc it asks to pick a channel and always shows either via or the nf4sat2 depending which 1 i use but then which ever i choose it just has a flashing _ but nothing else
ive tried hotswopping and many variations of booting xbox with and without sata attached just always same thing
at 1st i thought it was my mobo sata at fault so i went and bought a pci card with the exact chitset said to work ie via vt6421

here is my drives id no.s etc and how i entered them into mtkflash can someone have a look and tell me if anything ive done is wrong
Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&13699180&0&3848
I/O Port   0x00008000-0x0000800F
I/O Port   0x00008400-0x0000840F
I/O Port   0x00008800-0x0000880F
I/O Port   0x00008C00-0x00008C0F
I/O Port   0x00009000-0x0000901F
I/O Port   0x00009400-0x000094FF
IRQ Channel   IRQ 17
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 25/05/2006 12:44)

so i altered mtkflash to be 0611 4932 0080 0088
and my nforce 4 which shows 2 lots

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0054&SUBSYS_815A1043&REV_F3\3&2411E6FE&0&38
I/O Port   0x000009F0-0x000009F7
I/O Port   0x00000BF0-0x00000BF3
I/O Port   0x00000970-0x00000977
I/O Port   0x00000B70-0x00000B73
I/O Port   0x0000D800-0x0000D80F
Memory Address   0xDA002000-0xDA002FFF
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 18/08/2005 17:52)

altered mtkflash to be de10 5400 f009 7009

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0055&SUBSYS_815A1043&REV_F3\3&2411E6FE&0&40
I/O Port   0x000009E0-0x000009E7
I/O Port   0x00000BE0-0x00000BE3
I/O Port   0x00000960-0x00000967
I/O Port   0x00000B60-0x00000B63
I/O Port   0x0000C400-0x0000C40F
Memory Address   0xDA001000-0xDA001FFF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 18/08/2005 17:52)

altered mtkflash to be de10 5500 e009 6009

only difference from tutorial is that the 2 nforce4 above were in my ide part not scsi

im starting to think either im makeing a mistake somewhere or my drive cant be flashed
please help
if theres any more info needed just let me know and ill sort

I'm having the same problems with this motherboard - A8N SLI Premium deluxe

My Samsung Drive F/W is also ms=25 H/W=005 January 2006

I have tried all kind of different variations like u suggested Grim187 - didn't work so far

I'm starting to think that it really might be that particular Samsung Drive with FW ms=25...

Can anybody confirm if he has succesfully patched such a drive (Samsung FW ms=25) ?

Any help VERY appreciated....

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: dark2k on May 27, 2006, 05:54:00 PM

has anyone got this sata controller to work i have this ASUS A8R32-MVP Deluxe Socket 939 ATI CrossFire Radeon XPRESS 3200 mobo i have read the posts on this site and others some say the sil wont work can anyone point me int he right direction to see what i need to do to get this to work. thanks

Name   Silicon Image SiI 3132 SATALink Controller
Manufacturer   Silicon Image
Status   OK
PNP Device ID   PCI\VEN_1095&DEV_3132&SUBSYS_819F1043&REV_01\4&16684738&0&0028
Memory Address   0xDAEFFC00-0xDAEFFC7F
Memory Address   0xDAEF8000-0xDAEFBFFF
I/O Port   0x0000EC00-0x0000EC7F
IRQ Channel   IRQ 17
Driver   c:\windows\system32\drivers\si3132.sys (1, 0, 0, 9, 65.63 KB (67,200 bytes), 9/6/2005 9:35 AM)

Name   VAXSCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&4FE59CFE&0
I/O Port   0x0000FFA0-0x0000FFAF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\vaxscsi.sys (, 217.90 KB (223,128 bytes), 5/13/2006 6:48 PM)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&4FE59CFE&1
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 5/19/2006 9:42 PM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 27, 2006, 06:11:00 PM

It doesn't look good, Please NO MORE DOSE THIS WORK QUESTIONS you can make your own thread for that, I shouldn't have to tell you this people

That's not on the list as a not working card so its up to you to find out

This post has been edited by Grim187: May 28 2006, 01:22 AM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 27, 2006, 11:04:00 PM

QUOTE(i_am_ugf @ May 27 2006, 04:34 PM)

this is how goes
i did a mtkflash r orig.bin and i backed up my firmware... am i good to continue or i must do mtkflash r/m orig.bin??i keep getting that error with r/m

just thought i would let you guys know he got it working

QUOTE(i_am_ugf)

QUOTE(Grim187)

where you useing "MTKFlash r /m /SATA orig.bin"?

i am a complete idiot
all this time i was writing mtkflash r/m instead of r /m
thanks so much for your time

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Iron Mike on May 28, 2006, 12:18:00 AM

Hey Grim,

here's sth for u....

Okay as stated before i have a samsung drive FW MS25.... I believe more and more that this is the reason why it can't be flashed (othe people keep reporting the same problem).... In all the other threads i read so far it said FW MN25....
But let's just believe it is possible - i keep getting this error that mtkflash sees the drive but as soon as i select it it gives me one line:

PORT: 8000 Master/SLAVE a0 - and the cursor keeps blinking and nothing happens

When i abort with Escape it says:

Status 01, should be 70

Now i have tried to read the FW of my PC DVD Drive just to see if MTKFlash would function with this one...

No, same result - keeps giving me the same lines (with different values)...

Any idea ? Sounds like a MTKFlash problem to me so far....

Thanx for your help

P.S.: By the way i've tried all kind of variations using all kinds of SATA Ports (i got 8 on the mobo) and hotswapping and all that stuff - same result all the time....

I've tried the "normal" MTKFlash and the MTKFlashNF4 (which is the only one "working") since i have a Asus A8N-SLI Deluxe mobo...

One more thing: i'm using a pen drive (usb stick) to boot into DOS

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Dom334 on May 28, 2006, 04:36:00 AM

hi iron mike

tried all variations inc boot from floppy and kingston usb drive
also tried every variation of mtkflash inc editing all the possibilitys
ive all but given up now only thing left for me to try is the new connectivity kit coming out that has a debug mode on it im hopeing it either flashes in dos or that with debug mode so drive is recognised in windows someone will bring a windows gui out

This post has been edited by Dom334: May 28 2006, 11:37 AM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: piggymouth on May 28, 2006, 05:34:00 AM

QUOTE(Grim187 @ May 28 2006, 01:11 AM)

where you useing "MTKFlash r /m /SATA orig.bin"?

I just wanted to say that it makes a "BIG" difference how you type things in on a command prompt in Dos. I had been typing the above line as "mtkflash r /m sata orig.bin. I would add this in on the PDF tutorial as a second option. I was about to give up and throw in the towel before I tried this. I can't believe it worked...

I would recommend anyone try the above command that is having problems. Before typing the above command all my drive would do is just blink and freeze. It would not dump the firmware at all.

I have been pulling my hair out for 16hrs over a freakin slash before the SATA. Thanks for the quote Grim. I can now 100% confirm backing up my firmware and I'm moving on to the next step.

I using the mtkflash (N4) edited version that was included in the relase package.
My mobo is a Gigabyte with the Nvidia Nforce4 chipset.

Good luck to everyone else.

This post has been edited by piggymouth: May 28 2006, 12:36 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 28, 2006, 09:32:00 AM

QUOTE(Iron Mike @ May 27 2006, 11:25 PM)

the reason y you cant read the firmware on your IDE Devices is because you dont have MTKFlash edited for you IDE Chain

QUOTE(grim187)

where you useing "MTKFlash r /m /SATA orig.bin"?

QUOTE(Dom334 @ May 28 2006, 03:43 AM)

I'm not %100 but I'm pretty sure that the ModeB only works for the Hitachi Drive since i have not heard of anyone even mention using it on the Samsung

QUOTE(piggymouth @ May 28 2006, 04:05 AM)

Glad to hear you got it working, if you would post your Edited version of MTKFlash and you SATA Controller info Here im sure it would help some other people

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Iron Mike on May 28, 2006, 11:12:00 AM

"the reason y you cant read the firmware on your IDE Devices is because you dont have MTKFlash edited for you IDE Chain"

Grim i already tried that, maybe i did a mistake....

Okay so here are my numbers...

SCSI

Name   Silicon Image SiI 3114 SoftRaid 5 Controller
Manufacturer   Silicon Image
Status   OK
PNP Device ID   PCI\VEN_1095&DEV_3114&SUBSYS_81671043&REV_02\4&13699180&0&5048
I/O Port   0x00008000-0x00008007
I/O Port   0x00008400-0x00008403
I/O Port   0x00008800-0x00008807
I/O Port   0x00008C00-0x00008C03
I/O Port   0x00009000-0x0000900F
Memory Address   0xDB008000-0xDB0083FF
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\si3114r5.sys (1, 1, 9, 9, 292.00 KB (299,008 bytes), 11/27/2005 2:50 AM)

So if figured i had to change the MTKFlash to 9510 1431 0080 0088

IDE my nforce4 with two slots

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0054&SUBSYS_815A1043&REV_F3\3&2411E6FE&0&38
I/O Port   0x000009F0-0x000009F7
I/O Port   0x00000BF0-0x00000BF3
I/O Port   0x00000970-0x00000977
I/O Port   0x00000B70-0x00000B73
I/O Port   0x0000D800-0x0000D80F
Memory Address   0xDC002000-0xDC002FFF
IRQ Channel   IRQ 21
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0534 built by: WinDDK, 90.63 KB (92,800 bytes), 11/27/2005 2:58 AM)

i changed to DE10 5400 F009 7009

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0055&SUBSYS_815A1043&REV_F3\3&2411E6FE&0&40
I/O Port   0x000009E0-0x000009E7
I/O Port   0x00000BE0-0x00000BE3
I/O Port   0x00000960-0x00000967
I/O Port   0x00000B60-0x00000B63
I/O Port   0x0000C400-0x0000C40F
Memory Address   0xDC001000-0xDC001FFF
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0534 built by: WinDDK, 90.63 KB (92,800 bytes), 11/27/2005 2:58 AM)

i changed to DE10 5500 E009 6009

Are the changes that i did correct ?

Can u please explain step by step how to put that stuff into the Hexeditor maybe i did a mistake there....

I already read ur tutorial but i thought thats what i did....

Thanx for your help !

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Iron Mike on May 28, 2006, 11:37:00 AM

okay,

got a short question about mtkflash

like i said i already altered my exe but here's one thing

on my NF4Sat2 the values are shown like this

00DE 1055 00E0 0960 0900

so the bold part is the correct value but it is not in 4 separate digit-blocks cause the first and the last 2 numbers of the value are in a "different" block.

Do i need to change that ?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 28, 2006, 12:06:00 PM

QUOTE(Iron Mike @ May 28 2006, 10:44 AM)

no thats just the view in hex editor, your Edited MTKFlash, Have you tryed Flashing your Sil3114 bios, if you can thats what i would use (Check a cople pages back)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Iron Mike on May 28, 2006, 12:27:00 PM

QUOTE(Grim187 @ May 28 2006, 07:13 PM)

no thats just the view in hex editor, your Edited MTKFlash, Have you tryed Flashing your Sil3114 bios, if you can thats what i would use (Check a cople pages back)

And i would have to flash with which bios ? Any suggestions ?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 28, 2006, 12:55:00 PM

QUOTE(Iron Mike @ May 28 2006, 11:34 AM)

And i would have to flash with which bios ? Any suggestions ?

if you would have read you would have knowen

QUOTE(grim187 page 3)

Since I'm waiting for my Via PCI..I decided to play with my SIL3112 PCI. It seems this card, purchased only a month ago is way out of date (BIOS and Driver) many new advancments for IDE..perhaps flashing using the modified MTK_NF4 ?

From the readme:

2. Zip File Contents

IDE BIOS for add-in cards is contained in this zip file.
3. Summary of Changes in 4.2.70 from 4.2.50
3.2 CD-ROM boot issues

3.2.1 Resolved CD-ROM boot order issue arising from PCI controllers preceding the SiI3112

3.2.2 Resolved CD-ROM boot issue in multi CD-ROM systems
3.3 BIOS reporting issues

3.3.1 Resolved BIOS hang in response to corrupt RAID meta data

3.3.2 Resolved incorrect display of a RAID volume within the device list after a member is dropped

3.3.3 Resolved incorrect volume geometry parameter reporting for a RAID volume with a missing member
3.4 New features

3.4.1 Implemented boot support for native SATA CD-ROM devices

3.4.2 Update BIOS for BIOS EDD 3 support

3.4.3 Extended RAID volume support for 2TB volumes
4. Known problems

4.2.1 SiI3112 BIOS will not detect Lite-on DVD

4.2.2 SiI3112 compatibility problems found with EPOX 8KDA3J Rev 2.x motherboard( nVidia nForce3, socket 754 )
5. Programming the SiI3112 BIOS

5.2.1 Verify the SiI3112 driver version to be SATALink 1.2.0.57. If the driver version precedes either of those noted, download the latest driver from www.siliconimage.com.

a. Right click on My Computer and select Manage

b. Select Device Manager from the Computer Management tree

c. Expand the SCSI and RAID controllers set of items

d. Right click on the Silicon Image SiI3112 SATALink Controller and select Properties from the pop-up menu

e. Select the Drivers tab

f. Find Driver Version reported on the tab

5.2.2 Ensure that a hard disk drive or an SV2000 is plugged into one of the SiI3112 SATA ports.

5.2.3 Launch the Silicon Image ATA Controllers application from the Windows Control Panel.

5.2.4 Click the Flash BIOS tab

5.2.5 Click the Browse button and select the b4250.bin file

5.2.6 Click the Program Flash button

Note: The firmware download should take less than five minutes to complete.

SIL3112 BIOS:

http://www.siliconim...&cid=15&ctid=2

SIL3112 Drivers:

http://www.siliconim...?keyword=driver

like i tell everyone read the whole thread before posting

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Iron Mike on May 28, 2006, 03:33:00 PM

Hey Guys,

just wanted to let u know i finally managed to extract the FW and flash the drive but it still doesn't work.

Here's how i did it:

Like stated before initially i booted from a PEN DRIVE (which was probaly the mistake) and saw the 360 drive in DOS but as soon as i selected it mtkflash hang up (gave me one line and then a blinking cursor).

So i did what PETER (thanx a lot, buddy) stated - i created a FAT32 partition on my HD placed all MTK Files there (in my case my hexedited MTKNF4 - the one that u sent me wouldn't work, Grim - but mine worked - THANX for your efforts anyway) and booted into DOS with Hirens Boot CD

Then i ran MTK from that Fat32 partition and i managed to extract the FW with the command

mtkflash r orig.bin

When i opened the original FW in Hex Workshop to copy the sector 4000-4200 from my original 360 FW into the xtreme.bin i saw that those were the exact same values already in the xtreme.bin file !!!

I checked it 20 times and the sectors 4000-4200 had already the values that i wanted to paste in from my original 360FW. I did it anyway - flashed the Samsung Drive.

When i placed an original Halo2 xbox1 dvd in the drive (which worked perfectly on my 360 before) the dvd drive started to play an xbox commercial from the dvd but didn't start the game - it came to a screen which said:
This is an xbox game dvd. Please insert the disc into your xbox to play. - So basically the "patched" Samsung Drive acted like a PC Drive, not as a xbox Drive.

First i thought i extracted the FW from my PC DVD Drive (Plextor) and flashed it on the 360 Samsung but then the Samsung wouldn't have played the xbox commercial from the DVD - u probably would have gotten a brick.

So I just re-flashed the original FW back on the Samsung and it works perfectly again. I wanted to try a backup before i did this but CloneCD always gave me error messages like:

Error opening File Layerbreak=1913760
The system cannot find the specified file.

But the file is in the same folder and the .dvd file looked good in notepad with the right filename.

Anybody experience with that ?

Why was the FW key the same values as in the xtreme.bin file ?

Are there any other methods to extract the FW key than manualy ? Somebody mentioned a KDX way....

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 28, 2006, 03:45:00 PM

1. Its not always in the same place, Ive heard people say there can be a couple bogus ones in there, you should do a search and read up then post your question in the main category to get some help with that

2. Go Thu the DVD decrypter tut in my sig, it tells you that you have to delete that line out

3. You have to Remember that I'm only going by what i have learned from reading, i still don't have a working 360 to try this on (sending in #7 on Monday)

4. I'm glad you got it working, any ferther questions you have can be answered by other people since your matters no longer concern Editing MTKFlash

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: lamer01 on May 28, 2006, 05:05:00 PM

Grim, finally gave up on the ATI. Got a creative labs with the Via 6421L and used the via modified mtkflash and everything worked like a charm. One suggestion for all you guys. Call your local small-town computer store and ask them about what PCI controllers they have in stock. That's what I did and 5 minutes later I wa up and running.

Thanks

lamo

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Iron Mike on May 28, 2006, 05:34:00 PM

QUOTE(Grim187 @ May 28 2006, 10:52 PM)

1. i probalby did a mistake by copying the FW key manualy - although i did it several times - finaly i did it with KDX 1.5 and the proper patched xtreme bin - very EASY (noob proof) - worked perfectly (originals and backups)

2. No need of DVD Decrypter - just found out that u have to use CloneCD 5.2.8.1 - worked perfectly for my copy of GRAW

Thanx to all u guys for helping !!!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 28, 2006, 06:59:00 PM

QUOTE(Iron Mike @ May 28 2006, 04:41 PM)

No need of DVD Decrypter - just found out that u have to use CloneCD 5.2.8.1 - worked perfectly for my copy of GRAW

Thanx to all u guys for helping !!!

you actually can use DVD decrypter and when i get a working 360 and get the drive hacked that's all i will use that way i burn coasters

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Dom334 on May 30, 2006, 04:57:00 AM

tried your way iron mike still no go ie made fat32 partition on hd ,boot hirens cd to dos and the usual commands still cant get fw from drive just flashing cursor

really starting to get on my tits now what the fuck is it with my drive ffs

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: megamania2004 on May 30, 2006, 11:35:00 AM

i have a intel 915GAV and mtkflash dont see my samsung xbox 360 drive, but on BIOS the drive appears...
anyone help me???

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: brandogg on May 30, 2006, 02:58:00 PM

Still waiting on the Hitatchi FW, so has anyone gotten the SiI3112 chipset to work yet (on-board, non PCI add-on card). Just wondering if I should pick up a an add-on card...and of course return it the next day.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 30, 2006, 03:41:00 PM

QUOTE(brandogg @ May 30 2006, 02:05 PM)

I'm pretty sure that no one will ever get the sil3112 to work, the sil3114 you can flash the bios and get it to work, stop being stingy go get a PCI Card

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Perplexer on May 31, 2006, 04:05:00 PM

Much needed BUMP!

Thank you very much Grim187 for this tutorial. This made my Sammy flashing experience MUCH easier. I didn't feel like opening my main PC, so I picked up a cheap VIA6421 card and with the hexedits, it worked like a charm in my "Frankendongle" PC!

Cheers,
Plex

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 31, 2006, 05:14:00 PM

QUOTE(Perplexer @ May 31 2006, 03:12 PM)

Glad to hear you got it working and thanks for the bump

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 02, 2006, 03:13:00 PM

I have just successfully dumped my ts fw with my Via VT8237 chipset using "MTKFlash r /m /sata A:\orig.bin"
i tried a couple things before i got it,

1. after booting to dos and booting the 360 separate i tried using a edited MTKFlash on my hdd (after running NTFSdos) to dump to my hdd with no go ("Failed to Open Output file")

2. i then tried writing to the Floppy (with the Edited MTKFlash on floppy) with no go ("No Drives Detected")

3. i then Tried Using the Edited MTKFlash from my hdd (mounted with ntfsdos) to Dump to my Floppy, it didnt detect the drive the first time i ran MTKFlash but it did the 2nd (When it detected the drive it said Please Wait and did not when it wouldn't)

Note: I did not Have to Disable Any of my Devices (IDE,Etc.)

Hope this helps

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Havok on June 02, 2006, 09:47:00 PM

Has anyone gotten it to work with an ATI Radeon Xpress 200 chipset? I saw a few other people didn't. I tried to hexedit MTKFlash but when I run MSINFO nothing is listed under SCSI?

I didnt see anything in MSINFO that mentioned serial ATA.

The computer is a Compaw SR1710NX with an Asus A8AE-LE motherboard.

Any Ideas?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: brandogg on June 02, 2006, 10:02:00 PM

ATI Radeon Xpress 200 is a video card. It has absolutely nothing to do with SATA or anything that would ever have anything to do with hacking the XBox 360 DVD firmware. You're an idiot...sorry for the flames, honestly.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Havok on June 02, 2006, 10:51:00 PM

QUOTE(brandogg @ Jun 3 2006, 04:09 AM)

Umm you might want to eat those words dumbass... Since your actually a senior member and been around as long as I have, I'll just note it down as a temporary moment of colossal stupidity..

http://www.hardocp.c...e.html?art=Njg1

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: nachomans on June 02, 2006, 11:04:00 PM

Sorry, but xpress 200 has nothing to do with SATA
Coul be a motherboard chipset...but that doesnt mean anything..
So If you want help, post the SATA controller ID or the southbridge chipset name...

This post has been edited by nachomans: Jun 3 2006, 06:04 AM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Super_Bleh on June 02, 2006, 11:23:00 PM

Hi,

I had problems setting my keys earlier, I currently am using a DFI Infinity Nforce 2 Ultra MOBO

Name   Silicon Image SiI 3114 SATALink Controller
Manufacturer   Silicon Image
Status   OK
PNP Device ID   PCI\VEN_1095&DEV_3114&SUBSYS_31141095&REV_02\4&3B1D9AB8&0&5840
I/O Port   0x0000A000-0x0000BFFF
I/O Port   0x0000A400-0x0000A403
I/O Port   0x0000A800-0x0000A807
I/O Port   0x0000AC00-0x0000AC03
I/O Port   0x0000B000-0x0000B00F
Memory Address   0xEB000000-0xEB0003FF
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\si3114.sys (1, 2, 0, 5, 53.59 KB (54,872 bytes), 6/11/2005 6:57 PM)

I was having problems looking for the 7 byte sets. When I had my IDE PCI card in it did not work and gave me different IO port address's I tried to hex edit them in and would always lock up after it mtkflash loaded, all the boot procedures I tried yielded the same results.

Any input would be great.

Thanks

This post has been edited by Super_Bleh: Jun 3 2006, 06:26 AM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Havok on June 02, 2006, 11:45:00 PM

QUOTE(nachomans @ Jun 3 2006, 05:11 AM)

Sorry, but xpress 200 has nothing to do with SATA
Coul be a motherboard chipset...but that doesnt mean anything..
So If you want help, post the SATA controller ID or the southbridge chipset name...

Okay the Southbridge is ATI SB400...

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: nachomans on June 02, 2006, 11:59:00 PM

Now you have to install specific ati sata drivers to see the serial ata ID in MSINFO....
If you dont install serial ata drivers, you cant see the ID vendor...
BTW, the serial ata ID is under IDE, not SCSI in msinfo...

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 03, 2006, 12:20:00 AM

QUOTE(Super_Bleh @ Jun 2 2006, 10:30 PM)

Don't edit the last 4bytes, leave them how they where/are (don't put 00000000 on emm aether), if your still having problems check out page 3 i think i talk about flashing the chipsets bios

QUOTE(Havok @ Jun 2 2006, 10:52 PM)

Okay the Southbridge is ATI SB400...

Whip that Info at me and ill give you a edited mtkflash

QUOTE(nachomans @ Jun 2 2006, 11:06 PM)

looks like your taking over.....lol, actually in most cases your sata info is under SCSI when you have the same chipset controlling your ide chain it will be under IDE

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Havok on June 03, 2006, 12:45:00 AM

Name   Standard Dual Channel PCI IDE Controller
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCI\VEN_1002&DEV_4379&SUBSYS_2A26103C&REV_00\3&61AAA01&0&90
I/O Port   0x0000FF00-0x0000FF07
I/O Port   0x0000FE00-0x0000FE03
I/O Port   0x0000FD00-0x0000FD07
I/O Port   0x0000FC00-0x0000FC03
I/O Port   0x0000FB00-0x0000FB0F
Memory Address   0xFE02F000-0xFE02F1FF
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/4/2004 8:00 AM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&1EC030E9&0&0
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/4/2004 8:00 AM)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&1EC030E9&0&1
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/4/2004 8:00 AM)

Name   ATI IDE Controller
Manufacturer   ATI Technologies Inc
Status   OK
PNP Device ID   PCI\VEN_1002&DEV_4376&SUBSYS_2A26103C&REV_00\3&61AAA01&0&A1
I/O Port   0x0000F900-0x0000F90F
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/4/2004 8:00 AM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&831EF21&0&0
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/4/2004 8:00 AM)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&831EF21&0&1
I/O Port   0x00000170-0x00000177
I/O Port   0x00000376-0x00000376
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/4/2004 8:00 AM)

------------------------------------------------------------------------------------------------------------------------
That is all that is listed. Nothing is listed on SCSI. The only hard drive in the machine is a SATA hard drive. I have installed the newest chipset drivers (which include SATA drivers) but I still do not see any Serial ATA info listed.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 03, 2006, 12:54:00 AM

check in Components > Ports > Serial , that's the only other place that it might be, if its not there i don't know what to tell you

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Havok on June 03, 2006, 02:24:00 AM

Thanks man for rying to help, I checked there and nothing is listed but the internal modem in the "Serial" section.

Hopefully someone else with this chipset has played with it. Otherwise I'll just go out and buy a PCI Sata controller.

The Motherborad bios detects the TS drive fine. It's just MTKFlash that is not set up to work with it.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: nachomans on June 03, 2006, 04:46:00 AM

Try to edit MTKflash with this

Name Standard Dual Channel PCI IDE Controller
Manufacturer (Standard IDE ATA/ATAPI controllers)
Status OK
PNP Device ID PCI\VEN_1002&DEV_4379&SUBSYS_2A26103C&REV_00\3&61AAA01&0&90
I/O Port 0x0000FF00-0x0000FF07
I/O Port 0x0000FE00-0x0000FE03
I/O Port 0x0000FD00-0x0000FD07
I/O Port 0x0000FC00-0x0000FC03
I/O Port 0x0000FB00-0x0000FB0F
Memory Address 0xFE02F000-0xFE02F1FF
IRQ Channel IRQ 22
Driver c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/4/2004 8:00 AM)

If I dont install sata drivers, my sata controller looks like "standard dual channel pci ide controller", so give it a try...

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: [AD] on June 03, 2006, 07:56:00 AM

Hi Grim,

Wonder if you could clarify something for me.

In your first post you stated that you get 2 codes from the 2 I/O lines. What if your sata only has one line?

Name   Silicon Image SiI 3132 SATALink Controller
Manufacturer   Silicon Image
Status   OK
PNP Device ID   PCI\VEN_1095&DEV_3132&SUBSYS_31321095&REV_01\4&3F01986&0&0038
Memory Address   0xFE1FF000-0xFE1FF07F
Memory Address   0xFE1F8000-0xFE1FBFFF
I/O Port   0x0000BC80-0x0000BCFF
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\si3132.sys (1, 0, 0, 9, 65.63 KB (67,200 bytes), 11/11/2005 11:21)

I know its a Silicon Image but was wondering what I would have to add to MTkFlash to try and get it working.

Hope you can help.

Regards
-=AD=-

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Super_Bleh on June 03, 2006, 11:03:00 AM

Hi grim, I got some new io port numbers with the IDE controller card plugged in..

Name   Silicon Image SiI 3114 SATALink Controller
Manufacturer   Silicon Image
Status   OK
PNP Device ID   PCI\VEN_1095&DEV_3114&SUBSYS_31141095&REV_02\4&3B1D9AB8&0&5840
I/O Port   0x0000A400-0x0000A407
I/O Port   0x0000A800-0x0000A803
I/O Port   0x0000AC00-0x0000AC07
I/O Port   0x0000B000-0x0000B003
I/O Port   0x0000B400-0x0000B40F
Memory Address   0xEB020000-0xEB0203FF
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\si3114.sys (1, 2, 0, 5, 53.59 KB (54,872 bytes), 6/11/2005 6:57 PM)

In this case would my key be

9510 1431 00a4 00ac?

You had mentioned to me that I should update my bios wit hthe one on page 3 but that was for SiI 3112 bios, just wondering if I should use that one or not.

Previously w/o my IDE Contoller I had

Manufacturer Silicon Image
Status OK
PNP Device ID PCI\VEN_1095&DEV_3114&SUBSYS_31141095&REV_02\4&3B1D9AB8&0&5840
I/O Port 0x0000A000-0x0000BFFF
I/O Port 0x0000A400-0x0000A403
I/O Port 0x0000A800-0x0000A807
I/O Port 0x0000AC00-0x0000AC03
I/O Port 0x0000B000-0x0000B00F
Memory Address 0xEB000000-0xEB0003FF
IRQ Channel IRQ 19
Driver c:\windows\system32\drivers\si3114.sys (1, 2, 0, 5, 53.59 KB (54,872 bytes), 6/11/2005 6:57 PM)

I didn't know what I should inject into MTKflash

This post has been edited by Super_Bleh: Jun 3 2006, 06:04 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 03, 2006, 12:21:00 PM

QUOTE(Super_Bleh @ Jun 3 2006, 10:10 AM)

In this case would my key be

9510 1431 00a4 00ac?

You had mentioned to me that I should update my bios wit hthe one on page 3 but that was for SiI 3112 bios, just wondering if I should use that one or not.
Previously w/o my IDE Contoller I had

ya those are the right values to enter in to mtkflash, sorry i could have sworn that it was for flashing the sil3114, i think you could see if you can flash the bios, if you can then im sure you can find some bios for the sil3114

QUOTE

' date='Jun 3 2006, 07:03 AM' post='3449078']
Hi Grim,

Wonder if you could clarify something for me.

In your first post you stated that you get 2 codes from the 2 I/O lines. What if your sata only has one line?

Name   Silicon Image SiI 3132 SATALink Controller
Manufacturer   Silicon Image
Status   OK
PNP Device ID   PCI\VEN_1095&DEV_3132&SUBSYS_31321095&REV_01\4&3F01986&0&0038
Memory Address   0xFE1FF000-0xFE1FF07F
Memory Address   0xFE1F8000-0xFE1FBFFF
I/O Port   0x0000BC80-0x0000BCFF
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\si3132.sys (1, 0, 0, 9, 65.63 KB (67,200 bytes), 11/11/2005 11:21)
I know its a Silicon Image but was wondering what I would have to add to MTkFlash to try and get it working.

Hope you can help.

Regards
-=AD=-

I have no Idea what that's about, Ive never seen one like that(do you have a 1 slot non-Raid controller?), could you give a full read out of everything in SCSI and ide please, well you could always just not edit the last 4bytes

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: lord^infamous on June 04, 2006, 09:39:00 AM

[quote name='Grim187' date='May 26 2006, 09:36 AM' post='3433503']
Right click Save as for the people with "VIA VT6421 SATA RAID CONTROLLER PCI" this has worked before hopefully it will work for you guys too]

I have that exact card and it seems the link is down.......

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Freddie76 on June 04, 2006, 10:06:00 AM

I think there are other links to the VIA mtkflash hack floating around the forums, but if it helps any you can do it yourself extremely easily. Grab the free version of Hex Workshop Editor, go to line 0000b3d0 (hex) and change the 31 to a 32. That's it. I can confirm first hand that works with the VIA VT6421 raid controller.

Good luck!

-Freddie

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: lord^infamous on June 04, 2006, 10:35:00 AM

I have the hexedited mtkflash for via and it's changed to 32 already and when I go to dump the firmware I get "fail to open input file"

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tazz212 on June 04, 2006, 02:03:00 PM

Hey. I can't seem to figure out how to edit mktflash by myself. I've tried and tried and tried but nothing seems to work. I'm wondering if someone could walk me through the editing process...My understanding is that I should edit mtkflash to read 0611 4931 0098 00A0

I've done the edit and saved it...My PC will still not recognize the drive and my computer locks up when I press enter to run the mtkflash command. So, here is my info...Any help would be appreciated. Thanks!

Name   VIA SATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_31491106&REV_80\3&61AAA01&0&78
I/O Port   0x00009800-0x00009807
I/O Port   0x00009C00-0x00009C03
I/O Port   0x0000A000-0x0000A007
I/O Port   0x0000A400-0x0000A403
I/O Port   0x0000A800-0x0000A80F
I/O Port   0x0000AC00-0x0000ACFF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.520, 90.50 KB (92,672 bytes), 02/06/2006 4:22 PM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: fille84 on June 04, 2006, 02:30:00 PM

I would appreciate someones help with this...

Name Silicon image Sil 3112 SATALink Controller
Manufacturer Silicon Image
Status OK
PNP Device ID PCI\VEN_1095&DEV_3112&SUBSYS_31121095&REV_02\3&61AAA01&0&58
I/O-port   0x0000B000-0x0000B007
I/O-port   0x0000A800-0x0000A803
I/O-port   0x0000A400-0x0000A407
I/O-port   0x0000A000-0x0000A003
I/O-port   0x00009800-0x0000980F
Memory Address 0xF6800000-0xF68001FF
IRQ-kanal   IRQ 9
Driver c:\windows\system32\drivers\si3112.sys

Is the key: 9510 1231 00B0 00A4 ??

One more thing I didnt really understand. Yes I know people say that a Sil3112 image doesnt work, but it works in some cases right? Like with Hitachi Drives, because thats what I have.
Do I have to update the bios for Sil3112?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: mrwabam on June 04, 2006, 06:18:00 PM

Can someone help me with this?

Here is my dump from msinfo:
Name   NVIDIA MCP51 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0266&SUBSYS_54011565&REV_A1\3&2411E6FE&0&70
I/O Port   0x000009F0-0x000009F7
I/O Port   0x00000BF0-0x00000BF3
I/O Port   0x00000970-0x00000977
I/O Port   0x00000B70-0x00000B73
I/O Port   0x0000E000-0x0000E00F
Memory Address   0xFE02D000-0xFE02DFFF
IRQ Channel   IRQ 21

I don't see any that are 7 different.

Any suggestions or am i missing something?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Havok on June 04, 2006, 07:20:00 PM

QUOTE(nachomans @ Jun 3 2006, 10:53 AM)

Okay I have just had a partial success.. I edit MTKFLASh with the following..

0210 7943 00FF 00FD

For the first time the drive was detected and I was asked "IDE MASTER or IDE SLAVE" I tried both and it just hangs mtkflash. Therefore i am assuming the ports are wrong.

I also tried the SATA switch. Any other ideas?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Havok on June 05, 2006, 07:37:00 AM

QUOTE(mrwabam @ Jun 5 2006, 12:25 AM)

I/O Port 0x000009F0-0x000009F7 and I/O Port 0x00000970-0x00000977

Has a difference of 7. See 0 -7 = -7

Therefore your edit string would be:

DE10 6602 F009 7009

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 05, 2006, 02:23:00 PM

QUOTE(lord^infamous @ Jun 4 2006, 09:42 AM)

I have the hexedited mtkflash for via and it's changed to 32 already and when I go to dump the firmware I get "fail to open input file"

Xs wont show the link Its the first post here

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 05, 2006, 04:45:00 PM

QUOTE(fille84 @ Jun 4 2006, 01:37 PM)

You dont use Mtkflash for the hitachi Go here

QUOTE(lord^infamous @ Jun 4 2006, 09:42 AM)

I have the hexedited mtkflash for via and it's changed to 32 already and when I go to dump the firmware I get "fail to open input file"

are you sure it isent failed to open output file?, are you reading or flashing?

This post has been edited by Grim187: Jun 5 2006, 11:46 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: lord^infamous on June 05, 2006, 07:02:00 PM

QUOTE(Grim187 @ Jun 5 2006, 05:52 PM)

You dont use Mtkflash for the hitachi Go here
are you sure it isent failed to open output file?, are you reading or flashing?

I'm trying to dump the firmware.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 05, 2006, 09:22:00 PM

QUOTE(lord^infamous @ Jun 5 2006, 06:09 PM)

I'm trying to dump the firmware.

are you using ntfsdos?, what are you dumping to?, are you sure it dosent say failed to open output file?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: lord^infamous on June 06, 2006, 01:46:00 AM

I'm using a plain old floppy and yes i'm sure it says "fail to open input file"

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: fille84 on June 06, 2006, 02:35:00 AM

QUOTE(lord^infamous @ Jun 6 2006, 03:09 AM)

I'm trying to dump the firmware.

If u have Hitachi, use the Slax Live-CD and follow the tut by geebee. It worked for me.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: lord^infamous on June 06, 2006, 08:53:00 AM

QUOTE(fille84 @ Jun 6 2006, 03:42 AM)

If u have Hitachi, use the Slax Live-CD and follow the tut by geebee. It worked for me.

LOL people reply when they don't know what the subject is....... within this whole thread there is nothing about a hitachi. Thanks for the help anyways.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: dudebig on June 06, 2006, 03:43:00 PM

Nombre   VIA SATA RAID Controller
Fabricante   VIA Technologies, Inc.
Estado   OK
Id. de dispositivo PNP   PCI\VEN_1106&DEV_3149&SUBSYS_31491849&REV_80\3&267A616A&0&78
Puerto E/S   0x0000D400-0x0000D407
Puerto E/S   0x0000D000-0x0000D003
Puerto E/S   0x0000CC00-0x0000CC07
Puerto E/S   0x0000C800-0x0000C803
Puerto E/S   0x0000C400-0x0000C40F
Puerto E/S   0x0000C000-0x0000C0FF
Canal IRQ   IRQ 20
Controlador   d:\windows\system32\drivers\viamraid.sys (5.1.2600.430, 59,50 KB (60.928 Bytes), 11/01/2006 17:59)

From ASROCK K8-VM800 VIA8237/R

opening mtkflash I found 06114931F0017001

I changed to 0611493100D400CC it should work right?

mtkflash freeze with:

port 170 master/slave: a0

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: buster1395 on June 06, 2006, 10:38:00 PM

I have my 360 on the way with the samsung in it and I was trying to get prepared. I have a custom built pc with an ASUS K8V-X motherboard in it with VIA K8T800 chipset and VIA VT8237 South bridge. I was just wanting to ask if every system needs to have the Mtkflash edited or not? If mine needs it can someone help me out?

Name   VIA Serial ATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_80ED1043&REV_80\3&267A616A&0&78
I/O Port   0x0000E800-0x0000E807
I/O Port   0x0000E400-0x0000E403
I/O Port   0x0000E000-0x0000E007
I/O Port   0x0000D800-0x0000D803
I/O Port   0x0000D400-0x0000D40F
I/O Port   0x0000D000-0x0000D0FF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\viasraid.sys (5.1.2600.220, 75.50 KB (77,312 bytes), 10/16/2004 7:35 AM)

Name   A347SCSI SCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   PCI\A347SCSI\0000
Driver   c:\windows\system32\drivers\a347scsi.sys (3.47.0.0 built by: WinDDK, 5.13 KB (5,248 bytes), 11/10/2005 12:48 PM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: crstofer on June 07, 2006, 02:58:00 AM

Try to edit MTKflash with this

Name Standard Dual Channel PCI IDE Controller
Manufacturer (Standard IDE ATA/ATAPI controllers)
Status OK
PNP Device ID PCI\VEN_1002&DEV_4379&SUBSYS_2A26103C&REV_00\3&61AAA01&0&90
I/O Port 0x0000FF00-0x0000FF07
I/O Port 0x0000FE00-0x0000FE03
I/O Port 0x0000FD00-0x0000FD07
I/O Port 0x0000FC00-0x0000FC03
I/O Port 0x0000FB00-0x0000FB0F
Memory Address 0xFE02F000-0xFE02F1FF
IRQ Channel IRQ 22
Driver c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/4/2004 8:00 AM)

the 360 drive is recognized in bios when connected to onboard sata connection but not with mtkflash. i show no info in the "SCSI" this is from "IDE". Can someone help me out a lil please.
when i run mtkflash: i get select 1-master
2-slave
i select either then i hangs with port:170 a0
PLEASE! Help!! and Thanks for all replies...

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: fille84 on June 07, 2006, 04:08:00 AM

QUOTE(lord^infamous @ Jun 6 2006, 05:00 PM)

LOL people reply when they don't know what the subject is....... within this whole thread there is nothing about a hitachi. Thanks for the help anyways.

I know what the subject is very well. When people try to help u whatever the subject is then show some fu**ing appreciation.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: woo on June 07, 2006, 09:09:00 AM

QUOTE(piggymouth @ May 28 2006, 07:05 PM)

this didn't work.. mtkflash w /m /sata hacked.bin , but this DID work.. MTKFlash w /m /SATA hacked.bin

seems it was case sensitive?!?!.. However, I could extract the firmware with mtkflash r /m /sata orig.bin or even mtkflash r orig.bin or mtkflash r /m orig.bin.. Strange!...

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Havok on June 07, 2006, 11:46:00 AM

Dos is not case sensitive. I think you just got the timing right and were lucky...

glad you got it sorted though...

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: crstofer on June 07, 2006, 12:55:00 PM

havok , did u get it flashed? i have the same chipset as you

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 07, 2006, 02:54:00 PM

QUOTE(fille84 @ Jun 7 2006, 03:15 AM)

I know what the subject is very well. When people try to help u whatever the subject is then show some fu**ing appreciation.

Still Editing MTKFlash has NOTHING To do With the Hitachi Drive because the Hitachi Drive doesn't Have a MTK chipset.

QUOTE(dudebig @ Jun 6 2006, 02:50 PM)

Nombre   VIA SATA RAID Controller
Fabricante   VIA Technologies, Inc.
Estado   OK
Id. de dispositivo PNP   PCI\VEN_1106&DEV_3149&SUBSYS_31491849&REV_80\3&267A616A&0&78
Puerto E/S   0x0000D400-0x0000D407
Puerto E/S   0x0000D000-0x0000D003
Puerto E/S   0x0000CC00-0x0000CC07
Puerto E/S   0x0000C800-0x0000C803
Puerto E/S   0x0000C400-0x0000C40F
Puerto E/S   0x0000C000-0x0000C0FF
Canal IRQ   IRQ 20
Controlador   d:\windows\system32\drivers\viamraid.sys (5.1.2600.430, 59,50 KB (60.928 Bytes), 11/01/2006 17:59)

From ASROCK K8-VM800 VIA8237/R
opening mtkflash I found 06114931F0017001

I changed to 0611493100D400CC it should work right?

mtkflash freeze with:

port 170 master/slave: a0

I think you might have edited it wrong dose it say Please Wait..... before it gives you that error?, http://www.1001megs.com/members/grim187/MTKFLASHvia1.zip

QUOTE(buster1395 @ Jun 6 2006, 09:45 PM)

http://www.1001megs.com/members/grim187/MTKFLASH8237.rar, i have that same chipset what you do is boot the 360 w/o the sata cable attached to the drive (just power) when in dose plug the sata cable from your computer in to the TS drive and run mtkflash (it wont pick up the drive until the 2nd time you run MTKFlash and when it dose it will say Please Wait.....)

QUOTE(crstofer @ Jun 7 2006, 02:05 AM)

Try to edit MTKflash with this

Name Standard Dual Channel PCI IDE Controller
Manufacturer (Standard IDE ATA/ATAPI controllers)
Status OK
PNP Device ID PCI\VEN_1002&DEV_4379&SUBSYS_2A26103C&REV_00\3&61AAA01&0&90
I/O Port 0x0000FF00-0x0000FF07
I/O Port 0x0000FE00-0x0000FE03
I/O Port 0x0000FD00-0x0000FD07
I/O Port 0x0000FC00-0x0000FC03
I/O Port 0x0000FB00-0x0000FB0F
Memory Address 0xFE02F000-0xFE02F1FF
IRQ Channel IRQ 22
Driver c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/4/2004 8:00 AM)
the 360 drive is recognized in bios when connected to onboard sata connection but not with mtkflash. i show no info in the "SCSI" this is from "IDE". Can someone help me out a lil please.
when i run mtkflash: i get select 1-master
2-slave
i select either then i hangs with port:170 a0
PLEASE! Help!! and Thanks for all replies...

install your sata controllers driver, then edit mtkflash, and don't plug in your ts drive until your in dos

Edit: Spelling

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: mr_wall on June 07, 2006, 04:08:00 PM

QUOTE(lord^infamous @ Jun 6 2006, 08:53 AM)

I'm using a plain old floppy and yes i'm sure it says "fail to open input file"

it sounds very much like you are entering the command without the correct spacing

mtkflash r /m orig.bin

NOT
mtkflash r/m orig.bin

although this has been mentioned before i really think the tutorials should make it clear or at least include the
"fail to open input file"
its an easy trap to fall into

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: woo on June 07, 2006, 05:05:00 PM

QUOTE(Havok @ Jun 8 2006, 01:53 AM)

Dos is not case sensitive. I think you just got the timing right and were lucky...

glad you got it sorted though...

I didn't think so either, but my timing is the same as it ever was.. I tried this 4 more times, even used a stop watch to prove it wasn't timing... bizzare!..

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: judasbarton on June 07, 2006, 06:43:00 PM

hi im new on these forums. just wondering if you could help me? im new to all this hex stuff.this is the info i get when i go to the scsi section

Name   VAXSCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&555D742D&0
I/O Port   0x0000FFD0-0x0000FFDF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\vaxscsi.sys (, 217.90 KB (223,128 bytes), 09/03/2006 21:14)

because it didnt show anything about serial ata i checked under the ide and saw this

Name   Intel® 82801GB/GR/GH (ICH7 Family) Serial ATA Storage Controller - 27C0
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27C0&SUBSYS_B0021458&REV_01\3&13C0B0C5&0&FA
I/O Port   0x0000D400-0x0000D407
I/O Port   0x0000D800-0x0000D803
I/O Port   0x0000DC00-0x0000DC07
I/O Port   0x0000E000-0x0000E003
I/O Port   0x0000E400-0x0000E40F
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 04/08/2004 13:00)

would this be ok to continue with editing? if so ive got as far as the pnp device id

i got this number 8680c027

im just stuck on the i/o ports. cant get my head round the diference of 7 thing

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: uk_dan2k on June 07, 2006, 07:59:00 PM

Hi im using an auto install for usb pen drives (i have no floppy disk drive).....
Its a bit twitchy takes 2-5 reboots at least to get booted ready to use flash tool.

its taken over 50 reboots before my xbox drive was reconised and i extracted orig.bin.
patched the firmware ready for reflashing to my drive, but first i want the 0800 bin file flashed for backing up.

This is my msinfo: -

System Information report written at: 06/08/06 03:19:55
System Name: DAN
[SCSI]

Item   Value
Name   VIA Serial ATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_80ED1043&REV_80\3&267A616A&0&78
I/O Port   0x0000E800-0x0000E807
I/O Port   0x0000E400-0x0000E403
I/O Port   0x0000E000-0x0000E007
I/O Port   0x0000D800-0x0000D803
I/O Port   0x0000D400-0x0000D40F
I/O Port   0x0000D000-0x0000D0FF
IRQ Channel   IRQ 20
Driver   e:\windows\system32\drivers\viasraid.sys (5.1.2600.220, 75.50 KB (77,312 bytes), 06/06/2006 00:06)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&4A15E553&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   e:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 06/06/2006 00:20)

Using the first contoller mentioned i came up with the following key: -

0611 4931 00E8 00E0

Is this correct because im still having drive reconition problems with the xbox360 drive.

using VIA8237 onboard mobo sata.

thanks 4 the help

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 07, 2006, 09:14:00 PM

QUOTE(uk_dan2k @ Jun 7 2006, 07:06 PM)

Hi im using an auto install for usb pen drives (i have no floppy disk drive).....
Its a bit twitchy takes 2-5 reboots at least to get booted ready to use flash tool.

its taken over 50 reboots before my xbox drive was reconised and i extracted orig.bin.
patched the firmware ready for reflashing to my drive, but first i want the 0800 bin file flashed for backing up.

This is my msinfo: -

System Information report written at: 06/08/06 03:19:55
System Name: DAN
[SCSI]

Item   Value
Name   VIA Serial ATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_80ED1043&REV_80\3&267A616A&0&78
I/O Port   0x0000E800-0x0000E807
I/O Port   0x0000E400-0x0000E403
I/O Port   0x0000E000-0x0000E007
I/O Port   0x0000D800-0x0000D803
I/O Port   0x0000D400-0x0000D40F
I/O Port   0x0000D000-0x0000D0FF
IRQ Channel   IRQ 20
Driver   e:\windows\system32\drivers\viasraid.sys (5.1.2600.220, 75.50 KB (77,312 bytes), 06/06/2006 00:06)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&4A15E553&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   e:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 06/06/2006 00:20)
Using the first contoller mentioned i came up with the following key: -

0611 4931 00E8 00E0

Is this correct because im still having drive reconition problems with the xbox360 drive.

using VIA8237 onboard mobo sata.

thanks 4 the help

The 2nd time you run MTKFlash it should come up please wait..... then it will show your sata chipset name, if your having problems with the thump drive get a old fdd drive (found at good will standalone or in old computers nation wide) they really work the best (make sure you use a brand new floppy old ones have a lot of read errors)

QUOTE(judasbarton @ Jun 7 2006, 05:50 PM)

hi im new on these forums. just wondering if you could help me? im new to all this hex stuff.this is the info i get when i go to the scsi section
Name   VAXSCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&555D742D&0
I/O Port   0x0000FFD0-0x0000FFDF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\vaxscsi.sys (, 217.90 KB (223,128 bytes), 09/03/2006 21:14)

because it didnt show anything about serial ata i checked under the ide and saw this
Name   Intel® 82801GB/GR/GH (ICH7 Family) Serial ATA Storage Controller - 27C0
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27C0&SUBSYS_B0021458&REV_01\3&13C0B0C5&0&FA
I/O Port   0x0000D400-0x0000D407
I/O Port   0x0000D800-0x0000D803
I/O Port   0x0000DC00-0x0000DC07
I/O Port   0x0000E000-0x0000E003
I/O Port   0x0000E400-0x0000E40F
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 04/08/2004 13:00)
would this be ok to continue with editing? if so ive got as far as the pnp device id

i got this number 8680c027

im just stuck on the i/o ports. cant get my head round the diference of 7 thing

CODE

8680 C027 00D4 00DC

Look on your mother board or sata controller card if the chip says ICH7r it will not work and you will need a/another sata controller card

Edit: Spelling

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: judasbarton on June 08, 2006, 01:55:00 AM

checked the motherboard and i cant see anything that says ICH7r . i looked in the instruction booklet and it says southbridge: intel ICH7

i know its a dumb question but what do i do with this number - 8680 C027 00D4 00DC

i opened mtkflash in hex workshop. i goto B370 and see all the chipset names on the right hand side. what do i do now? thx

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: PiNPOiNT on June 08, 2006, 09:02:00 AM

I've read tons of posts and instructions and still cant get mine working, hopefully someone can help me out.

I have a Asrock 939dual-sata2 mobo and a shitty hitachi xbox drive

I found this link to grim's post about his modified ALI mtkflash, but it still didnt work for me,
http://www.1001megs.com/members/grim187/MTKFLASHali.zip

so i thought i'd ask if i could get some help with editing one for my own chipset.

here is my chipset information

Name   ALi SATA/RAID Controller (M5289)
Manufacturer   ALi Corporation
Status   OK
PNP Device ID   PCI\VEN_10B9&DEV_5289&SUBSYS_52891849&REV_10\3&267A616A&0&91
I/O Port   0x0000EC00-0x0000EC07
I/O Port   0x0000E480-0x0000E483
I/O Port   0x0000E400-0x0000E407
I/O Port   0x0000E080-0x0000E083
I/O Port   0x0000E000-0x0000E00F
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\m5289.sys (5.029, 50.63 KB (51,840 bytes), 1/12/2006 8:34 PM)

from following the tutorial i get the following first line of code

B9108952

however im stuck with the next part, which 2 I/O Ports are 7 bytes differences?

Thanks for the help.

Or a super big thanks if you can post a edited mtkflash for my chipset

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 08, 2006, 11:43:00 AM

QUOTE(judasbarton @ Jun 8 2006, 01:02 AM)

i miss my finger (I spliced it open last night when i was cutting a box to fit for this Faceplate i sold, i almost blacked out from blood loss), anyways, you will see numbers and letters over on the right side what you do is click in the right side in front of the chipsets name then look on the left and where you see your cursor look back a little bit until it all turns to 00 that's where you start entering your values, sorry my instructions aren't great i can barley use s and e + i got this huge rap on this finger, anyways if you cant get it to work ill post a edited MTKFlash for you

QUOTE(PiNPOiNT @ Jun 8 2006, 08:09 AM)

Enough With the Hitachi's They dont Have a MTK Chipset so theres no way in hell your gonna get emm to work with MTKFlash, http://x360dvdhack.raisethestakes.co.uk/index.php?page=home

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: danielf123 on June 08, 2006, 12:44:00 PM

please help ive been up 24hrs cant get it write!!!

Name   Intel® 82801G (ICH7 Family) Ultra ATA Storage Controllers - 27DF
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27DF&SUBSYS_01AB1028&REV_01\3&172E68DD&0&F9
I/O Port   0x0000FFA0-0x0000FFAF
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 10/08/2004 13:00)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&160B73FE&0&0
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
IRQ Channel   IRQ 14
Driver   c:\windows\system32\drivers\atapi.sys (, 93.13 KB (95,360 bytes), 10/08/2004 13:00)

Name   Intel® 82801GB/GR/GH (ICH7 Family) Serial ATA Storage Controller - 27C0
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27C0&SUBSYS_01AB1028&REV_01\3&172E68DD&0&FA
I/O Port   0x0000FE00-0x0000FE07
I/O Port   0x0000FE10-0x0000FE13
I/O Port   0x0000FE20-0x0000FE27
I/O Port   0x0000FE30-0x0000FE33
I/O Port   0x0000FEA0-0x0000FEAF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 10/08/2004 13:00)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&6AA7541&0&0
Driver   c:\windows\system32\drivers\atapi.sys (, 93.13 KB (95,360 bytes), 10/08/2004 13:00)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 08, 2006, 02:53:00 PM

QUOTE(danielf123 @ Jun 8 2006, 11:51 AM)

please help ive been up 24hrs cant get it write!!!
Name   Intel® 82801G (ICH7 Family) Ultra ATA Storage Controllers - 27DF
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27DF&SUBSYS_01AB1028&REV_01\3&172E68DD&0&F9
I/O Port   0x0000FFA0-0x0000FFAF
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 10/08/2004 13:00)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&160B73FE&0&0
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
IRQ Channel   IRQ 14
Driver   c:\windows\system32\drivers\atapi.sys (, 93.13 KB (95,360 bytes), 10/08/2004 13:00)

Name   Intel® 82801GB/GR/GH (ICH7 Family) Serial ATA Storage Controller - 27C0
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27C0&SUBSYS_01AB1028&REV_01\3&172E68DD&0&FA
I/O Port   0x0000FE00-0x0000FE07
I/O Port   0x0000FE10-0x0000FE13
I/O Port   0x0000FE20-0x0000FE27
I/O Port   0x0000FE30-0x0000FE33
I/O Port   0x0000FEA0-0x0000FEAF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 10/08/2004 13:00)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&6AA7541&0&0
Driver   c:\windows\system32\drivers\atapi.sys (, 93.13 KB (95,360 bytes), 10/08/2004 13:00)

i was up for 48 2x this last week and over 62 when the hack first came out, you dont see me complaining, Get some Rest because ICH7 chipset dosent work, Dee Dee Dee

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: danielf123 on June 08, 2006, 03:18:00 PM

QUOTE(Grim187 @ Jun 8 2006, 10:00 PM)

i was up for 48 2x this last week and over 62 when the hack first came out, you dont see me complaining, Get some Rest because ICH7 chipset dosent work, Dee Dee Dee

are you joking Grim?

I thought ICH7 worked with a modifyed MTKFlash

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: uk_dan2k on June 08, 2006, 03:41:00 PM

got it to read, write firmwares now, but windows is freezing on bootup, or if i wait till windows is loaded. The desktop freezes.

I'll have alook around for a fix

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: lord^infamous on June 08, 2006, 04:00:00 PM

I wish an updated version of mtkflash would come out so everyone can stop complaining.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: thatrik on June 08, 2006, 04:31:00 PM

Hey guys, I've tried to figure this out my own but can't seem to get it... I was wondering if anybody could help me figure out what my string should be. Info as follows:

----------------------------------------------------------

Name   VIA VT6410 IDE RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3164&SUBSYS_80F41043&REV_06\4&2E98101C&0&20F0
I/O Port   0x0000DFE0-0x0000DFE7
I/O Port   0x0000DFAC-0x0000DFAF
I/O Port   0x0000DFA0-0x0000DFA7
I/O Port   0x0000DFA8-0x0000DFAB
I/O Port   0x0000DF90-0x0000DF9F
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\viaraid.sys (5.1.2600.210, 70.50 KB (72,192 bytes), 6/8/2006 3:20 PM)

---------------------------------------

Motherboard is an Asus P4P800 Deluxe

Thank you so much in advance.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: uk_dan2k on June 08, 2006, 04:40:00 PM

QUOTE(thatrik @ Jun 8 2006, 11:38 PM)

0611 6431 E0DF A0DF

That Is the right key ^

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: thatrik on June 08, 2006, 04:55:00 PM

QUOTE(uk_dan2k @ Jun 8 2006, 10:47 PM)

0611 6431 E0DF A0DF

That Is the right key ^

Thank you so much Dan!! I think I inserted it properly, here comes the moment of truth

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: thatrik on June 08, 2006, 05:21:00 PM

*sigh*... can't seem to get the hex in right... if anybody would be kind enough to edit MKFLASH for me, please let me know; it would be greatly appreciated!

Thanks to Dan, my key is 0611 6431 E0DF A0DF

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tazz212 on June 08, 2006, 07:36:00 PM

Hey, Still having troubles...Here's my info.

Name VIA SATA RAID Controller
Manufacturer VIA Technologies, Inc.
Status OK
PNP Device ID PCI\VEN_1106&DEV_3149&SUBSYS_31491106&REV_80\3&61AAA01&0&78
I/O Port 0x00009800-0x00009807
I/O Port 0x00009C00-0x00009C03
I/O Port 0x0000A000-0x0000A007
I/O Port 0x0000A400-0x0000A403
I/O Port 0x0000A800-0x0000A80F
I/O Port 0x0000AC00-0x0000ACFF
IRQ Channel IRQ 20
Driver c:\windows\system32\drivers\viamraid.sys (5.1.2600.520, 90.50 KB (92,672 bytes), 02/06/2006 4:22 PM)

Managed to edit it, but I too get the error at port 170...Can't seem to figure out what the problem may be...Any help would be greatly appreciated. Thanks!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: uk_dan2k on June 08, 2006, 07:48:00 PM

QUOTE(tazz212 @ Jun 9 2006, 02:43 AM)

what key did you come up with was it: -

0611 4931 0098 00A0

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 08, 2006, 09:09:00 PM

QUOTE(danielf123 @ Jun 8 2006, 02:25 PM)

are you joking Grim?

I thought ICH7 worked with a modifyed MTKFlash

nope, it wont work, sorry

Tazz212
http://www.1001megs.com/members/grim187/MTKFLASH6410-8327.zip

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: duck conspiracies on June 09, 2006, 10:19:00 AM

Hi Grim
Firstly, thank you for a superb Hex Editing guide. It was concise and invaluable to someone like me who has never even attemped this before.
As per your instructions i have edited mtkflash, seemingly successfully ie: progressed beyond the "drive not recognised" error.
However, after i execute the dump command dos reports "Reading...xx%" but always hangs and the 360 ring of light begins to flash constantly. I have never got beyond 5% of a complete dump.
I wonder if i have configured the wrong i/o ports while hex editing mtkflash because when i hit escape after it hangs i recieve the following error

Reading...xx%Status = fo, should be 70

My drive is: TSH943a FW ms25 HW version 5

i have a SATA pci card and msinfo32 reoprts the following:

Name ALi SATA/RAID Controller

Manufacturer ALi Corporation
Status Error
PNP Device ID PCI\VEN_10B9&DEV_5281&SUBSYS_528110B9&REV_A1\3&61AAA01&0&68
I/O Port 0x00009000-0x00009007
I/O Port 0x00009400-0x00009403
I/O Port 0x00009800-0x00009807
I/O Port 0x00009C00-0x00009C03
I/O Port 0x0000A000-0x0000A00F
IRQ Channel IRQ 10
Name ALi ATA/RAID Controller
Manufacturer ALi Corporation
Status Error
PNP Device ID PCI\VEN_10B9&DEV_5228&SUBSYS_528110B9&REV_C6\3&61AAA01&0&69
I/O Port 0x0000A400-0x0000A407
I/O Port 0x0000A800-0x0000A803
I/O Port 0x0000AC00-0x0000AC07
I/O Port 0x0000B000-0x0000B003
I/O Port 0x0000B400-0x0000B40F
IRQ Channel IRQ 10
Name D347PRT SCSI Controller
Manufacturer (Standard mass storage controllers)
Status OK
PNP Device ID PCI\D347PRT\0000
Driver c:\windows\system32\drivers\d347prt.sys (3.47.0.0 built by: WinDDK, 5.13 KB (5,248 bytes), 30/12/2005 14:29)
Name VAX347S SCSI Controller
Manufacturer (Standard mass storage controllers)
Status OK
PNP Device ID PCI\VAX347S\0000
Driver c:\windows\system32\drivers\vax347s.sys (3.47.0.0 built by: WinDDK, 5.13 KB (5,248 bytes), 30/12/2005 16:29)
I used

I/O Port 0x00009000-0x00009007

I/O Port 0x00009800-0x00009807

i have thoroughly read this thread and tried all the links posted for edited Mtkflash for Ali Chipsets but to no avail
Any suggestions would be appreciated

The Duck

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Braveheart1980 on June 09, 2006, 11:44:00 AM

Well after a lot of effort and post reading i've decided to hexedit my mtkflash

But i c 2 entries in msinfo32.exe that match the criteria!

Here it is

CODE

System Information report written at: 06/09/06 21:23:28
System Name: AMD
[SCSI]

Item    Value
Name    NVIDIA nForce4 Serial ATA RAID Controller
Manufacturer    NVIDIA Corporation
Status    OK
PNP Device ID    PCI\VEN_10DE&DEV_0054&SUBSYS_71001462&REV_F3\3&2411E6FE&0&38
I/O Port    0x000009F0-0x000009F7
I/O Port    0x00000BF0-0x00000BF3
I/O Port    0x00000970-0x00000977
I/O Port    0x00000B70-0x00000B73
I/O Port    0x0000F600-0x0000F60F
Memory Address    0xFE02B000-0xFE02BFFF
IRQ Channel    IRQ 20
Driver    c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0552 built by: WinDDK, 91,38 KB (93.568 bytes), 28/2/2006 10:00 πμ)

Name    WDC WD740GD-00FLA2
Manufacturer    NVIDIA Corporation
Status    OK
PNP Device ID    IDE\DISKWDC_WD740GD-00FLA2______________________31.08F31\R4457572D414D454B383136333037003200000000
Driver    c:\windows\system32\drivers\nvraid.sys (5.10.2600.0552 built by: WinDDK, 75,25 KB (77.056 bytes), 28/2/2006 10:00 πμ)

Name    WDC WD740GD-00FLA2
Manufacturer    NVIDIA Corporation
Status    OK
PNP Device ID    IDE\DISKWDC_WD740GD-00FLA2______________________31.08F31\R4457572D414D454B383135353937003700000000
Driver    c:\windows\system32\drivers\nvraid.sys (5.10.2600.0552 built by: WinDDK, 75,25 KB (77.056 bytes), 28/2/2006 10:00 πμ)

Name    NVIDIA nForce4 Serial ATA RAID Controller
Manufacturer    NVIDIA Corporation
Status    OK
PNP Device ID    PCI\VEN_10DE&DEV_0055&SUBSYS_71001462&REV_F3\3&2411E6FE&0&40
I/O Port    0x000009E0-0x000009E7
I/O Port    0x00000BE0-0x00000BE3
I/O Port    0x00000960-0x00000967
I/O Port    0x00000B60-0x00000B63
I/O Port    0x0000F100-0x0000F10F
Memory Address    0xFE02A000-0xFE02AFFF
IRQ Channel    IRQ 21
Driver    c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0552 built by: WinDDK, 91,38 KB (93.568 bytes), 28/2/2006 10:00 πμ)

Name    VAXSCSI Controller
Manufacturer    (Standard mass storage controllers)
Status    OK
PNP Device ID    ACPI\PNPA000\4&59CCF4D9&0
I/O Port    0x0000FFE0-0x0000FFEF
IRQ Channel    IRQ 9
Driver    c:\windows\system32\drivers\vaxscsi.sys (, 217,90 KB (223.128 bytes), 1/3/2006 12:15 πμ)

Name    SCSI/RAID Host Controller
Manufacturer    (Standard mass storage controllers)
Status    OK
PNP Device ID    ACPI\PNPA000\4&59CCF4D9&1
I/O Port    0x0000FFA0-0x0000FFAF
IRQ Channel    IRQ 9
Driver    c:\windows\system32\drivers\dtscsi.sys (, 217,90 KB (223.128 bytes), 1/3/2006 12:17 πμ)

Name    NVIDIA nForce(tm) RAID Class Controller
Manufacturer    NVIDIA Corporation
Status    OK
PNP Device ID    ACPI\_NVRAIDBUS\3&2411E6FE&0
I/O Port    0x000004D2-0x000004D2
Driver    c:\windows\system32\drivers\nvraid.sys (5.10.2600.0552 built by: WinDDK, 75,25 KB (77.056 bytes), 28/2/2006 10:00 πμ)

So my first choice is DE105500E0096009 and my other option is D3105400F0097009

I have tried both of them with no luck at all!

I think a similiar problem has this m8 here http://www.xboxhacker.net/index.php?option=com_smf&Itemid=33&topic=883.msg13027#msg13027

Any ideas?????

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tazz212 on June 09, 2006, 01:49:00 PM

Hey Grim. I appreciate the modified file. I'm still getting a Port 170, Master/Slave:a0 error when I run MTKFLASH....I'm wondering what the problem may be. Thanks!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Snackbar on June 09, 2006, 03:03:00 PM

I retrieved my dvd key, but when I open the orig.bin with kdx my dvd key appears to be ff ff ff ff etc. Does not look like an unique key to me. Anyone got an idea what I did wrong.

I am using a asus a7n8x deluxe motherboard and a pci via vt6241 sata controller, changed 0611 4931 into 0611 4932 and left everything else unchaned in mtkflash.

Thnx

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: crstofer on June 11, 2006, 01:31:00 PM

QUOTE(crstofer @ Jun 7 2006, 02:05 AM)

Try to edit MTKflash with this

Name Standard Dual Channel PCI IDE Controller
Manufacturer (Standard IDE ATA/ATAPI controllers)
Status OK
PNP Device ID PCI\VEN_1002&DEV_4379&SUBSYS_2A26103C&REV_00\3&61AAA01&0&90
I/O Port 0x0000FF00-0x0000FF07
I/O Port 0x0000FE00-0x0000FE03
I/O Port 0x0000FD00-0x0000FD07
I/O Port 0x0000FC00-0x0000FC03
I/O Port 0x0000FB00-0x0000FB0F
Memory Address 0xFE02F000-0xFE02F1FF
IRQ Channel IRQ 22
Driver c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/4/2004 8:00 AM)
the 360 drive is recognized in bios when connected to onboard sata connection but not with mtkflash. i show no info in the "SCSI" this is from "IDE". Can someone help me out a lil please.
when i run mtkflash: i get select 1-master
2-slave
i select either then i hangs with port:170 a0
PLEASE! Help!! and Thanks for all replies...

install your sata controllers driver, then edit mtkflash, and don't plug in your ts drive until your in dos

HEY! GRIMM,
"install sata controllers drivers" i have searched for and near for these .. can you help me out.. a lil push in the right direction..PLEASE!! and THANKS!!!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 11, 2006, 02:43:00 PM

what sata chipset do you have?, in my tut i show the way to find it, or you can just tell me what mobo you have and i can find it from there

QUOTE(tazz212 @ Jun 9 2006, 12:56 PM)

Hey Grim. I appreciate the modified file. I'm still getting a Port 170, Master/Slave:a0 error when I run MTKFLASH....I'm wondering what the problem may be. Thanks!

dose your sata chipset show up as a option?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: alphasurfer on June 11, 2006, 03:25:00 PM

Hello,
I am having trouble getting mtkflash to detect my 360 dvd drive. It keeps on saying "No Drive Found"..
I took out all the ide cables and still nothing but that message. I tried another time and left all IDE cables connected
and got a port 170 master/slave ..a0 error thingy. I tried the modified mtkflash also and got the same results..
Im thinking about trying it out on another computer but I was hoping someone can help me find the correct hex code which may possibly work.. Thanks in advance!

[SCSI]

Item   Value
Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&24AB0D93&0&50F0
I/O Port   0x0000FED0-0x0000FEDF
I/O Port   0x0000FEC0-0x0000FECF
I/O Port   0x0000FEB0-0x0000FEBF
I/O Port   0x0000FEA0-0x0000FEAF
I/O Port   0x0000FEE0-0x0000FEFF
I/O Port   0x0000FF00-0x0000FFFF
IRQ Channel   IRQ 18
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.520, 90.50 KB (92,672 bytes), 6/9/2006 10:11 PM)

My Motherboard is manufactured by: Asus

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 11, 2006, 04:01:00 PM

QUOTE(alphasurfer @ Jun 11 2006, 02:32 PM)

CODE

0611 4932 F001 7001

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: jlively on June 12, 2006, 05:20:00 AM

I get the following system information

Name   ALi M5281 SATA/RAID Controller
Manufacturer   ALi Corporation
Status   OK
PNP Device ID   PCI\VEN_10B9&DEV_5281&SUBSYS_528110B9&REV_A1\4&1C88B56&0&10A4
I/O Port   0x0000DF00-0x0000DF07
I/O Port   0x0000DE00-0x0000DE03
I/O Port   0x0000DD00-0x0000DD07
I/O Port   0x0000DC00-0x0000DC03
I/O Port   0x0000DB00-0x0000DB0F
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\m5281.sys (5.023, 38.21 KB (39,124 bytes), 11/06/2006 12:00)

Name   ALi M5228 ATA/RAID Controller
Manufacturer   ALi Corporation
Status   OK
PNP Device ID   PCI\VEN_10B9&DEV_5228&SUBSYS_528110B9&REV_C6\4&1C88B56&0&11A4
I/O Port   0x0000DA00-0x0000DA07
I/O Port   0x0000D900-0x0000D903
I/O Port   0x0000D800-0x0000D807
I/O Port   0x0000D700-0x0000D703
I/O Port   0x0000D600-0x0000D60F
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\m5228.sys (5.023, 37.16 KB (38,052 bytes), 11/06/2006 11:59)
Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&5CD03603&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 20/01/2006 10:19)

So is this correct B910 8152 00DF 00DD

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: crstofer on June 12, 2006, 08:03:00 AM

Grim,
the motherboard is ASUS A8AE-LE..

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Calel on June 12, 2006, 09:51:00 AM

Can we get an updated list of confirmed Chipset/versions for this mtkflash edit (PCI and Motherboard).
Great thread, lotsa help.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 12, 2006, 11:57:00 AM

QUOTE(jlively @ Jun 12 2006, 04:27 AM)

you need to edit in both controllers

CODE

B910 8152 00DF 00DD

and

CODE

D910 2852 00DA 00D8

^that^one^would^probably^work^the^best^

QUOTE(crstofer @ Jun 12 2006, 07:10 AM)

Grim,
the motherboard is ASUS A8AE-LE..

ASUS says that mobo doesnt exist, do you know what socket it is(socket A=AMD)? http://www.asus.com/products.aspx?l1=3

QUOTE(Calel @ Jun 12 2006, 08:58 AM)

Can we get an updated list of confirmed Chipset/versions for this mtkflash edit (PCI and Motherboard).
Great thread, lotsa help.

http://www.xboxhacker.net/index.php?option=com_smf&Itemid=33&topic=794.0, http://www.xboxhacker.net/index.php?option=com_smf&Itemid=33&topic=883.0, other then these i have no idea what ones work and what ones don't, there have been a couple VT6421's that don't work and ICH7 doesnt work along with SIL3112, but other then that there's non that i know of

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: crstofer on June 12, 2006, 01:10:00 PM

GRIM,
Manufacturer: ASUSTEK
Model: AMBERINE M 1.03

AMD Sempron 3000+
Socket 939

Chipset: ATI Radeon Xpress 200(RS480) rev.10

Is this the info you need? Thanks for all your HELP!!!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: VisualTNT on June 12, 2006, 01:46:00 PM

I have a ati radeon xpress 200 chipset with this info:

Nombre   A347SCSI SCSI Controller
Fabricante   (Standard mass storage controllers)
Estado   OK
Id. de dispositivo PNP   PCI\A347SCSI\0000
Controlador   c:\windows\system32\drivers\a347scsi.sys (3.47.0.0 built by: WinDDK, 5.13 KB (5,248 Bytes), 12/06/2006 07:26 a.m.)

in the IDE:

Nombre   Controladora estándar PCI IDE de doble canal
Fabricante   (Tarjetas controladoras estándar IDE ATA/ATAPI)
Estado   OK
Id. de dispositivo PNP   PCI\VEN_1002&DEV_437A&SUBSYS_D6008086&REV_80\3&61AAA01&0&88
Puerto E/S   0x0000FF00-0x0000FF07
Puerto E/S   0x0000FE00-0x0000FE03
Puerto E/S   0x0000FD00-0x0000FD07
Puerto E/S   0x0000FC00-0x0000FC03
Puerto E/S   0x0000FB00-0x0000FB0F
Dirección de memoria   0xFE02F000-0xFE02F1FF
Canal IRQ   IRQ 23
Controlador   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.38 KB (3,456 Bytes), 24/09/2002 07:00 a.m.)

Nombre   Canal IDE principal
Fabricante   (Tarjetas controladoras estándar IDE ATA/ATAPI)
Estado   OK
Id. de dispositivo PNP   PCIIDE\IDECHANNEL\4&1AF139E2&0&0
Controlador   c:\windows\system32\drivers\atapi.sys (, 93.13 KB (95,360 Bytes), 03/08/2004 03:59 p.m.)

Nombre   Canal IDE secundario
Fabricante   (Tarjetas controladoras estándar IDE ATA/ATAPI)
Estado   OK
Id. de dispositivo PNP   PCIIDE\IDECHANNEL\4&1AF139E2&0&1
Controlador   c:\windows\system32\drivers\atapi.sys (, 93.13 KB (95,360 Bytes), 03/08/2004 03:59 p.m.)

Nombre   Controladora estándar PCI IDE de doble canal
Fabricante   (Tarjetas controladoras estándar IDE ATA/ATAPI)
Estado   OK
Id. de dispositivo PNP   PCI\VEN_1002&DEV_4379&SUBSYS_D6008086&REV_80\3&61AAA01&0&90
Puerto E/S   0x0000FA00-0x0000FA07
Puerto E/S   0x0000F900-0x0000F903
Puerto E/S   0x0000F800-0x0000F807
Puerto E/S   0x0000F700-0x0000F703
Puerto E/S   0x0000F600-0x0000F60F
Dirección de memoria   0xFE02E000-0xFE02E1FF
Canal IRQ   IRQ 22
Controlador   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.38 KB (3,456 Bytes), 24/09/2002 07:00 a.m.)

Nombre   Canal IDE principal
Fabricante   (Tarjetas controladoras estándar IDE ATA/ATAPI)
Estado   OK
Id. de dispositivo PNP   PCIIDE\IDECHANNEL\4&31160660&0&0
Controlador   c:\windows\system32\drivers\atapi.sys (, 93.13 KB (95,360 Bytes), 03/08/2004 03:59 p.m.)

Nombre   Canal IDE secundario
Fabricante   (Tarjetas controladoras estándar IDE ATA/ATAPI)
Estado   OK
Id. de dispositivo PNP   PCIIDE\IDECHANNEL\4&31160660&0&1
Controlador   c:\windows\system32\drivers\atapi.sys (, 93.13 KB (95,360 Bytes), 03/08/2004 03:59 p.m.)

Nombre   ATI IDE Controller
Fabricante   ATI Technologies Inc
Estado   OK
Id. de dispositivo PNP   PCI\VEN_1002&DEV_4376&SUBSYS_D6008086&REV_80\3&61AAA01&0&A1
Puerto E/S   0x0000F400-0x0000F40F
Controlador   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.38 KB (3,456 Bytes), 24/09/2002 07:00 a.m.)

Nombre   Canal IDE principal
Fabricante   (Tarjetas controladoras estándar IDE ATA/ATAPI)
Estado   OK
Id. de dispositivo PNP   PCIIDE\IDECHANNEL\4&32A7DD53&0&0
Puerto E/S   0x000001F0-0x000001F7
Puerto E/S   0x000003F6-0x000003F6
Canal IRQ   IRQ 14
Controlador   c:\windows\system32\drivers\atapi.sys (, 93.13 KB (95,360 Bytes), 03/08/2004 03:59 p.m.)

Nombre   Canal IDE secundario
Fabricante   (Tarjetas controladoras estándar IDE ATA/ATAPI)
Estado   OK
Id. de dispositivo PNP   PCIIDE\IDECHANNEL\4&32A7DD53&0&1
Puerto E/S   0x00000170-0x00000177
Puerto E/S   0x00000376-0x00000376
Canal IRQ   IRQ 15
Controlador   c:\windows\system32\drivers\atapi.sys (, 93.13 KB (95,360 Bytes), 03/08/2004 03:59 p.m.)

help me please

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Hasney on June 12, 2006, 03:36:00 PM

Hmmm, I've got an ATi Radeon Xpress 200 chipset and my SATA info is showing up in SCSI. Still cannot get it working though. Heres my info:

Name   ULi SATA/RAID Controller (M1573)
Manufacturer   ULi Electronics Inc.
Status   OK
PNP Device ID   PCI\VEN_10B9&DEV_5287&SUBSYS_52871849&REV_02\3&267A616A&0&F9
I/O Port   0x0000D000-0x0000D00F
I/O Port   0x0000C800-0x0000C807
I/O Port   0x0000C400-0x0000C40F
I/O Port   0x0000C000-0x0000C007
I/O Port   0x0000B800-0x0000B81F
Memory Address   0xFF77FC00-0xFF77FFFF
IRQ Channel   IRQ 21
Driver   c:\windows\system32\drivers\m5287.sys (6.207, 98.75 KB (101,120 bytes), 30/12/2005 15:16)

Now the key I got was:

B9 10 87 52 00 C8 00 C0

Hexed it in and no luck!

Any help would be greatly appriciated

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: mike69 on June 12, 2006, 07:22:00 PM

hey can someone help me.. what would be the code for this one??

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&1351887D&0&58F0
I/O Port   0x0000DFA0-0x0000DFAF
I/O Port   0x0000DF90-0x0000DF9F
I/O Port   0x0000DF80-0x0000DF8F
I/O Port   0x0000DF60-0x0000DF6F
I/O Port   0x0000DF40-0x0000DF5F
I/O Port   0x0000D800-0x0000D8FF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.520, 90.50 KB (92,672 bytes), 6/12/2006 8:08 PM)

thx alot.. i keep getting dfa0, Master/Slave a0.. hope the edited mtkflash with the right code works... i hope its the solution to this error.

thx

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 12, 2006, 10:26:00 PM

QUOTE(crstofer @ Jun 12 2006, 12:17 PM)

GRIM,
Manufacturer: ASUSTEK
Model: AMBERINE M 1.03

AMD Sempron 3000+
Socket 939

Chipset: ATI Radeon Xpress 200(RS480) rev.10
Is this the info you need? Thanks for all your HELP!!!

yep, whats the northbridge?

QUOTE(VisualTNT @ Jun 12 2006, 12:53 PM)

you need to install your sata controller's driver

QUOTE(Hasney @ Jun 12 2006, 02:43 PM)

Hmmm, I've got an ATi Radeon Xpress 200 chipset and my SATA info is showing up in SCSI. Still cannot get it working though. Heres my info:

Name   ULi SATA/RAID Controller (M1573)
Manufacturer   ULi Electronics Inc.
Status   OK
PNP Device ID   PCI\VEN_10B9&DEV_5287&SUBSYS_52871849&REV_02\3&267A616A&0&F9
I/O Port   0x0000D000-0x0000D00F
I/O Port   0x0000C800-0x0000C807
I/O Port   0x0000C400-0x0000C40F
I/O Port   0x0000C000-0x0000C007
I/O Port   0x0000B800-0x0000B81F
Memory Address   0xFF77FC00-0xFF77FFFF
IRQ Channel   IRQ 21
Driver   c:\windows\system32\drivers\m5287.sys (6.207, 98.75 KB (101,120 bytes), 30/12/2005 15:16)
Now the key I got was:

B9 10 87 52 00 C8 00 C0

Hexed it in and no luck!

Any help would be greatly appriciated

there off by 1 line try

CODE

B910 8752 F001 7001

QUOTE(mike69 @ Jun 12 2006, 06:29 PM)

hey can someone help me.. what would be the code for this one??

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&1351887D&0&58F0
I/O Port   0x0000DFA0-0x0000DFAF
I/O Port   0x0000DF90-0x0000DF9F
I/O Port   0x0000DF80-0x0000DF8F
I/O Port   0x0000DF60-0x0000DF6F
I/O Port   0x0000DF40-0x0000DF5F
I/O Port   0x0000D800-0x0000D8FF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.520, 90.50 KB (92,672 bytes), 6/12/2006 8:08 PM)
thx alot.. i keep getting dfa0, Master/Slave a0.. hope the edited mtkflash with the right code works... i hope its the solution to this error.

thx

that error can be caused by many things, dose your chipset's name show up as an option or dose it just start?, do you have all your ide devices unpluged or disabled in the bios?,

CODE

0611 4932 F001 7001

would be the values your looking for

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: crstofer on June 13, 2006, 03:04:00 AM

GRIM,
Southbridge: ATI SB400
Sensor: SMSC 7703

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: mike69 on June 13, 2006, 04:37:00 AM

QUOTE(Grim187 @ Jun 13 2006, 05:33 AM)

that error can be caused by many things, dose your chipset's name show up as an option or dose it just start?, do you have all your ide devices unpluged or disabled in the bios?,

when i boot my pc with the 360 on, my pci detects it but then it says to hit tab and freezes.. so what i do is conect the drive in dos prompt .. type in the command conect my 360 and Vt8237 appears as my choice even though i have a 6421.... so i know its getting detected...so i choose vt68237 and i get the dfa0 error..
hit esc and error 51 but 70 shows up..
pls help me grimm..
ive been tryin to get my read my fw for a week now with no luck
thx

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: megamania2004 on June 13, 2006, 07:02:00 AM

i have a INTEL 915 GAV
msinfo32 dont show nothing
anyone can help-me??

Thanks

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Hasney on June 13, 2006, 10:05:00 AM

Works perfectly now. Thanks a bunch Grim!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Pytzamarama on June 13, 2006, 12:37:00 PM

I have an Albatron 865 motherboard with ICH5 chipset (the simple Non-RAID version)
When browsing MSinfo32.exe there's nothing on the SCSI section only on IDE
It seems that my SATA HD is connected in this controller (shown on the IDE section)

Name   Intel® 82801EB Ultra ATA Storage Controllers - 24D1
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_24D1&SUBSYS_24D117F2&REV_02\3&13C0B0C5&0&FA
I/O Port   0x0000C000-0x0000C007
I/O Port   0x0000C400-0x0000C403
I/O Port   0x0000C800-0x0000C807
I/O Port   0x0000CC00-0x0000CC03
I/O Port   0x0000D000-0x0000D00F
IRQ Channel   IRQ 18
Driver   c:\windows\system32\drivers\intelide.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 5,38 KB (5.504 bytes), 24/11/2005 4:11 πμ)

I tried to edit the mtkflash.exe with this code 8680 D124 00C0 00C8 but I keep getting the c0:Master/slave :a0 error...

Is there an issue with the non_RAID ICH5 chip (found mostly on 865 boards)? It seems like being a pseudo-IDE and not a real SATA controller.
Has anyone succesfully completed flash with one of these motherboards? Any idea would be helpfull
Thanx

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 13, 2006, 02:57:00 PM

QUOTE(mike69 @ Jun 13 2006, 03:44 AM)

this means its not looking at the right places for master and slave try F001 7001 insted of the last 8 digits your using

QUOTE(megamania2004 @ Jun 13 2006, 06:09 AM)

i have a INTEL 915 GAV
msinfo32 dont show nothing
anyone can help-me??

Thanks

Install your driver

QUOTE(Hasney @ Jun 13 2006, 09:12 AM)

Works perfectly now. Thanks a bunch Grim!

Glad to hear, Your Welcome

QUOTE(Pytzamarama @ Jun 13 2006, 11:44 AM)

I have an Albatron 865 motherboard with ICH5 chipset (the simple Non-RAID version)
When browsing MSinfo32.exe there's nothing on the SCSI section only on IDE
It seems that my SATA HD is connected in this controller (shown on the IDE section)

Name   Intel® 82801EB Ultra ATA Storage Controllers - 24D1
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_24D1&SUBSYS_24D117F2&REV_02\3&13C0B0C5&0&FA
I/O Port   0x0000C000-0x0000C007
I/O Port   0x0000C400-0x0000C403
I/O Port   0x0000C800-0x0000C807
I/O Port   0x0000CC00-0x0000CC03
I/O Port   0x0000D000-0x0000D00F
IRQ Channel   IRQ 18
Driver   c:\windows\system32\drivers\intelide.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 5,38 KB (5.504 bytes), 24/11/2005 4:11 πμ)
I tried to edit the mtkflash.exe with this code 8680 D124 00C0 00C8 but I keep getting the c0:Master/slave :a0 error...

Is there an issue with the non_RAID ICH5 chip (found mostly on 865 boards)? It seems like being a pseudo-IDE and not a real SATA controller.
Has anyone succesfully completed flash with one of these motherboards? Any idea would be helpfull
Thanx

sorry to say that most non-raid cards do not work, you could try f001 7001 insted of 00c0 00c8

QUOTE(crstofer @ Jun 13 2006, 02:11 AM)

GRIM,
Southbridge: ATI SB400
Sensor: SMSC 7703

http://www.asus.com/products4.aspx?l1=3&l2=15&l3=236&model=787&modelmenu=1

https://support.ati.com/ics/support/default.asp?deptID=894&task=knowledge&folderID=293

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: crstofer on June 13, 2006, 03:07:00 PM

i found the drivers... thanks.. but thats not my board.. very close though... any more ideas

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 13, 2006, 05:42:00 PM

QUOTE(crstofer @ Jun 13 2006, 02:14 PM)

i found the drivers... thanks.. but thats not my board.. very close though... any more ideas

your info still dosent show up in msinfo under scsi or ide?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: crstofer on June 13, 2006, 06:10:00 PM

Grim,
my info in previous post is from my ide.. i show nothing in scsi.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Puma81 on June 13, 2006, 08:31:00 PM

QUOTE(Grim187 @ May 26 2006, 03:36 PM)

http://************q5q94 for the people with "VIA VT6421 SATA RAID CONTROLLER PCI" this has worked before hopefully it will work for you guys too

Grim that link is dead. Is there any way someone can post up the Mkflash for the "VIA VT6421 SATA RAID CONTROLLER PCI" for me. Thanks.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 14, 2006, 12:42:00 AM

QUOTE(Puma81 @ Jun 13 2006, 07:38 PM)

Grim that link is dead. Is there any way someone can post up the Mkflash for the "VIA VT6421 SATA RAID CONTROLLER PCI" for me. Thanks.

actually the link is working fine XS just wont display it (************q5q94), the only thing that is changed in this file is under the VIA VT8237 they changed

CODE

0611 4931

CODE

0611 4932

QUOTE(crstofer @ Jun 7 2006, 02:05 AM)

Try to edit MTKflash with this

Name Standard Dual Channel PCI IDE Controller
Manufacturer (Standard IDE ATA/ATAPI controllers)
Status OK
PNP Device ID PCI\VEN_1002&DEV_4379&SUBSYS_2A26103C&REV_00\3&61AAA01&0&90
I/O Port 0x0000FF00-0x0000FF07
I/O Port 0x0000FE00-0x0000FE03
I/O Port 0x0000FD00-0x0000FD07
I/O Port 0x0000FC00-0x0000FC03
I/O Port 0x0000FB00-0x0000FB0F
Memory Address 0xFE02F000-0xFE02F1FF
IRQ Channel IRQ 22
Driver c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/4/2004 8:00 AM)
the 360 drive is recognized in bios when connected to onboard sata connection but not with mtkflash. i show no info in the "SCSI" this is from "IDE". Can someone help me out a lil please.
when i run mtkflash: i get select 1-master
2-slave
i select either then i hangs with port:170 a0
PLEASE! Help!! and Thanks for all replies...

is this ide info what your talking about?, if you don't see anything in SCSI or ide about SATA you most likely don't have a SATA controller or at lease windows thinks you don't, have you tried connecting another SATA Device and getting that detected in windows?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Puma81 on June 14, 2006, 06:47:00 AM

Thanks Grim. Yup, I see it. edited it to 4932 and I was all set. Thanks again.

And for anyone else with the VIA6421 Sata PCI cards just follow this thread.
http://forums.xbox-scene.com/index.php?referid=269925&showtopic=516733

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Snackbar on June 14, 2006, 09:40:00 AM

Naam   Intel® 82801GB Serial ATA Storage Controllers - 27C0
Fabrikant   Intel
Status   OK
PNP-apparaat-ID   PCI\VEN_8086&DEV_27C0&SUBSYS_71761462&REV_01\3&2411E6FE&0&FA
I/O-poort   0x0000FA00-0x0000FA07
I/O-poort   0x0000F900-0x0000F903
I/O-poort   0x0000F800-0x0000F807
I/O-poort   0x0000F700-0x0000F703
I/O-poort   0x0000F600-0x0000F60F
IRQ-kanaal   IRQ 19
Stuurprogramma   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3,25 kB (3.328 bytes), 7-9-2001 12:00)

Should I change mtkflash 06114931 into 8680 C027 on the line b3b8 of workshop?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 14, 2006, 12:08:00 PM

QUOTE(Snackbar @ Jun 14 2006, 08:47 AM)

yes

QUOTE(Puma81 @ Jun 14 2006, 05:54 AM)

your welcome

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: thavarin on June 14, 2006, 01:44:00 PM

I know this may sound stupid, but I am way too computer illiterate and tried this many times, does anyone have a DFI Lanparty Ultra D SLI-R or compaticble Lanparty edited mtkflash... I'd appreciate it. Thanks.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: thavarin on June 14, 2006, 02:17:00 PM

Sorry about the post above, I will figure this out myself and post what I have since you have been answering many peoples questions. thanks for your contribution to this topic! I'll be back after I retry the tutotial again thanks.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 14, 2006, 11:48:00 PM

QUOTE(thavarin @ Jun 14 2006, 12:51 PM)

go to Start Click Run type in MSinfo32 hit Enter, a window will pop up click the + sign next to components then the + next to storage, click SCSI then click on the first line Hit CTRL+C then go to this window hit reply and hit CTRL+V and do that with all the lines until you have reached then end, then click IDE over on the left side and do the same with all of those lines and i will edit you a mtkflash

sorry if i treated you like a total n00b but you said that you where Computer Illiterate

QUOTE(thavarin @ Jun 14 2006, 01:24 PM)

No need to be sorry I'm here to help, i don't care if your the smartest guy (when it comes to computers) in the world and just need some help or your a 2 year old, ill help

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: speedspeed on June 15, 2006, 05:29:00 AM

i need some help identifying the 2 different lines
i got the first 0611 4932
but now the
The Next 4Bytes are Found in 2 Different Lines of "I/O Port" Hex Values, You Want to Identify The 2 Lines That Have a 7Byte Difference
how do i tell wich one it is?
http://img152.imageshack.us/my.php?image=untitled4wh.png
thanks

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 15, 2006, 05:42:00 AM

QUOTE(speedspeed @ Jun 15 2006, 04:36 AM)

there's usaly the first and third lines (i have seen them be 2nd and 4th tho), in your case you don't have to worry about it, it should just pick up if you leave the last 8 digits default ("F001 7001")

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: crstofer on June 15, 2006, 04:43:00 PM

Grim..
sup, homie.. thanks for all your help.. i finally bought a vt6421l sata raid card.. here is my scsi info:

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&FB75CB&0&40A4
I/O Port   0x0000DE00-0x0000DE0F
I/O Port   0x0000DD00-0x0000DD0F
I/O Port   0x0000DC00-0x0000DC0F
I/O Port   0x0000DB00-0x0000DB0F
I/O Port   0x0000DA00-0x0000DA1F
I/O Port   0x0000D600-0x0000D6FF
IRQ Channel   IRQ 16
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.520, 90.50 KB (92,672 bytes), 6/15/2006 5:20 PM)

altered mktflash and all i get is : 1 - ide master
2 - slave

when i choose either : port 170 / a0 error..

the serial cable plugged in pci card... WTF am i doing wrong.. ? please help...

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 15, 2006, 05:00:00 PM

QUOTE(crstofer @ Jun 15 2006, 03:50 PM)

Grim..
sup, homie.. thanks for all your help.. i finally bought a vt6421l sata raid card.. here is my scsi info:

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&FB75CB&0&40A4
I/O Port   0x0000DE00-0x0000DE0F
I/O Port   0x0000DD00-0x0000DD0F
I/O Port   0x0000DC00-0x0000DC0F
I/O Port   0x0000DB00-0x0000DB0F
I/O Port   0x0000DA00-0x0000DA1F
I/O Port   0x0000D600-0x0000D6FF
IRQ Channel   IRQ 16
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.520, 90.50 KB (92,672 bytes), 6/15/2006 5:20 PM)
altered mktflash and all i get is : 1 - ide master
2 - slave

when i choose either : port 170 / a0 error..

the serial cable plugged in pci card... WTF am i doing wrong.. ? please help...

you edited it to "0611 4932 F001 7001"?
did you wait until in dos to plug in the sata cable to the ts drive?
did you run "mtkflash r /m /sata orig.bin" then hit esc and run it again?

remember make sure to reboot the 360 after every read and wright

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: crstofer on June 15, 2006, 05:07:00 PM

going to try that.. i even disabled my onboard ide and sata.. no?
will let u know results..

i tried it.. and still get.. 1- ide master
2- slave

when i disable onboard sata and ide... NO DRIVE DETECTED!!!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 15, 2006, 07:00:00 PM

QUOTE(crstofer @ Jun 15 2006, 04:14 PM)

do you have aim or yim?

http://www.1001megs.com/members/grim187/MTKFLASHvia32.zip

make sure you have all the cables firmly connected, also make sure the card is in the socket good, where did you get the card?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: crstofer on June 15, 2006, 07:23:00 PM

AIM - crsmase0918

i will try your mtkflash and post results or contact on aim

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: crstofer on June 15, 2006, 08:18:00 PM

Grim,

Thanks!! i think it worked... it read up to 100% 3 times.. i extracted the key then flash it and it said banks 1-3 "ok"..

if may ask.. what did you do to the mtkflash? learning process for me..

also, whats the best media for 360 backups?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tazz212 on June 15, 2006, 09:16:00 PM

Grim, my man...I don't know if you're still up for helping me, but I'm lost...

Name VIA SATA RAID Controller
Manufacturer VIA Technologies, Inc.
Status OK
PNP Device ID PCI\VEN_1106&DEV_3149&SUBSYS_31491106&REV_80\3&61AAA01&0&78
I/O Port 0x00009800-0x00009807
I/O Port 0x00009C00-0x00009C03
I/O Port 0x0000A000-0x0000A007
I/O Port 0x0000A400-0x0000A403
I/O Port 0x0000A800-0x0000A80F
I/O Port 0x0000AC00-0x0000ACFF
IRQ Channel IRQ 20
Driver c:\windows\system32\drivers\viamraid.sys (5.1.2600.520, 90.50 KB (92,672 bytes), 02/06/2006 4:22 PM)

That's my info, and you've already given me an edited mtkflash file...

It seems to work the best it has been so far, but I am still running into that port 70 error...Or whatever...

I am plugging my 360 drive directly into my motherboard...Should I be using a SATA PCI card as well? What would be guarenteed to work?

It will take me a while before I get up and running...My Xbox got the 3 red lights the other day...What a pain...Anyways, I would love to get this up and running, but I'm completely stumped!

Thanks...I appreciate the help.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 15, 2006, 09:32:00 PM

QUOTE(crstofer @ Jun 15 2006, 07:25 PM)

good, i just changed the 31 to 32...lol

i use verbatim (i got a 10pack for $25 shipped) and burn at 1x, its just like the original

if you can unlock your drive with your sata card let me know, because i have read that on via chipsets you cant unlock the drive (i have a via and cant, tryed everything including bricking a drive...lol), if you cant unlock the drive you can try using your onboard controller

QUOTE(tazz212 @ Jun 15 2006, 08:23 PM)

im here to help, well im not %100 sure that your chipset is compadible, What chipset do you have?
you could try the original agian, its that 2nd line you chould also try editing it to "0611 4931 0098 7001" and try bolth of the slots (my 2nd is my fist in port lines(your situation (if same as mine) slot 1=00A0 slot 2=0098), im almost %100 sure if its gonna work it will pick up 0098 over 00A0

make sure to try atleast 3 times before you reboot, and as always dont plug in the 360 drive untill your in dos

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Funkadelik on June 15, 2006, 11:21:00 PM

Well, My Hitatchi was successful, too bad it started overheating:(

Im having trouble with my sammy, though.

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&13699180&0&3848
I/O Port   0x0000AC00-0x0000AC0F
I/O Port   0x0000A800-0x0000A80F
I/O Port   0x0000A400-0x0000A40F
I/O Port   0x0000A000-0x0000A00F
I/O Port   0x00009C00-0x00009C1F
I/O Port   0x00009800-0x000098FF
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.430, 59.50 KB (60,928 bytes), 6/13/2006 4:52 PM)

thats what it said on my msinfo32.exe under scsi. I tried the MTKFLASH that was given to crstofer, but I had ne success. any suggestions? I keep getting errors: PORT 170, A0 or PORT 960 B0. Im running out of ideas. I dont connect the SATA till DOS

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: lex0 on June 16, 2006, 12:08:00 AM

Would you be kind enough to reply with the full hex code i need to edit for my card to work? I changed the 4931 to 4932 but its still not working. I'd like to change the remaining 8 chars and see if that works. I just dont understand hex enough to see if theres a 7byte difference. ;(

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\5&1ABD7DE8&0&0008F0
I/O Port   0x0000FDD0-0x0000FDDF
I/O Port   0x0000FDC0-0x0000FDCF
I/O Port   0x0000FDB0-0x0000FDBF
I/O Port   0x0000FDA0-0x0000FDAF
I/O Port   0x0000FDE0-0x0000FDFF
I/O Port   0x0000FE00-0x0000FEFF
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.520, 90.50 KB (92,672 bytes), 6/4/2006 2:58 PM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 16, 2006, 01:09:00 PM

QUOTE(Funkadelik @ Jun 15 2006, 10:28 PM)

Well, My Hitatchi was successful, too bad it started overheating:(

Im having trouble with my sammy, though.
Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&13699180&0&3848
I/O Port   0x0000AC00-0x0000AC0F
I/O Port   0x0000A800-0x0000A80F
I/O Port   0x0000A400-0x0000A40F
I/O Port   0x0000A000-0x0000A00F
I/O Port   0x00009C00-0x00009C1F
I/O Port   0x00009800-0x000098FF
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.430, 59.50 KB (60,928 bytes), 6/13/2006 4:52 PM)
thats what it said on my msinfo32.exe under scsi. I tried the MTKFLASH that was given to crstofer, but I had ne success. any suggestions? I keep getting errors: PORT 170, A0 or PORT 960 B0. Im running out of ideas. I dont connect the SATA till DOS

don't select and ide device its pointless, try multiple times, make sure you have booted the 360 in to dash before plugging it in, try "MTKFlash r /m /sata orig.bin", make sure RAID is disabled in the bios (if possible)

QUOTE(lex0 @ Jun 15 2006, 11:15 PM)

0-f is a 15 byte difference, so you would have a 7byte difference there for you would use "F001 7001", as for the first 4bytes "0611 4932" should work
so your line should be "0611 4932 F001 7001" make sure there's 2 zeros after that as a space before the name of the chipset

EDIT: http://www.topmicrousa.com/wbt-6030v.html(i dont know if it works or not but its the first one that i have seen), http://www.cputopia.com/via-vt6421l-sata-raid-controller-pci-card.html

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Exobex on June 16, 2006, 03:23:00 PM

Very useful tutorial, cheers!
If you follow the raincoat link in my signature below, you'll find a version of MTKFLASH for the VIA EPIA SP series Mini-ITX motherboards.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: XN4k3 on June 16, 2006, 06:54:00 PM

My chipset is ALI M5283
Info:
Name ALi SATA/RAID Controller
Manufacturer ALi Corporation
Status OK
PNP Device ID PCI\VEN_10B9&DEV_5281&SUBSYS_528110B9&REV_A1\3&61AAA01&0&50
I/O Port 0x0000D800-0x0000D807
I/O Port 0x0000D400-0x0000D403
I/O Port 0x0000D000-0x0000D007
I/O Port 0x0000B800-0x0000B803
I/O Port 0x0000B400-0x0000B40F
IRQ Channel IRQ 16
Driver c:\windows\system32\drivers\m5281.sys (5.025, 60,25 KB (61.693 bytes), 14/6/2006 22:11)

Now, how I edit mine mtkflash?

Please, help me!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 16, 2006, 07:34:00 PM

QUOTE(XN4k3 @ Jun 16 2006, 06:01 PM)

Please, help me!

http://www.1001megs.com/members/grim187/MTKFLASHALIm5283.zip

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: XN4k3 on June 16, 2006, 07:52:00 PM

Grim187, You edited your file for me?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: XN4k3 on June 16, 2006, 09:23:00 PM

the numbers is:
B9108152+00D800D0 or B9108152+D800D000?????????????

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 16, 2006, 09:38:00 PM

QUOTE(XN4k3 @ Jun 16 2006, 06:59 PM)

Grim187, You edited your file for me?

yes i edited up a mtkflash for you, it should work

QUOTE(XN4k3 @ Jun 16 2006, 08:30 PM)

the numbers is:
B9108152+00D800D0 or B9108152+D800D000?????????????

CODE

B910 8152 00D8 00D0

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: XN4k3 on June 16, 2006, 10:15:00 PM

Thanks a lot! Any error I can asked for aid to you?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 16, 2006, 11:58:00 PM

QUOTE(XN4k3 @ Jun 16 2006, 09:22 PM)

Thanks a lot! Any error I can asked for aid to you?

sure, I'm here to help, if you have a question about something other then Getting your drive recognized With MTKFlash or hexediting please PM me Instead of posting here

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: omg on June 17, 2006, 03:49:00 AM

http://www.sunix.com.tw/it/en/Product_Detail.php?cate=2&class_a_id=34&sid=447

has anyone tried this brand??

this is what i have but no 360 for another month or so (buying a house first (hopefully)) so im wondering if this would be a usable sata card?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: UdoG on June 17, 2006, 08:10:00 AM

QUOTE(Grim187 @ Jun 16 2006, 09:16 PM)

EDIT: http://www.topmicrousa.com/wbt-6030v.html(i dont know if it works or not but its the first one that i have seen)

Hello Grim,

how should it work with this card? As far as I understood you have to boot your PC (and with that card your notebook) into the dos mode (with a start disk) but I think you havn`t access to the pcmcia card in dos mode?!? Is there any possibility to run this card in dos mode?

I have only a notebook and no pc - so if it will work with that card I do not have to buy a seperate pc.

Thanks.

Udo

P.S. Sorry for my english...

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: blizzardd on June 17, 2006, 10:46:00 AM

Имя   Silicon Image SiI 3112 SATARaid Controller
Изготовитель   Silicon Image
Состояние   ОК
ID PNP-устройства   PCI\VEN_1095&DEV_3112&SUBSYS_61121095&REV_02\4&3B1D9AB8&0&5840
Порт ввода/вывода   0x00009400-0x00009407
Порт ввода/вывода   0x00009800-0x00009803
Порт ввода/вывода   0x00009C00-0x00009C07
Порт ввода/вывода   0x0000A000-0x0000A003
Порт ввода/вывода   0x0000A400-0x0000A40F
Адрес памяти   0xE9000000-0xE90001FF
IRQ-канал   IRQ 18
Драйвер   c:\windows\system32\drivers\si3112r.sys (1, 0, 0, 22, 82,55 КБ (84 529 байт), 17.06.2006 22:45)

Имя   A347SCSI SCSI Controller
Изготовитель   (Standard mass storage controllers)
Состояние   ОК
ID PNP-устройства   PCI\A347SCSI\0000
Драйвер   c:\windows\system32\drivers\a347scsi.sys (3.47.0.0 built by: WinDDK, 5,13 КБ (5 248 байт), 25.02.2005 0:47)
help me !!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: picnick on June 17, 2006, 10:55:00 AM

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&50
I/O Port   0x0000EC00-0x0000EC0F
I/O Port   0x0000E800-0x0000E80F
I/O Port   0x0000E400-0x0000E40F
I/O Port   0x0000E000-0x0000E00F
I/O Port   0x0000DC00-0x0000DC1F
I/O Port   0x0000D800-0x0000D8FF
IRQ Channel   IRQ 18
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.520, 90.50 KB (92,672 bytes), 14/06/2006 19:23)

Above is what I have, from PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&50 I get 0611 4932

But I can't work out the IO part, if some one can see what is required please let me know.

I have just changed the PNP part of the hex but the drive is still not recognised. The only other thing I am un sure about is setting the card to native/ide. Because I haven't got other any sata devices I can't change it in the bios as there is nothing to change. Advice on this also please.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: wippy72 on June 17, 2006, 11:35:00 AM

i have a Silicone Image 3112 PCI SATA RAID card flashed eith latest RAID bios can i flash this RAID card with normal IDE bios to stop it from being raid for i cannot seem to diasable RAID anywhere were is the option to disable it
and can someone tell me where the 2 lines were there is the 7 byte difference is on the i/o lines for i found the first but i dont understand HEX so wats the second:

Name   Silicon Image SiI 3112 SATARaid Controller
Manufacturer   Silicon Image
Status   OK
PNP Device ID   PCI\VEN_1095&DEV_3112&SUBSYS_61121095&REV_02\4&3B1D9AB8&0&3840
I/O Port   0x0000A000-0x0000BFFF
I/O Port   0x0000A400-0x0000A403
I/O Port   0x0000A800-0x0000A807
I/O Port   0x0000AC00-0x0000AC03
I/O Port   0x0000B000-0x0000B00F
Memory Address   0xE7000000-0xE70001FF
IRQ Channel   IRQ 19

thanks

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 17, 2006, 12:30:00 PM

QUOTE(omg @ Jun 17 2006, 02:56 AM)

not that i know of, but if it works you can be the one to find out

QUOTE(UdoG @ Jun 17 2006, 07:17 AM)

it should work in dos, if not you will need a dos driver for it, i would do some looking around to see if you can use pcmcia cards in dos before you buy it, i don't even own a laptop so i couldn't tell you

QUOTE(blizzardd @ Jun 17 2006, 09:53 AM)

I love the Russian Language, sorry dude it wont work its a Sil3112 and non of those work, you can probably use it for ripping games with the xtreme method with it but you will need a Via 6421 to be able to read and wright the firmware (check my link on the last page)

QUOTE(picnick @ Jun 17 2006, 10:02 AM)

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&50
I/O Port   0x0000EC00-0x0000EC0F
I/O Port   0x0000E800-0x0000E80F
I/O Port   0x0000E400-0x0000E40F
I/O Port   0x0000E000-0x0000E00F
I/O Port   0x0000DC00-0x0000DC1F
I/O Port   0x0000D800-0x0000D8FF
IRQ Channel   IRQ 18
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.520, 90.50 KB (92,672 bytes), 14/06/2006 19:23)
Above is what I have, from PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&50 I get 0611 4932

But I can't work out the IO part, if some one can see what is required please let me know.

I have just changed the PNP part of the hex but the drive is still not recognised. The only other thing I am un sure about is setting the card to native/ide. Because I haven't got other any sata devices I can't change it in the bios as there is nothing to change. Advice on this also please.

http://www.1001megs.com/members/grim187/MTKFLASHvia32.zip
make sure you try running it a couple times Because it wont always pick up the drive the first time you run it,
make sure that you aren't plugging in the sata cable to the 360 until your in dos
make sure you are using "MTKFlash r /m /sata orig.bin" instead of "MTKFlash r /m orig.bin"

QUOTE(wippy72 @ Jun 17 2006, 10:42 AM)

you only have one, Sil3112 doesnt work.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: blizzardd on June 17, 2006, 09:54:00 PM

a i.m Russian а я и есть русский , в общем я так то разобрался все же нужно брать другой контролер вот ты говоришь взять вот этот Via 6421 и уже даешь настроеyный mtfflash только у нас не такой широкий выбор контролеров в магазине.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 17, 2006, 10:09:00 PM

QUOTE(blizzardd @ Jun 17 2006, 09:01 PM)

I also am Russian, I so that have understood in general nevertheless it is necessary to take other controller here you speak to take here this Via 6421 and already give íàñòðîåyíûé mtfflash only at us not such wide choice of controllers in shop

sorry translator sucks, any way im actualy not russian (althow i do have a Czech backround i dont speak russian so good and i cant read it), you will need another controller card, if you have a local retail store that sells SATA Controller Cards you could just try one with a VIA chipset (or other (ICH,Nforce 4,etc.) and take it back (and try another one) if it dose not work, althow VIA Chipsets are the best for MTKFlash (not riping a game) others will work

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: wippy72 on June 18, 2006, 08:30:00 AM

ok i see my PCI 3122 SI CARD is not going to work so i purchased a PCI via 6421A is that ok

link
http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&rd=1&item=8829333159&ssPageName=STRK:MEWN:IT

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 18, 2006, 01:33:00 PM

QUOTE(wippy72 @ Jun 18 2006, 07:37 AM)

ok i see my PCI 3122 SI CARD is not going to work so i purchased a PCI via 6421A is that ok

link
http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&rd=1&item=8829333159&ssPageName=STRK:MEWN:IT

yep, use http://www.1001megs.com/members/grim187/MTKFLASHvia32.zip and it will work

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: bbnauction on June 19, 2006, 06:25:00 AM

hello im a bit confused on HEX please need help on HEX vinchie code

Mainboard MSI K7N2 Delta2
on board raid with nforce 2 MCP

on basic install of windows drivers looked like this
my status : OK
name : D347PRT SCSI Controller
manufacturer : (standard mass storage)
PNP Device ID : PCI\D347PRT\0000
Driver : c:\windows\system32\driver\d347prt.sys(3.47.0.0 built by: WinDDK, 5.13kb
nvidia MCP2S

PNP Device ID PCI\VEN_10DE&DEV_008E&SUBSYS_57001462&REV_A3\3&13C0B0C5&0&58
SO THIS SHOULD IN HEX ?= ED01 E800
I/O Port 0x000009F0-0x000009F7
I/O Port 0x00000BF0-0x00000BF3
I/O Port 0x00000970-0x00000977
I/O Port 0x00000B70-0x00000B73
I/O Port 0x0000AC00-0x0000AC0F
I/O Port 0x0000B000-0x0000B07F
IRQ Channel IRQ 22
SO THIS SHOULD IN HEX ?= 00CA 000B

ED01 E800 00CA 000B

and im a bit confuse cos yours is number and my code as letters and numbers in
just need help to know if the hex code is ok or have i made a totale mess or missed something ?

thanks in advance

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 19, 2006, 07:23:00 PM

QUOTE(bbnauction @ Jun 19 2006, 05:32 AM)

hello im a bit confused on HEX please need help on HEX vinchie code

Mainboard MSI K7N2 Delta2
on board raid with nforce 2 MCP

on basic install of windows drivers looked like this
my status : OK
name : D347PRT SCSI Controller
manufacturer : (standard mass storage)
PNP Device ID : PCI\D347PRT\0000
Driver : c:\windows\system32\driver\d347prt.sys(3.47.0.0 built by: WinDDK, 5.13kb
nvidia MCP2S

PNP Device ID PCI\VEN_10DE&DEV_008E&SUBSYS_57001462&REV_A3\3&13C0B0C5&0&58
SO THIS SHOULD IN HEX ?= ED01 E800
I/O Port 0x000009F0-0x000009F7
I/O Port 0x00000BF0-0x00000BF3
I/O Port 0x00000970-0x00000977
I/O Port 0x00000B70-0x00000B73
I/O Port 0x0000AC00-0x0000AC0F
I/O Port 0x0000B000-0x0000B07F
IRQ Channel IRQ 22
SO THIS SHOULD IN HEX ?= 00CA 000B
ED01 E800 00CA 000B

and im a bit confuse cos yours is number and my code as letters and numbers in
just need help to know if the hex code is ok or have i made a totale mess or missed something ?

thanks in advance

you swaped the 2 digit bytes insted of switching them around for example insted of taking 10 DE and makeing it ED 01 all you need to do is just swap where they are like DE 10, understand?

your line should be "DE10 8E00" from "PNP Device ID" line

im not sure where you got to use the last 2 lines but as you can see 09F0+7=09F7 (first "I/O Port" Line) and 0970+7=0977 (third "I/O Port" Line), you want the first 4 numbers in each of thease lines (I.E 09F0 and 0970)

so From the "I/O Port" Lines you whould have "F009 7009" (only a 2 digits to change from the defalt ("F001 7001")

so the Full Value that you would need to Hex Edit in is "DE10 8E00 F009 7009"

and i alreddy did http://www.1001megs.com/members/grim187/MTKFLASHnf4bbnauction.zip

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: bbnauction on June 20, 2006, 04:58:00 AM

nice work thanks a lot

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: blitzbox on June 20, 2006, 08:15:00 AM

Hi, help please I am a bit confused on the 7 difference

Name   ATI 437A Serial ATA Controller
Manufacturer   ATI
Status   OK
PNP Device ID   PCI\VEN_1002&DEV_437A&SUBSYS_437A1002&REV_00\3&61AAA01&0&88
I/O Port   0x0000FE00-0x0000FE07
I/O Port   0x0000FD00-0x0000FD03
I/O Port   0x0000FC00-0x0000FC07
I/O Port   0x0000FB00-0x0000FB03
I/O Port   0x0000FA00-0x0000FA0F
Memory Address   0xFE02F000-0xFE02F1FF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\si3112r.sys (1, 0, 0, 51, 95.63 KB (97,920 bytes), 18/08/2005 17:44)

Gives me the key 0210 7A43 00FE 00FD, Is this correct ?

When editing mtkflash can I use any of the other chipssets to just enter the key ?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: bigby on June 20, 2006, 09:29:00 AM

My Info:

Name   ALi SATA/RAID Controller
Manufacturer   ALi Corporation
Status   OK
PNP Device ID   PCI\VEN_10B9&DEV_5281&SUBSYS_528110B9&REV_A1\4&3B1D9AB8&0&3040
I/O Port   0x0000A000-0x0000CFFF
I/O Port   0x0000A400-0x0000A403
I/O Port   0x0000A800-0x0000A807
I/O Port   0x0000AC00-0x0000AC03
I/O Port   0x0000B000-0x0000B00F
IRQ Channel   IRQ 18
Driver   c:\windows\system32\drivers\m5281.sys (5.026, 48.20 KB (49,357 bytes), 09/06/2006 15:41)

Name   ALi ATA/RAID Controller
Manufacturer   ALi Corporation
Status   OK
PNP Device ID   PCI\VEN_10B9&DEV_5228&SUBSYS_528110B9&REV_C6\4&3B1D9AB8&0&3140
I/O Port   0x0000B400-0x0000B407
I/O Port   0x0000B800-0x0000B803
I/O Port   0x0000BC00-0x0000BC07
I/O Port   0x0000C000-0x0000C003
I/O Port   0x0000C400-0x0000C40F
IRQ Channel   IRQ 18
Driver   c:\windows\system32\drivers\m5228.sys (5.026, 43.87 KB (44,925 bytes), 09/06/2006 15:41)

Name   VAX347S SCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   PCI\VAX347S\0000
Driver   c:\windows\system32\drivers\vax347s.sys (3.47.0.0 built by: WinDDK, 5.13 KB (5,248 bytes), 03/11/2005 16:32)

Grim187 can you help?

I used B910 8152 00A8 00B0 and did not work,got the following error:

Port: a000, Master/Slave : a0

ERR: fail to open input file!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Justincredibal on June 20, 2006, 09:52:00 AM

I'm having a nightmare of a time with this.

I am doing this to a Toshiba/Samsung drive.

My on board sata chipset is the VIA8237. It seems from all the reading I have done that it should work, but then again most people are very lazy in there posting and don't specify the drive they used it on.

Name   VIA SATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_32061565&REV_80\3&13C0B0C5&0&78
I/O Port   0x0000B800-0x0000B807
I/O Port   0x0000BC00-0x0000BC03
I/O Port   0x0000C000-0x0000C007
I/O Port   0x0000C400-0x0000C403
I/O Port   0x0000C800-0x0000C80F
I/O Port   0x0000CC00-0x0000CCFF
IRQ Channel   IRQ 20
Driver   d:\windows\system32\drivers\viamraid.sys (5.1.2600.420, 59.38 KB (60,800 bytes), 6/19/2006 1:00 PM)

Yes I am in native IDE, not raid mode.

I have hexed my MTKflash with 0611493100B800C0

From what I have gatherd, everything looks good to this point.

Now when I run MTKFLASH and prompt <<mtkflash r /m orig.bin>> it sees the drive, looks like it starts to read it, but never does anything past that. I never get a count down or anything. I have let it sit there for over and hour to no avail. I have done everything I know to do, trying it with my other IDE connections hooked up, with them all unhooked, some hooked up, is driving me nuts!

I have tried several diffrent cables, several diffrent ports, everything!

If anyone has any ideas I would be soooo greatful. I would even give ya some $$$.

I have been to ev ery computer store in town, 6 of em, and they all have the same craptacular SI chipset cheap looking sata controller cards. The funny thing about it is they want 50-70$ for a card they ppaid 10-15$ for.

Help please!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 20, 2006, 01:06:00 PM

QUOTE(blitzbox @ Jun 20 2006, 07:22 AM)

Hi, help please I am a bit confused on the 7 difference

Name   ATI 437A Serial ATA Controller
Manufacturer   ATI
Status   OK
PNP Device ID   PCI\VEN_1002&DEV_437A&SUBSYS_437A1002&REV_00\3&61AAA01&0&88
I/O Port   0x0000FE00-0x0000FE07
I/O Port   0x0000FD00-0x0000FD03
I/O Port   0x0000FC00-0x0000FC07
I/O Port   0x0000FB00-0x0000FB03
I/O Port   0x0000FA00-0x0000FA0F
Memory Address   0xFE02F000-0xFE02F1FF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\si3112r.sys (1, 0, 0, 51, 95.63 KB (97,920 bytes), 18/08/2005 17:44)
Gives me the key 0210 7A43 00FE 00FD, Is this correct ?

When editing mtkflash can I use any of the other chipssets to just enter the key ?

you got the last 4 from PNP Device ID messed up and you need to jump one more line down in I/O
your line should be

CODE

0210 7A43 00FE 00FC

Yes, you can use any name you wish, you can actually change the in text also (but i don't recommend it)

QUOTE(bigby @ Jun 20 2006, 08:36 AM)

the first should be

CODE

B910 8152 F001 00A8

the 2nd should be

CODE

B910 2852 00B4 00BC

i would edit them both in as different names

QUOTE(Justincredibal @ Jun 20 2006, 08:59 AM)

I'm having a nightmare of a time with this.

I am doing this to a Toshiba/Samsung drive.

My on board sata chipset is the VIA8237. It seems from all the reading I have done that it should work, but then again most people are very lazy in there posting and don't specify the drive they used it on.

Name   VIA SATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_32061565&REV_80\3&13C0B0C5&0&78
I/O Port   0x0000B800-0x0000B807
I/O Port   0x0000BC00-0x0000BC03
I/O Port   0x0000C000-0x0000C007
I/O Port   0x0000C400-0x0000C403
I/O Port   0x0000C800-0x0000C80F
I/O Port   0x0000CC00-0x0000CCFF
IRQ Channel   IRQ 20
Driver   d:\windows\system32\drivers\viamraid.sys (5.1.2600.420, 59.38 KB (60,800 bytes), 6/19/2006 1:00 PM)

Yes I am in native IDE, not raid mode.

I have hexed my MTKflash with 0611493100B800C0

From what I have gatherd, everything looks good to this point.

Now when I run MTKFLASH and prompt <<mtkflash r /m orig.bin>> it sees the drive, looks like it starts to read it, but never does anything past that. I never get a count down or anything. I have let it sit there for over and hour to no avail. I have done everything I know to do, trying it with my other IDE connections hooked up, with them all unhooked, some hooked up, is driving me nuts!

I have tried several diffrent cables, several diffrent ports, everything!
If anyone has any ideas I would be soooo greatful. I would even give ya some $$$.

I have been to ev ery computer store in town, 6 of em, and they all have the same craptacular SI chipset cheap looking sata controller cards. The funny thing about it is they want 50-70$ for a card they ppaid 10-15$ for.
Help please!

lmfao, ya those computer stores are a rip, i didn't even wanna buy a sata cable from then (i was going to continue using the one on the 360), here's what you need to do
keep all sata cables unplugged
boot to dos
boot the 360 to dash
plug in the sata cable to the 360 from your sata controller
run "MTKFlash r /m /sata orig.bin"
press ESC
run "MTKFlash r /m /sata orig.bin"
if that doesnt work the first time turn on raid and try
make sure your using a floppy or fat32 partition on a hdd

if you cant get that to work (mine works great(VIA VT8327 On Board Bio Star M7viz) i made a post last page of where you can get a via chipset that dose work

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Justincredibal on June 20, 2006, 01:47:00 PM

QUOTE(Grim187 @ Jun 20 2006, 03:13 PM)

QUOTE(Justincredibal @ Jun 20 2006, 08:59 AM)

I'm having a nightmare of a time with this.

I am doing this to a Toshiba/Samsung drive.

My on board sata chipset is the VIA8237. It seems from all the reading I have done that it should work, but then again most people are very lazy in there posting and don't specify the drive they used it on.

Name VIA SATA RAID Controller
Manufacturer VIA Technologies, Inc.
Status OK
PNP Device ID PCI\VEN_1106&DEV_3149&SUBSYS_32061565&REV_80\3&13C0B0C5&0&78
I/O Port 0x0000B800-0x0000B807
I/O Port 0x0000BC00-0x0000BC03
I/O Port 0x0000C000-0x0000C007
I/O Port 0x0000C400-0x0000C403
I/O Port 0x0000C800-0x0000C80F
I/O Port 0x0000CC00-0x0000CCFF
IRQ Channel IRQ 20
Driver d:\windows\system32\drivers\viamraid.sys (5.1.2600.420, 59.38 KB (60,800 bytes), 6/19/2006 1:00 PM)

Yes I am in native IDE, not raid mode.

I have hexed my MTKflash with 0611493100B800C0

From what I have gatherd, everything looks good to this point.

Now when I run MTKFLASH and prompt <<mtkflash r /m orig.bin>> it sees the drive, looks like it starts to read it, but never does anything past that. I never get a count down or anything. I have let it sit there for over and hour to no avail. I have done everything I know to do, trying it with my other IDE connections hooked up, with them all unhooked, some hooked up, is driving me nuts!

I have tried several diffrent cables, several diffrent ports, everything!
If anyone has any ideas I would be soooo greatful. I would even give ya some $$$.

I have been to ev ery computer store in town, 6 of em, and they all have the same craptacular SI chipset cheap looking sata controller cards. The funny thing about it is they want 50-70$ for a card they ppaid 10-15$ for.
Help please!

lmfao, ya those computer stores are a rip, i didn't even wanna buy a sata cable from then (i was going to continue using the one on the 360), here's what you need to do
keep all sata cables unplugged
boot to dos
boot the 360 to dash
plug in the sata cable to the 360 from your sata controller
run "MTKFlash r /m /sata orig.bin"
press ESC
run "MTKFlash r /m /sata orig.bin"
if that doesnt work the first time turn on raid and try
make sure your using a floppy or fat32 partition on a hdd

if you cant get that to work (mine works great(VIA VT8327 On Board Bio Star M7viz) i made a post last page of where you can get a via chipset that dose work

Im at work right now and I had to buy a new computer for one of our recording studios a few weeks ago. Its a Dell E310. Although I have not found any information on success with it, I might as well give it a shot.
Below is the schipset info for it incase anyone has success with it or not.

Name   Intel® 82801FR SATA RAID Controller
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_2652&SUBSYS_01C41028&REV_04\3&172E68DD&0&FA
I/O Port   0x0000FE00-0x0000FE07
I/O Port   0x0000FE10-0x0000FE13
I/O Port   0x0000FE20-0x0000FE27
I/O Port   0x0000FE30-0x0000FE33
I/O Port   0x0000FEA0-0x0000FEAF
Memory Address   0xDFF3BC00-0xDFF3BFFF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\iastor.sys (5.1.0.1022, 851.63 KB (872,064 bytes), 4/27/2006 11:16 PM)

I have not had the time yet to find out if it can be switch from RAID to native ide yet.

If anyone has had any dealings with this SATA chipset, please let me know.

Oh and on the crazy computer store prices.... I had to spend $25 for a 2ft SATA cable. Bloodcurling.

Once I get home, I'm gonna try your suggestion. Is that what you have to do to get yours to work?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: thavarin on June 20, 2006, 02:32:00 PM

I'm really computer illiterate... I been having problems with nf4 mtkflash it doesnt work and I cant understand what to do when you have letters in this. Is this correct?

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0054&SUBSYS_CB8410DE&REV_A3\3&2411E6FE&0&38
I/O Port   0x000009F0-0x000009F7
I/O Port   0x00000BF0-0x00000BF3
I/O Port   0x00000970-0x00000977
I/O Port   0x00000B70-0x00000B73
I/O Port   0x0000D400-0x0000D40F
Memory Address   0xFE02C000-0xFE02CFFF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 8/18/2005 5:52 PM)

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0055&SUBSYS_CB8410DE&REV_A3\3&2411E6FE&0&40
I/O Port   0x000009E0-0x000009E7
I/O Port   0x00000BE0-0x00000BE3
I/O Port   0x00000960-0x00000967
I/O Port   0x00000B60-0x00000B63
I/O Port   0x0000C000-0x0000C00F
Memory Address   0xFE02B000-0xFE02BFFF
IRQ Channel   IRQ 21
Driver   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 8/18/2005 5:52 PM)

Can I use either the first or second one? Can you tell me from this what I have to input, I'm real stupid. Thanks Grim !

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 20, 2006, 09:09:00 PM

QUOTE(Justincredibal @ Jun 20 2006, 12:54 PM)

Im at work right now and I had to buy a new computer for one of our recording studios a few weeks ago. Its a Dell E310. Although I have not found any information on success with it, I might as well give it a shot.
Below is the schipset info for it incase anyone has success with it or not.

Name   Intel® 82801FR SATA RAID Controller
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_2652&SUBSYS_01C41028&REV_04\3&172E68DD&0&FA
I/O Port   0x0000FE00-0x0000FE07
I/O Port   0x0000FE10-0x0000FE13
I/O Port   0x0000FE20-0x0000FE27
I/O Port   0x0000FE30-0x0000FE33
I/O Port   0x0000FEA0-0x0000FEAF
Memory Address   0xDFF3BC00-0xDFF3BFFF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\iastor.sys (5.1.0.1022, 851.63 KB (872,064 bytes), 4/27/2006 11:16 PM)
I have not had the time yet to find out if it can be switch from RAID to native ide yet.

If anyone has had any dealings with this SATA chipset, please let me know.
Oh and on the crazy computer store prices.... I had to spend $25 for a 2ft SATA cable. Bloodcurling.

Once I get home, I'm gonna try your suggestion. Is that what you have to do to get yours to work?

ya and it will only read once per boot, that info is labeled as ICH6 in mtkflash therefore you would not need to edit mtkflash, everyone puts emphasis on "no raid native only" but my on board is a Raid only and it works

QUOTE(thavarin @ Jun 20 2006, 01:39 PM)

I'm really computer illiterate... I been having problems with nf4 mtkflash it doesn't work and I cant understand what to do when you have letters in this. Is this correct?

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0054&SUBSYS_CB8410DE&REV_A3\3&2411E6FE&0&38
I/O Port   0x000009F0-0x000009F7
I/O Port   0x00000BF0-0x00000BF3
I/O Port   0x00000970-0x00000977
I/O Port   0x00000B70-0x00000B73
I/O Port   0x0000D400-0x0000D40F
Memory Address   0xFE02C000-0xFE02CFFF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 8/18/2005 5:52 PM)

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0055&SUBSYS_CB8410DE&REV_A3\3&2411E6FE&0&40
I/O Port   0x000009E0-0x000009E7
I/O Port   0x00000BE0-0x00000BE3
I/O Port   0x00000960-0x00000967
I/O Port   0x00000B60-0x00000B63
I/O Port   0x0000C000-0x0000C00F
Memory Address   0xFE02B000-0xFE02BFFF
IRQ Channel   IRQ 21
Driver   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 8/18/2005 5:52 PM)

Can I use either the first or second one? Can you tell me from this what I have to input, I'm real stupid. Thanks Grim !

You would edit in both of them like http://www.1001megs.com/members/grim187/MTKFLASHnf4thavarin.rar

QUOTE(thavarin @ Jun 20 2006, 01:39 PM)

I'm real stupid.

lmfao, aren't we all

Edit: Next Post Gets Top of Page 18

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: blitzbox on June 21, 2006, 09:08:00 AM

Name   ATI 437A Serial ATA Controller
Manufacturer   ATI
Status   OK
PNP Device ID   PCI\VEN_1002&DEV_437A&SUBSYS_437A1002&REV_00\3&61AAA01&0&88
I/O Port   0x0000FE00-0x0000FE07
I/O Port   0x0000FD00-0x0000FD03
I/O Port   0x0000FC00-0x0000FC07
I/O Port   0x0000FB00-0x0000FB03
I/O Port   0x0000FA00-0x0000FA0F
Memory Address   0xFE02F000-0xFE02F1FF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\si3112r.sys (1, 0, 0, 51, 95.63 KB (97,920 bytes), 18/08/2005 17:44)

Edited MTKFLASH with 0210 7A43 00FE 00FC

It detects the xbox drive, but when i run mtkslash and choose either option 1 or 2 it just hangs !!!! I have changed sata to native ide. Have tried connecting cable when booting pc and connecting the cable just before running mtkflash, makes no difference. When booting the pc with the sata cable connected, it finds the drive in bios.

What am I doing wrong

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: bond0074 on June 21, 2006, 11:42:00 AM

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&3B1D9AB8&0&3840
I/O Port   0x0000A000-0x0000BFFF
I/O Port   0x0000A400-0x0000A40F
I/O Port   0x0000A800-0x0000A80F
I/O Port   0x0000AC00-0x0000AC0F
I/O Port   0x0000B000-0x0000B01F
I/O Port   0x0000B400-0x0000B4FF
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 21/06/2006 19:07)

trying to edit my mtkflash .exe i understand the PNP part which would be 06114932 but i dont under stand the i/o port part just wondering if someone can work it out for me.

cheers

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: thavarin on June 21, 2006, 02:03:00 PM

Thanks for the help Grim, but I have given up, I purchased a VIA chipset SATA PCI controller from newegg.com. I used the edited mtkflash you posted earliar and now when I boot up its only detecting the DVD-ROM drives I have installed. Did I do something wrong again? Raid is disable.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: bigby on June 21, 2006, 03:56:00 PM

thanks for your help grim, it worked

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: smash_linux on June 21, 2006, 04:24:00 PM

I used the edited MTKFlash to work with my Via 6421 chipset, but when I read the firmware, the firmware is only 128kb. Anyone knows why?

//smash

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 21, 2006, 04:40:00 PM

QUOTE(blitzbox @ Jun 21 2006, 08:15 AM)

both 360 and computer off
boot computer to dos
boot 360 to dash
plug in sata cable
run "MTKFlash r /m /sata orig.bin"
hit esc
run "MTKFlash r /m /sata orig.bin"
Select your the name you edited your values in to (if it still doesnt get recognized http://www.1001megs.com/members/grim187/MTKFLASHALIblitzbox.zip)

QUOTE(bond0074 @ Jun 21 2006, 10:49 AM)

You dont need to worry about the i/o port lines as mutch as the PNP Decive ID, the io port lines are just master and slave channels (with defult it will pick up(most of the time), you should just be able to edit in the value you have and be set http://www.1001megs.com/members/grim187/MTKFLASHvia32.zip

QUOTE(thavarin @ Jun 21 2006, 01:10 PM)

try every configuration that you can think of, not disabling raid, booting the 360 with drive connected, etc. etc. etc.

also try my responce to the first post on this page

QUOTE(bigby @ Jun 21 2006, 03:03 PM)

thanks for your help grim, it worked

Glad to hear

QUOTE(smash_linux @ Jun 21 2006, 03:31 PM)

I used the edited MTKFlash to work with my Via 6421 chipset, but when I read the firmware, the firmware is only 128kb. Anyone knows why?

//smash

did you let it compleat (3x to %99 from %0 then 1x to %100 from %0)?, have you dont muptile dumps(3x at least if not 5x)?, what do the other dumps look like?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: smash_linux on June 21, 2006, 04:45:00 PM

It wasn't reading the good device. Sorry! It ain't able to dectect my 360 frive though.

I tried the mtkflash modified to wrok with the via chipset but it ain't able to detect any drive. I tried plugging the xbox 360 sata cable in the card, then start msdos, then boot the 360, then run mtkflash. Boot the pc with the xbox 360 already booted.

Anyone has idea on how I could get this working?

Thanks alot!

//smash

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 21, 2006, 08:19:00 PM

QUOTE(smash_linux @ Jun 21 2006, 03:52 PM)

your not supposed to boot the 360 with the sata cable connected to the PC (while the PC is on) at all it will lock the PC up most of the time, like i said you need to boot them separately then plug in the sata cable and try running MTKFlash a couple times

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 21, 2006, 09:57:00 PM

QUOTE

I am not a n00b, I am a software programmer

all software programmers are n00bs in my eyes and its been proven by this (its a software problem...lol)

sorry to humiliate you like this but you have been bugging me since day one, and this is hularus, its definlty sig worthy

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: bond0074 on June 22, 2006, 01:47:00 AM

HI

i have the vt6421 sata expansion card installed and cant seem to get the pc to recognize the 360 samsung i keep getting hardware initiate press g to contiue when it scans the sata i run the mtkflash all i get is no drive found i have tryed putting the sata cable in soon has it gets to a:\ then run mtkflash but same no drive found. please someone help i am going gray and pulling out my hair

cheers

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: djohng on June 22, 2006, 07:27:00 AM

OK, I hope someone can give me some input as to what the problem may be. I have 2 Samsung drives (FW ms19 and FW ms25 and with different dates 8/05 & 3/06). After several experiments, attempts, configurations & days, I got the first FWms25 drive to read, flash and work great with my backups.

I went back to read the second FWms19 drive a couple of days later with the same setup & procedure as the first...and I get this error/lock. (I wrote my process down, so I would have to spend days trying again.)

In DOS
mtkflash r /sata orig.bin

1 IDE SEC MASTER
2 VIA 6421 PRIMARY MASTER
"press 2"
Port df00, Master/Slave: a0
"hangs here"
hit esc
Status 51, should be 70

I tried this with 2 different VIA6421 cards (one with RAID, one without) ; 3 different computers and multiple edited versions of mtkflash (just in case)...always the same results.

Here's the msconfig32 from the succesful computer:
Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&2E26DDEC&0&08A4
I/O Port   0x0000DF00-0x0000DF0F
I/O Port   0x0000DE00-0x0000DE0F
I/O Port   0x0000DD00-0x0000DD0F
I/O Port   0x0000DC00-0x0000DC0F
I/O Port   0x0000DB00-0x0000DB1F
I/O Port   0x0000DA00-0x0000DAFF
IRQ Channel   IRQ 21
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.520, 90.50 KB (92,672 bytes), 5/25/2006 2:40 PM)

Name   VAX347S SCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   PCI\VAX347S\0000
Driver   c:\windows\system32\drivers\vax347s.sys (3.47.0.0 built by: WinDDK, 5.13 KB (5,248 bytes), 2/22/2006 11:16 AM)

From my understanding the SATA card is waiting for a code 70 from the Samsung drive on the Master Port DF00...

I've seen others with the same problem...Anyone have other suggestions/input? There's got to be a better way! Could it be a bad drive...it is recognized by one of the other computers si3112 chipset...(but I disable the chipset afterwords in bios.)

-thanks for any input...
(frustrated)
-djohng

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: EwMaster on June 22, 2006, 08:40:00 AM

hello all im having a problem with flashing my drive i have looked at the tu on how to edit the MTKFLASH and i just get lost half way though. Ii have a A8n32sli deluxe mb i also tried MTK-NF4 an it just hangs on this Port: a480, Master/Slave: a0, this is my chipset rite here any help would be very much apprecaited.

Name Silicon Image SiI 3132 SATALink Controller
Manufacturer Silicon Image
Status OK
PNP Device ID PCI\VEN_1095&DEV_3132&SUBSYS_819F1043&REV_01\4&E2974D5&0&0010
Memory Address 0xF23FFC00-0xF23FFC7F
Memory Address 0xF23F8000-0xF23FBFFF
I/O Port 0x00009C00-0x00009C7F
IRQ Channel IRQ 19
Driver c:\windows\system32\drivers\si3132.sys (1, 0, 16, 0, 66.13 KB (67,712 bytes), 19/04/2006 17:45)

Name NVIDIA nForce4 Serial ATA RAID Controller
Manufacturer NVIDIA Corporation
Status OK
PNP Device ID PCI\VEN_10DE&DEV_0054&SUBSYS_815A1043&REV_F3\3&267A616A&0&80
I/O Port 0x0000E480-0x0000E487
I/O Port 0x0000E400-0x0000E403
I/O Port 0x0000E080-0x0000E087
I/O Port 0x0000E000-0x0000E003
I/O Port 0x0000DC00-0x0000DC0F
Memory Address 0xFEBFD000-0xFEBFDFFF
IRQ Channel IRQ 22
Driver c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 07/09/2005 13:42)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: KR4ZYMAN on June 22, 2006, 08:40:00 AM

Can anyone help me on this EER: fail to identify the flash type!

Asus p5gpl-x

NorthBridge : Intel i915P
SouthBridge : 82801FB/FR ICH6/ICH6R LPC Interface Bridge

cheers.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: EwMaster on June 22, 2006, 11:27:00 AM

i also have this pc with a ABIT AN8 VT8237 chipset but again having trouble working out the code to edit the MTKFLASH file please help.

Name   VIA Serial ATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_1413147B&REV_80\3&13C0B0C5&0&78
I/O Port   0x0000C000-0x0000C007
I/O Port   0x0000C400-0x0000C403
I/O Port   0x0000C800-0x0000C807
I/O Port   0x0000CC00-0x0000CC03
I/O Port   0x0000D000-0x0000D00F
I/O Port   0x0000D400-0x0000D4FF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\viasraid.sys (5.1.2600.220, 75.50 KB (77,312 bytes), 6/9/2004 14:38)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&62320334&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 3/4/2006 10:03)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: posmu on June 22, 2006, 03:17:00 PM

Hi!

Can somebody help me with my Promise SATA-300TX2plus SATA PCI Adapter works with the Samsung Drive ?

Name Windows Promise SATA300 TX2plus IDE Controller
Hersteller Promise Technology
Status OK
PNP-Gerätekennung PCI\VEN_105A&DEV_3D73&SUBSYS_3D73105A&REV_02\4&2E98101C&0&58F0
E/A-Port 0x0000DC00-0x0000DC7F
E/A-Port 0x0000D400-0x0000D4FF
Speicheradresse 0xFEAFA000-0xFEAFAFFF
Speicheradresse 0xFEAC0000-0xFEADFFFF
IRQ-Kanal IRQ 23
Treiber c:\windows\system32\drivers\ulsata2.sys ( 1.00.0.33, 123,00 KB (125.952 Bytes), 22.06.2006 20:24)

What i have to do??

THANX!!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: EwMaster on June 22, 2006, 03:51:00 PM

Thanks goes out to Grim and the other people whom was included in this thread. I managed to figure out your tutorial and flashed my drive successfully

Thanks again

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 22, 2006, 06:06:00 PM

QUOTE(bond0074 @ Jun 22 2006, 12:54 AM)

you should never have it hooked up on boot, i don't know anyone who has gotten it to work that way, you need to boot the 360 and dos separately then hook up the sata cable and tun "MTKFlash r /m /sata orig.bin" 2-5x (mine reg's the 2nd time only)

QUOTE(djohng @ Jun 22 2006, 06:34 AM)

haven't ever delt with the ms19 before (not sure cuz i don't usaly ask), try editing in "F001 7001" for the last 4 digits of your chipsets value

QUOTE(EwMaster @ Jun 22 2006, 07:47 AM)

Sil's are buggy so i would use the nf4, your value that you need to edit in to mtkflash (see part 3 of the tut) is "DE10 5400 80E4 80E0", if you still have problems or cant figure out how to edit it in let me know and i will make up a mtkflash for you

QUOTE(KR4ZYMAN @ Jun 22 2006, 07:47 AM)

Can anyone help me on this EER: fail to identify the flash type!
Asus p5gpl-x

NorthBridge : Intel i915P
SouthBridge : 82801FB/FR ICH6/ICH6R LPC Interface Bridge

cheers.

your selecting the wrong drive, try using "MTKFlash r /m /sata orig.bin" and only selecting your sata chipsets name

QUOTE(EwMaster @ Jun 22 2006, 10:34 AM)

i also have this pc with a ABIT AN8 VT8237 chipset but again having trouble working out the code to edit the MTKFLASH file please help.
Name   VIA Serial ATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_1413147B&REV_80\3&13C0B0C5&0&78
I/O Port   0x0000C000-0x0000C007
I/O Port   0x0000C400-0x0000C403
I/O Port   0x0000C800-0x0000C807
I/O Port   0x0000CC00-0x0000CC03
I/O Port   0x0000D000-0x0000D00F
I/O Port   0x0000D400-0x0000D4FF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\viasraid.sys (5.1.2600.220, 75.50 KB (77,312 bytes), 6/9/2004 14:38)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&62320334&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 3/4/2006 10:03)

CODE

0611 4931 00C0 00C8

or (don't edit both of these in to one MTKFlash.exe File)

CODE

0611 4931 F001 7001

if you are haveing troble still let me know and i will edit up a MTKFlash.exe file for you

QUOTE(posmu @ Jun 22 2006, 02:24 PM)

That's not a SATA Controller, please (install your sata controllers driver and) copy everything from SCSI and ide to a post

WOW, i think this is the longest/biggest post i have ever made

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: djohng on June 22, 2006, 06:47:00 PM

QUOTE(Grim187 @ Jun 23 2006, 12:13 AM)

haven't ever delt with the ms19 before (not sure cuz i don't usaly ask), try editing in "F001 7001" for the last 4 digits of your chipsets value

I'm using the MTKFLASH that was successful with FWms25...already edited the F001 7001 for my specific computer...and it worked for FWms25

I thought this may be the problem...FWms19...is an older Samsung X360 replacement...I'm wondering if anyone else has had any luck with this version...maybe a hardware change??

I went back to read the FWms25...just for experimentation...and guess what...it reads & writes the firmware fine!! This FW=ms25 is HW04 version...the other is HW03.

Switch back to the other drive...and nothing.

Can anyone tell me if they've had success with FWms19 and a Samsung manufactureed in 08/2005 TS-H943 (not A)?

Otherwise I'm sending it back to the place I bought it...

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: kpswish on June 22, 2006, 07:36:00 PM

Hello, any chance someone can help me with this one? Just received the card from newegg, manual says the brand name is "Creative I/O".

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&25296D99&0&60F0
I/O Port   0x00002490-0x0000249F
I/O Port   0x00002480-0x0000248F
I/O Port   0x00002470-0x0000247F
I/O Port   0x00002460-0x0000246F
I/O Port   0x00002440-0x0000245F
I/O Port   0x00002000-0x000020FF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 6/22/2006 8:35 PM)

I'm lost after getting 06114932. Opened the MTKFlask.exe file with Hex workshop and found a 0611 4931 but I have no idea what to change. I've read this entire topic and I'm still too stupid.

Thanks,
Kevin

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 22, 2006, 07:43:00 PM

QUOTE(kpswish @ Jun 22 2006, 06:43 PM)

Hello, any chance someone can help me with this one? Just received the card from newegg, manual says the brand name is "Creative I/O".

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&25296D99&0&60F0
I/O Port   0x00002490-0x0000249F
I/O Port   0x00002480-0x0000248F
I/O Port   0x00002470-0x0000247F
I/O Port   0x00002460-0x0000246F
I/O Port   0x00002440-0x0000245F
I/O Port   0x00002000-0x000020FF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 6/22/2006 8:35 PM)

I'm lost after getting 06114932. Opened the MTKFlask.exe file with Hex workshop and found a 0611 4932 but I have no idea what to change. I've read this entire topic and I'm still too stupid.

Thanks,
Kevin

if it already has a "0611 4932" (Not "0611 4931") then you don't have to edit anything it should just work, make sure to boot both the 360 and dos separately then connect the sata cable and run MTKFlash r /m /sata orig.bin 2-5x (worked for me the 2nd time only)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: kpswish on June 22, 2006, 07:46:00 PM

Opps, edited. It has a 0611 4931.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 22, 2006, 07:49:00 PM

QUOTE(djohng @ Jun 22 2006, 05:54 PM)

ive never even heard of hw003 or hw004 (i have hw005), i did some poking around and couldent find anything about ms19 on xbh, i did find somthing about hw003 but not mutch (http://www.xboxhacker.net/index.php?option=com_smf&Itemid=33&topic=670.msg10399;topicseen#msg10399)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: djohng on June 22, 2006, 09:50:00 PM

QUOTE(Grim187 @ Jun 23 2006, 01:56 AM)

yes, I read the same thing on xbh...but not much help there...I was hoping someone would tell me they had success with this FWms19 HW03 version Samsung.

thanks

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ILLusions0fGrander on June 23, 2006, 12:07:00 AM

i posted in ""drive Not Recognized" Using Syba Sy-via-150 Pci Sata, VIA VT6421L chipset"

QUOTE

at first the sata card never showed up during boot.

now that 360 is hooked up to the samsung, it shows up during boot, but after about 30 seconds of searching, it says "drive not recognized".

i have 520c drivers installed.
disabled PCI in bios.
tried turning 360 on before and after boot.
have modified mtkflashvia
boot dos 6.22 disk, once at prompt, slide in the mtkflash disk and run, says same thing, "drive not detected".

You told me to:

QUOTE

disconnect sata cable
boot dos
boot 360
connect sata cable
run "MTKFlash r /m /sata orig.bin"
don't select anything (your sata chipset name wont show up(if it dose there you go)
hit esc
run "MTKFlash r /m /sata orig.bin"a
if it doesnt show up now keep trying
if it hasn't shown up by the 5th time your doing something wrong, post in my tut and i will help

keep getting drive not recognized.

tried every which way i could think of.
pretty frustrating. thanks for any help.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 23, 2006, 04:19:00 AM

QUOTE(ILLusions0fGrander @ Jun 22 2006, 11:14 PM)

i posted in ""drive Not Recognized" Using Syba Sy-via-150 Pci Sata, VIA VT6421L chipset"
You told me to:
keep getting drive not recognized.

tried every which way i could think of.
pretty frustrating. thanks for any help.

are you sure your using http://www.1001megs.com/members/grim187/MTKFLASHvia32.zip?

Edit: Also i have been meaning to ask Whats the picture look like on that TV? and whats the contrast radio?, nice setup by the way (your missing a NEO Geo and wheres that Atari)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: jamesgregory11 on June 23, 2006, 10:22:00 AM

Name   VIA SATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_140E147B&REV_80\3&13C0B0C5&0&78
I/O Port   0x0000B000-0x0000B007
I/O Port   0x0000B400-0x0000B403
I/O Port   0x0000B800-0x0000B807
I/O Port   0x0000BC00-0x0000BC03
I/O Port   0x0000C000-0x0000C00F
I/O Port   0x0000C400-0x0000C4FF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.430, 59.50 KB (60,928 bytes), 28/02/2006 21:40)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&40F323B3&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 05/03/2006 02:20)

having real trouble getting my chipset to recognise my 360,please help.im sure i edited mkflash ok but still no joy.injected this 0611493100B000B8 .my m/b is abit vt7.
cheers

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: blitzbox on June 23, 2006, 02:11:00 PM

Hi m8, tried downloading your edited mtkflash for my motherboard (thanks)

Name   ATI 437A Serial ATA Controller
Manufacturer   ATI
Status   OK
PNP Device ID   PCI\VEN_1002&DEV_437A&SUBSYS_437A1002&REV_00\3&61AAA01&0&88
I/O Port   0x0000FE00-0x0000FE07
I/O Port   0x0000FD00-0x0000FD03
I/O Port   0x0000FC00-0x0000FC07
I/O Port   0x0000FB00-0x0000FB03
I/O Port   0x0000FA00-0x0000FA0F
Memory Address   0xFE02F000-0xFE02F1FF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\si3112r.sys (1, 0, 0, 51, 95.63 KB (97,920 bytes), 18/08/2005 17:44)

I have no problem with mtkflash regoconising my drive, but when I boot to dos & run mtkflash, it keeps hanging.

In DOS
MTKFlash r /m /sata orig.bin

1 VIA 6421 PRIMARY MASTER
2 VIA 6421 PRIMARY SLAVE
"press 1"
Port df00, Master/Slave: a0
"hangs here"
hit esc
Status 51, should be 70

1 VIA 6421 PRIMARY MASTER
2 VIA 6421 PRIMARY SLAVE
"press 2"
Port df00, Master/Slave: b0
"hangs here"
hit esc
Status 51, should be 70

I only connect the xbox drive once booted to dos, tried native ide & sata. Any ideas or can you recomment a motherboard that defo works ?

Help much appreciated.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ILLusions0fGrander on June 23, 2006, 03:20:00 PM

QUOTE(Grim187 @ Jun 23 2006, 05:26 AM)

worked perfect, thanks.

now when i flash, its successful, but it wont recognize original games.

flashed a couple times, tried app to patch, and manual.
reflashed orig.bin and its working fine, but that doesnt do me any good.

picture is pretty slick on my 65 inch... dunno about contrast, and never had a neogeo, atari and intellivision somehow disappeared since i was 5.

thanks for the help btw

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: djohng on June 23, 2006, 07:53:00 PM

QUOTE(Grim187 @ Jun 23 2006, 01:56 AM)

I finally found a great explaination for FW=ms19 & HW03, which are some of the drives purchased online at etech4sale. The drive is actually beta firmware, and acts like a bad flash to the SATA controller, so you have to complete a bad flash recovery...see the rather lengthy forum item below...might be something to note in the flashing tutorial.

http://www.xboxhacker.net/index.php?option=com_smf&Itemid=33&topic=935.0

I tried this flash recovery a number of times with the PCI SATA 6421 Creative Card (no Raid), and could not get the code 70 to produce...tried it 100 times...so I'm RMA back to them and requesting a FW=ms25 from a retail 360, not beta.

Maybe this will help others with this drive...supposedly it has worked for some.

-djohng

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 23, 2006, 08:06:00 PM

QUOTE(jamesgregory11 @ Jun 23 2006, 09:29 AM)

Name   VIA SATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_140E147B&REV_80\3&13C0B0C5&0&78
I/O Port   0x0000B000-0x0000B007
I/O Port   0x0000B400-0x0000B403
I/O Port   0x0000B800-0x0000B807
I/O Port   0x0000BC00-0x0000BC03
I/O Port   0x0000C000-0x0000C00F
I/O Port   0x0000C400-0x0000C4FF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.430, 59.50 KB (60,928 bytes), 28/02/2006 21:40)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&40F323B3&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 05/03/2006 02:20)
having real trouble getting my chipset to recognise my 360,please help.im sure i edited mkflash ok but still no joy.injected this 0611493100B000B8 .my m/b is abit vt7.
cheers

QUOTE(blitzbox @ Jun 23 2006, 01:18 PM)

Hi m8, tried downloading your edited mtkflash for my motherboard (thanks)

Name   ATI 437A Serial ATA Controller
Manufacturer   ATI
Status   OK
PNP Device ID   PCI\VEN_1002&DEV_437A&SUBSYS_437A1002&REV_00\3&61AAA01&0&88
I/O Port   0x0000FE00-0x0000FE07
I/O Port   0x0000FD00-0x0000FD03
I/O Port   0x0000FC00-0x0000FC07
I/O Port   0x0000FB00-0x0000FB03
I/O Port   0x0000FA00-0x0000FA0F
Memory Address   0xFE02F000-0xFE02F1FF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\si3112r.sys (1, 0, 0, 51, 95.63 KB (97,920 bytes), 18/08/2005 17:44)

I have no problem with mtkflash regoconising my drive, but when I boot to dos & run mtkflash, it keeps hanging.

In DOS
MTKFlash r /m /sata orig.bin
1 VIA 6421 PRIMARY MASTER
2 VIA 6421 PRIMARY SLAVE
"press 1"
Port df00, Master/Slave: a0
"hangs here"
hit esc
Status 51, should be 70

1 VIA 6421 PRIMARY MASTER
2 VIA 6421 PRIMARY SLAVE
"press 2"
Port df00, Master/Slave: b0
"hangs here"
hit esc
Status 51, should be 70

I only connect the xbox drive once booted to dos, tried native ide & sata. Any ideas or can you recomment a motherboard that defo works ?

Help much appreciated.

i tell ppl and i tell ppl but no one gets it, i think im going to have to edit in a section for getting the drive reconized (this is editing mtkflash tut not getting your drive recnoized tut)

Unplug Sata Cable
Boot to dos
Boot to dash
Connect Sata Cable
Run "MTKFlash r /m /sata orig.bin" (if your chipset info shows up here Select it, it it dosent continue)
Hit ESC
Run "MTKFlash r /m sata orig.bin"
make sure to only select the name of your chipset(or the one that you edited the values in under), if it dosent show up the 2x then try another 3x, if it still hasent showen up then you need to go back to editing mtkflash(try editing in "F001 7001" as the last 4 digits)

QUOTE(ILLusions0fGrander @ Jun 23 2006, 02:27 PM)

did you transfer your key?, if you did it with kdx use a hexeditor it works alot better

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ILLusions0fGrander on June 23, 2006, 08:12:00 PM

i found out where i went wrong.. i was using KDX without using the patch on the original xtreme firmware... now ive gotten originals to read with xtreme, and recognized in windows with 0800, just keep getting an error in dvdinfo trying to unlock the drive... as soon as i get a successful rip ill call it quits for the night.. been on this shit all day.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: garifo on June 23, 2006, 09:06:00 PM

I have the following.

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&68
I/O Port   0x00007800-0x0000780F
I/O Port   0x00007400-0x0000740F
I/O Port   0x00007000-0x0000700F
I/O Port   0x00006800-0x0000680F
I/O Port   0x00006400-0x0000641F
I/O Port   0x00006000-0x000060FF
IRQ Channel   IRQ 17
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 6/22/2006 6:29 PM)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&4265EE65&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9

Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 4/15/2006 6:21 PM)

but during the process I get "ERR fail to write output file"

this is what I have been doing
"disconnect sata cable
boot dos
boot 360
connect sata cable
run "MTKFlash r /m /sata orig.bin"
don't select anything (your sata chipset name wont show up(if it dose there you go)
hit esc
run "MTKFlash r /m /sata orig.bin" also tried just "MTKFlash r /m /sata orig.bin"

but same result.

I have been using the mtkflash grim mentioned in a previous post
"are you sure your using http://www.1001megs.com/members/grim187/MTKFLASHvia32.zip"

what i'm doing wrong?

also is there something that should tell me drive has been detected/

thanks...

ps...i did not edit the mtkflash because like grim mention that you dont have to if it has the following values already 06114932

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: garifo on June 23, 2006, 10:01:00 PM

ok...i was able to retrieve the firmware and made several copies.

the problem that i'm having now it that when i try to load it
using kdx1.5 i get "wrong firmware file"
the file size 512kb and name" orig.bin

what should i fix this issue? thanks

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 23, 2006, 10:22:00 PM

QUOTE(ILLusions0fGrander @ Jun 23 2006, 07:19 PM)

wow your not gonna sleep for a long time, you cant unlock the drive with a via chipset (use WXripper)

QUOTE(garifo @ Jun 23 2006, 08:13 PM)

I have the following.

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&68
I/O Port   0x00007800-0x0000780F
I/O Port   0x00007400-0x0000740F
I/O Port   0x00007000-0x0000700F
I/O Port   0x00006800-0x0000680F
I/O Port   0x00006400-0x0000641F
I/O Port   0x00006000-0x000060FF
IRQ Channel   IRQ 17
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 6/22/2006 6:29 PM)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&4265EE65&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 4/15/2006 6:21 PM)
but during the process I get "ERR fail to write output file"

this is what I have been doing
"disconnect sata cable
boot dos
boot 360
connect sata cable
run "MTKFlash r /m /sata orig.bin"
don't select anything (your sata chipset name wont show up(if it dose there you go)
hit esc
run "MTKFlash r /m /sata orig.bin" also tried just "MTKFlash r /m /sata orig.bin"

but same result.

I have been using the mtkflash grim mentioned in a previous post
"are you sure your using This MTKFlash.exe?"

what i'm doing wrong?

also is there something that should tell me drive has been detected/

thanks...

ps...i did not edit the mtkflash because like grim mention that you dont have to if it has the following values already 06114932

you need more space on the floppy the firmware file is 256mb and you should have 2x that atleast

QUOTE(garifo @ Jun 23 2006, 09:08 PM)

the file size shouldent be 512kb all firmware files sizes (that i know of) are 256k, you need to redump and compaire 3-5 different dumps with each other,
in hex workshop go to tools>compair and click on compair files
and select 2 different dumps (go thru and compair every dump)
if there all the same great if there not your doing somthing wroung

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ILLusions0fGrander on June 23, 2006, 10:38:00 PM

QUOTE(Grim187 @ Jun 23 2006, 11:29 PM)

wow your not gonna sleep for a long time, you cant unlock the drive with a via chipset (use WXripper)

odd, i found a post:

QUOTE

I have read that alot of you are having problems with the unlocking of the media. I too was having this same problem with the "sense error occurred" every time I entered the send command code.

After serching for 2 days on this problem I found an answer and it seems to work very well.

Here are the steps I have taken to unlock the media.

1: After you have sent the four commands into DVDInfo Pro and saved your SS Key minimise the the DVDInfo Pro software. (Dont bother with the Media code to unlock the drive)

2: Load up your ISO Buster (I have tried both v1.7 and v1.9 and both work) , Select your Xbox360 DVD drive. You should now see the disk as it should be as a session 1 and not Video and TS folders.

3: Extract the data as per the rest of the tutorial.

i did it, and it worked flawlessly.
finished the process with the 360.bat, and its the same exact size as my other 4 rips i made using wxripper.

is there something im missing about the above method? when you open ISObuster, it appears exaxctly as shown in the tut.

maybe it cant unlock it, because at the time of sending the unlock code, its already unlocked?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 23, 2006, 10:45:00 PM

QUOTE(ILLusions0fGrander @ Jun 23 2006, 09:45 PM)

odd, i found a post:
i did it, and it worked flawlessly.
finished the process with the 360.bat, and its the same exact size as my other 4 rips i made using wxripper.

is there something im missing about the above method? when you open ISObuster, it appears exaxctly as shown in the tut.

thats great for you, you said you had a 6421l?
i have tryed everything possable and nothing works for me with my via vt8237, i finaly gave up after i bricked a drive and used the wxripper method

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ILLusions0fGrander on June 23, 2006, 10:49:00 PM

yea, 6421l purchased from newegg, heh, they raised the price.

using the 520c drivers.

gotta admit.. alot of struggles, but it seems like smooth sailing at this point... just have to wait for my burner to get the final results.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 23, 2006, 11:10:00 PM

QUOTE(ILLusions0fGrander @ Jun 23 2006, 09:56 PM)

yay it works, i wasent sure if i try to dump the file before i sent the unlock command so i flashed and tryed it and its reading 7.05gb, thanks for the info

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ILLusions0fGrander on June 23, 2006, 11:12:00 PM

nice.. looks like a solid solution then.

would this only work on VIA chipsets?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 23, 2006, 11:45:00 PM

QUOTE(ILLusions0fGrander @ Jun 23 2006, 10:19 PM)

nice.. looks like a solid solution then.

would this only work on VIA chipsets?

well via chipsets where the only ones that i know that where haveing problems unlocking the drive, but i assume that it would work with other chipsets that dident unlock the drive also, if not its still worth a try

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Hire on June 24, 2006, 07:32:00 AM

Nome   NVIDIA nForce4 Intel® Edition Serial ATA RAID Controller
Produttore   NVIDIA Corporation
Stato   OK
ID periferica PNP   PCI\VEN_10DE&DEV_0036&SUBSYS_1C1C147B&REV_F2\3&2411E6FE&0&80
Porta I/O   0x000009F0-0x000009F7
Porta I/O   0x00000BF0-0x00000BF3
Porta I/O   0x00000970-0x00000977
Porta I/O   0x00000B70-0x00000B73
Porta I/O   0x0000F600-0x0000F60F

Can you do for me ad edited mtkflash? Thx

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: garifo on June 24, 2006, 07:38:00 AM

the only thing currently conect to my PCI SATA card the xbox360 drive
when retrieving the firmware and selecting master, is it possible that it will retrieve the firmware from my computer hd instead.

I redump and compaire 3-5 different dumps with each other, and all of them 512kb and compared it in hex workshop and all have the same values.

I then proceded to flash the drive....I tested the xbox and is able to play my original, still need to try backups....

but I think it actually flashed my HD in my computer. WHen I boot up it just hands...

without the xbox drive hooked up, I ran the reflash process with the orig.bin (original file)...it when through the process updating...and now my pc boots up.

How do I make sure is the xbox drive that i'm targeting?:

thanks

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: sunrise586 on June 24, 2006, 08:26:00 AM

Hi ok, ive flashed my hitachi drive 360 no problems at all, but cant flash my toshiba one, ive a a8n-sli mobo ive read through all tutorial twice!

, used the nf4 version of mtkflash made sure that the hex numbers are correct , ive also tried powering on the the drive once dos is up and running etc etc and all i get is mtkflash hanging.... to which i press the "escape" key and the error 9e0 master/slave a0 status = 00 should be 70 ....any help anyone? ...or is it a case of get hold of a via 6431 sata card!?

cheers

a.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Makhno on June 24, 2006, 01:09:00 PM

My I/O Ports are

I/O Port   0x0000DFA0-0x0000DFAF
I/O Port   0x0000DF90-0x0000DF9F
I/O Port   0x0000DF80-0x0000DF8F
I/O Port   0x0000DF60-0x0000DF6F
I/O Port   0x0000DF40-0x0000DF5F
I/O Port   0x0000D800-0x0000D8FF

which has the 7 point difference?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 24, 2006, 03:52:00 PM

QUOTE(Hire @ Jun 24 2006, 06:39 AM)

Here

QUOTE(garifo @ Jun 24 2006, 06:45 AM)

the only thing currently conect to my PCI SATA card the xbox360 drive
when retrieving the firmware and selecting master, is it possible that it will retrieve the firmware from my computer hd instead.

I redump and compaire 3-5 different dumps with each other, and all of them 512kb and compared it in hex workshop and all have the same values.

I then proceded to flash the drive....I tested the xbox and is able to play my original, still need to try backups....
but I think it actually flashed my HD in my computer. WHen I boot up it just hands...

without the xbox drive hooked up, I ran the reflash process with the orig.bin (original file)...it when through the process updating...and now my pc boots up.

How do I make sure is the xbox drive that i'm targeting?:

thanks

disconnect all other drives, only select the name of your chipset(or the name of the one you edited), do you have another sata line that you have your hdd hooked up to?

QUOTE(sunrise586 @ Jun 24 2006, 07:33 AM)

Hi ok, ive flashed my hitachi drive 360 no problems at all, but cant flash my toshiba one, ive a a8n-sli mobo ive read through all tutorial twice!

your editing mtkflash wroung, try using f001 7001 for the last 4 digits of the value, if you are still haveing problems post your sata info from MSinfo32

QUOTE(Makhno @ Jun 24 2006, 12:16 PM)

there isent one, use f001 7001

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: moebeman on June 24, 2006, 07:23:00 PM

Hello, i'm sorry if its a stupid question but i would liek to know with these info am i set, will it work?

Name   VAXSCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&6130FECA&0
I/O Port   0x0000FFA0-0x0000FFAF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\vaxscsi.sys (, 217.90 KB (223,128 bytes), 3/11/2006 1:30 PM)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&6130FECA&1
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 3/20/2006 6:56 PM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 25, 2006, 01:43:00 AM

QUOTE(moebeman @ Jun 24 2006, 06:30 PM)

Hello, i'm sorry if its a stupid question but i would liek to know with these info am i set, will it work?
Name   VAXSCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&6130FECA&0
I/O Port   0x0000FFA0-0x0000FFAF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\vaxscsi.sys (, 217.90 KB (223,128 bytes), 3/11/2006 1:30 PM)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&6130FECA&1
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 3/20/2006 6:56 PM)

Install your Sata Controller's driver, if it dosent appear then check in IDE

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: sunrise586 on June 25, 2006, 01:55:00 AM

QUOTE(Grim187 @ Jun 24 2006, 10:59 PM)

Here
your editing mtkflash wroung, try using f001 7001 for the last 4 digits of the value, if you are still haveing problems post your sata info from MSinfo32

Hi grim thanks for the help, tried changing it to f001 7001 but still no joy

heres my msinfo:

Name   NVIDIA nForce4 Parallel ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0053&SUBSYS_815A1043&REV_F2\3&2411E6FE&0&30
I/O Port   0x0000F000-0x0000F00F
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
IRQ Channel   IRQ 14
I/O Port   0x00000170-0x00000177
I/O Port   0x00000376-0x00000376
IRQ Channel   IRQ 15
Driver   d:\windows\system32\drivers\nvatabus.sys (5.10.2600.0518 built by: WinDDK, 87.75 KB (89,856 bytes), 12/06/2005 17:47)

Name   NVIDIA nForce4 ADMA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0054&SUBSYS_815A1043&REV_F3\3&2411E6FE&0&38
I/O Port   0x000009F0-0x000009F7
I/O Port   0x00000BF0-0x00000BF3
I/O Port   0x00000970-0x00000977
I/O Port   0x00000B70-0x00000B73
I/O Port   0x0000D800-0x0000D80F
Memory Address   0xD5002000-0xD5002FFF
IRQ Channel   IRQ 20
Driver   d:\windows\system32\drivers\nvatabus.sys (5.10.2600.0518 built by: WinDDK, 87.75 KB (89,856 bytes), 12/06/2005 17:47)

Name   NVIDIA nForce4 ADMA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0055&SUBSYS_815A1043&REV_F3\3&2411E6FE&0&40
I/O Port   0x000009E0-0x000009E7
I/O Port   0x00000BE0-0x00000BE3
I/O Port   0x00000960-0x00000967
I/O Port   0x00000B60-0x00000B63
I/O Port   0x0000C400-0x0000C40F
Memory Address   0xD5001000-0xD5001FFF
IRQ Channel   IRQ 21
Driver   d:\windows\system32\drivers\nvatabus.sys (5.10.2600.0518 built by: WinDDK, 87.75 KB (89,856 bytes), 12/06/2005 17:47)

so i took the values from the first of the "NVIDIA nForce4 ADMA Controllers" the top one being a parallel not serial port?

was using ... 0x000009F0-0x000009F7 and 0x00000970-0x00000977 which i entered as f009 7009 ?

thanks again

a.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Hire on June 25, 2006, 05:09:00 AM

QUOTE(Grim187 @ Jun 24 2006, 11:59 PM)

Here

Thx but didnt work... First that said "VIA8xxx" when I have a Nvidia controller next when I disconnected all the IDE ( only the Xbox dvd rom is connected ) that said to me "no drive detected"

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Anusko on June 25, 2006, 11:20:00 AM

I've tried everything!
I've an Asus A8N32-SLI mobo (nForce4) and i just can't flash my samsung drive! booting from an usb pen drive or from a floopy disk, connecting the samsung sata before or after getting the dos prompt, with ide drives connected or without them... i done everything and mtkflash just keeps showing a blinking cursor... i really need help, i'm trying to flash the drive since friday without sucess!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: garifo on June 25, 2006, 12:15:00 PM

HI grim...
I got my pc to recognize the drive and I was able to backup the firmware.
I retrieved the from orig.bin and key and applied it to the extreme file using KDX1.5 and save it as modified.bin

I flashed the new firmware.
Now when I try to play an original game I get the following message in the xbox360

"TO play this disck, put it in an xbox 360 console"

how to fix this issue?
Thanks..

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: sunrise586 on June 25, 2006, 01:06:00 PM

QUOTE(Anusko @ Jun 25 2006, 06:27 PM)

yeah same problem! (same mobo) can see the drive in the bios but what ever you do, you just get the blinking cursor ........ i think the only solution is to get hold of a via sata card?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: garifo on June 25, 2006, 02:53:00 PM

QUOTE(garifo @ Jun 25 2006, 07:22 PM)

HI grim...
I got my pc to recognize the drive and I was able to backup the firmware.
I retrieved the from orig.bin and key and applied it to the extreme file using KDX1.5 and save it as modified.bin

I flashed the new firmware.
Now when I try to play an original game I get the following message in the xbox360

"TO play this disc, put it in an xbox 360 console"

how to fix this issue?
Thanks..

I reflashed it back to the original and I was able to play the original game.

I then modified the xtreme.bin with my key and flashed the drive but same results
"To play this disc, put it in an xbox 360 console" when attempting to play call of duty2 - original game

steps taken:
1. open orig.bin with KDX1.5 and copy they key
2. open xtreme.bin with KDX1.5 and select the values and paste the key
3. Save to modified.bin

now to flash my drive

type mtkflash w /m modified.bin
the process displays
bank0 ok
bank1 ok
bank2 ok
bank3 ok

reboot my machine.

turn off xbox
plug back the xbox SATA cable to the drive and turn on.
I insert the original call of duty but I get the message "To play this disc, put it in an xbox 360 console"

I also tried the same process by using a hex editor as well and I get the same results.

FOr now I reflashed my drive to the orig.bin and i'm able to play the original games.

Any help will be greatly appriciated.

the info on the back of my TS is:
TS-HP43A f/w=ms25
ver A February 2006

I have look trough the forum but have not found anyone reporting this issue.

thanks...

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: djohng on June 25, 2006, 03:36:00 PM

QUOTE(djohng @ Jun 24 2006, 02:00 AM)

I finally found a great explaination for FW=ms19 & HW03, which are some of the drives purchased online at etech4sale. The drive is actually beta firmware, and acts like a bad flash to the SATA controller, so you have to complete a bad flash recovery...see the rather lengthy forum item below...might be something to note in the flashing tutorial.

http://www.xboxhacke...=33&topic=935.0

I tried this flash recovery a number of times with the PCI SATA 6421 Creative Card (no Raid), and could not get the code 70 to produce...tried it 100 times...so I'm RMA back to them and requesting a FW=ms25 from a retail 360, not beta.

Maybe this will help others with this drive...supposedly it has worked for some.

-djohng

Anyone with the FW=ms19, etech4sale.com Samsung drives can get the firmware written by following the firmware recovery explaination...but it not clear enough.

Today, I tried one last time, since the tutorial mentioned something about the Samsung drive waiting for a Code 70...it actually occurs right at the drive being powered up.

The tutorial needs to be re-worded:

1. Plug your Samsung drive into SATA1, and boot your PC with the DOS floppy.
2. Get your PC to recognize that SATA1 has a Samsung drive on it (for me it was actually item #3, since my DVD and CD are identified as Master/Slave secondary IDE port)
3. Turn off your Samsung drive.
4 Then, press #3 VIA6421 (SATA1 Master). Get the "Port df00, Master/Slave: a0"....at this point SATA1 is listening for code "70"
5. Then, turn the Samsung drive back on...it should start flashing immediately, as the code 70 is produced as soon as the Samsung drive is energized.

The directions in the tutorial are actually reversed...it says to turn the drive on and then press 1...by the time you press #1 it's too late, the drive has already produced code 70...

You should actually press #1 first, see "Port df00, Slave/Master a0" and then turn the Samsung drive back on...worked everytime...doing it this way.

FINALLY!

-djohng

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 26, 2006, 03:12:00 AM

QUOTE(bar-code @ Jun 25 2006, 12:53 AM)

If this is no trouble i would surely love you to make me a mtkflash

I have this same board ASUS A8N32SLI
Name   Silicon Image SiI 3132 SoftRaid 5 Controller
Manufacturer   Silicon Image
Status   OK
PNP Device ID   PCI\VEN_1095&DEV_3132&SUBSYS_81771043&REV_01\4&E2974D5&0&0010
Memory Address   0xD8EFFC00-0xD8EFFC7F
Memory Address   0xD8EF8000-0xD8EFBFFF
I/O Port   0x0000BC00-0x0000BC7F
IRQ Channel   IRQ 17
Driver   c:\windows\system32\drivers\si3132r5.sys (1, 3, 0, 9, 188.00 KB (192,512 bytes), 18/10/2005 12:03 PM)

Now i can see it in the bios but can't get this mflash working.

This is my second xbox360 the first Hitachi died when trying to reflash the original bios. Now after going shopping today picked up one with the sammy in it.

So any help here would be greatly appreciated
Thanks

my usual web hosting site is down so this is at yousendit
Here

QUOTE(sunrise586 @ Jun 25 2006, 01:02 AM)

Heres one with both
if that doesnt work your doing something wrong in dos, try reading the end of my tut

QUOTE(Hire @ Jun 25 2006, 04:16 AM)

Thx but didnt work... First that said "VIA8xxx" when I have a Nvidia controller next when I disconnected all the IDE ( only the Xbox dvd rom is connected ) that said to me "no drive detected"

if its a name of a chipset that is in mtkflash then thats the one you select, i think i did edit in your values in under via8237

QUOTE(Anusko @ Jun 25 2006, 10:27 AM)

cant help you if you don't give me sata info in msinfo, are you using the nf4 mtkflash?, have you read the steps at the bottom of my tut?

QUOTE(garifo @ Jun 25 2006, 11:22 AM)

KDX is a *ucked up prog (turn it around...retards), use hex editor (your getting that message because you either 1. have the 0800 on there or 2. kdx patched your key wrong, ima pick 2)

QUOTE(sunrise586 @ Jun 25 2006, 12:13 PM)

yeah same problem! (same mobo) can see the drive in the bios but what ever you do, you just get the blinking cursor ........ i think the only solution is to get hold of a via sata card?

ya well then i say the same thing^^^^

QUOTE(garifo @ Jun 25 2006, 02:00 PM)

bank3 ok

I also tried the same process by using a hex editor as well and I get the same results.

bank3 says finished

your probably messing it up with hex or its in a different spot e-mail me the orig.bin and i will take a look at it (my e-mail found at the bottom of my tut)

QUOTE(djohng @ Jun 25 2006, 02:43 PM)

are you sure your replying to the right thread, my tut says nothing about code 70 and is not even a tut on how to get your drive recognized, get your *hit straight before posting...please
ferther more, for most chipsets/mobos you cannot disable boot rom so if you boot up with your drive connected and on you will never get it detected.

Edit:
sorry for the lateness guys i have been working on my wip (check it out) and managed to crap up this chip that i have in a 1.6 today that i need to get back to my friend asap, so I'm a little tired, a little crabby and i got a head ake, so if i offended anyone...Kiss my (|)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: sunrise586 on June 26, 2006, 06:59:00 AM

wow Grim! ... didnt expect you to edit mtkflash for me but again thankyou! there is some progress after following the boot order at the begining of the tut' my system now shows
1: NV nforce4 Pri Master
2: NV nforce4 Pri Slave

....but still even after follow the instructions to the letter, i get

port 9e0 master/slave: a0
status = 00 should be 70

...bugger!! :-( ah well looks like a via card it is then Doh!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: sunrise586 on June 26, 2006, 08:25:00 AM

ps ...forgot to mention that the centre green light on the console flashes while trying to read the ports ??...if that means anything????

a.

ps ...forgot to mention that the centre green light on the console flashes while trying to read the ports ??...if that means anything????

a.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 26, 2006, 08:32:00 AM

QUOTE(sunrise586 @ Jun 26 2006, 06:06 AM)

wow Grim! ... didnt expect you to edit mtkflash for me but again thankyou! there is some progress after following the boot order at the begining of the tut' my system now shows
1: NV nforce4 Pri Master
2: NV nforce4 Pri Slave

....but still even after follow the instructions to the letter, i get

port 9e0 master/slave: a0
status = 00 should be 70
...bugger!! :-( ah well looks like a via card it is then Doh!

go in and reedit it change the f009 7009 to f001 7001 (you see the pattern?), its telling you that your port address is wroung f001 7001 should look on all posable (sometimes it will miss your port and some times you can hand it your port and it wont take it)

QUOTE(sunrise586 @ Jun 26 2006, 07:32 AM)

ps ...forgot to mention that the centre green light on the console flashes while trying to read the ports ??...if that means anything????

a.
ps ...forgot to mention that the centre green light on the console flashes while trying to read the ports ??...if that means anything????

a.

that means that its reconized and trying to read

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: SD5150 on June 26, 2006, 01:45:00 PM

I have not found a version that works for me yet. I have the PPA Intl. PCI SATA card with the VIA VT6421L chipset. But, when I boot it only sees my IDE drives, and when I unpug those, it wont find any drive. I tried the version edited for VIA, but it still didnt seem to work. I treid to edit it myself, but with no luck. Any help is appreciated, here is my driver info:

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&50
I/O Port   0x0000D800-0x0000D80F
I/O Port   0x0000D400-0x0000D40F
I/O Port   0x0000D000-0x0000D00F
I/O Port   0x0000B800-0x0000B80F
I/O Port   0x0000B400-0x0000B41F
I/O Port   0x0000B000-0x0000B0FF
IRQ Channel   IRQ 16
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.520, 90.50 KB (92,672 bytes), 6/26/2006 1:24 PM)

Name   VAXSCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&470B0B08&0
I/O Port   0x0000FFA0-0x0000FFAF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\vaxscsi.sys (, 217.90 KB (223,128 bytes), 5/31/2006 12:13 AM)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&470B0B08&1
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 6/9/2006 7:20 PM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 26, 2006, 05:09:00 PM

QUOTE(SD5150 @ Jun 26 2006, 12:52 PM)

are you using the steps at the bottom of my tut?, what is your ts drives fw?, #2 is your mtkflash

QUOTE(sunrise586 @ Jun 26 2006, 09:36 AM)

Hi grim, altered mtkflash to f001 7001 on the nforce4 entry , but still no go, sits there at port 9e0 master/slave : a0 and when u press escape the same error message status = 0 should be 70 ........ console light starts flashing also ..... shame cant get it to read, but again a big thankyou for your help!!

cheers

a.

ya i think you need a via card, but first did you try the other slots?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 27, 2006, 09:52:00 AM

QUOTE(garifo @ Jun 27 2006, 08:15 AM)

I just followed the same steps as someone posted here

actualy i was the first to mention that method in this thread, its what worked for (Gerimia or) someone over at HBX (cant rember exactly who) and it worked great for me also

QUOTE

BIG THANKS TO GRIM...really appreciate all the help you have provided us and for taking the time to edit some of our files...

THANKS

no problem

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 28, 2006, 05:44:00 AM

QUOTE(llollo123 @ Jun 28 2006, 02:13 AM)

Hello!

I cant figure how to get my TS drive detected by mtkflash.

my mobo is Intel i865PE and the sata is ICH5 i think.

this is the only thing i can find i msinfo32 except the ide controllers:

Intel® 82801EB Ultra ATA Storage Controllers
Intel
OK
PCI\VEN_8086&DEV_24DB&SUBSYS_101C1734&REV_02\3&61AAA01&0&F9
0x00002400-0x0000240F
0xFFEFFC00-0xFFEFFFFF
d:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3,25 kB (3 328 byte), 2006-03-08 15:12)
mtkfalsh says "No device found"

please help me!

install your sata controllers driver then ss scsi and ide to my e-mail

Edit: Placed a R_____________^ there

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: deedie on June 29, 2006, 02:16:00 PM

i have been reading and reading this thread for ages
but i just cant figure out what the problem is. im getting the same problem as everybody else. so im going to try editing mtkflash to see if that helps. but im not sure what i should be changing

here is a print out of msinfo.exe, this is what i get under ide. i only get scsi/raid controller under scis heading

here it is

Name   NVIDIA nForce4 Parallel ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0053&SUBSYS_0CA5105B&REV_A2\3&2411E6FE&0&30
I/O Port   0x0000E000-0x0000E00F
Driver   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0507 built by: WinDDK, 86.88 KB (88,960 bytes), 29/06/2006 12:22)

Name   NVIDIA nForce4 ADMA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0054&SUBSYS_0CA5105B&REV_A3\3&2411E6FE&0&38
I/O Port   0x000009F0-0x000009F7
I/O Port   0x00000BF0-0x00000BF3
I/O Port   0x00000970-0x00000977
I/O Port   0x00000B70-0x00000B73
I/O Port   0x0000CC00-0x0000CC0F
Memory Address   0xFEBFB000-0xFEBFBFFF
IRQ Channel   IRQ 21
Driver   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0507 built by: WinDDK, 86.88 KB (88,960 bytes), 29/06/2006 12:22)

Name   NVIDIA nForce4 ADMA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0055&SUBSYS_0CA5105B&REV_A3\3&2411E6FE&0&40
I/O Port   0x000009E0-0x000009E7
I/O Port   0x00000BE0-0x00000BE3
I/O Port   0x00000960-0x00000967
I/O Port   0x00000B60-0x00000B63
I/O Port   0x0000B800-0x0000B80F
Memory Address   0xFEBFA000-0xFEBFAFFF
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0507 built by: WinDDK, 86.88 KB (88,960 bytes), 29/06/2006 12:22)

anybody able to figure this out for me???

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 29, 2006, 09:12:00 PM

QUOTE(XmdawgX @ Jun 29 2006, 12:20 PM)

Ive tried everything... and i still dont 100% understand this.
Im sorry that im a n00b, but when i go to type MTKFlash r /sata orig.bin , it tells me No Drive Detected.

Ive tried almost everything, i was going to try hex editing this, but i have no idea what to do.

Under system information this is what i see under SCSI

Name    SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status    OK
PNP Device ID   ACPI\PNPA000\4&71FCDECA&0
I/O Port    0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver    c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 6/26/2006 6:37 PM)
the machine is a HP a1210n. i dont know much else about the machine because its not mine, im just borrowing it to hack my 360.

install driver, IDE?

QUOTE(deedie @ Jun 29 2006, 01:23 PM)

just edit bolth of them in...lol
de105400f0097009
de105500e0096009

"I HATE HITACHI"
as some of you may know it took me 5 months and 10 360's to get a working one (mostly because of Hitachi's), well today i was using my computer as normal all the sudden it froze (from screen saver to sign on screen) so i was like OK (its done this before, i just figured it was windows, o also "i hate Windows"), turned off my computer, turned it back on, dos says Read error, i'm like shit WTF, tried restarting a couple more times, same thing, finally opened up the case and listened to the hdd while it was trying to read and heard the most revolting sound ever, so its fried and i have to wait about 25 days for a new one, i don't have another hdd bigger then stock box wd at my disposal right now so i wont be doing any editing of mtkflash (because I'm afraid to install progs) for quite some time, sorry guys

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 29, 2006, 09:24:00 PM

QUOTE(XmdawgX @ Jun 29 2006, 08:26 PM)

Its not IDE if thats what you mean. and i didnt mess around with any drivers. its onboard.

Its not my machine, but i can install or get any drivers i need to if im missing them or something? but the master HD runs through what im pluggin the xbox 360 DVD Drive into.

you cant run the dvd rom drive on ide so i dont know what you think im talking about, some times windows catalogs sata controllers with ide ones and if you dont have the driver for it installed it wont show up in eather

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 30, 2006, 11:59:00 AM

QUOTE(XmdawgX @ Jun 29 2006, 08:38 PM)

Ok, i understand what you mean now.
Here is everything under IDE:

Name   Standard Dual Channel PCI IDE Controller
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCI\VEN_1002&DEV_4379&SUBSYS_2A26103C&REV_00\3&61AAA01&0&90
I/O Port   0x0000FF00-0x0000FF07
I/O Port   0x0000FE00-0x0000FE03
I/O Port   0x0000FD00-0x0000FD07
I/O Port   0x0000FC00-0x0000FC03
I/O Port   0x0000FB00-0x0000FB0F
Memory Address   0xFE02F000-0xFE02F1FF
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 6/18/2006 2:34 AM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&1EC030E9&0&0
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 6/18/2006 2:30 AM)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&1EC030E9&0&1
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 6/18/2006 2:30 AM)

Name   Standard Dual Channel PCI IDE Controller
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCI\VEN_1002&DEV_4376&SUBSYS_2A26103C&REV_00\3&61AAA01&0&A1
I/O Port   0x0000F900-0x0000F90F
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 6/18/2006 2:34 AM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&831EF21&0&0
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 6/18/2006 2:30 AM)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&831EF21&0&1
I/O Port   0x00000170-0x00000177
I/O Port   0x00000376-0x00000376
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 6/18/2006 2:30 AM)
And this is what is under SCSI:

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&71FCDECA&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 6/26/2006 6:37 PM)

are you sure that you have a sata controller and that you have the driver installed?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 30, 2006, 06:13:00 PM

QUOTE(XmdawgX @ Jun 30 2006, 02:04 PM)

im 500% sure i have an SATA. i know what SATA looks like and my xbox 360 DVD rom drive DOES connect to it, and IS recognized by the motherboard. mtkflash just tells me no drive found.

well windows is telling you that you dont, once you get that problem fixed come talk to me

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on July 01, 2006, 03:10:00 AM

QUOTE(Dejashaftinati @ Jun 30 2006, 11:36 PM)

Need some help trying to get drive recognized by pc......I have a dell 4700 and everytime I try to detect I get the error no drive detected....internal sata w/ ts-h943 drive
Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&46C3C6AC&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 6/15/2006 12:58 AM)

scsi isent sata, look in your ide section and/or install your driver

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: jastdienow on July 01, 2006, 02:58:00 PM

yah well i dont understand hex and how to do this but i need to figure it out but can someone help out here. I dont understand wat exactly to change and i cant change the port number i dont kno hoiw when ur in msinfo32 either. HELP???

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: antz1970 on July 01, 2006, 05:16:00 PM

ok grim m8 , believe me when i say that posting in this thread was a last resort

, i prefer to read and try sort out my own problems, but i have been reading here and on xbh nearly all day now and i am no further forward. but this one has me stumped(im assuming my onboard sata is no good for samsung read/write , but i would like it confirmed) ok here we go , i have a gigabyte 7n400 pro2 rev2 with sil3512 chipset ,i have updated bios and also satalink bios, i have tried all ways of getting the drive seen by mtkflash(apart from hotswap as i dont have another sata drive)i have tried ide channels on + off(no go) various commands with / without the sata command.(no go).i have tried to get the msinfo required to edit mtkflash but the scsi info box is blank , and theres nothing in any of the other sections that could possibly be my sata controller.

i know(think) the sata is working fine as i done 2 hitachis for m8s yesterday(didnt have a prob once drives were in mode b using cross wires method.there is also no windows warning signs @ any devices.anyone have any ideas , or am i just better looking for a compatible pci sata card(altho they are like rocking horse shit here in the u.k at the moment)

once again grim i apologise for posting in your thread m8

**edit** just noticed in control panel that i have a silicon image sata controller icon when i open it tho all info is blank? no device info whatsover ?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: blade111 on July 01, 2006, 06:36:00 PM

Grim, I was told to ask you if my chip set works for my PCI SATA Card. Havok said it doesnt work for the samsungs but might work for the Hitachi?

Here is my info on my card:

Name Adaptec Serial ATA 1205SA Host Controller
Manufacturer Silicon Image
Status OK
PNP Device ID PCI\VEN_1095&DEV_3112&SUBSYS_02509005&REV_02\4&11CD5334&0&68F0
I/O Port 0x0000D000-0x0000D007
I/O Port 0x0000B800-0x0000B803
I/O Port 0x0000B400-0x0000B407
I/O Port 0x0000B000-0x0000B003
I/O Port 0x0000A800-0x0000A80F
Memory Address 0xC3800000-0xC38001FF
IRQ Channel IRQ 18
Driver c:\windows\system32\drivers\si3112.sys (1, 0, 0, 41, 46.21 KB (47,320 bytes), 3/13/2003 6:59 AM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on July 02, 2006, 12:11:00 AM

QUOTE(Dejashaftinati @ Jul 1 2006, 09:40 AM)

Here is the info that I pulled from IDE.......Now, how do i edit mdkflash with this info...
Name   Intel® 82801FB/FBM Ultra ATA Storage Controllers - 266F
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_266F&SUBSYS_01811028&REV_03\3&172E68DD&0&F9
I/O Port   0x0000FFA0-0x0000FFAF
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/12/2004 7:03 AM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&1CBA92F1&0&0
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
IRQ Channel   IRQ 14
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/12/2004 6:55 AM)

Name   Intel® 82801FB Ultra ATA Storage Controllers - 2651
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_2651&SUBSYS_01811028&REV_03\3&172E68DD&0&FA
I/O Port   0x0000FE00-0x0000FE07
I/O Port   0x0000FE10-0x0000FE13
I/O Port   0x0000FE20-0x0000FE27
I/O Port   0x0000FE30-0x0000FE33
I/O Port   0x0000FEA0-0x0000FEAF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/12/2004 7:03 AM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&136D273D&0&0
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/12/2004 6:55 AM)

if you cant find anything about sata in scsi or ide you need to install your driver (or get windows to show), i dont know where elese you could look for the info, sorry

QUOTE(antz1970 @ Jul 1 2006, 04:23 PM)

ok grim m8 , believe me when i say that posting in this thread was a last resort

**edit** just noticed in control panel that i have a silicon image sata controller icon when i open it tho all info is blank? no device info whatsover ?

dose windows pick up the controller in device manager?, if so what is it under?, dose it have any values?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: sunrise586 on July 02, 2006, 04:28:00 AM

hi grim, ok this new sata card has arrived but its not the one that was pictured in the ad ...thanks "ebuyer.com" ...doh! ....anyway looking at the msinfo does it look ok?? and is there any pointers to an mtkflash that compatable ???

Name   ALi SATA/RAID Controller
Manufacturer   ALi Corporation
Status   OK
PNP Device ID   PCI\VEN_10B9&DEV_5281&SUBSYS_528110B9&REV_A1\4&13699180&0&4048
I/O Port   0x00006000-0x00006007
I/O Port   0x00006400-0x00006403
I/O Port   0x00006800-0x00006807
I/O Port   0x00006C00-0x00006C03
I/O Port   0x00007000-0x0000700F
IRQ Channel   IRQ 18
Driver   d:\windows\system32\drivers\m5281.sys (5.026, 48.20 KB (49,357 bytes), 02/07/2006 11:52)

Name   ALi ATA/RAID Controller
Manufacturer   ALi Corporation
Status   OK
PNP Device ID   PCI\VEN_10B9&DEV_5228&SUBSYS_528110B9&REV_C6\4&13699180&0&4148
I/O Port   0x00007400-0x00007407
I/O Port   0x00007800-0x00007803
I/O Port   0x00007C00-0x00007C07
I/O Port   0x00008000-0x00008003
I/O Port   0x00008400-0x0000840F
IRQ Channel   IRQ 18
Driver   d:\windows\system32\drivers\m5228.sys (5.026, 43.87 KB (44,925 bytes), 02/07/2006 11:50)

any advice would greatly appreciated

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: shootomanUK on July 02, 2006, 04:35:00 AM

Hi everyone,

im having a bit of trouble reading from the samsung drive, the bios see's the drive but when i use NF4_MTK FLASH it just hangs !

my motherboard is a ABIT AN8-32X NFORCE4

i am going to try and hex edit the NF4_MTKFLASH but i dont really understand what to do.

Please could someone help me..?

Here's my info:

Name   NVIDIA nForce4 Serial ATA RAID Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0054&SUBSYS_1C1E147B&REV_F3\3&2411E6FE&0&80
I/O Port   0x000009F0-0x000009F7
I/O Port   0x00000BF0-0x00000BF3
I/O Port   0x00000970-0x00000977
I/O Port   0x00000B70-0x00000B73
I/O Port   0x0000D400-0x0000D40F
Memory Address   0xFE02C000-0xFE02CFFF
IRQ Channel   IRQ 21
Driver   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 26/12/2005 13:34)

Also here's a link to a screenshot of NF4_MTKFLASH using HEX WORKSHOP:

http://img224.images...mtkflash8mr.jpg

Any help would be really aprecieated !

Thanks shootomanUK.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: PROXCIDON on July 02, 2006, 05:13:00 AM

Hello Guys need some help pls. Sorry 4 my english

I have buy a VIA SATA RAID Controller VT6421L EBAY LINK FOR THIS CONTROLLER

I put this controller card in my PC and install the Driver for it. After i start my xbox360 and i saw my (samsung TS-H943) drive with RAID Tool . Ok i make a boot disk reboot my PC and boot in to dos then i start my xbox360 connect sata cable from the pc to my xbox360. A:/mtkflash r /m /sata mybios and i get this message..(( No Drive detected )) very time :/ I test some other mtkflash for Via but i have the same Problem No Drive detected. I have remove all ide cable and other pci hardware every time the same

Can some help me pls ??

Name   VIA VT6421 RAID Controller
Hersteller   VIA Technologies, Inc.
Status   OK
PNP-Gerätekennung   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&50
E/A-Port   0x0000EC00-0x0000EC0F
E/A-Port   0x0000E800-0x0000E80F
E/A-Port   0x0000E400-0x0000E40F
E/A-Port   0x0000E000-0x0000E00F
E/A-Port   0x0000DC00-0x0000DC1F
E/A-Port   0x0000D800-0x0000D8FF
IRQ-Kanal   IRQ 18
Treiber   c:\windows\system32\drivers\viamraid.sys (5.1.2600.520, 90,50 KB (92.672 Bytes), 30.06.2006 15:34)

Name   SCSI/RAID-Hostcontroller
Hersteller   (Standard mass storage controllers)
Status   OK
PNP-Gerätekennung   ACPI\PNPA000\4&57505EB6&0
E/A-Port   0x0000FFE0-0x0000FFEF
IRQ-Kanal   IRQ 9
Treiber   c:\windows\system32\drivers\dtscsi.sys (, 217,90 KB (223.128 Bytes), 26.02.2006 12:52)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: antz1970 on July 02, 2006, 07:29:00 AM

QUOTE(Grim187 @ Jul 2 2006, 07:18 AM)

dose windows pick up the controller in device manager?, if so what is it under?, dose it have any values?

thanx for the quick reply m8 , in windows device manager under scsi , i have the following entries :-

a347scsi scsi controller
ite it8212 ata raid controller
silicon image sil3512 satalink controller
st320hg scsi controller

i have tried switching raid and ide off @ various tries and still no go

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: antz1970 on July 02, 2006, 09:57:00 AM

grim many thanx for trying to help me with this matter however i have just bitten the bullet and bought a pci sata card with the via 6421 chipset on it , in the hope that it will sort my problem

.

if any u.k guys are after a card , the guy had one left(they aint cheap tho) , heres the link

http://cgi.ebay.co.u...e...N:IT&ih=012

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Bazz007 on July 21, 2006, 09:06:00 AM

Could someone please spoon feed this poor fool

Nvidia Nforce4 crushk8-04 (CK8-04)

Name    SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status    OK
PNP Device ID ACPI\PNPA000\4&57EC2ADC&0
I/O Port    0x0000FFE0-0x0000FFEF
IRQ Channel IRQ 9
Driver    c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 28/06/2006 15:05)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on July 21, 2006, 02:51:00 PM

QUOTE(Bazz007 @ Jul 21 2006, 08:13 AM)

Could someone please spoon feed this poor fool

im pretty sure all nf4 chipsets are in ide if its not install your driver

QUOTE(Albator254 @ Jul 21 2006, 08:36 AM)

I used aida32 to get some information on my pc's chipset :

B00 D1F F02: Intel® 82801GR/GH SATA AHCI Controller [NoDB]

Offset 00: 86 80 C1 27 07 00 B0 02 01 01 06 01 00 00 00 00
Offset 10: 01 FE 00 00 11 FE 00 00 21 FE 00 00 31 FE 00 00
Offset 20: A1 FE 00 00 00 FC BF FE 00 00 00 00 28 10 D1 01
Offset 30: 00 00 00 00 80 00 00 00 00 00 00 00 14 03 00 00
Offset 40: 07 E3 00 80 00 00 00 00 01 00 01 00 00 00 00 00
Offset 50: 00 00 00 00 11 10 00 00 00 00 00 00 00 00 00 00
Offset 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 70: 01 00 02 40 00 00 00 00 00 00 00 00 00 00 00 00
Offset 80: 05 70 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset 90: 40 00 11 10 80 01 80 40 00 00 00 00 00 00 00 00
Offset A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset C0: 00 00 00 00 05 00 00 00 00 00 00 00 00 00 00 00
Offset D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Offset F0: 00 00 00 00 00 00 00 00 86 0F 01 00 00 00 00 00

Could you please take a look at that ?

i dont even know where to start with that, you dont see anyinfo with that title in msinfo anywhere?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Bazz007 on July 21, 2006, 04:49:00 PM

thanks for the reply, sorry for the mix up....

but can somebody still please spoon feed me

Name   NVIDIA nForce4 Parallel ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0053&SUBSYS_1B511019&REV_A2\3&2411E6FE&0&30
I/O Port   0x0000E000-0x0000E00F
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
IRQ Channel   IRQ 14
I/O Port   0x00000170-0x00000177
I/O Port   0x00000376-0x00000376
IRQ Channel   IRQ 15
Driver   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 18/08/2005 17:52)

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0054&SUBSYS_1B511019&REV_A3\3&2411E6FE&0&38
I/O Port   0x000009F0-0x000009F7
I/O Port   0x00000BF0-0x00000BF3
I/O Port   0x00000970-0x00000977
I/O Port   0x00000B70-0x00000B73
I/O Port   0x0000CC00-0x0000CC0F
Memory Address   0xFE02B000-0xFE02BFFF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 18/08/2005 17:52)

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0055&SUBSYS_1B511019&REV_A3\3&2411E6FE&0&40
I/O Port   0x000009E0-0x000009E7
I/O Port   0x00000BE0-0x00000BE3
I/O Port   0x00000960-0x00000967
I/O Port   0x00000B60-0x00000B63
I/O Port   0x0000B800-0x0000B80F
Memory Address   0xFE02A000-0xFE02AFFF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 18/08/2005 17:52)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: detector on July 22, 2006, 04:24:00 AM

Hi Grim, just thought id let you know i had sorted the problem out. i was doing everything right but one of my sata connections on my mobo is fooked. tried the other and it picked it up fine.

i managed to get it sorted just in time for my sons birthday today, he is now playing dead or alive 4

many thanks.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Ellex80 on July 22, 2006, 07:22:00 AM

Hi @ll ,

can someone help me please .
i often tried to read my orig.bin , but it always false:(
my bios detects my samsung .
i use the nforce4 mtkflash ( http://rapidshare.de...FLASH.EXE.html) edidited for nforce430 and i get the choice 1 for master and 2 for slave , but after i tipping 1
it gives me a error
port: 9f0 , Master/slave : a0

i have this system information :

Name   Standard-Zweikanal-PCI-IDE-Controller
Hersteller   (Standard-IDE-ATA/ATAPI-Controller)
Status   OK
PNP-Gerätekennung   PCI\VEN_10DE&DEV_0265&SUBSYS_81C01043&REV_A1\3&2411E6FE&0&68
E/A-Port   0x0000FD00-0x0000FD0F
Treiber   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3,25 KB (3.328 Bytes), 01.06.2006 21:06)

Name   Primärer IDE-Kanal
Hersteller   (Standard-IDE-ATA/ATAPI-Controller)
Status   OK
PNP-Gerätekennung   PCIIDE\IDECHANNEL\4&100D5F8F&0&0
E/A-Port   0x000001F0-0x000001F7
E/A-Port   0x000003F6-0x000003F6
Treiber   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93,13 KB (95.360 Bytes), 01.06.2006 21:06)

Name   Sekundärer IDE-Kanal
Hersteller   (Standard-IDE-ATA/ATAPI-Controller)
Status   OK
PNP-Gerätekennung   PCIIDE\IDECHANNEL\4&100D5F8F&0&1
E/A-Port   0x00000170-0x00000177
E/A-Port   0x00000376-0x00000376
Treiber   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93,13 KB (95.360 Bytes), 01.06.2006 21:06)

Name   NVIDIA nForce 430/410 Serial ATA Controller
Hersteller   NVIDIA Corporation
Status   OK
PNP-Gerätekennung   PCI\VEN_10DE&DEV_0266&SUBSYS_81C01043&REV_A1\3&2411E6FE&0&70
E/A-Port   0x000009F0-0x000009F7
E/A-Port   0x00000BF0-0x00000BF3
E/A-Port   0x00000970-0x00000977
E/A-Port   0x00000B70-0x00000B73
E/A-Port   0x0000F800-0x0000F80F
Speicheradresse   0xFE02D000-0xFE02DFFF
IRQ-Kanal   IRQ 21
Treiber   c:\windows\system32\drivers\nvata.sys (5.10.2600.0650 built by: WinDDK, 97,25 KB (99.584 Bytes), 20.07.2006 13:49)

Name   NVIDIA nForce 430/410 Serial ATA Controller
Hersteller   NVIDIA Corporation
Status   OK
PNP-Gerätekennung   PCI\VEN_10DE&DEV_0267&SUBSYS_81C01043&REV_A1\3&2411E6FE&0&78
E/A-Port   0x000009E0-0x000009E7
E/A-Port   0x00000BE0-0x00000BE3
E/A-Port   0x00000960-0x00000967
E/A-Port   0x00000B60-0x00000B63
E/A-Port   0x0000F300-0x0000F30F
Speicheradresse   0xFE02C000-0xFE02CFFF
IRQ-Kanal   IRQ 22
Treiber   c:\windows\system32\drivers\nvata.sys (5.10.2600.0650 built by: WinDDK, 97,25 KB (99.584 Bytes), 20.07.2006 13:49)

my mainboard is asus M2NPV-MX

i hope someone can edit the mtkflash to work with my chipset for me , please .
i don`t understand the tutorial because im not englisch man

sorry for my bad english .

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: kemestry on July 22, 2006, 09:33:00 AM

Grimm ... u are a saint .. lol

I read, and tried, and read and tried... but finally i got it to see the 360 on my via 8237 chipset.

Thank you for your time.

All the best

kemestry

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on July 22, 2006, 11:34:00 AM

QUOTE(Bazz007 @ Jul 21 2006, 03:56 PM)

thanks for the reply, sorry for the mix up....

but can somebody still please spoon feed me

http://editedmtkflas...MTKFLASHNF4.zip
Right Click > Open in New Window

QUOTE(nikon57 @ Jul 21 2006, 06:09 PM)

Hi there, I am trying to flash a Toshiba Samsung drive
Its the ms25 with Hardware: 0004

I have a MSI K8T-NEO which is (VT8237)

And the problem is I connect the drive to the pc (with the xbox 360 already on and the video cable plugged in)
and turn on the computer, and it doesnt detect the Drive,

It just sits there and hangs and eventually gives me a hardware error.

I cant get it to boot at all.

So i am confused no how I am supposed to get this baby working. (I wanted to use the Birdy Autoflahser, but I have a feeling thats not going to be a go seeing as I cant get into windows.

lmfao, NO FLASHING IN WINDOWS WITH THE TS DRIVE, you need to go read geebee's tut
http://forums.xbox-s...howtopic=514944

QUOTE(Ellex80 @ Jul 22 2006, 06:29 AM)

Hi @ll ,

can someone help me please .
i often tried to read my orig.bin , but it always false:(
my bios detects my samsung .
i use the nforce4 mtkflash ( http://rapidshare.de...FLASH.EXE.html) edidited for nforce430 and i get the choice 1 for master and 2 for slave , but after i tipping 1
it gives me a error
port: 9f0 , Master/slave : a0
i have this system information :

Name   Standard-Zweikanal-PCI-IDE-Controller
Hersteller   (Standard-IDE-ATA/ATAPI-Controller)
Status   OK
PNP-Gerätekennung   PCI\VEN_10DE&DEV_0265&SUBSYS_81C01043&REV_A1\3&2411E6FE&0&68
E/A-Port   0x0000FD00-0x0000FD0F
Treiber   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3,25 KB (3.328 Bytes), 01.06.2006 21:06)

Name   Primärer IDE-Kanal
Hersteller   (Standard-IDE-ATA/ATAPI-Controller)
Status   OK
PNP-Gerätekennung   PCIIDE\IDECHANNEL\4&100D5F8F&0&0
E/A-Port   0x000001F0-0x000001F7
E/A-Port   0x000003F6-0x000003F6
Treiber   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93,13 KB (95.360 Bytes), 01.06.2006 21:06)

Name   Sekundärer IDE-Kanal
Hersteller   (Standard-IDE-ATA/ATAPI-Controller)
Status   OK
PNP-Gerätekennung   PCIIDE\IDECHANNEL\4&100D5F8F&0&1
E/A-Port   0x00000170-0x00000177
E/A-Port   0x00000376-0x00000376
Treiber   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93,13 KB (95.360 Bytes), 01.06.2006 21:06)

Name   NVIDIA nForce 430/410 Serial ATA Controller
Hersteller   NVIDIA Corporation
Status   OK
PNP-Gerätekennung   PCI\VEN_10DE&DEV_0266&SUBSYS_81C01043&REV_A1\3&2411E6FE&0&70
E/A-Port   0x000009F0-0x000009F7
E/A-Port   0x00000BF0-0x00000BF3
E/A-Port   0x00000970-0x00000977
E/A-Port   0x00000B70-0x00000B73
E/A-Port   0x0000F800-0x0000F80F
Speicheradresse   0xFE02D000-0xFE02DFFF
IRQ-Kanal   IRQ 21
Treiber   c:\windows\system32\drivers\nvata.sys (5.10.2600.0650 built by: WinDDK, 97,25 KB (99.584 Bytes), 20.07.2006 13:49)

Name   NVIDIA nForce 430/410 Serial ATA Controller
Hersteller   NVIDIA Corporation
Status   OK
PNP-Gerätekennung   PCI\VEN_10DE&DEV_0267&SUBSYS_81C01043&REV_A1\3&2411E6FE&0&78
E/A-Port   0x000009E0-0x000009E7
E/A-Port   0x00000BE0-0x00000BE3
E/A-Port   0x00000960-0x00000967
E/A-Port   0x00000B60-0x00000B63
E/A-Port   0x0000F300-0x0000F30F
Speicheradresse   0xFE02C000-0xFE02CFFF
IRQ-Kanal   IRQ 22
Treiber   c:\windows\system32\drivers\nvata.sys (5.10.2600.0650 built by: WinDDK, 97,25 KB (99.584 Bytes), 20.07.2006 13:49)
my mainboard is asus M2NPV-MX
i hope someone can edit the mtkflash to work with my chipset for me , please .
i don`t understand the tutorial because im not englisch man

sorry for my bad english .

google has a translator (its crappy but it will translate), fisrt you have to awnser me,
are you booting the 360 in dos?
and
Are you seeing your chipset name, or just ide?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Bazz007 on July 23, 2006, 03:49:00 PM

QUOTE

http://editedmtkflas...MTKFLASHNF4.zip
Right Click > Open in New Window

thank you....very much Mr Grim

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on July 24, 2006, 02:09:00 PM

QUOTE(6esco9 @ Jul 22 2006, 05:32 PM)

can some one help?? i was reading all this stuff and now im just lost!!!!!!!!!
this is what i have

Name   WinXP Promise SATA150 TX Series IDE Controller
Manufacturer   Promise Technology
Status   OK
PNP Device ID   PCI\VEN_105A&DEV_3375&SUBSYS_3375105A&REV_02\3&61AAA01&0&40
I/O Port   0x0000A000-0x0000A03F
I/O Port   0x0000A400-0x0000A40F
I/O Port   0x0000A800-0x0000A87F
Memory Address   0xEF020000-0xEF020FFF
Memory Address   0xEF000000-0xEF01FFFF
IRQ Channel   IRQ 16
Driver   c:\windows\system32\drivers\ulsata.sys ( 1.00.0.27, 72.25 KB (73,984 bytes), 7/2/2006 5:07 PM)

im pretty sure that promise is on the non working list, but i havent delt with any personaly, use "5A10 7533 00A0 00A8" with Step 3

QUOTE(ganz38 @ Jul 24 2006, 12:17 PM)

Hello I am a new young, I n manage not to take(bring) out the good line... I am french and understand vaguely the walking(march) has to follow...

Nom   WinXP Promise SATA378 IDE Controller
Fabricant   Promise Technology
Statut   OK
ID du périphérique Plug-and-Play   PCI\VEN_105A&DEV_3373&SUBSYS_80F51043&REV_02\3&267A616A&0&40
Port E/S   0x0000A000-0x0000A03F
Port E/S   0x00009800-0x0000980F
Port E/S   0x00009400-0x0000947F
Adresse mémoire   0xF9800000-0xF9800FFF
Adresse mémoire   0xF9700000-0xF971FFFF
Canal IRQ   IRQ 18
Pilote   c:\windows\system32\drivers\ulsata.sys ( 1.00.0.28, 72,50 Ko (74 240 Octets), 28/01/2004 17:34)

Nom   VAX347S SCSI Controller
Fabricant   (Standard mass storage controllers)
Statut   OK
ID du périphérique Plug-and-Play   PCI\VAX347S\0000
Pilote   c:\windows\system32\drivers\vax347s.sys (3.47.0.0 built by: WinDDK, 5,13 Ko (5 248 Octets), 15/07/2006 18:29)
Can you help me please?

"5A10 7333 00A0 0094" Use thease Values with Step 3 (Employer les valeurs de thease avec l'étape 3)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: DanXbix on July 24, 2006, 04:01:00 PM

Hi all i have a sammy drive ver m25 i can't get my sata to recognise drive (not sure of chitset it an HP Pravilion 1355a Media PC)
when i go into mkflash it starts and says
a8 8000 post thingy
than sits there if i press escape it says 51 should be 70
any ideas or can someone hex edit mkflash to work with my chipset
cheers

IDE

Name Standard Dual Channel PCI IDE Controller
Manufacturer (Standard IDE ATA/ATAPI controllers)
Status OK
PNP Device ID PCI\VEN_1002&DEV_437A&SUBSYS_2A31103C&REV_80\3&267A616A&0&88
I/O Port 0x00007000-0x00007007
I/O Port 0x00006000-0x00006003
I/O Port 0x00005000-0x00005007
I/O Port 0x00004000-0x00004003
I/O Port 0x00003000-0x0000300F
Memory Address 0xFBFFF000-0xFBFFF1FF
IRQ Channel IRQ 23
Driver c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 10/08/2004 7:00 AM)

Name Primary IDE Channel
Manufacturer (Standard IDE ATA/ATAPI controllers)
Status OK
PNP Device ID PCIIDE\IDECHANNEL\4&22A0F14E&0&0
Driver c:\windows\system32\drivers\atapi.sys (, 93.13 KB (95,360 bytes), 10/08/2004 7:00 AM)

Name Secondary IDE Channel
Manufacturer (Standard IDE ATA/ATAPI controllers)
Status OK
PNP Device ID PCIIDE\IDECHANNEL\4&22A0F14E&0&1
Driver c:\windows\system32\drivers\atapi.sys (, 93.13 KB (95,360 bytes), 10/08/2004 7:00 AM)

Name Standard Dual Channel PCI IDE Controller
Manufacturer (Standard IDE ATA/ATAPI controllers)
Status OK
PNP Device ID PCI\VEN_1002&DEV_4379&SUBSYS_2A31103C&REV_80\3&267A616A&0&90
I/O Port 0x0000D000-0x0000D007
I/O Port 0x0000B000-0x0000B003
I/O Port 0x0000A000-0x0000A007
I/O Port 0x00009000-0x00009003
I/O Port 0x00008000-0x0000800F
Memory Address 0xFBFFF800-0xFBFFF9FF
IRQ Channel IRQ 22
Driver c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 10/08/2004 7:00 AM)

Name Primary IDE Channel
Manufacturer (Standard IDE ATA/ATAPI controllers)
Status OK
PNP Device ID PCIIDE\IDECHANNEL\4&21149FAC&0&0
Driver c:\windows\system32\drivers\atapi.sys (, 93.13 KB (95,360 bytes), 10/08/2004 7:00 AM)

Name Secondary IDE Channel
Manufacturer (Standard IDE ATA/ATAPI controllers)
Status OK
PNP Device ID PCIIDE\IDECHANNEL\4&21149FAC&0&1
Driver c:\windows\system32\drivers\atapi.sys (, 93.13 KB (95,360 bytes), 10/08/2004 7:00 AM)

Name Standard Dual Channel PCI IDE Controller
Manufacturer (Standard IDE ATA/ATAPI controllers)
Status OK
PNP Device ID PCI\VEN_1002&DEV_4376&SUBSYS_2A31103C&REV_80\3&267A616A&0&A1
I/O Port 0x0000FF00-0x0000FF0F
Driver c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 10/08/2004 7:00 AM)

Name Primary IDE Channel
Manufacturer (Standard IDE ATA/ATAPI controllers)
Status OK
PNP Device ID PCIIDE\IDECHANNEL\4&C09CDB&0&0
I/O Port 0x000001F0-0x000001F7
I/O Port 0x000003F6-0x000003F6
Driver c:\windows\system32\drivers\atapi.sys (, 93.13 KB (95,360 bytes), 10/08/2004 7:00 AM)

Name Secondary IDE Channel
Manufacturer (Standard IDE ATA/ATAPI controllers)
Status OK
PNP Device ID PCIIDE\IDECHANNEL\4&C09CDB&0&1
I/O Port 0x00000170-0x00000177
I/O Port 0x00000376-0x00000376
IRQ Channel IRQ 15
Driver c:\windows\system32\drivers\atapi.sys (, 93.13 KB (95,360 bytes), 10/08/2004 7:00 AM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: chek1234 on August 15, 2006, 11:35:00 AM

QUOTE(jrfitz0 @ Aug 15 2006, 06:05 PM)

I'm using HHD Free Hex editor. I listed what I thought were the correct keys in a previous post.
Do you agree with what I used as a key given the sys. info I posted before?

Do you think I could download the Hdd Firmware and re-install? How would I do that if it's not being recognized by the mobo?
Any help is greatly appreciated, I really don't want to tell my co-worker I screwed his computer up, he is in love with it!!

Thanks and have a good day.

Yea I did the same thing with my DVD-RW drive. But I guessed what model it was based on its writing speeds and found the appropriate firmware file and flashed it again and it ended up working even though it wasn't being recognized by the mobo. It was still seen by MTKflash.

Look inside the comp if you can and find out the model of the harddrive and search google for firmware updates or just the firmware file. Then you can flash it again with MTKFlash. Hope this helps.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: jrfitz0 on August 15, 2006, 03:51:00 PM

Well Grim, I finally did it!

I used the x360sam 0.2 tool in concert with you nforce 430/410 mtkflash.exe that i hex edited with the key from my drive.

Now all I have to do is figure out what I did to my friends computer, I think I bricked his DVD drive and maybe his hdd.

Thank you for all your help, I hope I can use my experience to help answer some of the noob questions.

Have a good evening

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Viper 159 on August 15, 2006, 04:54:00 PM

Dear Grim.
I am having some trouble getting my TS recognized. Here are my specs.

Name   Intel® 82801GR/GH SATA AHCI Controller
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27C1&SUBSYS_01D11028&REV_01\3&172E68DD&0&FA
I/O Port   0x0000FE00-0x0000FE07
I/O Port   0x0000FE10-0x0000FE13
I/O Port   0x0000FE20-0x0000FE27
I/O Port   0x0000FE30-0x0000FE33
I/O Port   0x0000FEA0-0x0000FEAF
Memory Address   0xFEBFBC00-0xFEBFBFFF
IRQ Channel   IRQ 20

------------------------
What would be my values to insert into MTKFlash?
Thankyou

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: jrfitz0 on August 15, 2006, 05:24:00 PM

I figured out what I did to my friends computer.

I bricked his dvd-r/rw by accidentily flashing it. His hard drive was on the same IdE cable and I guess because there was the dvd drive was dead that the mobo wasn't detecting the hdd.

Put a new one of my drives in his and fixed. SSSSSHSHHHHHHEEEEEWWWWWW!!!!!(sigh of relief)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: namgib on August 15, 2006, 07:25:00 PM

QUOTE(Viper 159 @ Aug 16 2006, 12:01 AM)

8680C127 00FE20FE
I just editted MTKFlash for you.
http://ez-files.net/...p?file=4c7d2f68

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Viper 159 on August 15, 2006, 07:44:00 PM

O man I cant thank you enough. Thanks alot.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: namgib on August 15, 2006, 10:41:00 PM

Viper, did it work?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: neomaximus2k on August 16, 2006, 12:06:00 AM

QUOTE(namgib @ Aug 15 2006, 12:45 PM)

The ms28 version might cause a problem. I am sure about the locking up though.
There are tutorials about for flashing with the ms28, once you get the detection issue sorted.
I do remember reading something about locking up and booting with another SATA device or no device, unfortunately I cant remember much more than that as I have read to much over the past few days.

Well i found a tutorial on here but alas that didn't work, but i beleive that is down to the SATA controller being used

the tutorial is here

QUOTE

http://forums.xbox-s...howtopic=535222

If you have an NFx chipset i wouldn't recommend doing it tho until it is cleared up as wether or not there is an issue with that board

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Viper 159 on August 16, 2006, 08:35:00 AM

QUOTE

Viper, did it work?

Unfortunately it didnt. As I was a looking through my system info i found this at the top:

Name   Intel® 82801G (ICH7 Family) Ultra ATA Storage Controllers - 27DF
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27DF&SUBSYS_01D11028&REV_01\3&172E68DD&0&F9
I/O Port   0x0000FFA0-0x0000FFAF
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/17/2001 2:51 PM)
---------------------------
Could this have to do with it being that it is ICH7 family?

If so, and not a bother could you be so kind to edit it for me. Thanks alot.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: chek1234 on August 16, 2006, 08:57:00 AM

Similar to viper, I have SATA on my computer but I can't find anything that says SATA in system info. Does this look right?

Name   Intel® 82801FB Ultra ATA Storage Controllers - 2651
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_2651&SUBSYS_819E104D&REV_03\3&11583659&0&FA
I/O Port   0x0000B400-0x0000B407
I/O Port   0x0000B080-0x0000B083
I/O Port   0x0000B000-0x0000B007
I/O Port   0x0000AC00-0x0000AC03
I/O Port   0x0000A880-0x0000A88F
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/17/2001 8:51 AM)

Thanks!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: MaxEgg on August 16, 2006, 09:03:00 AM

appears to me both of you using the pciide driver. That info is from an IDE controller not a SATA controller.
maybe your SATA is disabled int he bios? maybe your msinfo32 scrolls down to other controllers?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: sirsupadave on August 16, 2006, 10:19:00 AM

Dear Mr. Grim(The Hex Master)
I think after all my reading and looking at what you told people I should use "0611 4932 F001 7001" but maybe I put them in the wrong place in mtkflash. Would you be kind enough to help me too. And maybe send me a link to the properly edited mtkflash. THANKS

HERES MY INFO

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&48
I/O Port   0x0000EC00-0x0000EC0F
I/O Port   0x0000E800-0x0000E80F
I/O Port   0x0000E400-0x0000E40F
I/O Port   0x0000E000-0x0000E00F
I/O Port   0x0000DC00-0x0000DC1F
I/O Port   0x0000D800-0x0000D8FF
IRQ Channel   IRQ 11
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 8/7/2006 3:21 PM)

Name   A347SCSI SCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   PCI\A347SCSI\0000
Driver   c:\windows\system32\drivers\a347scsi.sys (3.47.0.0 built by: WinDDK, 5.13 KB (5,248 bytes), 6/9/2006 3:20 PM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: BluEnigma on August 16, 2006, 12:32:00 PM

QUOTE(sirsupadave @ Aug 16 2006, 05:26 PM)

Dear Mr. Grim(The Hex Master)
I think after all my reading and looking at what you told people I should use "0611 4932 F001 7001" but maybe I put them in the wrong place in mtkflash. Would you be kind enough to help me too. And maybe send me a link to the properly edited mtkflash. THANKS
HERES MY INFO
Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&48
I/O Port   0x0000EC00-0x0000EC0F
I/O Port   0x0000E800-0x0000E80F
I/O Port   0x0000E400-0x0000E40F
I/O Port   0x0000E000-0x0000E00F
I/O Port   0x0000DC00-0x0000DC1F
I/O Port   0x0000D800-0x0000D8FF
IRQ Channel   IRQ 11
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 8/7/2006 3:21 PM)

Name   A347SCSI SCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   PCI\A347SCSI\0000
Driver   c:\windows\system32\drivers\a347scsi.sys (3.47.0.0 built by: WinDDK, 5.13 KB (5,248 bytes), 6/9/2006 3:20 PM)

Yeah I have the same one and the mtkflash that Grimm sent me didn't work. So Grimm if you have another one I would love to give it a shot!

Also sirsupadave, do you have the card with the Sata external port, and two SATA port internal with a ide? (4 ports total
)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: chipdouglas2819 on August 16, 2006, 02:34:00 PM

can u send me a modded mtkflash for mine

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: BILKO1 on August 18, 2006, 03:03:00 PM

After a bit of help editing mtkflash please. I manged to get the pci sata card mentioned in v4 of the tutorial http://svp.co.uk/pro...lo.php?pid=1248. I've installed it fine and get this

Name   ALi SATA/RAID Controller
Manufacturer   ALi Corporation
Status   OK
PNP Device ID   PCI\VEN_10B9&DEV_5281&SUBSYS_528110B9&REV_A4\4&2E98101C&0&50F0
I/O Port   0x0000DC00-0x0000DC07
I/O Port   0x0000D880-0x0000D883
I/O Port   0x0000D800-0x0000D807
I/O Port   0x0000D480-0x0000D483
I/O Port   0x0000D400-0x0000D40F
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\m5281.sys (5.025, 60.25 KB (61,693 bytes), 18/08/2006 21:14)

Name   ALi ATA/RAID Controller
Manufacturer   ALi Corporation
Status   OK
PNP Device ID   PCI\VEN_10B9&DEV_5228&SUBSYS_528110B9&REV_C6\4&2E98101C&0&51F0
I/O Port   0x0000EC00-0x0000EC07
I/O Port   0x0000E480-0x0000E483
I/O Port   0x0000E400-0x0000E407
I/O Port   0x0000E080-0x0000E083
I/O Port   0x0000E000-0x0000E00F
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\m5228.sys (5.025, 43.18 KB (44,221 bytes), 18/08/2006 21:07)

i can suss out the values i need to change but my mtkflash.exe in HHD hex editor looks different from the tutorial at the beggining of this thread. I have read the whole thread and theres several links to a ALi modded mtkflash but all are dead. Anyone feeling generous today?
P.s. i have ts drive with ms28 firmware i have done the switch mod ready to flash.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: BILKO1 on August 18, 2006, 03:32:00 PM

Can't edit above post for some reason

Anyway got hex workshop and things are looking a little clearer except i need to edit 2 ports. Theres no mention of this in the tutorial so a pointer would be grateful

as i'll only balls in up

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: namgib on August 19, 2006, 12:17:00 AM

QUOTE(BILKO1 @ Aug 18 2006, 10:10 PM)

Name   ALi SATA/RAID Controller
Manufacturer   ALi Corporation
Status   OK
PNP Device ID   PCI\VEN_10B9&DEV_5281&SUBSYS_528110B9&REV_A4\4&2E98101C&0&50F0
I/O Port   0x0000DC00-0x0000DC07
I/O Port   0x0000D880-0x0000D883
I/O Port   0x0000D800-0x0000D807
I/O Port   0x0000D480-0x0000D483
I/O Port   0x0000D400-0x0000D40F
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\m5281.sys (5.025, 60.25 KB (61,693 bytes), 18/08/2006 21:14)

B910 8152 00DC 00D8

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: BILKO1 on August 19, 2006, 01:19:00 AM

Thanks, i got that B9108152 00DC00D8 and this B9812852 00EC00E4 for the other listed in msinfo don't i have to put both in? if so where/what line do i hex edit for the second one? Also what version of mtkflash is everyone using as theres lots of versions.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: rodpad on August 19, 2006, 05:25:00 AM

I'm really confused by this and can't find the code I need or successfully hex edit mtkflash.exe

Can anyone help me? I'll pay you with, erm, a big hug.

Name   VIA SATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_31491106&REV_80\3&61AAA01&0&78
I/O Port   0x00009C00-0x00009C07
I/O Port   0x0000A000-0x0000A003
I/O Port   0x0000A400-0x0000A407
I/O Port   0x0000A800-0x0000A803
I/O Port   0x0000AC00-0x0000AC0F
I/O Port   0x0000B000-0x0000B0FF
IRQ Channel   IRQ 11
Driver   c:\winxp\system32\drivers\viamraid.sys (5.1.2600.530, 98.63 KB (100,992 bytes), 31/03/2006 02:18)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&40215603&1
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\winxp\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 12/08/2006 12:59)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: zapelle on August 19, 2006, 09:14:00 AM

Hi Grim

Maybe you can help me out

mktflash keeps hanging on my sata controller. It is the ali chipset pci card mentioned in geebees tutorial as working.

My drive is seen but mktflash keeps hanging while trying to read the flash. It got to 81%, 66% and 33%.

These ali controllers are apparently buggy so I followed the procedure below as a possible solution but it still wont work

Booted pc to dos

Entered: mtkflash r /sata /m original.bin

Boot xbox from cold and wait 2 seconds

Hit enter

Thanks

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: mikey250976 on August 19, 2006, 11:32:00 AM

how do u do this 1 plus mine has letters so iam well confused

1 i/o port 0x0000a800-0x0000a807
2 i/0 port 0x0000ac00-0x0000ac03
3 i/o port 0x0000b000-0x0000b007
4 i/o port 0x0000b400-0x0000b403
5 i/o port 0x0000b800-0x0000b80f

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: BILKO1 on August 19, 2006, 01:11:00 PM

QUOTE(mikey250976 @ Aug 19 2006, 06:39 PM)

need the rest of the info from msinfo32 mate but what you have there is easy 00A8000B you see a difference of 7 on ports 1 and 3 can you see that?

QUOTE(rodpad @ Aug 19 2006, 12:32 PM)

06114931009C00A4 is what you need to edit into mtkflash.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: zapelle on August 19, 2006, 07:14:00 PM

QUOTE(zapelle @ Aug 19 2006, 04:21 PM)

Hi Grim

Maybe you can help me out

mktflash keeps hanging on my sata controller. It is the ali chipset pci card mentioned in geebees tutorial as working.

My drive is seen but mktflash keeps hanging while trying to read the flash. It got to 81%, 66% and 33%.

These ali controllers are apparently buggy so I followed the procedure below as a possible solution but it still wont work
Booted pc to dos

Entered: mtkflash r /sata /m original.bin

Boot xbox from cold and wait 2 seconds

Hit enter
Thanks

Can anyone suggest anything? I am so close yet so far

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: rodpad on August 19, 2006, 07:27:00 PM

Thanks Bilko. It didn't make a difference unfortunatly, seems my motherboard just simply doesn't work.

I did however manage to flash my ms28 on another motherboard today though (without soldering too

)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: firestorm2yk on August 20, 2006, 09:11:00 AM

Trying to mod my sammy MS28 drive but my board cant detect it...

All i get is "Drive not detected" and im guessing it's because i need a specially modified MTKFlash, but i'm a little confused when it comes to the second part of the tutorial (The 7 byte difference) so could someone give me a hand?

my MSinfo32 is as follows:

Name   ULi SATA/RAID Controller (M1689/M1567)
Manufacturer   ULi Electronics Inc.
Status   OK
PNP Device ID   PCI\VEN_10B9&DEV_5289&SUBSYS_52891849&REV_10\3&267A616A&0&91
I/O Port   0x0000EC00-0x0000EC07
I/O Port   0x0000E480-0x0000E483
I/O Port   0x0000E400-0x0000E407
I/O Port   0x0000E080-0x0000E083
I/O Port   0x0000E000-0x0000E00F
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\m5289.sys (5.030, 51.25 KB (52,480 bytes), 20/06/2006 1:24 AM)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&676A4908&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 20/06/2006 10:27 PM)

The board is an Asrock Dual Sata 2.

It's funny, i contacted a professional place that does the firmware flashing for $100, sent them my console and they had no idea why they couldnt dump the firmware. It seems the 28's are indeed VERY new and extremely hard to flash. Just my luck to get the new drive.

Thanks in advance.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: BILKO1 on August 20, 2006, 12:13:00 PM

QUOTE(firestorm2yk @ Aug 20 2006, 04:18 PM)

B9108952 00EC00E4

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: prolifik71 on August 20, 2006, 05:05:00 PM

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&3B1D9AB8&0&5040
I/O Port   0x00009000-0x0000BFFF
I/O Port   0x00009400-0x0000940F
I/O Port   0x00009800-0x0000980F
I/O Port   0x00009C00-0x00009C0F
I/O Port   0x0000A000-0x0000A01F
I/O Port   0x0000A400-0x0000A4FF
IRQ Channel   IRQ 18
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 8/20/2006 4:13 PM)

Can someone tell me the 8byte key and/or post an edited mtkflash that will work with this ..

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Chaleman on August 22, 2006, 06:50:00 PM

Guys, sorry for asking, but can you help me out with finding the magic numberi n:

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0054&SUBSYS_72201462&REV_F3\3&267A616A&0&80
I/O Port   0x0000A000-0x0000A007
I/O Port   0x00009C00-0x00009C03
I/O Port   0x00009880-0x00009887
I/O Port   0x00009800-0x00009803
I/O Port   0x00009480-0x0000948F
Memory Address   0xFBEFC000-0xFBEFCFFF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 5/17/2005 4:45 PM)


Thanks!!!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: BILKO1 on August 22, 2006, 07:35:00 PM

QUOTE(Chaleman @ Aug 23 2006, 01:57 AM)

DE10540000A08098

QUOTE(prolifik71 @ Aug 22 2006, 12:56 AM)

i also need the 8byte key for this one:

Name VIA VT6421 RAID Controller
Manufacturer VIA Technologies, Inc.
Status OK
PNP Device ID PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&267A616A&0&50
I/O Port 0x0000EF60-0x0000EF6F
I/O Port 0x0000EEB0-0x0000EEBF
I/O Port 0x0000EEA0-0x0000EEAF
I/O Port 0x0000EE90-0x0000EE9F
I/O Port 0x0000EE20-0x0000EE3F
I/O Port 0x0000EC00-0x0000ECFF
IRQ Channel IRQ 18
is it 06 11 49 32 60 EF A0 EE ??

Try it mate you have nothing to loose.It will either work or it won't.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Chaleman on August 23, 2006, 06:38:00 AM

Thanks!!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: anser on August 23, 2006, 02:45:00 PM

hello im speak spanish hello, help me please this is my sata controller

Nombre Intel® 82801GB/GR/GH (ICH7 Family) Serial ATA Storage Controller - 27C0
Fabricante Intel
Estado OK
Id. de dispositivo PNP PCI\VEN_8086&DEV_27C0&SUBSYS_01D21028&REV_01\3&172E68DD&0&FA
Puerto E/S 0x0000FE00-0x0000FE07
Puerto E/S 0x0000FE10-0x0000FE13
Puerto E/S 0x0000FE20-0x0000FE27
Puerto E/S 0x0000FE30-0x0000FE33
Puerto E/S 0x0000FEA0-0x0000FEAF
Dirección de memoria 0xFFA7FC00-0xFFA7FFFF
Canal IRQ IRQ 20
Controlador c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 Bytes), 17/08/2001 01:51 p.m.)

....help meee pleaseeee edit the mtkflash forme please
all turorials this in English

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: WhiteBoy on August 23, 2006, 02:57:00 PM

Can someone help me figure out the magic numbers for this Raid Controller. Thanks.

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&2E98101C&0&10F0
I/O Port   0x0000BC00-0x0000BC0F
I/O Port   0x0000B800-0x0000B80F
I/O Port   0x0000B400-0x0000B40F
I/O Port   0x0000B000-0x0000B00F
I/O Port   0x0000AC00-0x0000AC1F
I/O Port   0x0000A800-0x0000A8FF
IRQ Channel   IRQ 17
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 8/16/2006 8:54 PM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: BILKO1 on August 23, 2006, 03:45:00 PM

QUOTE(anser @ Aug 23 2006, 09:52 PM)

8680C02700FE20FE

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: anser on August 23, 2006, 03:54:00 PM

8680C02700FE20FE

who can enter me my code in the mtkflash?

Nombre Intel® 82801GB/GR/GH (ICH7 Family) Serial ATA Storage Controller - 27C0

it doesn't seem ICH7

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tnbigdawg on August 25, 2006, 10:11:00 PM

Man I tried but this isn't working so I need a little help:

VIA chipset VT6421A

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&19FD8D60&0&78F0
I/O Port   0x0000DC70-0x0000DC7F
I/O Port   0x0000DC50-0x0000DC5F
I/O Port   0x0000DC30-0x0000DC3F
I/O Port   0x0000DC10-0x0000DC1F
I/O Port   0x0000D4E0-0x0000D4FF
I/O Port   0x0000D000-0x0000D0FF
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\viasprid.sys (5.1.2600.100, 69.38 KB (71,040 bytes), 8/25/2006 6:50 PM)

I tried following the tutorial but in the original MTKFLASH.EXE, it doesn't show where my chipset is, so I don't know where to insert the number.

What is my number exactly? I know its 60114932.............

Can someone please help. Thank you!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tnbigdawg on August 25, 2006, 10:38:00 PM

QUOTE(tnbigdawg @ Aug 26 2006, 05:18 AM)

Man I tried but this isn't working so I need a little help:

VIA chipset VT6421A

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&19FD8D60&0&78F0
I/O Port   0x0000DC70-0x0000DC7F
I/O Port   0x0000DC50-0x0000DC5F
I/O Port   0x0000DC30-0x0000DC3F
I/O Port   0x0000DC10-0x0000DC1F
I/O Port   0x0000D4E0-0x0000D4FF
I/O Port   0x0000D000-0x0000D0FF
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\viasprid.sys (5.1.2600.100, 69.38 KB (71,040 bytes), 8/25/2006 6:50 PM)
I tried following the tutorial but in the original MTKFLASH.EXE, it doesn't show where my chipset is, so I don't know where to insert the number.

What is my number exactly? I know its 60114932.............

Can someone please help. Thank you!

Okay, I guess I had it on the wrong SATA port (one's internal access and the other is external on the same card; I switched to the internal port). I disconnected all HDD's and all PC optical drives from the PC. I ran mtkflash r /m orig.bin and it skipped asking for my input. I guess it only saw one drive so it ran the read/write by itself.

How do I edit MTKFLASH to allow me to use the external port. I guess it's a matter of changing the channels that it looks for? I'm new to SATA.....

I hex edited in 6011493270dc30dc without knowing what all the letter's values are

I guess it worked. Now onto the next step....

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Equazor on August 26, 2006, 03:51:00 AM

mtkflash still says that it couldn't find a drive

Naam   NVIDIA nForce3 250 Serial ATA Controller (v2.6)
Fabrikant   NVIDIA Corporation
Status   OK
PNP-apparaat-ID   PCI\VEN_10DE&DEV_00EE&SUBSYS_03001462&REV_A2\3&13C0B0C5&0&48
I/O-poort   0x000009E0-0x000009E7
I/O-poort   0x00000BE0-0x00000BE3
I/O-poort   0x00000960-0x00000967
I/O-poort   0x00000B60-0x00000B63
I/O-poort   0x0000C800-0x0000C80F
I/O-poort   0x0000C400-0x0000C47F
IRQ-kanaal   IRQ 20
Stuurprogramma   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0446 built by: WinDDK, 77,50 kB (79.360 bytes), 16-6-2004 12:57)

They say i should take i/o line 1 and 3
By the looks of it my key should be DE10EE00E0096009 right?

Is the above line false or did i something wrong with the hex editor?

In the hex editor it says:
...p..SiS180....9.....p..SiS965..........p..NV nForce3......p..Unknown....Pri Master.......................

So where do i start 2 digits before the chipsetname? wich i made red

Could it be a problem that i am extracting the numbers while i am in windows on a SATA raid setup? and when i use mtkflash in dos i must disable raid or?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Kanee12 on August 26, 2006, 07:37:00 AM

Name   VIA Serial ATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_80ED1043&REV_80\3&267A616A&0&78
I/O Port   0x0000E800-0x0000E807
I/O Port   0x0000E400-0x0000E403
I/O Port   0x0000E000-0x0000E007
I/O Port   0x0000D800-0x0000D803
I/O Port   0x0000D400-0x0000D40F
I/O Port   0x0000D000-0x0000D0FF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\viasraid.sys (5.1.2600.220, 75,50 KB (77.312 bytes), 12-12-2003 16:49)

So it's 06114931 from PHP

Need help with the I/O Port thx

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: BILKO1 on August 27, 2006, 08:04:00 PM

QUOTE(Kanee12 @ Aug 26 2006, 02:44 PM)

0611493100E800E0

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: riderzonly on August 27, 2006, 09:08:00 PM

I have two listed for my ASUS A8N32-SLi DELUXE but don't know which one I'm supposed to use?

, the 360 drive shows up in the bios no problem.

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0054&SUBSYS_815A1043&REV_F3\3&267A616A&0&80
I/O Port   0x0000DC00-0x0000DC07
I/O Port   0x0000D880-0x0000D883
I/O Port   0x0000D800-0x0000D807
I/O Port   0x0000D480-0x0000D483
I/O Port   0x0000D400-0x0000D40F
Memory Address   0xFEBFC000-0xFEBFCFFF
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 02/06/2006 13:18)

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0055&SUBSYS_815A1043&REV_F3\3&267A616A&0&88
I/O Port   0x0000D080-0x0000D087
I/O Port   0x0000D000-0x0000D003
I/O Port   0x0000CC00-0x0000CC07
I/O Port   0x0000C880-0x0000C883
I/O Port   0x0000C800-0x0000C80F
Memory Address   0xFEBFB000-0xFEBFBFFF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 02/06/2006 13:18)

Will try both if somebody could work the bytes out for me, I did have a go myself but I think it was wrong.

Thanks

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tnbigdawg on August 27, 2006, 10:23:00 PM

QUOTE(riderzonly @ Aug 28 2006, 04:15 AM)

I have two listed for my ASUS A8N32-SLi DELUXE but don't know which one I'm supposed to use?

, the 360 drive shows up in the bios no problem.

DE10540000DC00D8

QUOTE(riderzonly @ Aug 28 2006, 04:15 AM)

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0055&SUBSYS_815A1043&REV_F3\3&267A616A&0&88
I/O Port   0x0000D080-0x0000D087
I/O Port   0x0000D000-0x0000D003
I/O Port   0x0000CC00-0x0000CC07
I/O Port   0x0000C880-0x0000C883
I/O Port   0x0000C800-0x0000C80F
Memory Address   0xFEBFB000-0xFEBFBFFF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0552 built by: WinDDK, 91.38 KB (93,568 bytes), 02/06/2006 13:18)
Will try both if somebody could work the bytes out for me, I did have a go myself but I think it was wrong.

Thanks

DE10550080D000CC

Goodluck

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: riderzonly on August 28, 2006, 05:42:00 AM

Thanks for the help tnbigdawg but I still can't get it to work ha ha.

Is this in the right place?

The problem I'm getting is that when I input the primary master selection it just hangs and the 360 power light just keeps flashing and in the tray part on the dash it says opening?

Also when I esc out of mtkflash I get status=00, should be 70

I also tried changing the end part to F001 7001 but still no joy.

Any ideas anyone?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: riderzonly on August 28, 2006, 09:35:00 AM

Well I have tried every combo I have read about and even tried the recovering from a bad Flash tutorial but no luck.

Been doing a bit more searching and I believe that there is a problem with the Silicon Image SiI 3132 SATALink Controller that I have on my board, why this is I do not know.

Was sooo close to cracking it too.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Penfoldian on August 28, 2006, 11:42:00 AM

Name   VIA SATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_80ED1043&REV_80\3&267A616A&0&78
I/O Port   0x0000E800-0x0000E807
I/O Port   0x0000E400-0x0000E403
I/O Port   0x0000E000-0x0000E007
I/O Port   0x0000D800-0x0000D803
I/O Port   0x0000D400-0x0000D40F
I/O Port   0x0000D000-0x0000D0FF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.530, 98.63 KB (100,992 bytes), 28/08/2006 18:52)

Excuse my stupidity, but when i learn things and understand things slightly different

sow far i got 0611 4931 PNP ID thing... now the hex edit business totally escapes me.... i only find VIA6421 in the hex program, do i change this?? sorry but your guide is not totally user friendly and assumes that i should know these things...my knowledge only goes as far as PL\SQL which cant help me here.

Can anyone help with a another explanation where to go from here?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Penfoldian on August 28, 2006, 02:19:00 PM

hahahahaha!!!! found a bloody mtkflash that works instead!!!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: TonyF11 on August 28, 2006, 02:23:00 PM

Just used a NEC ML250 slimline PC with onboard SATA both with Sammy & Hitachi 360 dvd drives (not MS28) and no problems. In BIOS make sure STATA is set to NATIVE.
HTH TonyF11

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on August 28, 2006, 08:54:00 PM

QUOTE(riderzonly @ Aug 28 2006, 04:49 AM)

Thanks for the help tnbigdawg but I still can't get it to work ha ha.

Is this in the right place?

Any ideas anyone?

check your connections, i have had this problem a cople times and it turned out to just be that sata cable was alittle loose

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: BILKO1 on August 29, 2006, 10:12:00 PM

For all those people with problems sussing out which lines have a difference of 7 its ALWAYS ports/lines 1 and 3.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: sunnyzhi on August 29, 2006, 10:28:00 PM

名称   VIA VT6421 RAID Controller
制造商   VIA Technologies, Inc.
状态   确定
PNP 设备 ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&1C660DD6&0&00F0
I/O 端口   0x0000DD60-0x0000DD6F
I/O 端口   0x0000DD70-0x0000DD7F
I/O 端口   0x0000DD80-0x0000DD8F
I/O 端口   0x0000DD90-0x0000DD9F
I/O 端口   0x0000DDA0-0x0000DDBF
I/O 端口   0x0000DE00-0x0000DEFF
IRQ 频道   IRQ 21
驱动程序   c:\windows\system32\drivers\viamraid.sys (5.1.2600.530, 98.63 KB (100,992 字节), 2006-8-29 16:48)

名称   VAXSCSI Controller
制造商   (Standard mass storage controllers)
状态   确定
PNP 设备 ID   ACPI\PNPA000\4&4F8E8CCD&0
I/O 端口   0x0000FFE0-0x0000FFEF
IRQ 频道   IRQ 9
驱动程序   c:\windows\system32\drivers\vaxscsi.sys (, 217.90 KB (223,128 字节), 2006-6-9 13:31)

名称   D347PRT SCSI Controller
制造商   (Standard mass storage controllers)
状态   确定
PNP 设备 ID   PCI\D347PRT\0000
驱动程序   c:\windows\system32\drivers\d347prt.sys (3.47.0.0 built by: WinDDK, 5.13 KB (5,248 字节), 2006-6-10 14:32)

My code is "0611 4932 F001 7001"?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tnbigdawg on August 30, 2006, 12:19:00 AM

QUOTE(sunnyzhi @ Aug 30 2006, 05:35 AM)

no it's 0611493260DD80DD

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on August 30, 2006, 01:07:00 AM

QUOTE(sunnyzhi @ Aug 29 2006, 09:35 PM)

finaly someone who reads and listons, yes try 0611 4932 F001 7001 also knowen as
editedmtkflash.741.com/MTKFLASHbia32.zip
if that dosent work then edit in the ports
if you have a A rev of the card you will need to edit in the ports, if not then i dont see a reason too

QUOTE(TonyF11 @ Aug 28 2006, 01:30 PM)

Just used a NEC ML250 slimline PC with onboard SATA both with Sammy & Hitachi 360 dvd drives (not MS28) and no problems. In BIOS make sure STATA is set to NATIVE.
HTH TonyF11

what chipset?, i got a via8327 that works great with every drive i have used on it (46D,47D,MS25 and MS28)

QUOTE(riderzonly @ Aug 28 2006, 08:42 AM)

Well I have tried every combo I have read about and even tried the recovering from a bad Flash tutorial but no luck.

Been doing a bit more searching and I believe that there is a problem with the Silicon Image SiI 3132 SATALink Controller that I have on my board, why this is I do not know.

Was sooo close to cracking it too.

i have heard alot of people say they have troble with sil, wather it be decting the drive or getting a good dump, its just not the chipset to use on Samsung drives

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: uk_dan2k on August 30, 2006, 04:38:00 AM

I had a setup working on a via chipset but i've had a new motherboard and im having problems with it flashing on it. It's a nForce 4 mobo on sata 1 port as per usual.

i keep getting this message "Port 170, Master / Slave:a0"

No options come below to select master or slave etc, cursor just keeps blinking and nothing happens.

I found this using msinfo32, in components -> storage -> IDE

Name NVIDIA nForce4 Serial ATA Controller
Manufacturer NVIDIA Corporation
Status OK
PNP Device ID PCI\VEN_10DE&DEV_0055&SUBSYS_815A1043&REV_F3\3&267A616A&0&88
I/O Port 0x00009080-0x00009087
I/O Port 0x00009000-0x00009003
I/O Port 0x00008C00-0x00008C07
I/O Port 0x00008880-0x00008883
I/O Port 0x00008800-0x0000880F
Memory Address 0xDADFB000-0xDADFBFFF
IRQ Channel IRQ 20

I came up with the following code for it:- DE10 5500 8090 008C

I'm sure it's right but i dont know why it's not working

please help

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: pleo2005 on August 30, 2006, 07:28:00 AM

I cant get my tosh/samsung drive detected either even after hex editing mtkflash

Here is what msinfo32 tells me

Name   VIA Serial ATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_80ED1043&REV_80\3&267A616A&0&78
I/O Port   0x0000E400-0x0000E407
I/O Port   0x0000E000-0x0000E003
I/O Port   0x0000D800-0x0000D807
I/O Port   0x0000D400-0x0000D403
I/O Port   0x0000D000-0x0000D00F
I/O Port   0x0000C800-0x0000C8FF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\viasraid.sys (5.1.2600.220, 75.50 KB (77,312 bytes), 29/08/2006 20:15)

Name   VAX347S SCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   PCI\VAX347S\0000
Driver   c:\windows\system32\drivers\vax347s.sys (3.47.0.0 built by: WinDDK, 5.13 KB (5,248 bytes), 03/05/2006 19:07)

i have used 0611493100E400D8

Please help

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: violent_femme on August 30, 2006, 07:49:00 AM

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&3E6EB477&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 6/25/2006 5:21 PM)

Name   VAX347S SCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   PCI\VAX347S\0000
Driver   c:\windows\system32\drivers\vax347s.sys (3.47.0.0 built by: WinDDK, 5.13 KB (5,248 bytes), 6/25/2006 3:14 PM)

that's my info and i've been at this for a few days. my samsung won't flash. i've probably been bugging the hell out of xboxexpert (

) as he was trying to help me flash my drive correctly and after 6 times, it still has not flashed correctly. i have tried Xtreme 3.0, 3.1, and 3.2. i can extract my orig.bin, however, but lines 4000-4070 have nothing but 0's in hexedit. my drive still plays originals fine, but not backups.

do i need to edit anything?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: pleo2005 on August 30, 2006, 11:11:00 AM

I have managed to get my via8237 to recognise my tosh/samsung drive

It now has an error which says

PORT = E400 MASTER SLAVE A0
STATUS = 80 SHOULD BE 70

PLEASE HELP WHILE I STILL HAVE A BIT HAIR LEFT

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: riderzonly on August 30, 2006, 07:55:00 PM

I managed to get my Asus A8N32 with the Silicon Image SiI 3132 SATALink Controller to dump & write with mtkflash, as I too was having troubles with it hanging and so this is what I used & did to make it work.

Programs I used was Hiren's Boot CD 8.0 which has the program NTFS Dos Pro 5.0 on it and a copy of the Nforce4 mtkflash.

I just want to say that I'm running XP media center and also have the following hardware hooked up on my PC with all leads still connected.

IDE Channels
Pri Master - DVD-RW
Pri Slave - HDD
Sec Master - HDD
Sec Slave - Empty

SATA Channels
Pri Master - HDD (Boot Drive)
Pri Slave - Empty
Sec Master - 360 DVD
Sec Slave - Empty

Right what I did was in windows make a new folder called FIRM on my NTFS C: drive, then I copied the NF4 version of mtkflash into that folder.
Then I inserted the boot cd and shutdown the system, connected the 360 drive to my SATA ports ie mine was Sec master.
Then switched the 360 on and my computer, waited for the system to boot from CD and then run the program NTFS Dos Pro 5.0, once you run this program and exit to dos prompt your C: drive will infact be your D: drive so switch to that.
Then go into your firm folder and type mtkflash r /m orig.bin and it will give you the options of what drive you want to use mine was sec master and it will start to dump!

That's how I dumped mine & used the same way to write it back after editing the xtreme.bin file of course

, haven't had a problem the last 60 odd hours with V.3.0 & have just updated to V.3.2.

Hope this helps some of you guys out and just wanna say thanks to everyone who helped me out trying to get this to work, many thanks.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: BigSteel on August 30, 2006, 10:27:00 PM

Can someone help me out with a proper MTKFLASH, please

I am having a hell of a time getting my drive detected. I have tried editing my own, but I must be doing something wrong. If you can help out it would be greatly appreciated. Thanks.

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&267A616A&0&50
I/O Port   0x0000EC00-0x0000EC0F
I/O Port   0x0000E880-0x0000E88F
I/O Port   0x0000E800-0x0000E80F
I/O Port   0x0000E480-0x0000E48F
I/O Port   0x0000E400-0x0000E41F
I/O Port   0x0000E000-0x0000E0FF
IRQ Channel   IRQ 18

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: nstavros on August 30, 2006, 10:33:00 PM

Easiest way to get it to work is buying a sata card

lol

bought a syba.. worked fast as hell

... didnt have one on my mobo cuase I roll with amd

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Good-vs-Evil on September 02, 2006, 07:24:00 AM

hi,

thanks for the tut, can you help me out with my drive.

this is what i have from the read out page:

Name VIA Serial ATA RAID Controller
Manufacturer VIA Technologies, Inc.
Status OK
PNP Device ID PCI\VEN_1106&DEV_3149&SUBSYS_80ED1043&REV_80\3&61AAA01&0&78
I/O Port 0x0000D800-0x0000D807
I/O Port 0x0000D400-0x0000D403
I/O Port 0x0000D000-0x0000D007
I/O Port 0x0000B800-0x0000B803
I/O Port 0x0000B400-0x0000B40F
I/O Port 0x0000B000-0x0000B0FF
IRQ Channel IRQ 20
Driver c:\windows\system32\drivers\viasraid.sys ( 5.1.2600.100, 74.13 KB (75,904 bytes), 11/10/2003 11:12)

should it be 06114931 then 00D8 00D4?

thanks for any assistance

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tnbigdawg on September 02, 2006, 06:06:00 PM

QUOTE(Good-vs-Evil @ Sep 2 2006, 02:31 PM)

hi,

thanks for the tut, can you help me out with my drive.

this is what i have from the read out page:

Name VIA Serial ATA RAID Controller
Manufacturer VIA Technologies, Inc.
Status OK
PNP Device ID PCI\VEN_1106&DEV_3149&SUBSYS_80ED1043&REV_80\3&61AAA01&0&78
I/O Port 0x0000D800-0x0000D807
I/O Port 0x0000D400-0x0000D403
I/O Port 0x0000D000-0x0000D007
I/O Port 0x0000B800-0x0000B803
I/O Port 0x0000B400-0x0000B40F
I/O Port 0x0000B000-0x0000B0FF
IRQ Channel IRQ 20
Driver c:\windows\system32\drivers\viasraid.sys ( 5.1.2600.100, 74.13 KB (75,904 bytes), 11/10/2003 11:12)
should it be 06114931 then 00D8 00D4?

thanks for any assistance

Atleast you tried. 0611493100d800d0

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: djgreentumb on September 04, 2006, 03:09:00 PM

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&50
I/O Port   0x0000D800-0x0000D80F
I/O Port   0x0000D400-0x0000D40F
I/O Port   0x0000D000-0x0000D00F
I/O Port   0x0000CC00-0x0000CC0F
I/O Port   0x0000C800-0x0000C81F
I/O Port   0x0000C400-0x0000C4FF
IRQ Channel   IRQ 12
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.530, 98.63 KB (100,992 bytes), 04/09/2006 19:11)

right the 7 differance would mean g at the end not F can anyone help out a newbie and tell me what my hex values should be i think the first part should be 60119423 but i'm lost on the second part help would be greatly appreciated
edit:
i just had a revalition it 0 is a value then the 7 differance world be F, now my next problem is that a few of the I/O lines have a 7 differance so which ones do i use?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tnbigdawg on September 05, 2006, 04:59:00 AM

QUOTE(djgreentumb @ Sep 4 2006, 10:16 PM)

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&50
I/O Port   0x0000D800-0x0000D80F
I/O Port   0x0000D400-0x0000D40F
I/O Port   0x0000D000-0x0000D00F
I/O Port   0x0000CC00-0x0000CC0F
I/O Port   0x0000C800-0x0000C81F
I/O Port   0x0000C400-0x0000C4FF
IRQ Channel   IRQ 12
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.530, 98.63 KB (100,992 bytes), 04/09/2006 19:11)
right the 7 differance would mean g at the end not F can anyone help out a newbie and tell me what my hex values should be i think the first part should be 60119423 but i'm lost on the second part help would be greatly appreciated
edit:
i just had a revalition it 0 is a value then the 7 differance world be F, now my next problem is that a few of the I/O lines have a 7 differance so which ones do i use?

Usually its the first and third line. Try it, it worked for me.

0611493200d800d0

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: uk_dan2k on September 05, 2006, 06:37:00 AM

i got a pci card anyone know the correct IO part for mtkflash?

Name VIA VT6421 RAID Controller
Manufacturer VIA Technologies, Inc.
Status OK
PNP Device ID PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&2411F011&0&3890
I/O Port 0x0000DC00-0x0000DC0F
I/O Port 0x0000D880-0x0000D88F
I/O Port 0x0000D800-0x0000D80F
I/O Port 0x0000D480-0x0000D48F
I/O Port 0x0000D400-0x0000D41F
I/O Port 0x0000D000-0x0000D0FF
IRQ Channel IRQ 18
Driver c:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 05/09/2006 14:10)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: sixkillerpl on September 05, 2006, 12:02:00 PM

it looks like this for me
Nazwa   NVIDIA nForce4 Parallel ATA Controller
Producent   NVIDIA Corporation
Stan   OK
Identyfikator urządzenia PNP   PCI\VEN_10DE&DEV_0053&SUBSYS_50021458&REV_A2\3&2411E6FE&0&30
Port We/Wy   0x0000F000-0x0000F00F
Port We/Wy   0x000001F0-0x000001F7
Port We/Wy   0x000003F6-0x000003F6
Kanał IRQ   IRQ 14
Port We/Wy   0x00000170-0x00000177
Port We/Wy   0x00000376-0x00000376
Kanał IRQ   IRQ 15
Sterownik   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0534 built by: WinDDK, 90,63 KB (92 800 bajtów), 2006-01-31 16:16)

Nazwa   NVIDIA nForce4 Serial ATA Controller
Producent   NVIDIA Corporation
Stan   OK
Identyfikator urządzenia PNP   PCI\VEN_10DE&DEV_0054&SUBSYS_B0031458&REV_A3\3&2411E6FE&0&38
Port We/Wy   0x000009F0-0x000009F7
Port We/Wy   0x00000BF0-0x00000BF3
Port We/Wy   0x00000970-0x00000977
Port We/Wy   0x00000B70-0x00000B73
Port We/Wy   0x0000D400-0x0000D40F
Adres pamięci   0xF0100000-0xF0100FFF
Kanał IRQ   IRQ 20
Sterownik   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0534 built by: WinDDK, 90,63 KB (92 800 bajtów), 2006-01-31 16:16)

Nazwa   NVIDIA nForce4 Serial ATA Controller
Producent   NVIDIA Corporation
Stan   OK
Identyfikator urządzenia PNP   PCI\VEN_10DE&DEV_0055&SUBSYS_B0031458&REV_A3\3&2411E6FE&0&40
Port We/Wy   0x000009E0-0x000009E7
Port We/Wy   0x00000BE0-0x00000BE3
Port We/Wy   0x00000960-0x00000967
Port We/Wy   0x00000B60-0x00000B63
Port We/Wy   0x0000E800-0x0000E80F
Adres pamięci   0xF0101000-0xF0101FFF
Kanał IRQ   IRQ 21
Sterownik   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0534 built by: WinDDK, 90,63 KB (92 800 bajtów), 2006-01-31 16:16)

PLS help me i tryied like 1000 times but i cant get it to work i have freezing _ nothing more i desperate so pls help me

it looks like this for me
Nazwa   NVIDIA nForce4 Parallel ATA Controller
Producent   NVIDIA Corporation
Stan   OK
Identyfikator urządzenia PNP   PCI\VEN_10DE&DEV_0053&SUBSYS_50021458&REV_A2\3&2411E6FE&0&30
Port We/Wy   0x0000F000-0x0000F00F
Port We/Wy   0x000001F0-0x000001F7
Port We/Wy   0x000003F6-0x000003F6
Kanał IRQ   IRQ 14
Port We/Wy   0x00000170-0x00000177
Port We/Wy   0x00000376-0x00000376
Kanał IRQ   IRQ 15
Sterownik   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0534 built by: WinDDK, 90,63 KB (92 800 bajtów), 2006-01-31 16:16)

Nazwa   NVIDIA nForce4 Serial ATA Controller
Producent   NVIDIA Corporation
Stan   OK
Identyfikator urządzenia PNP   PCI\VEN_10DE&DEV_0054&SUBSYS_B0031458&REV_A3\3&2411E6FE&0&38
Port We/Wy   0x000009F0-0x000009F7
Port We/Wy   0x00000BF0-0x00000BF3
Port We/Wy   0x00000970-0x00000977
Port We/Wy   0x00000B70-0x00000B73
Port We/Wy   0x0000D400-0x0000D40F
Adres pamięci   0xF0100000-0xF0100FFF
Kanał IRQ   IRQ 20
Sterownik   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0534 built by: WinDDK, 90,63 KB (92 800 bajtów), 2006-01-31 16:16)

Nazwa   NVIDIA nForce4 Serial ATA Controller
Producent   NVIDIA Corporation
Stan   OK
Identyfikator urządzenia PNP   PCI\VEN_10DE&DEV_0055&SUBSYS_B0031458&REV_A3\3&2411E6FE&0&40
Port We/Wy   0x000009E0-0x000009E7
Port We/Wy   0x00000BE0-0x00000BE3
Port We/Wy   0x00000960-0x00000967
Port We/Wy   0x00000B60-0x00000B63
Port We/Wy   0x0000E800-0x0000E80F
Adres pamięci   0xF0101000-0xF0101FFF
Kanał IRQ   IRQ 21
Sterownik   c:\windows\system32\drivers\nvatabus.sys (5.10.2600.0534 built by: WinDDK, 90,63 KB (92 800 bajtów), 2006-01-31 16:16)

PLS help me i tryied like 1000 times but i cant get it to work i have freezing _ nothing more i desperate so pls help me

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: sixkillerpl on September 05, 2006, 01:39:00 PM

Eh i tryiedrunning mtkflash from hdd now i got error about output file raid is turned off so its mean i need some other cheap i herd it maybe this chip cant read and write or smth btw im using Gigabyte K8NF-9 my x360 drive is samusng... .mn-25 ofcourse so pls someone help me maybe iv not tryied hexediting mtk but i simply dont understand that maybe in my language but not in english so any help will be very useful.....

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Tony2Times on September 06, 2006, 03:50:00 PM

Please please help me with this....I have read all the pages on how to get the values

my motherboard spec is Asrock Dual-Sata2 and chip set is ULi 1695 chipset (ULi M1695/ ULi M1567)

Name   JMicron 20360/20363 AHCI Controller
Manufacturer   JMicron Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_197B&DEV_2360&SUBSYS_03601849&REV_00\4&2FF59A88&0&0018
I/O Port   0x0000DC00-0x0000DC07
I/O Port   0x0000D880-0x0000D883
I/O Port   0x0000D800-0x0000D807
I/O Port   0x0000D480-0x0000D483
I/O Port   0x0000D400-0x0000D40F
Memory Address   0xFE8FE000-0xFE8FFFFF
IRQ Channel   IRQ 35
Driver   c:\windows\system32\drivers\jahci.sys (5, 0, 1636, 1, 29.00 KB (29,696 bytes), 06/09/2006 22:08)

Please please help me out, i'm really sorry if this questions has been asked b4 if anyone could help me out with these values it would be much help.

many thanks , i have tried, but have come across many problems

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tnbigdawg on September 06, 2006, 04:04:00 PM

See my post by clicking on the link below. It's just a compliment to Grim's guide on page 1. It's really not hard to do if you follow the directions. Really!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ash1471 on September 06, 2006, 04:36:00 PM

Im sure this topic should be pinned/sticky by now as it has got to be one of if not the most viewed topic here??

Come on mods this is 1 important and highly informative thread dont you think??

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Tony2Times on September 06, 2006, 04:43:00 PM

cheers i read your thread and i found very useful so i got my code to be 197b2360 00DC00D8 would this be correct and i have edited the unknown of the mtg file

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tnbigdawg on September 06, 2006, 05:27:00 PM

QUOTE(Tony2Times @ Sep 6 2006, 11:50 PM)

cheers i read your thread and i found very useful so i got my code to be 197b2360 00DC00D8 would this be correct and i have edited the unknown of the mtg file

After having a second look at your info, I'm not sure your chipset is supported? Atleast you tried, but the number should be 7b19602300dc00d8.

By the way, it's not my thread. It's this very same thread created by Grim, but the link is directed to my post in this thread.

For the rest of you asking for help, atleast post up the numbers you got to show that you've tried.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Obveron on September 06, 2006, 05:57:00 PM

Can someone help me with this?

I got an Asus p4p800-e deluxe with onboard Promise 378 SATA. (ICH5r)

Here's my info:

Name   WinXP Promise SATA378 IDE Controller
Manufacturer   Promise Technology
Status   OK
PNP Device ID   PCI\VEN_105A&DEV_3373&SUBSYS_80F51043&REV_02\4&2E98101C&0&20F0
I/O Port   0x0000DF00-0x0000DF3F
I/O Port   0x0000DFA0-0x0000DFAF
I/O Port   0x0000D880-0x0000D8FF
Memory Address   0xFEAFE000-0xFEAFEFFF
Memory Address   0xFEAC0000-0xFEADFFFF
IRQ Channel   IRQ 23

Please help

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Sw33t on September 07, 2006, 10:55:00 AM

I need help.

Storage>IDE:

Name   NVIDIA nForce4 Parallel ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0053&SUBSYS_815A1043&REV_F2\3&2411E6FE&0&30
I/O Port   0x0000F000-0x0000F00F
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
IRQ Channel   IRQ 14
I/O Port   0x00000170-0x00000177
I/O Port   0x00000376-0x00000376
IRQ Channel   IRQ 15
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0534 built by: WinDDK, 90,63 KB (92 800 bytes), 31.07.2006 2:41)

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0054&SUBSYS_815A1043&REV_F3\3&2411E6FE&0&38
I/O Port   0x000009F0-0x000009F7
I/O Port   0x00000BF0-0x00000BF3
I/O Port   0x00000970-0x00000977
I/O Port   0x00000B70-0x00000B73
I/O Port   0x0000D800-0x0000D80F
Memory Address   0xD4002000-0xD4002FFF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0534 built by: WinDDK, 90,63 KB (92 800 bytes), 31.07.2006 2:41)

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0055&SUBSYS_815A1043&REV_F3\3&2411E6FE&0&40
I/O Port   0x000009E0-0x000009E7
I/O Port   0x00000BE0-0x00000BE3
I/O Port   0x00000960-0x00000967
I/O Port   0x00000B60-0x00000B63
I/O Port   0x0000C400-0x0000C40F
Memory Address   0xD4001000-0xD4001FFF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0534 built by: WinDDK, 90,63 KB (92 800 bytes), 31.07.2006 2:41)

MOBO Asus A8N-E.
Motherboard Chipset:   nForce4-Ultra.

...
Port: 9e0, Master/Slave: a0

...
STATUS = 00, should be 70

Need right MTKflash: [email protected]

Ty.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Mutilated on September 08, 2006, 12:15:00 PM

I need the EXACT same info as the guy above me here ^^
I have the same mobo and mostly (maybe all) the same letters/numbers

Please help us!

Namn   NVIDIA nForce4 Serial ATA Controller
Tillverkare   NVIDIA Corporation
Status   OK
PNP-enhets-ID   PCI\VEN_10DE&DEV_0054&SUBSYS_815A1043&REV_F3\3&2411E6FE&0&38
I/O-port   0x000009F0-0x000009F7
I/O-port   0x00000BF0-0x00000BF3
I/O-port   0x00000970-0x00000977
I/O-port   0x00000B70-0x00000B73
I/O-port   0x0000D800-0x0000D80F
Minnesadress   0xD3002000-0xD3002FFF
IRQ-kanal   IRQ 23
Drivrutin   c:\windows\system32\drivers\nvata.sys (5.10.2600.0552 built by: WinDDK, 91,38 kB (93 568 byte), 2006-06-01 12:17)

Namn   NVIDIA nForce4 Serial ATA Controller
Tillverkare   NVIDIA Corporation
Status   OK
PNP-enhets-ID   PCI\VEN_10DE&DEV_0055&SUBSYS_815A1043&REV_F3\3&2411E6FE&0&40
I/O-port   0x000009E0-0x000009E7
I/O-port   0x00000BE0-0x00000BE3
I/O-port   0x00000960-0x00000967
I/O-port   0x00000B60-0x00000B63
I/O-port   0x0000C400-0x0000C40F
Minnesadress   0xD3001000-0xD3001FFF
IRQ-kanal   IRQ 20
Drivrutin   c:\windows\system32\drivers\nvata.sys (5.10.2600.0552 built by: WinDDK, 91,38 kB (93 568 byte), 2006-06-01 12:17)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Sw33t on September 08, 2006, 07:55:00 PM

QUOTE(Mutilated @ Sep 8 2006, 07:22 PM)

I need the EXACT same info as the guy above me here ^^
I have the same mobo and mostly (maybe all) the same letters/numbers

Please help us!

this works for me.boot xbox by pressing EJECT, wait 1 sec, now press ENTER w/ mtkflash command, wait 1 sec, now press the 1(one)..this must be MASTER..didn't connect?..try again.

zone.ee/gem/Desktop.rar

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Mutilated on September 09, 2006, 03:05:00 AM

QUOTE(Sw33t @ Sep 9 2006, 04:02 AM)

I gotta say i dont really understand that.
Can you explain it more clearly please?

Step by step

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Mutilated on September 09, 2006, 05:47:00 AM

Someone? Really need help with this. Check ^^

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Mutilated on September 09, 2006, 07:35:00 AM

Im offering $20 (paypal required) to the guy that helps me with this and makes sure my Xbox360 works.
I have a Samsung ms25 drive.

add me if you can help PLEASE!

MSN: [email protected]
ICQ: 164-758-536
AIM: Niklas Ljungblad

( Will remove these contacts once someone have added me )

I prefer MSN but all are ok.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: cause_of_chaos on September 09, 2006, 06:35:00 PM

After many many many hours of reading and trying this thing just wont work. i have tried what poeople have said and still nothing. here are my details

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&88
I/O Port   0x0000DC00-0x0000DC0F
I/O Port   0x0000D800-0x0000D80F
I/O Port   0x0000D400-0x0000D40F
I/O Port   0x0000D000-0x0000D00F
I/O Port   0x0000CC00-0x0000CC1F
I/O Port   0x0000C800-0x0000C8FF
IRQ Channel   IRQ 11
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.530, 98.63 KB (100,992 bytes), 09/09/2006 23:54)

The code i have entered is as follows

0611 4932 00DC 00D4

i dont understand why this doesnt work. i have tried various edited MTKFLASH files and none seem to work. If you could edit one and post here i would be greateful or otherwise if you could edit one and take a screenshot and upload it somewhere for me to see and copy that would be great too.

Either way im in need of some super help, after spending near 20hrs im on the verge of crying. Please someone assist me in my dire time of need

Thanks.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tnbigdawg on September 09, 2006, 06:51:00 PM

QUOTE(cause_of_chaos @ Sep 10 2006, 01:42 AM)

That seems right to me. What DVD drive do you have and what revision? Have you updated your driver for your PCI card?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: cause_of_chaos on September 09, 2006, 07:59:00 PM

I also wanted to say that i am attempting to read the firmware by the recovery method. how difficult is it to take the resistor out? i have looked at the board and there is nothing stoicking out from underneath and i dont recall seeing asny gaps either to ply it out after soldering the 2 edges.

any ideas on this too? a tut would be great

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: cause_of_chaos on September 10, 2006, 03:52:00 AM

hi guys i have read the firmware THANK YOU ALL after 8 hours of reading and an all inclusive 28 hour attempt i finally managed it. Do i get the CD Key from 4000 to 4200 as usual?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: cause_of_chaos on September 10, 2006, 04:53:00 AM

Sorry for the posts this board seems to not allow me to edit :S. Anyway i flashed the drive, after getting the CD KEY from offset 4000 - 4200 and all worked swell. A BIG THANK YOU TO EVERYONE ON THE FORUMS for the info provided through out the whole thread and others. was very handy.

This is the method i used and it worked flawlessly. THIS IS NOT MY WORK I HAVE MERELY COPY AND PASTED THIS. I TAKE NO CREDIT FOR THIS METHOD BUT WISH TO THANK TO ORIGINAL POSTER FOR THE METHOD AND GEREMIA FOR HIS GREAT WORK

Turn off the Xbox 360 and PC.
Connect the SATA cable from the MS28 drive to the PC, and also use croc clips to be safe.
Leave a PC CD or DVD drive on one of the IDE channels
Turn on the PC and boot from floppy , but leave the 360 off.
When you get to command prompt, turn 360 on.
Type this command: mtkflash r /m /sata orig.bin and hit enter
It should display your ports. Do NOT select anything, just leave it at the "menu"
Turn off your 360.
Now, select the port the 360 was connected to, even though the 360 is now off.
It will "pause" when you select that port
I counted to ten, then turned on the 360
It started reading automatically

I can upload my edited mtkflash for others to try and use. hopefully it will work for others

just dont know where :S. Let me know a source and ill upload it immediatly

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ntloser on September 10, 2006, 05:03:00 AM

Cause of chaos what code did you end up using?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: cause_of_chaos on September 10, 2006, 05:14:00 AM

i ended up going back to my original edited mtkflash this morning as i could not see any reason for it not working. it was

0611 4932 00DC 00D4

I replaced the current via code on there the one that states 8327 i think so i know when it pops up its a via

. i edited just as described and then used the method i stated above and it worked a charm

here is my sata pci card details with raid (cant enable or disable so not sure if enabled ot disabled)

Name VIA VT6421 RAID Controller
Manufacturer VIA Technologies, Inc.
Status OK
PNP Device ID PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&88
I/O Port 0x0000DC00-0x0000DC0F
I/O Port 0x0000D800-0x0000D80F
I/O Port 0x0000D400-0x0000D40F
I/O Port 0x0000D000-0x0000D00F
I/O Port 0x0000CC00-0x0000CC1F
I/O Port 0x0000C800-0x0000C8FF
IRQ Channel IRQ 11
Driver c:\windows\system32\drivers\viamraid.sys (5.1.2600.530, 98.63 KB (100,992 bytes), 09/09/2006 23:54)

Many thanks once again to everyone for their help, any info required i would be glad to help

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ntloser on September 10, 2006, 06:11:00 PM

QUOTE(cause_of_chaos @ Sep 10 2006, 07:21 AM)

. i edited just as described and then used the method i stated above and it worked a charm

here is my sata pci card details with raid (cant enable or disable so not sure if enabled ot disabled)

Name VIA VT6421 RAID Controller
Manufacturer VIA Technologies, Inc.
Status OK
PNP Device ID PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&88
I/O Port 0x0000DC00-0x0000DC0F
I/O Port 0x0000D800-0x0000D80F
I/O Port 0x0000D400-0x0000D40F
I/O Port 0x0000D000-0x0000D00F
I/O Port 0x0000CC00-0x0000CC1F
I/O Port 0x0000C800-0x0000C8FF
IRQ Channel IRQ 11
Driver c:\windows\system32\drivers\viamraid.sys (5.1.2600.530, 98.63 KB (100,992 bytes), 09/09/2006 23:54)
Many thanks once again to everyone for their help, any info required i would be glad to help

Cool ... but I dont understand how knew which I/O ports to use for the 2nd half of the code.. I don't see any that are 7 bytes apart. Unless I am reading the hex wrong.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ntloser on September 10, 2006, 06:55:00 PM

Oops couldnt edit
..i thought if there wasn't a 7 byte difference to just leave the last of the code alone

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ntloser on September 10, 2006, 09:11:00 PM

I guess you just used ports 1 and 3 anyway.. Cool. I am glad it worked.. My via sata card should be here soon.. and I want to make sure I know exactly what to do..

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tnbigdawg on September 11, 2006, 12:11:00 AM

QUOTE(ntloser @ Sep 11 2006, 04:18 AM)

I guess you just used ports 1 and 3 anyway.. Cool. I am glad it worked.. My via sata card should be here soon.. and I want to make sure I know exactly what to do..

Correct. Well that's what I did and it worked.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ntloser on September 11, 2006, 03:02:00 AM

Excellent.. I have a slightly off topic question.. once the you successfully extract the original firmware, do you have to do the bad flash method to write the modified firmare.. (shutting it off then turning it on)? or does it write it no problem.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: cause_of_chaos on September 11, 2006, 10:11:00 AM

QUOTE(ntloser @ Sep 11 2006, 10:09 AM)

yes mate you have to repeat the whole process again to write to it, a drag but the method i used above works flawlessly so rest assured all will be fine

and yes i just used 1 and 3 as i cant read hex lmao

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: darkmaster2 on September 11, 2006, 10:27:00 AM

Hi Guys,

I am using a NEWLINK Sata card that I bought from svp in the uk
here is the msinfo below

b9Name   ALi SATA/RAID Controller
Manufacturer   ALi Corporation
Status   OK
PNP Device ID   PCI\VEN_10B9&DEV_5281&SUBSYS_528110B9&REV_A4\4&24AB0D93&0&08F0
I/O Port   0x000020A0-0x000020A7
I/O Port   0x00002094-0x00002097
I/O Port   0x00002098-0x0000209F
I/O Port   0x00002090-0x00002093
I/O Port   0x00002080-0x0000208F
IRQ Channel   IRQ 5
Driver   d:\windows\system32\drivers\m5281.sys (5.026, 48.20 KB (49,357 bytes), 9/11/2006 4:02 AM)

Name   ALi ATA/RAID Controller
Manufacturer   ALi Corporation
Status   OK
PNP Device ID   PCI\VEN_10B9&DEV_5228&SUBSYS_528110B9&REV_C6\4&24AB0D93&0&09F0
I/O Port   0x000020C8-0x000020CF
I/O Port   0x000020AC-0x000020AF
I/O Port   0x000020C0-0x000020C7
I/O Port   0x000020A8-0x000020AB
I/O Port   0x000020B0-0x000020BF
IRQ Channel   IRQ 5
Driver   d:\windows\system32\drivers\m5228.sys (5.026, 43.87 KB (44,925 bytes), 9/11/2006 4:02 AM)

I found a premodded mtkflash for my newlink card and tried it, it worked fine!

So I thought great, I would have a go at hex editing myself. So I worked out the 8byte code from the msinfo above and checked it against the pre modded mtk flash I found. It didnt match

Here is the code I worked out

B9 10 28 52 A0 20 98 20

Would this be correct?

The code in the premodded mtkflash is b9 10 81 52 00 d8 00 d0

Basically, the premodded mtkflash works, and my own one doesnt. Can anyone help me find out why?

Cheers!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tnbigdawg on September 11, 2006, 02:59:00 PM

QUOTE(darkmaster2 @ Sep 11 2006, 05:34 PM)

So I thought great, I would have a go at hex editing myself. So I worked out the 8byte code from the msinfo above and checked it against the pre modded mtk flash I found. It didnt match

Here is the code I worked out

B9 10 28 52 A0 20 98 20

Would this be correct?
The code in the premodded mtkflash is b9 10 81 52 00 d8 00 d0

Basically, the premodded mtkflash works, and my own one doesnt. Can anyone help me find out why?

Cheers!

You were close...

b9 10 81 52 a0 20 98 20

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on September 11, 2006, 11:58:00 PM

QUOTE(loonyx @ Sep 11 2006, 07:56 PM)

ok i have spent countless hours trying to get my drive READ not even flashed just read. I got samsung MS25, with the VIA 6421L pci, i downloaded the pre-hexed mtkflash program and even hexedited to see if my vaules were in there and they were.

here is my msinfo

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&48
I/O Port   0x0000B800-0x0000B80F
I/O Port   0x0000BC00-0x0000BC0F
I/O Port   0x0000C000-0x0000C00F
I/O Port   0x0000C400-0x0000C40F
I/O Port   0x0000C800-0x0000C81F
I/O Port   0x0000CC00-0x0000CCFF
IRQ Channel   IRQ 17
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 9/9/2006 4:47 PM)
iin the pre-hexed file i found the 0611 4932

the problem isnt with the mtkflash, it reads my drive, and it comes up with the 2 options to select, i select #2 being the Via6421 and it goes to reading and it sits at 0%

i have basically tried every single method in the book and i still cant seem to get it to work, including the 10sec bad flash method,

does anyone have any suggestions, im dying here

use a different port on the card
try editing in 00B8 00C0 insted of F001 7001

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ntloser on September 12, 2006, 07:07:00 PM

QUOTE(icepik_69 @ Sep 12 2006, 09:01 PM)

Man o Man this is tough, I've been trying REAL hard but can't read from my drive on my Nforce 430 chipset

if you can help, man would I be thankful

Here is my info:

Name   NVIDIA nForce 430/410 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0267&SUBSYS_81C01043&REV_A1\3&2411E6FE&0&78
I/O Port   0x000009E0-0x000009E7
I/O Port   0x00000BE0-0x00000BE3
I/O Port   0x00000960-0x00000967
I/O Port   0x00000B60-0x00000B63
I/O Port   0x0000CC00-0x0000CC0F
Memory Address   0xFE02C000-0xFE02CFFF
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0650 built by: WinDDK, 97.25 KB (99,584 bytes), 9/9/2006 2:06 PM)

I've tried different combo's of the last 4 with no luck

This is what I figured out: DE106702 E7096709

I've replaced the numbers in several places in hex workshop after the double set's of 00's when i use go to b370 (from beginning) and nothing works. My chipset isn't listed so do I have to type in text on the right side? what would I type?

I've tried F001 7001, and leaving the last 8 characters the way they were but nothing seems to work, I've also tried hot-swapping and pluggin my 360 drive in once dos loads first to no avail.

Any help would be greatly appreciated!

Thanks!

Your code should be

DE 01 67 02 E0 09 60 09

Remember, if you have a drive with an MS28 Firmware you must flash on a VIA chiset.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tnbigdawg on September 12, 2006, 07:35:00 PM

Also download the modified version of MTKFLASH for Nforce chipsets.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: mounir on September 13, 2006, 12:16:00 PM

mainboerd GIGABYTE GA-7VAX 1394 REV:1.2
PCI SATA CARD:
Naam VIA VT6421 RAID Controller
Fabrikant VIA Technologies, Inc.
Status OK
PNP-apparaat-ID PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&50
I/O-poort 0x0000A000-0x0000A00F
I/O-poort 0x0000A400-0x0000A40F
I/O-poort 0x0000A800-0x0000A80F
I/O-poort 0x0000AC00-0x0000AC0F
I/O-poort 0x0000B000-0x0000B01F
I/O-poort 0x0000B400-0x0000B4FF
IRQ-kanaal IRQ 18
Stuurprogramma c:\windows\system32\drivers\viamraid.sys (5.1.2600.530, 98,63 kB (100.992 bytes), 13-9-2006 12:26)

AY TRAY TE FLASH SAMSUNG MS 25 WITH HEXED MTKFLASH BATH WHEN AY START THE PC WITH XBOX 360 ON IT GIVE THIS:

HARDWARE INITIATE FAILED PLAISE CHECK DEVICE !!! THE BIOS DOES NOT BE INSTALLED PRESS <G>TO CONTINUE .
BATH WHEN AY START THE PC WITH OUT THE XBOX 360 THEN AY STARTE THE BOOT DISK TO DOS AN AY KLICK
MTKFLASH R /SATA ORIG.BIN
OR
MTKFLASH R /M ORIG.BIN
OR
MTKFLASH R /M /SATA ORIG.BIN
THEN XBOX 360 ON MY PC STAY STOK PLS HELP???/

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: burgemaster on September 13, 2006, 12:55:00 PM

could some1 pls look over my work here:

http://img525.images...exediternb3.jpg

i think i got it right, but it seems like its in the wrong place? as the last 4 digits are repeated?
could some1 pls confirm its looking good?
Its for the Nvidea 410 chipset. and its slightly different from the one uploaded on this thread?
Are my values right that ive come up with?

Cheers in advance

IPB Image

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: mounir on September 13, 2006, 01:15:00 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: icepik_69 on September 13, 2006, 06:36:00 PM

QUOTE(ntloser @ Sep 13 2006, 02:14 AM)

Your code should be

DE 01 67 02 E0 09 60 09

Remember, if you have a drive with an MS28 Firmware you must flash on a VIA chiset.

Yeah, i think you mean DE106702E0096009

so after i changed it to that instead of getting a list of drives to flash with x360sam i get "no device detected" then it scrolls down and shows the X360SAM LOGO

so I think im getting somewhere finally, but the problem is i've tried turning the drive on and off and plugging the drive in at different times, playing in the bios, unplugging my other drives, swapping different sata ports and i cant get my drive to detect, its detected in the BIOS though

fyi. i have a samsung ms25

any help would be greatly appreciated!!

thanks!!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: cause_of_chaos on September 13, 2006, 10:30:00 PM

QUOTE(burgemaster @ Sep 13 2006, 08:02 PM)

That sees to be correct bud give it a try, go backa page or so i listed the bad flash method works all the time for me good luck

QUOTE(burgemaster @ Sep 13 2006, 08:02 PM)

That sees to be correct bud give it a try, go backa page or so i listed the bad flash method works all the time for me good luck

QUOTE(burgemaster @ Sep 13 2006, 08:02 PM)

That sees to be correct bud give it a try, go backa page or so i listed the bad flash method works all the time for me good luck

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: TheBomber69 on September 13, 2006, 11:37:00 PM

Some help PLEASE

My card settings are

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&88
I/O Port   0x0000CC00-0x0000CC0F
I/O Port   0x0000D000-0x0000D00F
I/O Port   0x0000D400-0x0000D40F
I/O Port   0x0000D800-0x0000D80F
I/O Port   0x0000DC00-0x0000DC1F
I/O Port   0x0000E000-0x0000E0FF
IRQ Channel   IRQ 12

its a VT6421A and the firmware on the DVD is MS28

Tired every combination of MTKFLASH.EXE exept the mtkflashvia32 version because I could not get it the site was down.

When I get to the Menu my 2 choices are:

1. VIA8237 Sec Slave
2. VT6421 Sec Slave

tired both, tried both places on the SATA card, tried waiting from 10secs. to 2 Mins.
Have a LG 52X CD on the IDE channel and have the Motherboards IDE channel OFF.

Should the 2 choice be?:

1. VT6421 Sec Master (or maybe Pri Master)
2. VT6421 Sec Slave (or maybe Pri Slave)

Any help PLEASE I have been at this for 36 STRAIGHT hours.

Thanks
The Bomber 69

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: burgemaster on September 13, 2006, 11:51:00 PM

thx for the replies guys,
but my editted flash gets me to the drive selection (others didnt)
but then it hangs and when i press escape says:

"IRQ is 51 and should be 70"

at least its progress?

is there something im missing? like a bios setting maybe?
Cheers

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ntloser on September 14, 2006, 12:17:00 AM

QUOTE(icepik_69 @ Sep 13 2006, 08:43 PM)

Yeah, i think you mean DE106702E0096009

oops yes I had the 1 and the 0 reversed

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: mounir on September 14, 2006, 02:14:00 AM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: mounir on September 14, 2006, 02:50:00 AM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: TAR on September 17, 2006, 10:59:00 AM

QUOTE(slippy999 @ Sep 17 2006, 04:07 PM)

still having problems
ive tried to run mtkflash r/m/sata orig.bin
each time i try to read my firmware i get this message

port:b800/ master/slave:a0
flash type :"sst(sst39sf020)"
err : fail to open input file

Put a space in after 'r'...like this..

mtkflash r /m orig.bin

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: slippy999 on September 17, 2006, 11:25:00 AM

thanx ill give it a go

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: slippy999 on September 17, 2006, 12:42:00 PM

wow it worked....i cant believe i was such a noob
i was missing the space after the " r "
on two the next stage
again many thanx

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: giddos on September 17, 2006, 11:10:00 PM

[quote name='indianbuckeye' date='Sep 17 2006, 05:10 PM' post='3658058']
This might be a noob question, but I would appreciate an answer very much.
I have the VIA SATA 6241 PCI card with the 530c driver.

Does it matter what mobo I have? I can't get mtkflash to recognzie my card. It is installed and I hooked up an SATA HDD to it which works fine in windows.

No, it doesn't matter what kind of mobo you have, as long as the sata controller is working. You just have to edit mtkflash to make it work with your sata card. try different ports, and the recovery process, until it works.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: thewanted on September 17, 2006, 11:35:00 PM

Would someone mind confirming that this string is correct for the output below please? DE106602F0097009

Name NVIDIA nForce 430/410 Serial ATA Controller
Manufacturer NVIDIA Corporation
Status OK
PNP Device ID PCI\VEN_10DE&DEV_0266&SUBSYS_54011565&REV_A1\3&2411E6FE&0&70
I/O Port 0x000009F0-0x000009F7
I/O Port 0x00000BF0-0x00000BF3
I/O Port 0x00000970-0x00000977
I/O Port 0x00000B70-0x00000B73
I/O Port 0x0000E000-0x0000E00F
Memory Address 0xFE02D000-0xFE02DFFF
IRQ Channel IRQ 21
Driver c:\windows\system32\drivers\nvata.sys (5.10.2600.0666 built by: WinDDK, 98.38 KB (100,736 bytes), 2006/04/24 05:52 PM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Klutsh on September 17, 2006, 11:50:00 PM

http://forums.xbox-scene.com/index.php?showtopic=548481

No more need to do this by hand (IMG:style_emoticons/default/biggrin.gif)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: indianbuckeye on September 18, 2006, 10:01:00 AM

QUOTE(Klutsh @ Sep 18 2006, 06:57 AM)

http://forums.xbox-scene.com/index.php?showtopic=548481

No more need to do this by hand (IMG:style_emoticons/default/biggrin.gif)

nice work. Will give this a shot when I get home.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: thewanted on September 18, 2006, 10:15:00 AM

QUOTE(Klutsh @ Sep 18 2006, 07:57 AM)

http://forums.xbox-scene.com/index.php?showtopic=548481

No more need to do this by hand (IMG:style_emoticons/default/biggrin.gif)

Woah, excellent! Thanks dude (IMG:style_emoticons/default/smile.gif)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: nstavros on September 18, 2006, 10:53:00 PM

I've also tried mtkflash w /m /sata xtrm.bin 3 times, pressing esc i get "status 51 should be 70".

When using mtkflash w /m sata xtrm.bin 3 times, after esc i keep getting "status 01 shoud be 70".

floppy disc is new and works fine.

even samread doesnt work when i use x360sam

i have the VIA VT6421L SATA PCI Raid Controller Card

can anyone help me?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Rickets06 on September 19, 2006, 07:35:00 PM

[quote name='Grim187' date='May 25 2006, 08:27 AM' post='3431790']
your SATA controller might be for HDD's only if so then Trying to get it to read a DVD ROM drive is pointless, assuming that it dose support DVD ROM drives make a Boot CD with NTFS dos and leave a edited Version of MTKFlash in the main Dir of your hdd (C:\), when in dos type NTFSdos.exe it will mount your HDD (mine is usually D:) type in your Driver letter with a : after it (D:) it will now switch to this Dir run MTKFlash and there you go

i have a Sony vaio (same as that guy), and a ICH6P chipset, and a USB floppydrive, but the 4 SATA connectors are just for my 200gig HDD my question is, could i get an OUTboard SATA connector for this work i'm trying to do? (IMG:style_emoticons/default/smile.gif) thanks

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Suqata on September 22, 2006, 08:32:00 AM

Hi.I am on Storage/SCSI and only read this.Can sb help me to edit my MKTflash.I have Abit AN8SLI Fatality

Elemento   Valor
Nombre   VAX347S SCSI Controller
Fabricante   (Standard mass storage controllers)
Estado   OK
Id. de dispositivo PNP   PCI\VAX347S\0000
Controlador   c:\windows\system32\drivers\vax347s.sys (3.47.0.0 built by: WinDDK, 5,13 KB (5.248 Bytes), 29/10/2005 0:16)

This post has been edited by Suqata: Sep 22 2006, 03:50 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: indianbuckeye on September 22, 2006, 09:09:00 AM

Now my pc freezes as soon as I turn on the xbox360, the keyboard doesn't respond...... anyone else have this problem?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: von_braun on September 22, 2006, 09:59:00 AM

Hey guys, having a time trying to get windows to see my drive.
I have a marvell 88i8030 but this is what it gives me for info:

Name   HPT374 UDMA/ATA133 RAID ControllerDeviceDesc%
Manufacturer   HighPoint
Status   OK
PNP Device ID   PCI\VEN_1103&DEV_0008&SUBSYS_00011103&REV_07\3&61AAA01&0&98
I/O Port   0x0000C800-0x0000C807
I/O Port   0x0000CC00-0x0000CC03
I/O Port   0x0000D000-0x0000D007
I/O Port   0x0000D400-0x0000D403
I/O Port   0x0000D800-0x0000D8FF
IRQ Channel   IRQ 18
Driver   e:\windows\system32\drivers\hpt374.sys (v1.23, 92.86 KB (95,093 bytes), 1/27/2004 1:09 AM)

Name   HPT374 UDMA/ATA133 RAID ControllerDeviceDesc%
Manufacturer   HighPoint
Status   OK
PNP Device ID   PCI\VEN_1103&DEV_0008&SUBSYS_00011103&REV_07\3&61AAA01&0&99
I/O Port   0x0000DC00-0x0000DC07
I/O Port   0x0000E000-0x0000E003
I/O Port   0x0000E400-0x0000E407
I/O Port   0x0000E800-0x0000E803
I/O Port   0x0000EC00-0x0000ECFF
IRQ Channel   IRQ 18
Driver   e:\windows\system32\drivers\hpt374.sys (v1.23, 92.86 KB (95,093 bytes), 1/27/2004 1:09 AM)

Name   VAXSCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&4B9F0C38&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   e:\windows\system32\drivers\vaxscsi.sys (, 217.90 KB (223,128 bytes), 5/17/2006 8:51 AM)

Any ideas would help.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: indianbuckeye on September 25, 2006, 03:16:00 PM

Finally got it 2 work using the xtreme boot maker v2.3 and the method described by n0cturnal-labs

http://www.n0cturnal-labs.org/forums/viewtopic.php?id=19

This post has been edited by indianbuckeye: Sep 25 2006, 10:17 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: gumballs on September 26, 2006, 03:29:00 AM

(IMG:http://img143.imageshack.us/img143/7440/pic1hc7.jpg)

Can someone help me work out what values to use

Thanks

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Textbook on September 26, 2006, 05:51:00 AM

B910 8852 00C8 00C0

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: gumballs on September 26, 2006, 06:02:00 AM

Above Motherboard ASUS A8R-MVP

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: gumballs on September 26, 2006, 06:29:00 AM

Thanks Textbook nice 1

Because my Sata is not listed I have gone to B370 but im not sure where to inject B910 8852 00C8 00C0

(IMG:http://img82.imageshack.us/img82/5298/pic2mf2.jpg)

Thanks in Advance

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Textbook on September 26, 2006, 07:52:00 AM

If you feel like trying it yourself, then look at this screenshot. I just edited the SiL 3112 info for your values.

(IMG:http://i32.photobucket.com/albums/d49/Textbk05/ULi.png)

If you edit the SiL 3112, start after the three 00's and you'll be fine.

This post has been edited by Textbook: Sep 26 2006, 02:53 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: gumballs on September 26, 2006, 08:36:00 AM

Thanks Textbook I will give it a go

Nice 1

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Kreten on September 26, 2006, 07:34:00 PM

++++++PCI SATA+++++++
Name   Adaptec Serial ATA 1205SA Host Controller
Manufacturer   Silicon Image
Status   OK
PNP Device ID   PCI\VEN_1095&DEV_3112&SUBSYS_02509005&REV_02\4&DC268A3&0&4080
I/O Port   0x0000C800-0x0000C807
I/O Port   0x0000C400-0x0000C403
I/O Port   0x0000C000-0x0000C007
I/O Port   0x0000BC00-0x0000BC03
I/O Port   0x0000B800-0x0000B80F
Memory Address   0xFDBFF000-0xFDBFF1FF
IRQ Channel   IRQ 16
Driver   c:\windows.1\system32\drivers\si3112.sys (1, 0, 0, 41, 46.21 KB (47,320 bytes), 9/26/2006 9:35 PM)


+++++ My Onboard SATA+++++

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers) it is actually NVida GForce 6100
Status   OK
PNP Device ID   ACPI\PNPA000\4&6BF5F669&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
Driver   c:\windows.1\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 bytes), 2/17/2006 2:42 PM)

and i have Biostar GeForce 6100-M9 mobo
and i have no idea wt my value would b? someone please help

This post has been edited by Kreten: Sep 27 2006, 02:43 AM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Textbook on September 26, 2006, 09:35:00 PM

Kreten, I highly doubt that your PCI Sata is going to work, SIL chipsets don't work with MTKFlash.

You could try it though : 9510 1231 00C8 00C0

Also, for your onboard, in sysinfo, look in Storage > IDE. Sometimes they show up in there.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: gabrielconnor on September 27, 2006, 02:31:00 AM

Hello,

I have the following motherboard:

msi k8n sli f retail

The Sata Chipset on board is the following:

nforce 4 sli

Can someone please tell me if this is going to work? I'd hate to crack open my xbox360 voiding my warranty only to find out that my chipset is not supported.

Thanks!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: toby77jo on September 27, 2006, 02:35:00 AM

This is my info:

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0054&SUBSYS_71251462&REV_F3\3&2411E6FE&0&38
I/O Port   0x000009F0-0x000009F7
I/O Port   0x00000BF0-0x00000BF3
I/O Port   0x00000970-0x00000977
I/O Port   0x00000B70-0x00000B73
I/O Port   0x0000CC00-0x0000CC0F
Memory Address   0xFE02B000-0xFE02BFFF
IRQ Channel   IRQ 23
Driver   g:\windows\system32\drivers\nvata.sys (5.10.2600.0667 built by: WinDDK, 98.38 KB (100,736 bytes), 20/06/2006 14:26)

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0055&SUBSYS_71251462&REV_F3\3&2411E6FE&0&40
I/O Port   0x000009E0-0x000009E7
I/O Port   0x00000BE0-0x00000BE3
I/O Port   0x00000960-0x00000967
I/O Port   0x00000B60-0x00000B63
I/O Port   0x0000B800-0x0000B80F
Memory Address   0xFE02A000-0xFE02AFFF
IRQ Channel   IRQ 20
Driver   g:\windows\system32\drivers\nvata.sys (5.10.2600.0667 built by: WinDDK, 98.38 KB (100,736 bytes), 20/06/2006 14:26)

I am using mtkflash to be used with nforce4, created by XtremeBootMaker.0.2.3. I end up with status 0 should be 70.

What am I doing wrong? Can someone explain the steps to create a working mtkflash for my nforce 4.

Does it mather which SATA port I plug the xbox360 to? I have 4 ports, should it always be on the first one?

thanks

/toby

This post has been edited by toby77jo: Sep 27 2006, 09:44 AM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: gabrielconnor on September 27, 2006, 05:48:00 AM

QUOTE(gabrielconnor @ Sep 27 2006, 11:38 AM)

Hello,

I have the following motherboard:

msi k8n sli f retail

The Sata Chipset on board is the following:

nforce 4 sli
Can someone please tell me if this is going to work? I'd hate to crack open my xbox360 voiding my warranty only to find out that my chipset is not supported.

Thanks!

OK. I've found an edited MTKFlash version that works with nforce4 sli chipsets.

Can someone say if it's illegal to post this, so I can upload a copy for people also in need?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Textbook on September 27, 2006, 07:51:00 AM

Edited MTKFlashes are fine to post, it is a freeware program.

I don't think it will help Toby though, he needs to try disabling RAID in his BIOS and try all the SATA ports.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: gabrielconnor on September 27, 2006, 08:45:00 AM

Ok well for anyone with an nforce4 SLI chipset here it is

http://rapidshare.de/files/34641267/MTK-NF4.rar

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Kreten on September 27, 2006, 10:15:00 AM

QUOTE(Textbook @ Sep 27 2006, 04:42 AM)

yea i saw that it is SIL after i bought it i paid good money 4 it too n it didn work well here is my onboard stuff from Storage/IDE is it either one of these? i looked 4 drivers 4 my motherboard n found that it takes nVIDIA nFORCE410 C51 Chipset Driver and nVIDIA GeForce 6100 C51 Graphic Driver and i did try using mtkflash NF4 but it didn't work

Name   Standard Dual Channel PCI IDE Controller
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0265&SUBSYS_34021565&REV_A1\3&2411E6FE&0&68
I/O Port   0x0000F400-0x0000F40F
Driver   c:\windows.1\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/10/2004 1:00 PM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&5E1C559&0&0
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
IRQ Channel   IRQ 14
Driver   c:\windows.1\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/10/2004 1:00 PM)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&5E1C559&0&1
I/O Port   0x00000170-0x00000177
I/O Port   0x00000376-0x00000376
IRQ Channel   IRQ 15
Driver   c:\windows.1\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/10/2004 1:00 PM)

Name   Standard Dual Channel PCI IDE Controller
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0266&SUBSYS_54011565&REV_A1\3&2411E6FE&0&70
I/O Port   0x000009F0-0x000009F7
I/O Port   0x00000BF0-0x00000BF3
I/O Port   0x00000970-0x00000977
I/O Port   0x00000B70-0x00000B73
I/O Port   0x0000E000-0x0000E00F
Memory Address   0xFE02D000-0xFE02DFFF
IRQ Channel   IRQ 21
Driver   c:\windows.1\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/10/2004 1:00 PM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&3AB01E34&0&0
Driver   c:\windows.1\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/10/2004 1:00 PM)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&3AB01E34&0&1
Driver   c:\windows.1\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/10/2004 1:00 PM)

This post has been edited by Kreten: Sep 27 2006, 05:24 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Textbook on September 27, 2006, 10:50:00 AM

I don't see any serial ata drivers. I'd try returning the card and buying the SYBA VIA VT6421L (non-raid) from Newegg. It's only $10.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Kreten on September 27, 2006, 12:37:00 PM

would this controller work? Vantec UGT-ST200
link to specifications
http://shop1.outpost.com/product/4236634#detailed

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Kreten on September 27, 2006, 01:35:00 PM

QUOTE(Kreten @ Sep 27 2006, 07:44 PM)

would this controller work? Vantec UGT-ST200
link to specifications
http://shop1.outpost.com/product/4236634#detailed

won't work it's SIL again but i went to my mobo website n updated my chipset drivers and whala i get the info i needed here it is but still don't get which 2 i/0 r 7bit diff hey i suck at this hex stuff anythin alse im ok with


Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&5E1C559&0&1
I/O Port   0x00000170-0x00000177
I/O Port   0x00000376-0x00000376
IRQ Channel   IRQ 15
Driver   c:\windows.1\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/10/2004 1:00 PM)

Name   NVIDIA nForce 430/410 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0266&SUBSYS_54011565&REV_A1\3&2411E6FE&0&70
I/O Port   0x000009F0-0x000009F7
I/O Port   0x00000BF0-0x00000BF3
I/O Port   0x00000970-0x00000977
I/O Port   0x00000B70-0x00000B73
I/O Port   0x0000E000-0x0000E00F
Memory Address   0xFE02D000-0xFE02DFFF
IRQ Channel   IRQ 22
Driver   c:\windows.1\system32\drivers\nvata.sys (5.10.2600.0666 built by: WinDDK, 98.38 KB (100,736 bytes), 9/27/2006 1:26 PM)

This post has been edited by Kreten: Sep 27 2006, 08:38 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Textbook on September 27, 2006, 01:37:00 PM

Why don't you just get this ? It will be at your door in 3 business days for $15 shipped.

This post has been edited by Textbook: Sep 27 2006, 08:38 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Kreten on September 27, 2006, 01:40:00 PM

QUOTE(Textbook @ Sep 27 2006, 08:44 PM)

Why don't you just get this ? It will be at your door in 3 business days for $15 shipped.

i have a friend with ASUS mobo and Chipsets
North Bridge VIA P4M800
South Bridge VIA VT8237R

will that work?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: vandalisthero on September 27, 2006, 03:40:00 PM

(IMG:http://i66.photobucket.com/albums/h243/vandalisthero/msinfo6421.jpg)

I seem to be getting something different for my I/O Ports than everyone else. This is the cheap 10 dollar card from newegg by the way, and it will not work with mtkflashvia. The most I get is the classic hang and upon hitting esc I get error user break status 51 should be 70 or something like that. I know I've got the right numbers for PNP Device ID in there, but I can't for the life of me figure out wwhich of these I/O ports have the 7 byte difference. Can anybody help me out please?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Textbook on September 27, 2006, 04:10:00 PM

QUOTE(Kreten @ Sep 27 2006, 03:47 PM)

i have a friend with ASUS mobo and Chipsets
North Bridge VIA P4M800
South Bridge VIA VT8237R

will that work?

Yes, that will work, I have the VIA VT8237 onboard and use it for flashing all drives.

QUOTE(vandalisthero @ Sep 27 2006, 05:47 PM)

The reason you're seeing the I/O difference is on purpose. With most cards you do not need the I/O's hexedited into MTKFlash, so just using the first 8 characters (VEN and DEV) is fine. As is the case with the VIA VT6421L card. The pre-hexedited versions should work just fine, but make sure you are including an mtkflash.typ file (from another mtkflash download) and also make sure your mtkflash .exe and .typ files are named the same. Or just download this one.

By the way, the 7-byte difference was a mistake on Grim's part. Use the first and third I/O lines. So, if after using that mtkflash you still don't get it, try this:

0611 3249 5028 3028

Good luck!

Also..do you have an MS25 or MS28 Samsung drive?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: vandalisthero on September 27, 2006, 04:18:00 PM

Thanks for the fast reply! I actually used that exact file you linked, and that didn't seem to work. I'm gonna try the other one now too (mtk183c_VIA.zip) as well as the other info you gave me about the first and third lines.

It's an MS28.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Textbook on September 28, 2006, 06:07:00 AM

Because it's an MS28 you have to do the bad-flash recovery method, check the tutorial linked in my sig.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: gumballs on September 28, 2006, 07:04:00 AM

Does anyone know where i can get this card from the UK

SYBA SY-VIA-150 PCI SATA /IDE Combo Controller Card, Non Raid

Thanks

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: gumballs on September 28, 2006, 07:31:00 AM

Does anyone know if it will work on my motherboard and chipset
My Motherboard Asus a8r-mvp
Chipset

ULI Sata/Raid m1575/m1697

If not where can i get this card from the uk

VIA-150 PCI SATA /IDE Combo Controller Card, Non Raid

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: gumballs on September 28, 2006, 08:38:00 AM

Thanks textbook found it all here

Here

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: vandalisthero on September 28, 2006, 12:03:00 PM

QUOTE(Textbook @ Sep 28 2006, 08:14 AM)

Because it's an MS28 you have to do the bad-flash recovery method, check the tutorial linked in my sig.

Thanks a lot man, I actually found that last night and it helped me get the job done. At first I was pulling my hair out because I've done a handful of Samsungs and never had a problem up until this one. Then when you asked me if it was MS25 or 28, I noticed that other people were having the same troubles and then found your update of geebee's tut. Within 20 minutes after that, I was finished.

So I'd like to say I really appreciate your help and that you and others like yourself are an asset to our community.

Cheers! (IMG:style_emoticons/default/beerchug.gif)

Vandalist Hero

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: joe000 on October 01, 2006, 12:46:00 AM

hey, im just wondering if a intel 848P chipset will work, cause thats what i got well thats wot the man website is saying. all this is abit confusing cause under SCSI i got no I/O Ports

Name   Universal SCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   USC\USCSC108\0000
Driver   c:\windows\system32\drivers\uscsc108.sys (1.12.0.0, 99.94 KB (102,336 bytes), 9/03/2003 7:41 PM)

Name   A347SCSI SCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   PCI\A347SCSI\0000
Driver   c:\windows\system32\drivers\a347scsi.sys (3.47.0.0 built by: WinDDK, 5.13 KB (5,248 bytes), 20/06/2005 10:40 PM)

but under IDE i got

Name   Intel® 82801EB Ultra ATA Storage Controllers
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_24DB&SUBSYS_80A61043&REV_02\3&267A616A&1&F9
I/O Port   0x0000FC00-0x0000FC0F
Memory Address   0xFFEFFC00-0xFFEFFFFF
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 1/02/2005 6:41 AM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&1D209ABF&0&0
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
IRQ Channel   IRQ 14
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.1135 (xpsp2.020921-0842), 85.00 KB (87,040 bytes), 1/02/2005 6:34 AM)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&1D209ABF&0&1
I/O Port   0x00000170-0x00000177
I/O Port   0x00000376-0x00000376
IRQ Channel   IRQ 15
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.1135 (xpsp2.020921-0842), 85.00 KB (87,040 bytes), 1/02/2005 6:34 AM)

Name   Intel® 82801EB Ultra ATA Storage Controllers
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_24D1&SUBSYS_80A61043&REV_02\3&267A616A&1&FA
I/O Port   0x0000D400-0x0000D407
I/O Port   0x0000D000-0x0000D003
I/O Port   0x0000CC00-0x0000CC07
I/O Port   0x0000C800-0x0000C803
I/O Port   0x0000C400-0x0000C40F
IRQ Channel   IRQ 18
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 1/02/2005 6:41 AM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&22EDEA8F&0&0
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.1135 (xpsp2.020921-0842), 85.00 KB (87,040 bytes), 1/02/2005 6:34 AM)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&22EDEA8F&0&1
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.1135 (xpsp2.020921-0842), 85.00 KB (87,040 bytes), 1/02/2005 6:34 AM)

also witch one would i use to get my 8 numbers cause i got no Serial ATA Controller ?

This post has been edited by joe000: Oct 1 2006, 07:54 AM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: VOYAGERXP on October 01, 2006, 10:54:00 AM

Can anyone on here help me with my samsung flashing as its racking my brain. I have a asrock 939NF4G-SATA2 main board. I have tried to flash the drive with mtkflash but all i get is no drive detected and i have tried all the mtkflash programs. When i go into the bios the samsung drive is picked up on sata 1 but mtkflash won't pick it up. Can anyone hex edit me a mtkflash or tell me how to do mine as i don't know how to hex edit. My details below,

- Northbridge: nVidia GeForce 6100
- Southbridge: nVidia nForce 410 MCP

-----------------------------------------------------------------------------------------------------------------------------
name standared dual channel pci ide controller
manufacturer (standared IDE ATA/ATPI controllers
status ok
PNP Device ID PCI\VEN_10DE&DEV_0266&SUBSYS_02661849&REV_A1\3&267A616A&0&70
I/O Port 0x00000F80-0x00000F87
I/O Port 0x00000F00-0X00000F03
I/O Port 0x00000E80-0x00000E87
I/O Port 0x00000E00-0x00000E03
I/O Port 0x0000E000-0x0000E00F
Memory Address 0xFEBBD000-0xFEBBDFFF
IRQ Channel IRQ 21
Driver c:\widows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25kb (3,3...
----------------------------------------------------------------------------------------------------------------------------

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: VOYAGERXP on October 01, 2006, 01:25:00 PM

Since the post above i have downloaded the latest drivers for my mother board and my info has changed.
I get this now.

Name   NVIDIA nForce 430/410 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0266&SUBSYS_02661849&REV_A1\3&267A616A&0&70
I/O Port   0x00000F80-0x00000F87
I/O Port   0x00000F00-0x00000F03
I/O Port   0x00000E80-0x00000E87
I/O Port   0x00000E00-0x00000E03
I/O Port   0x0000E000-0x0000E00F
Memory Address   0xFEBBD000-0xFEBBDFFF
IRQ Channel   IRQ 21
Driver   c:\windows\system32\drivers\nvata.sys (5.10.2600.0666 built by: WinDDK, 98.38 KB (100,736 bytes), 24/04/2006 17:52)

please anyboudy there can sort this out for me

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: VOYAGERXP on October 01, 2006, 03:01:00 PM

don't matter sorted it

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: donspidy on October 01, 2006, 10:46:00 PM

hi i cant my pc detecs the xbox 360 device and i have this info.. i dont know wicht is the correct ide or scsi info. i hope any one can tell me what info i need or 1 mtk modified with my info.. sorry for my english.. Thanks for your time..

[IDE]
Elemento   Valor
Nombre   Intel® 82801GB Ultra ATA Storage Controllers - 27DF
Fabricante   Intel
Estado   OK
Id. de dispositivo PNP   PCI\VEN_8086&DEV_27DF&SUBSYS_4B428086&REV_01\3&61AAA01&0&F9
Puerto E/S   0x000040B0-0x000040BF
Controlador   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.38 KB (3,456 Bytes), 24/08/2001 06:00 a.m.)

Nombre   Canal IDE principal
Fabricante   (Tarjetas controladoras estándar IDE ATA/ATAPI)
Estado   OK
Id. de dispositivo PNP   PCIIDE\IDECHANNEL\4&2EEA08AB&0&0
Puerto E/S   0x000001F0-0x000001F7
Puerto E/S   0x000003F6-0x000003F6
Canal IRQ   IRQ 14
Controlador   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 Bytes), 03/08/2004 03:59 p.m.)

[SCSI]

Nombre   Intel® 82801GR/GH SATA RAID Controller
Fabricante   Intel
Estado   OK
Id. de dispositivo PNP   PCI\VEN_8086&DEV_27C3&SUBSYS_4B428086&REV_01\3&61AAA01&0&FA
Puerto E/S   0x000040C8-0x000040CF
Puerto E/S   0x000040E4-0x000040E7
Puerto E/S   0x000040C0-0x000040C7
Puerto E/S   0x000040E0-0x000040E3
Puerto E/S   0x000040A0-0x000040AF
Dirección de memoria   0x50304000-0x503043FF
Canal IRQ   IRQ 19
Controlador   c:\windows\system32\drivers\iastor.sys (5.5.0.1035, 853.75 KB (874,240 Bytes), 28/04/2005 06:31 a.m.)

Nombre   Controladora de host SCSI/RAID
Fabricante   (Standard mass storage controllers)
Estado   OK
Id. de dispositivo PNP   ACPI\PNPA000\4&6FEA427E&1
Puerto E/S   0x0000FFE0-0x0000FFEF
Canal IRQ   IRQ 9
Controlador   c:\windows\system32\drivers\dtscsi.sys (, 217.90 KB (223,128 Bytes), 29/08/2006 04:08 p.m.)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: toby77jo on October 02, 2006, 02:53:00 AM

QUOTE(toby77jo @ Sep 27 2006, 10:42 AM)

This is my info:

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0054&SUBSYS_71251462&REV_F3\3&2411E6FE&0&38
I/O Port   0x000009F0-0x000009F7
I/O Port   0x00000BF0-0x00000BF3
I/O Port   0x00000970-0x00000977
I/O Port   0x00000B70-0x00000B73
I/O Port   0x0000CC00-0x0000CC0F
Memory Address   0xFE02B000-0xFE02BFFF
IRQ Channel   IRQ 23
Driver   g:\windows\system32\drivers\nvata.sys (5.10.2600.0667 built by: WinDDK, 98.38 KB (100,736 bytes), 20/06/2006 14:26)

Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0055&SUBSYS_71251462&REV_F3\3&2411E6FE&0&40
I/O Port   0x000009E0-0x000009E7
I/O Port   0x00000BE0-0x00000BE3
I/O Port   0x00000960-0x00000967
I/O Port   0x00000B60-0x00000B63
I/O Port   0x0000B800-0x0000B80F
Memory Address   0xFE02A000-0xFE02AFFF
IRQ Channel   IRQ 20
Driver   g:\windows\system32\drivers\nvata.sys (5.10.2600.0667 built by: WinDDK, 98.38 KB (100,736 bytes), 20/06/2006 14:26)
I am using mtkflash to be used with nforce4, created by XtremeBootMaker.0.2.3. I end up with status 0 should be 70.

What am I doing wrong? Can someone explain the steps to create a working mtkflash for my nforce 4.

Does it mather which SATA port I plug the xbox360 to? I have 4 ports, should it always be on the first one?

thanks

/toby

I do not have raid enabled, i have tried different mtkflash for nforce 4, sometimes it get status 0 should be 70 and sometimes it says status 72 should be 70, I type samread ******* ***** and my xbox starts blinking and nothing happens. I have created a mtkflash from xtreme boot maker to use serial ata channel 1, i plug the xbox360 to first connection on channel1, still nothing. I am booting up from a usb stick, created by the HP software. I have tried both fat and fat32. Still no good results. I believe I have a MS25. What can I do ?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: hotd34me on October 02, 2006, 09:34:00 AM

I Have a Sata to usb kit, would that be able to work in any way? (IMG:style_emoticons/default/unsure.gif)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Marcquez on October 04, 2006, 07:10:00 AM

Im now trying for 3 days to flash my samsung(ms25) drive.
But i get stuk after i choose my Drive (sec master).
i get "port: 960, Master/Slave: a0" then nothing anymore (IMG:style_emoticons/default/sad.gif)

Now im thinking that i have to customize my mtkflash, but that ain't going well either (IMG:style_emoticons/default/smile.gif)
I allready tried the MTKFLASH for NForce mobo's, but no go.

specs mobo: A8N SLI Nforce4 (SATA)

In systeminfo32:
Naam    SCSI/RAID-hostcontroller
Fabrikant    (Standard mass storage controllers)
Status    OK
PNP-apparaat-ID   ACPI\PNPA000\4&6CD500CD&0
I/O-poort    0x0000FFE0-0x0000FFEF
IRQ-kanaal   IRQ 9
Stuurprogramma   c:\windows\system32\drivers\dtscsi.sys (, 217,90 kB (223.128 bytes), 19/07/2006 1:51)

I think its weird that i only see 1 "I/O Port" and with all the other in this topic, there are lots more.
I don't know anymore what to do (IMG:style_emoticons/default/smile.gif)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on October 04, 2006, 04:44:00 PM

QUOTE(Marcquez @ Oct 4 2006, 06:17 AM)

Im now trying for 3 days to flash my samsung(ms25) drive.
But i get stuk after i choose my Drive (sec master).
i get "port: 960, Master/Slave: a0" then nothing anymore (IMG:style_emoticons/default/sad.gif)

Now im thinking that i have to customize my mtkflash, but that ain't going well either (IMG:style_emoticons/default/smile.gif)
I allready tried the MTKFLASH for NForce mobo's, but no go.

specs mobo: A8N SLI Nforce4 (SATA)

In systeminfo32:
Naam    SCSI/RAID-hostcontroller
Fabrikant    (Standard mass storage controllers)
Status    OK
PNP-apparaat-ID   ACPI\PNPA000\4&6CD500CD&0
I/O-poort    0x0000FFE0-0x0000FFEF
IRQ-kanaal   IRQ 9
Stuurprogramma   c:\windows\system32\drivers\dtscsi.sys (, 217,90 kB (223.128 bytes), 19/07/2006 1:51)
I think its weird that i only see 1 "I/O Port" and with all the other in this topic, there are lots more.
I don't know anymore what to do (IMG:style_emoticons/default/smile.gif)

Nf4 and Intel chipsets are in ide

QUOTE(Kreten @ Sep 27 2006, 12:47 PM)

i have a friend with ASUS mobo and Chipsets
North Bridge VIA P4M800
South Bridge VIA VT8237R

will that work?

that will work great, its what i have and requires no mtkflash mod, make sure you dont plug the drive in untill your in dos tho

This post has been edited by Grim187: Oct 4 2006, 11:45 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Marcquez on October 04, 2006, 05:03:00 PM

QUOTE(Grim187 @ Oct 5 2006, 12:51 AM)

Nf4 and Intel chipsets are in ide

Thanks, pretty dumb of me (IMG:style_emoticons/default/tongue.gif)
I've put the info under IDE in another post (so if ur interested, plz check here)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: sirrelix on October 04, 2006, 07:38:00 PM

Hello All,

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&1F7DBC9F&0&20F0
I/O Port   0x00009000-0x0000900F
I/O Port   0x00009400-0x0000940F
I/O Port   0x00009800-0x0000980F
I/O Port   0x00009C00-0x00009C0F
I/O Port   0x0000A000-0x0000A01F
I/O Port   0x0000A400-0x0000A4FF
IRQ Channel   IRQ 18
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 10/4/2006 5:23 PM)

Is the setup I'm getting from that dandy $9.99 card from Newegg.com. I have F/W ms25 Ver. A. april 2006. I have tried all the previously linked pre-edited MTKflash's and not one works I'n getting the "port: 170, Master/Slave: a0" then it stops... nothing else. Any suggestions? Thanks alot!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: StayingOccupied on October 05, 2006, 05:12:00 PM

Name   VIA SATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_31491106&REV_80\3&13C0B0C5&0&78
I/O Port   0x0000B400-0x0000B407
I/O Port   0x0000B800-0x0000B803
I/O Port   0x0000BC00-0x0000BC07
I/O Port   0x0000C000-0x0000C003
I/O Port   0x0000C400-0x0000C40F
I/O Port   0x0000C800-0x0000C8FF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.430, 59.50 KB (60,928 bytes), 6/10/2006 11:06 AM)

from this i got 0611 4931 0084 008C as the numbers i need? I'm still not 100% sure where to put those numbers in in mtkflash. I appreciate any help.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: XSFSPD on October 06, 2006, 01:22:00 AM

Well after reading 10 pages of this thread and trying over and over, just thought I'd ask before I kill mysef.

I have Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&CF81C54&0&08F0
I/O Port   0x0000B400-0x0000B40F
I/O Port   0x0000B000-0x0000B00F
I/O Port   0x0000A800-0x0000A80F
I/O Port   0x0000A400-0x0000A40F
I/O Port   0x0000A000-0x0000A01F
I/O Port   0x00009800-0x000098FF
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes), 10/5/2006 7:17 PM)

I have edited MTKFLASHvia.exe with 0611 4932 00B4 00A8

No matter what I do it goes straight to " Port: b400, Master/Slave: a0

Someone please help the retard??? (IMG:style_emoticons/default/laugh.gif)

Thanks!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Klutsh on October 06, 2006, 01:41:00 AM

QUOTE(StayingOccupied @ Oct 6 2006, 12:19 AM)

0611 4931 0084 008C

Should be 0611 4931 00B4 00BC

Thats a letter b, not the number eight

zero six one one four nine three one zero zero b four zero zero eight c

This post has been edited by Klutsh: Oct 6 2006, 08:43 AM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: StayingOccupied on October 06, 2006, 08:20:00 AM

QUOTE(Klutsh @ Oct 6 2006, 08:48 AM)

Should be 0611 4931 00B4 00BC

Thats a letter b, not the number eight

zero six one one four nine three one zero zero b four zero zero eight c

thanks man, i guess sitting far from my LCD screen in a recliner is starting to effect what i see!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: odgaf on October 07, 2006, 03:28:00 AM

ok dont laugh im doing this on an old ibm dx2-66 computer running win98 it has the via sata vt6421a pci card installed and i get the old no drive detected or it hangs on the ao port

heres the msinfo printout on the win98 sigh, oi i said dont laugh

VIA VT6421 RAID Controller
SCSIAdapter
Registry Key:      HKEY_LOCAL_MACHINE\enum\PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\BUS_00&DEV_0B&FUNC_00
Alloc resources:      Logical Configuration 0

IRQ:     10 Mask: xFFFF
IO Range: Base=xA000 End=xA00F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xA400 End=xA40F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xA800 End=xA80F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xAC00 End=xAC0F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xB000 End=xB01F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xB400 End=xB4FF Min=x0000 Max=xFFFF Alias=xFF, Decode=x00

Forced resources:     None
Boot resources:     Logical Configuration 0
IO Range: Base=xA000 End=xA00F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xA400 End=xA40F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xA800 End=xA80F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xAC00 End=xAC0F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xB000 End=xB01F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xB400 End=xB4FF Min=x0000 Max=xFFFF Alias=xFF, Decode=x00

Filtered resources:      Logical Configuration 0
IRQ:     10 Mask: xFFFF
IO Range: Base=xA000 End=xA00F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xA400 End=xA40F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xA800 End=xA80F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xAC00 End=xAC0F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xB000 End=xB01F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xB400 End=xB4FF Min=x0000 Max=xFFFF Alias=xFF, Decode=x00

Basic resources:     Logical Configuration 0
IRQ:     0 Mask: xFFFF
IO Range: Base=xA000 End=xA00F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xA400 End=xA40F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xA800 End=xA80F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xAC00 End=xAC0F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xB000 End=xB01F Min=x0000 Max=xFFFF Alias=xFF, Decode=x00
Base=xB400 End=xB4FF Min=x0000 Max=xFFFF Alias=xFF, Decode=x00

HW Revision:      080
Driver:     SCSIAdapter\0001
Driver Date:     10-20-2005
Driver:     viamvsd.vxd
    File Size: 12822 (0x3216)
    File Date: 10/20/2005 3:43 AM
    Company Name: VIA Technologies, Inc.
    File Version: 2.0.950.110
Driver:     viamraid.mpd
    File Size: 68952 (0x10D58)
    File Date: 10/20/2005 3:43 AM
    Company Name: VIA Technologies inc,.ltd
    File Version: 2.0.950.410

so the first part should read 06114932 and its at this point im stuck i dont know what io ports to calculate the seven difference from help me plz im soo pissed off with this ms28 drive and my main comp is a laptop
oi did i hear someone laugh.... (IMG:style_emoticons/default/tongue.gif)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: uksaints on October 07, 2006, 07:11:00 AM

hello would a kind soul confirm my hex should be 8086265100E400E6 many thanks.

Name   Intel® 82801FB Ultra ATA Storage Controllers - 2651
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_2651&SUBSYS_70461462&REV_03\3&13C0B0C5&1&FA
I/O Port   0x0000E400-0x0000E407
I/O Port   0x0000E500-0x0000E503
I/O Port   0x0000E600-0x0000E607
I/O Port   0x0000E700-0x0000E703
I/O Port   0x0000E800-0x0000E80F

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: odgaf on October 08, 2006, 12:45:00 AM

i can help u out a bit

8086&DEV_2651 your first 8 should be 86805126 as u can see u just reverse the numbers, if you have made the same mistake on ur io port then just reverse them again unfortunately i cant tell you about your io ports as im on win 98 waiting for someone to help me (IMG:style_emoticons/default/tongue.gif)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: uksaints on October 08, 2006, 03:04:00 AM

Thanks for helping mate, I've just found a programme called Xtreme Boot Maker which auto detects the MSINFO32 section and creates an edited mtkflash for you. I was on the right lines but the details which show after auto-detection are 80862651 E400E600.

This post has been edited by uksaints: Oct 8 2006, 10:15 AM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: KeyserSosex on January 05, 2007, 07:31:00 AM

QUOTE(KeyserSozex @ Jan 4 2007, 10:52 AM)

Could someone please hexedit my mtkflash? I don't have the skills....THNX, my MB is a MSI K) with chipser nForce 570, the MB detect ms25 but MTKFLASH not work
Nombre NVIDIA nForce 590/570/550 Serial ATA Controller
Fabricante NVIDIA Corporation
Estado OK
Id. de dispositivo PNP PCI\VEN_10DE&DEV_037F&SUBSYS_72501462&REV_A2\3&267A616A&0&28
Puerto E/S 0x0000C480-0x0000C487
Puerto E/S 0x0000C400-0x0000C403
Puerto E/S 0x0000C080-0x0000C087
Puerto E/S 0x0000C000-0x0000C003
Puerto E/S 0x0000BC00-0x0000BC0F
Dirección de memoria 0xFE9F9000-0xFE9F9FFF
Canal IRQ IRQ 22
Controlador c:\windows\system32\drivers\nvata.sys (5.10.2600.0666 built by: WinDDK, 98,38 KB (100.736 Bytes), 24/04/2006 17:52)

Nombre NVIDIA nForce 590/570/550 Serial ATA Controller
Fabricante NVIDIA Corporation
Estado OK
Id. de dispositivo PNP PCI\VEN_10DE&DEV_037F&SUBSYS_72501462&REV_A2\3&267A616A&0&29
Puerto E/S 0x0000B880-0x0000B887
Puerto E/S 0x0000B800-0x0000B803
Puerto E/S 0x0000B480-0x0000B487
Puerto E/S 0x0000B400-0x0000B403
Puerto E/S 0x0000B080-0x0000B08F
Dirección de memoria 0xFE9F8000-0xFE9F8FFF
Canal IRQ IRQ 23
Controlador c:\windows\system32\drivers\nvata.sys (5.10.2600.0666 built by: WinDDK, 98,38 KB (100.736 Bytes), 24/04/2006 17:52)

Nombre NVIDIA nForce 590/570/550 Serial ATA Controller
Fabricante NVIDIA Corporation
Estado OK
Id. de dispositivo PNP PCI\VEN_10DE&DEV_037F&SUBSYS_72501462&REV_A2\3&267A616A&0&2A
Puerto E/S 0x0000B000-0x0000B007
Puerto E/S 0x0000AC00-0x0000AC03
Puerto E/S 0x0000A880-0x0000A887
Puerto E/S 0x0000A800-0x0000A803
Puerto E/S 0x0000A480-0x0000A48F
Dirección de memoria 0xFE9F7000-0xFE9F7FFF
Canal IRQ IRQ 20
Controlador c:\windows\system32\drivers\nvata.sys (5.10.2600.0666 built by: WinDDK, 98,38 KB (100.736 Bytes), 24/04/2006 17:52)

NOBODY???

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Dizturbed on January 05, 2007, 03:08:00 PM

Nevermind, got if done.

i recommend to anyone trying to flash their firmware to get textbook's guide, and follow it exactly, i have a ms28 drive and had no trouble. much respect to textbook for the guide and everyone who makes all the handy little tools.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: KeyserSosex on January 10, 2007, 08:08:00 AM

QUOTE(KeyserSosex @ Jan 5 2007, 11:38 AM)

NOBODY???

N O B O D Y .....

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: mattymat04 on January 11, 2007, 05:50:00 PM

Grim187 does excellent work bought a samsung drive from him and it brought my xbox360 back to life!!!!Super fast shipping

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: mshack102 on January 15, 2007, 09:14:00 AM

PNP Device ID   PCI\VEN_8086&DEV_27C3&SUBSYS_26041043&REV_01\3&11583659&0&FA
I/O Port   0x0000E400-0x0000E407
I/O Port   0x0000E080-0x0000E083
I/O Port   0x0000E000-0x0000E007
I/O Port   0x0000DC00-0x0000DC03
I/O Port   0x0000D880-0x0000D88F

Here is my info from my 82801GB/GR/GH ICH7

can someone figure this out.

8680C327

and?? lost on the 2nd part

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: mshack102 on January 15, 2007, 09:45:00 AM

QUOTE(mshack102 @ Jan 15 2007, 11:21 AM)

PNP Device ID   PCI\VEN_8086&DEV_27C3&SUBSYS_26041043&REV_01\3&11583659&0&FA
I/O Port   0x0000E400-0x0000E407
I/O Port   0x0000E080-0x0000E083
I/O Port   0x0000E000-0x0000E007
I/O Port   0x0000DC00-0x0000DC03
I/O Port   0x0000D880-0x0000D88F
Here is my info from my 82801GB/GR/GH ICH7

can someone figure this out.

8680C327

and?? lost on the 2nd part

I was just informed, editing MTKFlash is not needed with Xtreme BootMaker as you select your SATA controller and it autoperforms the edit itself. Is this correct??

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: KeyserSosex on January 16, 2007, 05:29:00 AM

Nombre NVIDIA nForce 590/570/550 Serial ATA Controller
Fabricante NVIDIA Corporation
Estado OK
Id. de dispositivo PNP PCI\VEN_10DE&DEV_037F&SUBSYS_72501462&REV_A2\3&267A616A&0&28
Puerto E/S 0x0000C480-0x0000C487
Puerto E/S 0x0000C400-0x0000C403
Puerto E/S 0x0000C080-0x0000C087
Puerto E/S 0x0000C000-0x0000C003
Puerto E/S 0x0000BC00-0x0000BC0F
Dirección de memoria 0xFE9F9000-0xFE9F9FFF
Canal IRQ IRQ 22
Controlador c:\windows\system32\drivers\nvata.sys (5.10.2600.0666 built by: WinDDK, 98,38 KB (100.736 Bytes), 24/04/2006 17:52)

Nombre NVIDIA nForce 590/570/550 Serial ATA Controller
Fabricante NVIDIA Corporation
Estado OK
Id. de dispositivo PNP PCI\VEN_10DE&DEV_037F&SUBSYS_72501462&REV_A2\3&267A616A&0&29
Puerto E/S 0x0000B880-0x0000B887
Puerto E/S 0x0000B800-0x0000B803
Puerto E/S 0x0000B480-0x0000B487
Puerto E/S 0x0000B400-0x0000B403
Puerto E/S 0x0000B080-0x0000B08F
Dirección de memoria 0xFE9F8000-0xFE9F8FFF
Canal IRQ IRQ 23
Controlador c:\windows\system32\drivers\nvata.sys (5.10.2600.0666 built by: WinDDK, 98,38 KB (100.736 Bytes), 24/04/2006 17:52)

Nombre NVIDIA nForce 590/570/550 Serial ATA Controller
Fabricante NVIDIA Corporation
Estado OK
Id. de dispositivo PNP PCI\VEN_10DE&DEV_037F&SUBSYS_72501462&REV_A2\3&267A616A&0&2A
Puerto E/S 0x0000B000-0x0000B007
Puerto E/S 0x0000AC00-0x0000AC03
Puerto E/S 0x0000A880-0x0000A887
Puerto E/S 0x0000A800-0x0000A803
Puerto E/S 0x0000A480-0x0000A48F
Dirección de memoria 0xFE9F7000-0xFE9F7FFF
Canal IRQ IRQ 20

DE10 7F03 80C4 80C0.
is the string correct? the bios detect the xbox drive but mtkflash is blind...

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Brighteyes on January 17, 2007, 08:29:00 PM

if anyone could help me get mtkflash to work i'd appreciate it. I had one that worked great before but the disk has disappeared.

Name   Intel® 82801G (ICH7 Family) Ultra ATA Storage Controllers - 27DF
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27DF&SUBSYS_01A91028&REV_01\3&172E68DD&0&F9
I/O Port   0x0000FFA0-0x0000FFAF
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/4/2004 7:00 AM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&2D061C90&0&0
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
IRQ Channel   IRQ 14
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/4/2004 7:00 AM)

Name   Intel® 82801GR/GH SATA AHCI Controller
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27C1&SUBSYS_01A91028&REV_01\3&172E68DD&0&FA
I/O Port   0x0000FE00-0x0000FE07
I/O Port   0x0000FE10-0x0000FE13
I/O Port   0x0000FE20-0x0000FE27
I/O Port   0x0000FE30-0x0000FE33
I/O Port   0x0000FEA0-0x0000FEAF
Memory Address   0xEFFFFC00-0xEFFFFFFF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\iastor.sys (6.1.0.1002, 242.00 KB (247,808 bytes), 3/9/2005 10:09 AM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: exstazi on January 20, 2007, 03:39:00 PM

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&1C88B56&0&08A4
I/O Port   0x0000DF00-0x0000DF0F
I/O Port   0x0000DE00-0x0000DE0F
I/O Port   0x0000DD00-0x0000DD0F
I/O Port   0x0000DC00-0x0000DC0F
I/O Port   0x0000DB00-0x0000DB1F
I/O Port   0x0000DA00-0x0000DAFF
IRQ Channel   IRQ 21
Driver   d:\windows\system32\drivers\viamraid.sys (5.1.2600.540, 100,50 KB (102 912 bytes), 2007-01-20 22:40)

Ive been reading this thread to make my custom and still have problem..could someone kind just give me the right i/o prt numbers pls

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Spanker_bf on January 22, 2007, 12:57:00 PM

Hi,

anyone can make the mtkflash to me??

QUOTE(Spanker_bf)

Nombre NVIDIA nForce4 Serial ATA Controller
Fabricante NVIDIA Corporation
Estado OK
Id. de dispositivo PNP PCI/VEN_100&DEV_0055&SUBSYS_815A1043&REV_F3/3&2411E6FE&0%40
Puerto E/S 0X000009E0-0x000009E7
Puerto E/S 0x00000BE0-0x00000BE3
Puerto E/S 0x00000960-0x00000967
Puerto E/S 0x00000B60-0x00000B63
Puerto E/S 0x0000D400-0x0000D40F
Puerto E/S 0xD3101000-0xD3101FFF
Canal IRQ IRQ 23
Controlador c:\windows\system32\drivers\nvata.sys (5.10.2600.0534 built by: WinDDk, 90,63 KB (92.800 bytes), 16/1/2007 01:24)

my drive is the TS-H943A ms28 August 2006 and my motherboard is A8N-e.

Waiting for halp...!

Thanks,
Guilherme - Spanker

This post has been edited by Spanker_bf: Jan 22 2007, 08:58 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: lavos on January 23, 2007, 10:12:00 AM

please anyone help me...
I can´t do a mktflash modified (IMG:style_emoticons/default/sad.gif)

Asus K9V-X

Name   VIA Serial ATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_80ED1043&REV_80\3&267A616A&0&78
I/O Port   0x0000E800-0x0000E807
I/O Port   0x0000E400-0x0000E403
I/O Port   0x0000E000-0x0000E007
I/O Port   0x0000D800-0x0000D803
I/O Port   0x0000D400-0x0000D40F
I/O Port   0x0000D000-0x0000D0FF
IRQ Channel   IRQ 20
Driver   d:\windows\system32\drivers\viasraid.sys (5.1.2600.220, 75,50 KB (77.312 bytes), 23/1/2007 12:21)

Anyone can do for me, please??

This post has been edited by lavos: Jan 23 2007, 06:16 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: The Bison on January 23, 2007, 04:12:00 PM

Hi folks, hope someone can help me out with my setup.

I've used the xtreme boot maker (following Textbooks tut to the letter) to flash my bios but I get stuck when I boot from my USB key, run samread... and then select the device from the list. The app just hangs and my only option is to press escape and halt the process.

I have tried cd/hard disk combo using ntfsdos to see if that makes any difference in case my usb key was failing to write, but after further research in the forums I reckon the problem stems from the fact that my dvd-drive cannot read. (mtkflash does offer me two options to choose from number 1 is 'EXTREME' and number 2 is 'Si3114' I have tried both and got the same result for each.)

As well as using the samread batch file, I have also run the mtkflash r /m /sata orig.bin command manually which yields no better result.

My setup is a Asus K8N-E Deluxe with the Si3114 (SoftRaid5) chipset onboard.
I am using the master port on the primary channel of the onboard sata.
I have the Samsung M25 dvd drive.

My info from msinfo32 is:

Name   Silicon Image SiI 3114 SoftRaid 5 Controller
Manufacturer   Silicon Image
Status   OK
PNP Device ID   PCI\VEN_1095&DEV_3114&SUBSYS_81361043&REV_02\4&22775069&0&6070
I/O Port   0x0000C400-0x0000C407
I/O Port   0x0000C000-0x0000C003
I/O Port   0x0000BC00-0x0000BC07
I/O Port   0x0000B800-0x0000B803
I/O Port   0x0000B400-0x0000B40F
Memory Address   0xFF5FF400-0xFF5FF7FF
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\si3114r5.sys (1, 5, 10, 0, 197.30 KB (202,032 bytes), 05/09/2006 18:48)

So I think to edit the hex of mtkflash.exe manually I would need to enter in 9501 1431 and 00C4 00BC (Is that correct?)

It's been ages since I've done any hex editing and I am a little unsure that I am selecting the appropriate characters. If I select where is says 'Si3114' on the right hand side in Hex Workshop the actual hex selection in the main screen is not four sets of four digits but it actually selects: '53 6933 3131 34' (with those exact spacings/groupings). What/how exactly should I be selecting to ensure I get it right?

I understand from reading through a lot of this thread already that the chipset entries are separated by '0000' (Is that right or have I misunderstood?) but there are some instances where sequence in the hex has '0000 0000' so I cannot tell from which entry I should start my selection.

Anyone else managed to get this combination of pc mobo and 360 dvd to work?
Any pointers much appreciated. Cheers.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: The Bison on January 24, 2007, 03:40:00 AM

I have continued digging and have found several comments saying that the Si3114 is just as useless as the Si3112. I'm now buying a VIA 6421A PCI card instead. Hopefully have more luck with that.

Still that'll take a couple of days to reach me so if anyone knows how to get my existing setup flashed, please let me know.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: noomski on January 25, 2007, 10:24:00 AM

360 Drive: Samsung m28
PC Motherboard: Asus P5N32 SLi Deluxe
PC Motherboard chipset: nforce

Hi, Ive been reading up on mtk flash but still can't get it to work. Here's what I've done so far:

(IMG:http://img244.imageshack.us/img244/3295/ms8yx.gif)
Here's my drive info

From this i reckon the numbers I need are 9510 3231 00CC 00C8

(IMG:http://img172.imageshack.us/img172/4093/original8qi.gif)
Here I think is where they should go

(IMG:http://img260.imageshack.us/img260/7205/edited7gc.gif)
This is what it looks like after editing

I've saved this MTKFLASH.EXE and copied it onto the properly formatted MS DOS startup disk.

I then turned off my pc, removed my 2 sata hdd's and plugged the sata from the xbox into 'SATA1'. Next I booted into my bios and turned off RAID then saved and exited.

Rebooted into DOS and tried MTKflash r /m backup.bin also tried mtkflash r mydump.bin and mtkflash r backup.bin

None of these commands brought up my drive - can anyone tell me where i am possibly going wrong with this? Many thanks

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: emaborsa on January 25, 2007, 06:19:00 PM

Hi to all. I'm from italy, i have a ms28 and a PCI SATA card with VIA6421 chipset. My problem? i can't see my sammy under DOS.... need help, please.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: re4de2ye0 on January 27, 2007, 07:46:00 AM

Okay I have read this tutorial a few time but I cannot make any sense of my I/O information. I am using the SYBA VIA VT6421. Got the first number no problem but I am not seeing a difference of 7 anywhere.

Item   Value
Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&3B8BE48B&0&2830
I/O Port   0x0000DC00-0x0000DC0F
I/O Port   0x0000D880-0x0000D88F
I/O Port   0x0000D800-0x0000D80F
I/O Port   0x0000D480-0x0000D48F
I/O Port   0x0000D400-0x0000D41F
I/O Port   0x0000D000-0x0000D0FF
IRQ Channel   IRQ 20
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.410, 59.25 KB (60,672 bytes)

Any help would be greatly appreciated. Thanks in advance.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: boxxa on February 01, 2007, 08:46:00 PM

I have been reading tutorials all night and since the xtreme bootmaker wont detect my drive and neither will MTKflash, I need to hex edit it.

The only problem is that I dont have more than one line on my SATA controller. This is my output.

MSINFO32> Components> Storage> SCSI:

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&76CE2C95&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9

MSINFO32> Components> Storage> IDE:

Name   Intel® 82801EB Ultra ATA Storage Controllers - 24DB
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_24DB&SUBSYS_02851014&REV_02\3&61AAA01&0&F9
I/O Port   0x00001880-0x0000188F
Memory Address   0xFEBFFC00-0xFEBFFFFF
Driver   c:\windows\system32\drivers\intelide.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 5.38 KB (5,504 bytes), 12/22/2006 6:17 PM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&331F0F20&0&0
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
IRQ Channel   IRQ 14
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/3/2004 9:07 PM)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&331F0F20&0&1
I/O Port   0x00000170-0x00000177
I/O Port   0x00000376-0x00000376
IRQ Channel   IRQ 15
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/3/2004 9:07 PM)

Its an integrated intel sata controller with 2 ports. Any idea?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: dummy333 on February 05, 2007, 09:39:00 AM

hi grimm,

please could you help me??!!

this is my list:

Name   VIA VT6421 RAID Controller
Hersteller   VIA Technologies, Inc.
Status   OK
PNP-Gerätekennung   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&22775069&0&4070
E/A-Port   0x0000BC00-0x0000BC0F
E/A-Port   0x0000B800-0x0000B80F
E/A-Port   0x0000B400-0x0000B40F
E/A-Port   0x0000B000-0x0000B00F
E/A-Port   0x0000AC00-0x0000AC1F
E/A-Port   0x0000A800-0x0000A8FF
IRQ-Kanal   IRQ 19
Treiber   d:\windows\system32\drivers\viamraid.sys (5.1.2600.530, 98,63 KB (100.992 Bytes), 05.02.2007 16:29)

Name   SCSI/RAID Host Controller
Hersteller   (Standard mass storage controllers)
Status   OK
PNP-Gerätekennung   ACPI\PNPA000\4&5F4478B1&0
E/A-Port   0x0000FFE0-0x0000FFEF
IRQ-Kanal   IRQ 9

my problem is that when i boot to dos and type in samread + the serial number, my via vt is not showing in the mtkflash menue? what is the problem?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Knasen on February 05, 2007, 10:04:00 AM

I thought I would try to help you out getting the numbers, but I can't find any rows with a 7 byte difference in the previous posts, so sorry I dont know what to do. Either you have more info that you haven't posted here or your sata controllers are special and perhaps not supported.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: dummy333 on February 05, 2007, 10:18:00 AM

QUOTE(Knasen @ Feb 5 2007, 06:11 PM)

hi knasen,

thanks for the reply..

hm.. the controller is a vt6421 as you can read in the list above,
and i dont know what other infos you need. so many people have also this chipset on a sata card and everthing goes right.. but for me it does not work... i made a right boot disk with bootmaker. bootmaker includes automaticly the values from the chipset... but the chipset isnt there after samread starts...

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: montana64 on February 12, 2007, 03:38:00 AM

hi there is nothing in SCSI but in IDE there is

Nom   Intel® 82801FB Ultra ATA Storage Controllers - 2651
Fabricant   Intel
Statut   OK
ID du périphérique Plug-and-Play   PCI\VEN_8086&DEV_2651&SUBSYS_26511458&REV_03\3&13C0B0C5&0&FA
Port E/S   0x0000F000-0x0000F00F
Pilote   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3,25 Ko (3 328 Octets), 12/02/2007 11:38)

Nom   Canal IDE principal
Fabricant   (Contrôleurs ATA/ATAPI IDE standard)
Statut   OK
ID du périphérique Plug-and-Play   PCIIDE\IDECHANNEL\4&79A9285&0&0
Port E/S   0x000001F0-0x000001F7
Port E/S   0x000003F6-0x000003F6
Canal IRQ   IRQ 14
Pilote   c:\windows\system32\drivers\atapi.sys (5.1.2600.1106 (xpsp1.020828-1920), 84,88 Ko (86 912 Octets), 12/02/2007 11:38)

Nom   Canal IDE secondaire
Fabricant   (Contrôleurs ATA/ATAPI IDE standard)
Statut   OK
ID du périphérique Plug-and-Play   PCIIDE\IDECHANNEL\4&79A9285&0&1
Port E/S   0x00000170-0x00000177
Port E/S   0x00000376-0x00000376
Canal IRQ   IRQ 15
Pilote   c:\windows\system32\drivers\atapi.sys (5.1.2600.1106 (xpsp1.020828-1920), 84,88 Ko (86 912 Octets), 12/02/2007 11:38)

what have I to do ?
the first code is 86805126 but then ??
thank you in advance

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: montana64 on February 12, 2007, 05:21:00 AM

Is this code 8680512670017603 right ?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on February 17, 2007, 08:43:00 PM

QUOTE(boxxa @ Feb 1 2007, 07:53 PM)

I have been reading tutorials all night and since the xtreme bootmaker wont detect my drive and neither will MTKflash, I need to hex edit it.

The only problem is that I dont have more than one line on my SATA controller. This is my output.

MSINFO32> Components> Storage> SCSI:

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&76CE2C95&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
MSINFO32> Components> Storage> IDE:

Name   Intel® 82801EB Ultra ATA Storage Controllers - 24DB
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_24DB&SUBSYS_02851014&REV_02\3&61AAA01&0&F9
I/O Port   0x00001880-0x0000188F
Memory Address   0xFEBFFC00-0xFEBFFFFF
Driver   c:\windows\system32\drivers\intelide.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 5.38 KB (5,504 bytes), 12/22/2006 6:17 PM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&331F0F20&0&0
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
IRQ Channel   IRQ 14
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/3/2004 9:07 PM)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&331F0F20&0&1
I/O Port   0x00000170-0x00000177
I/O Port   0x00000376-0x00000376
IRQ Channel   IRQ 15
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/3/2004 9:07 PM)
Its an integrated intel sata controller with 2 ports. Any idea?

Install Your Driver and try agian

QUOTE(montana64 @ Feb 12 2007, 02:45 AM)

Same as Above, Install the Driver and Get Back to me

QUOTE(dummy333 @ Feb 5 2007, 08:46 AM)

L Revision: 0611 4932 f001 7001
A Revision: 0611 4932 00bc 00b4

QUOTE(re4de2ye0 @ Jan 27 2007, 06:53 AM)

L Revision: 0611 4932 f001 7001
R Revision: 0611 4932 00DC 00D8

QUOTE(mshack102 @ Jan 15 2007, 08:21 AM)

PNP Device ID   PCI\VEN_8086&DEV_27C3&SUBSYS_26041043&REV_01\3&11583659&0&FA
I/O Port   0x0000E400-0x0000E407
I/O Port   0x0000E080-0x0000E083
I/O Port   0x0000E000-0x0000E007
I/O Port   0x0000DC00-0x0000DC03
I/O Port   0x0000D880-0x0000D88F
Here is my info from my 82801GB/GR/GH ICH7

can someone figure this out.

8680C327

and?? lost on the 2nd part

8680 C327 00e4 00e0

QUOTE(KeyserSosex @ Jan 16 2007, 04:36 AM)

Nombre NVIDIA nForce 590/570/550 Serial ATA Controller
Fabricante NVIDIA Corporation
Estado OK
Id. de dispositivo PNP PCI\VEN_10DE&DEV_037F&SUBSYS_72501462&REV_A2\3&267A616A&0&28
Puerto E/S 0x0000C480-0x0000C487
Puerto E/S 0x0000C400-0x0000C403
Puerto E/S 0x0000C080-0x0000C087
Puerto E/S 0x0000C000-0x0000C003
Puerto E/S 0x0000BC00-0x0000BC0F
Dirección de memoria 0xFE9F9000-0xFE9F9FFF
Canal IRQ IRQ 22
Controlador c:\windows\system32\drivers\nvata.sys (5.10.2600.0666 built by: WinDDK, 98,38 KB (100.736 Bytes), 24/04/2006 17:52)

Nombre NVIDIA nForce 590/570/550 Serial ATA Controller
Fabricante NVIDIA Corporation
Estado OK
Id. de dispositivo PNP PCI\VEN_10DE&DEV_037F&SUBSYS_72501462&REV_A2\3&267A616A&0&29
Puerto E/S 0x0000B880-0x0000B887
Puerto E/S 0x0000B800-0x0000B803
Puerto E/S 0x0000B480-0x0000B487
Puerto E/S 0x0000B400-0x0000B403
Puerto E/S 0x0000B080-0x0000B08F
Dirección de memoria 0xFE9F8000-0xFE9F8FFF
Canal IRQ IRQ 23
Controlador c:\windows\system32\drivers\nvata.sys (5.10.2600.0666 built by: WinDDK, 98,38 KB (100.736 Bytes), 24/04/2006 17:52)

Nombre NVIDIA nForce 590/570/550 Serial ATA Controller
Fabricante NVIDIA Corporation
Estado OK
Id. de dispositivo PNP PCI\VEN_10DE&DEV_037F&SUBSYS_72501462&REV_A2\3&267A616A&0&2A
Puerto E/S 0x0000B000-0x0000B007
Puerto E/S 0x0000AC00-0x0000AC03
Puerto E/S 0x0000A880-0x0000A887
Puerto E/S 0x0000A800-0x0000A803
Puerto E/S 0x0000A480-0x0000A48F
Dirección de memoria 0xFE9F7000-0xFE9F7FFF
Canal IRQ IRQ 20
DE10 7F03 80C4 80C0.
is the string correct? the bios detect the xbox drive but mtkflash is blind...

yes now do the other 2 so all 5-6 ports can have the drive connected to them

QUOTE(Brighteyes @ Jan 17 2007, 07:36 PM)

8680 c127 00fe 20fe

QUOTE(exstazi @ Jan 20 2007, 02:46 PM)

L Revision: 0611 4932 f001 7001
A Revision: 0611 4932 00df 00dd

QUOTE(Spanker_bf @ Jan 22 2007, 12:04 PM)

Hi,

anyone can make the mtkflash to me??
my drive is the TS-H943A ms28 August 2006 and my motherboard is A8N-e.

Waiting for halp...!

Thanks,
Guilherme - Spanker

you gonna have to get a via card or do the vcc trick
your info is missing a digit
try copy and paste

QUOTE(lavos @ Jan 23 2007, 09:19 AM)

please anyone help me...
I can´t do a mktflash modified

Asus K9V-X

Name   VIA Serial ATA RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3149&SUBSYS_80ED1043&REV_80\3&267A616A&0&78
I/O Port   0x0000E800-0x0000E807
I/O Port   0x0000E400-0x0000E403
I/O Port   0x0000E000-0x0000E007
I/O Port   0x0000D800-0x0000D803
I/O Port   0x0000D400-0x0000D40F
I/O Port   0x0000D000-0x0000D0FF
IRQ Channel   IRQ 20
Driver   d:\windows\system32\drivers\viasraid.sys (5.1.2600.220, 75,50 KB (77.312 bytes), 23/1/2007 12:21)
Anyone can do for me, please??

you have a 8327 you dont need to edit mtkflash, if you want you can edit in the ports for fun
0611 4931 00e8 00e0

QUOTE(noomski @ Jan 25 2007, 09:31 AM)

360 Drive: Samsung m28
PC Motherboard: Asus P5N32 SLi Deluxe
PC Motherboard chipset: nforce

not without the vcc trick

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: xtc.sanchez on February 18, 2007, 05:41:00 AM

Hey,

I cant help myself and dont really know what VIA chipset I have... and xtreme boot maker cant help me with this.

Can you tell me with what values I should fill the boxes "Device ID" and "I/O Port"?

My MSINFO32:

QUOTE

Name VIA SATA RAID Controller
Hersteller VIA Technologies, Inc.
Status OK
PNP-Gerätekennung PCI\VEN_1106&DEV_3149&SUBSYS_31491849&REV_80\3&267A616A&0&78
E/A-Port 0x0000EC00-0x0000EC07
E/A-Port 0x0000E800-0x0000E803
E/A-Port 0x0000E400-0x0000E407
E/A-Port 0x0000E000-0x0000E003
E/A-Port 0x0000DC00-0x0000DC0F
E/A-Port 0x0000D800-0x0000D8FF
IRQ-Kanal IRQ 20
Treiber c:\windows\system32\drivers\viamraid.sys (5.1.2600.300, 71,88 KB (73.600 Bytes), 20.04.2005 09:38)

I dont get it with the 7bytes difference. ^^

greets, san~

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on February 19, 2007, 10:51:00 AM

QUOTE(xtc.sanchez @ Feb 18 2007, 04:48 AM)

look on the chip, 00ec 00e4

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: PlayStation3Br on February 23, 2007, 08:35:00 PM

I have a motherboard ASUS A7N8X Deluxe, and no have a SATA connector, but i buy a PCI to SATA adaptor and hacking a Hitachi using this adaptor.

Now i have a Samsung MS28 to hacking and this adaptor not see the drive in DOS or Windows.

Using Xtreme Boot Maker, in DOS i see the message:

No Drives found.

I update BIOS of motherboard, turn on Xbox 360 and PC at same time, and others :S

Have a tip?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: mikearama on February 24, 2007, 07:06:00 AM

Hey Grim, et al... I sure could use a second opinion on what's ailing me. Been at this for two days (read hundreds of posts)... these ms28's are killing me.

I've installed a via vt6421 pci card into my pc, and added the latest drivers from viaarena. I have the ms28 setup as expected... power from the console, and long sata cable to pci card.

I've tinkered with xtremebootmaker (both 0.3.6 and 0.5.3), but cannot get a working boot disc. I can boot to the menu and launch mtkflash (or xread in 0.5.3), and I even get the option of: 2. xtreme, but inevitably stall at the dreaded: "port A400 master/secondary a0" point.

Please peruse my numbers in xtremebootmaker and see if you can find my error.

From msinfo_dump:

[SCSI]

Item   Value
Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&58
I/O Port   0x0000A400-0x0000A40F
I/O Port   0x0000A800-0x0000A80F
I/O Port   0x0000AC00-0x0000AC0F
I/O Port   0x0000B000-0x0000B00F
I/O Port   0x0000B400-0x0000B41F
I/O Port   0x0000B800-0x0000B8FF
IRQ Channel   IRQ 11
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.540, 100.50 KB (102,912 bytes), 2/23/2007 3:53 PM)

Xtremebootmaker provides the obvious 11063249 for device ID, and A400AC00 for port. Like I mentioned, this allows 2. Xtreme to show up in the launch list, but no further.

I note the difference of 16 in port ranges, but do not fully understand the implications. I also tried all manner of combinations of all drives plugged in... no drives plugged in... just a dvd drive.

I would appreciate (you have no idea) any thoughts on the port deal.
Mike

This post has been edited by mikearama: Feb 24 2007, 03:10 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on February 28, 2007, 02:15:00 AM

QUOTE(mikearama @ Feb 24 2007, 06:13 AM)

you have a ms28, use the ms25 bad flash recovery method

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: nim001 on February 28, 2007, 01:54:00 PM

hey man i am using asus motherboard P4P800, i think this is one of my sata controllers i was wondering if u could help me out with the code to feed and hex edit mtkflash, u can pm me if u like. Would it be possible that u can make the mtkflash for this?

Thanks in advance man:)

Name   Intel® 82801EB Ultra ATA Storage Controllers
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_24D1&SUBSYS_80A61043&REV_02\3&267A616A&0&FA
I/O Port   0x0000EFE0-0x0000EFE7
I/O Port   0x0000EFAC-0x0000EFAF
I/O Port   0x0000EFA0-0x0000EFA7
I/O Port   0x0000EFA8-0x0000EFAB
I/O Port   0x0000EF90-0x0000EF9F
IRQ Channel   IRQ 18
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3,25 KB (3.328 bytes), 23-8-2001 14:00)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: KeyserSosex on March 02, 2007, 05:09:00 AM

Thanx Grimm....buy a sata/pci controller and not have more dramas...

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on March 05, 2007, 08:28:00 PM

QUOTE(nim001 @ Feb 28 2007, 01:01 PM)

yes, E-mail that info to me and you will get an edited mtkflash back

ps have you tried using xtreme boot maker?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: nierealny on April 19, 2007, 01:16:00 PM

Hello, he only is visible after the use of extreme boot maker in dos

1 : Pri Master

After the use of mtk183c _ VIA chucks out me the error of

port: 1f0, Master / Slave:b0
Status = 72, should baa 70
ERR: user break.

When I disconnect the drive DVD chuck out that he can not find the device in both cases.

i have this controler http://www.allegro.p...6421_f_vat.html
mobo DFI Lan Party NF4 Ultra-D, LITE-ON DVDRW LH-18A1H and XBOX360 PREMIUM MS28

Nazwa   VIA VT6421 RAID Controller
Producent   VIA Technologies, Inc.
Stan   OK
Identyfikator urządzenia PNP   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&13699180&0&3848
Port We/Wy   0x0000CC00-0x0000CC0F
Port We/Wy   0x0000C800-0x0000C80F
Port We/Wy   0x0000C400-0x0000C40F
Port We/Wy   0x0000C000-0x0000C00F
Port We/Wy   0x0000BC00-0x0000BC1F
Port We/Wy   0x0000B800-0x0000B8FF
Kanał IRQ   IRQ 19
Sterownik   c:\windows\system32\drivers\viamraid.sys (5.1.2600.530, 98,63 KB (100 992 bajtów), 2007-04-15 19:13)

Nazwa   SCSI/RAID Host Controller
Producent   (Standard mass storage controllers)
Stan   OK
Identyfikator urządzenia PNP   ACPI\PNPA000\4&3C09E8A2&0
Port We/Wy   0x0000FFE0-0x0000FFEF
Kanał IRQ   IRQ 9

Nazwa   SCSI/RAID Host Controller
Producent   (Standard mass storage controllers)
Stan   OK
Identyfikator urządzenia PNP   ACPI\PNPA000\4&3C09E8A2&1
Port We/Wy   0x0000FFA0-0x0000FFAF
Kanał IRQ   IRQ 9

I want flash original bios on modified xtreme 5.1
this the weirdest is that I already installed xtreme and the whole operation ran easily.

PLS send me modifed mktflash.
[email protected]

I apologize for cutting English

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: hecz on April 24, 2007, 03:44:00 PM

hi I want to know if my sata is compatible ive flashed a lot of hitachis never a samsung Im trying to flash a ms25 and can I power up the drive with the x360 usb to sata? (xecuter)

Name   Intel® 82801EB Ultra ATA Storage Controllers
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_24DB&SUBSYS_24D01849&REV_02\3&267A616A&0&F9
I/O Port   0x0000FC00-0x0000FC0F
Memory Address   0xFF37FC00-0xFF37FFFF
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/23/2001 3:00 AM)


Name   D347PRT SCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   PCI\D347PRT\0000
Driver   c:\windows\system32\drivers\d347prt.sys (3.47.0.0 built by: WinDDK, 5.13 KB (5,248 bytes), 2/1/2007 2:33 PM)

Name   XMASSCSI SCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   PCI\XMASSCSI\0000
Driver   c:\windows\system32\drivers\xmasscsi.sys (3.44.0.0 built by: WinDDK, 5.38 KB (5,504 bytes), 4/12/2007 3:26 PM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on April 24, 2007, 09:49:00 PM

QUOTE(hecz @ Apr 24 2007, 02:51 PM)

hi I want to know if my sata is compatible ive flashed a lot of hitachis never a samsung Im trying to flash a ms25 and can I power up the drive with the x360 usb to sata? (xecuter)
Name   Intel® 82801EB Ultra ATA Storage Controllers
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_24DB&SUBSYS_24D01849&REV_02\3&267A616A&0&F9
I/O Port   0x0000FC00-0x0000FC0F
Memory Address   0xFF37FC00-0xFF37FFFF
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/23/2001 3:00 AM)

Name   D347PRT SCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   PCI\D347PRT\0000
Driver   c:\windows\system32\drivers\d347prt.sys (3.47.0.0 built by: WinDDK, 5.13 KB (5,248 bytes), 2/1/2007 2:33 PM)

Name   XMASSCSI SCSI Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   PCI\XMASSCSI\0000
Driver   c:\windows\system32\drivers\xmasscsi.sys (3.44.0.0 built by: WinDDK, 5.38 KB (5,504 bytes), 4/12/2007 3:26 PM)

its sata to usb and that only works for hitachis since theres no usb drivers in dos

you havent showen me a sata controller, try installing your driver

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: hecz on April 25, 2007, 01:09:00 AM

QUOTE(Grim187 @ Apr 24 2007, 11:56 PM)

its sata to usb and that only works for hitachis since theres no usb drivers in dos

you havent showen me a sata controller, try installing your driver

ive checked on my MOBO book and the only thing it says : asrock 775i65g, Intel ICH5 (near the sata)

went to the page for the drivers and there is no drivers :S.

any ideas?

and i connect the hitachi drive straight to the sata and its recognized :S

and about the samsung and the x360 usb , I asked about using the power not the adaptor (sata to usb) cuz i dont like the idea of powering my 360 and the pc at the same time

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Sniper_Monkey on April 26, 2007, 09:38:00 PM

Hi Grim, I am hoping you can help me or someone else can.

I am using an xbox 360 with a MS25 drive. I am making a usb bootable drive with the latest version of xtreme boot maker. I am using a VIA VT6421 SATA card.

If i look under MSINFO32 etc, in the IDE i have a Intel® 82801GB/GR/GH (ICH7 Family) Serial ATA Storage Controller - 27C0 - and if I look under SCSI I have VIA VT6421 RAID Controller.

Now in extreme boot maker I selet the correct firmware and the it says make custom MKTFLASH so i select it and it detects my VIA Sata card and gives them a device ID of 11063249 and a I/O Port of DC00D800. So i go ahead and format and make bootable.

I boot into dos with the sata cable from card NOT in the back of the dvd drive ofthe 360. It comes to the prompt so I type samread ******* ***** and it offers me one selection of 1. IDE Primary Master. The only think it seems to be able to detect is my IDE CDROM.

I have read some tutorials and am stuck.

I understand that the latest version of Extreme Boot Maker does all the hex editing for you, correct?

Thanks in advance to Grim or anyone that can help.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Sniper_Monkey on April 27, 2007, 01:52:00 PM

Problem solved, thanks guys

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: ynnad on May 04, 2007, 03:05:00 PM

Hey all,

i need some help editing mtkflash to suit my SATA chipset.

the Info:
Name   NVIDIA nForce4 Serial ATA Controller
Manufacturer   NVIDIA Corporation
Status   OK
PNP Device ID   PCI\VEN_10DE&DEV_0054&SUBSYS_B0031458&REV_F3\3&2411E6FE&0&38
I/O Port   0x000009F0-0x000009F7
I/O Port   0x00000BF0-0x00000BF3
I/O Port   0x00000970-0x00000977
I/O Port   0x00000B70-0x00000B73
I/O Port   0x0000D000-0x0000D00F

What i thought: DE10 5400
and F009 7009

P.S. i just wanted to confirm when editing the mtkyflash file all i do is Goto B370 and start typing in the new hex codes. (it does contain nvidia stuff in the text on the right so im pretty sure im in the right spot)

Also i havent seen anyone elses code with a letter in it?

I would appreciate any help!

Cheers

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Blanck on May 15, 2007, 04:03:00 PM

Hello, I would hereby like to get a confirmation from someone that what I think is correct actually is~

Name   ATI AHCI Compatible RAID Controller
Manufacturer   ATI Technologies Inc.
Status   OK
PNP Device ID   PCI\VEN_1002&DEV_4380&SUBSYS_72431462&REV_00\3&267A616A&0&90
I/O Port   0x0000E800-0x0000E807
I/O Port   0x0000E400-0x0000E403
I/O Port   0x0000E000-0x0000E007
I/O Port   0x0000DC00-0x0000DC03
I/O Port   0x0000D800-0x0000D80F
Memory Address   0xFFEFFC00-0xFFEFFFFF
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\ahcix64s.sys (2.5.1540.35, 135.40 KB (138,648 bytes), 1/3/2007 4:18 PM)

1. So was I correct in that the following is the sequence I have to hex-"inject"?
02108043 00E800E0

2. And in this example, have I injected it in the correct place?
[img=http://img524.imageshack.us/img524/6849/mktflashdk8.th.jpg]

3. Would it be ok for me to change the text
VIA8237 (which is actually 56 4941 3832 3337?)
or rather, would this be needed at all? Or can this text be ignored completely?

Please point out anything I've done wrong so far in editing MTKflash to flash my drive, or confirm if what I've come up with so far is correct~ Are there any other problems I might encounter while retrieving the original flash and flashing the hacked one with this setup or type of SATA controller?

Thank you~

This post has been edited by Blanck: May 15 2007, 11:04 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: PhatheadWRX on May 22, 2007, 02:25:00 PM

trying to get my Gigabyte GA-965P-S3 working with Sammy ms25.

under Storage/IDE:

Name   Intel® 82801GB/GR/GH (ICH7 Family) Serial ATA Storage Controller - 27C0
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27C0&SUBSYS_B0021458&REV_01\3&13C0B0C5&0&FA
I/O Port   0x0000F000-0x0000F00F
Driver   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/23/2001 8:00 AM)

Name   Primary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&1C8F7963&0&0
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
IRQ Channel   IRQ 14
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/3/2004 5:59 PM)

Name   Secondary IDE Channel
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&1C8F7963&0&1
I/O Port   0x00000170-0x00000177
I/O Port   0x00000376-0x00000376
IRQ Channel   IRQ 15
Driver   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93.13 KB (95,360 bytes), 8/3/2004 5:59 PM)

I know 8680 C027, but not the IO part.

Thanks Grim / whoever!

This post has been edited by PhatheadWRX: May 22 2007, 09:27 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Lifedrain on May 23, 2007, 09:50:00 AM

Is it possible to do this with an asus m2n32 ws pro mainboard? [nforce and marvell SATA-Controllers]

Flashing Samsung Ms28. Hope for an quick answer! =)

This post has been edited by Lifedrain: May 23 2007, 04:51 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: BEVEL on May 23, 2007, 02:54:00 PM

Is there some kind of list of motherboards or chipsets that work with flashing?

I got a Asus commando, with JMicron JMB36X Controller.

I cant get my Samsung ms25 flashed, it wont get recognised
I tried xtreme boot maker, no help
anyone tried this yet ?

This post has been edited by BEVEL: May 23 2007, 09:56 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: BEVEL on May 24, 2007, 12:54:00 AM

bump, srry
getting frustrated, 2 day at it

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: BEVEL on May 24, 2007, 05:18:00 AM

Just another quick question
Is your drive supposed to be found when you check your bios?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on May 30, 2007, 05:46:00 PM

QUOTE(hecz @ Apr 25 2007, 12:45 AM)

http://www.google.com/search?sourceid=navc...;q=ich5+drivers
ya you can use the xkit or x360 to power the drive

QUOTE(Sniper_Monkey @ Apr 26 2007, 09:14 PM)

ich7 works but its alittle buggy so its good you got the via, make sure you are using the port closest to the front of the computer on the via card

i wouldent use sam, just use mtkflash r /m /sata orig.bin

QUOTE(Blanck @ May 15 2007, 03:39 PM)

Hello, I would hereby like to get a confirmation from someone that what I think is correct actually is~

Name   ATI AHCI Compatible RAID Controller
Manufacturer   ATI Technologies Inc.
Status   OK
PNP Device ID   PCI\VEN_1002&DEV_4380&SUBSYS_72431462&REV_00\3&267A616A&0&90
I/O Port   0x0000E800-0x0000E807
I/O Port   0x0000E400-0x0000E403
I/O Port   0x0000E000-0x0000E007
I/O Port   0x0000DC00-0x0000DC03
I/O Port   0x0000D800-0x0000D80F
Memory Address   0xFFEFFC00-0xFFEFFFFF
IRQ Channel   IRQ 22
Driver   c:\windows\system32\drivers\ahcix64s.sys (2.5.1540.35, 135.40 KB (138,648 bytes), 1/3/2007 4:18 PM)
1. So was I correct in that the following is the sequence I have to hex-"inject"?
02108043 00E800E0

2. And in this example, have I injected it in the correct place?
[img=http://img524.imageshack.us/img524/6849/mktflashdk8.th.jpg]

3. Would it be ok for me to change the text
VIA8237 (which is actually 56 4941 3832 3337?)
or rather, would this be needed at all? Or can this text be ignored completely?
Please point out anything I've done wrong so far in editing MTKflash to flash my drive, or confirm if what I've come up with so far is correct~ Are there any other problems I might encounter while retrieving the original flash and flashing the hacked one with this setup or type of SATA controller?

Thank you~

looks good, i dont see anyreason to change it but you can to a max of 10 digits (i think)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Console Man on June 22, 2007, 02:52:00 PM

Hi all,

I have been following 'The Specialists' guide for using hddhackr and i have been directed to this thread n the forum. I have a version of mtkflash which i have hex edited and works perfect and i have tried hex editing hddhackr with the same bytes, is this the correct proceedure?

Here is my details:

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&38
I/O Port   0x0000D800-0x0000D80F
I/O Port   0x0000D400-0x0000D40F
I/O Port   0x0000D000-0x0000D00F
I/O Port   0x0000CC00-0x0000CC0F
I/O Port   0x0000C800-0x0000C81F
I/O Port   0x0000C400-0x0000C4FF
IRQ Channel   IRQ 18
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.542, 101.63 KB (104,064 bytes), 30/04/2007 13:20)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&5D18F2DF&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9

I use 0611 4932 D024 B024 which i know is SLIGHTYLY different from what my settings say but it works perfectly with MTKFLASH but not HDDHACKR. Can anyone give me any advice on how i should edit HDDHACKR so my 120GB original drive gets regonised so i can copy onto a new WD 120BEV. I have tried a few different settings but after a day of hex editing my head is buzzing and i feel i am over looking something simple.

Any help is greatly appreciated

This post has been edited by Console Man: Jun 22 2007, 09:56 PM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 22, 2007, 05:26:00 PM

QUOTE(Console Man @ Jun 22 2007, 02:28 PM)

Hi all,

I have been following 'The Specialists' guide for using hddhackr and i have been directed to this thread n the forum. I have a version of mtkflash which i have hex edited and works perfect and i have tried hex editing hddhackr with the same bytes, is this the correct proceedure?

Here is my details:

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\3&61AAA01&0&38
I/O Port   0x0000D800-0x0000D80F
I/O Port   0x0000D400-0x0000D40F
I/O Port   0x0000D000-0x0000D00F
I/O Port   0x0000CC00-0x0000CC0F
I/O Port   0x0000C800-0x0000C81F
I/O Port   0x0000C400-0x0000C4FF
IRQ Channel   IRQ 18
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.542, 101.63 KB (104,064 bytes), 30/04/2007 13:20)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&5D18F2DF&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9
I use 0611 4932 D024 B024 which i know is SLIGHTYLY different from what my settings say but it works perfectly with MTKFLASH but not HDDHACKR. Can anyone give me any advice on how i should edit HDDHACKR so my 120GB original drive gets regonised so i can copy onto a new WD 120BEV. I have tried a few different settings but after a day of hex editing my head is buzzing and i feel i am over looking something simple.

Any help is greatly appreciated

0611 4932 00D8 00D0

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Console Man on June 23, 2007, 11:40:00 AM

QUOTE(Grim187 @ Jun 23 2007, 01:02 AM)

0611 4932 00D8 00D0

Thanks m8, i just had DOH moment, i had tried that figure in Hex last night and it didnt work, then i reaslise that i was saving file to pc and not USB pen and was try same unedited file over and over again LOL

DOH
DOH
DOH

All is well and fine now, thanks m8 (IMG:style_emoticons/default/biggrin.gif)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: hecz on June 25, 2007, 04:54:00 AM

Ive tried iPrep and dont detect my drive

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&2E98101C&0&00F0
I/O Port   0x0000BC00-0x0000BC0F
I/O Port   0x0000B800-0x0000B80F
I/O Port   0x0000B400-0x0000B40F
I/O Port   0x0000B000-0x0000B00F
I/O Port   0x0000AC00-0x0000AC1F
I/O Port   0x0000A800-0x0000A8FF
IRQ Channel   IRQ 21
Driver   c:\windows\system32\drivers\viamraid.sys (5.1.2600.310, 72.38 KB (74,112 bytes), 6/23/2007 6:05 PM)

Name   SCSI/RAID Host Controller
Manufacturer   Unknown Manufacturer
Status   OK
PNP Device ID   PCI\XMASSCSI\0000
Driver   c:\windows\system32\drivers\xmasscsi.sys (3.44.0.0 built by: WinDDK, 5.38 KB (5,504 bytes), 4/12/2007 3:26 PM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on June 25, 2007, 12:46:00 PM

QUOTE(hecz @ Jun 25 2007, 04:30 AM)

0611 4932 00BC 00B4

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Corrupted on June 30, 2007, 06:00:00 PM

does anyone have a link to an edited mtkflash for ich7? i have tryed editing it myself but in system information mine only has one i/o port line

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: acie24 on July 01, 2007, 05:44:00 PM

its not working for me

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: maciokoki on July 18, 2007, 02:50:00 AM

SCSI:

Name   D347PRT SCSI Controller
Producent   (Standard mass storage controllers)
Status   OK
PNP devices   PCI\D347PRT\0000
Driver   c:\windows\system32\drivers\d347prt.sys (3.47.0.0 built by: WinDDK, 5,13 KB (5 248 bytes), 2007-06-19 08:47)

IDE:
Name   Controler ALi M5229 PCI Bus Master IDE
Producent   Acer Labs Inc
Status   OK
PNP devices   PCI\VEN_10B9&DEV_5229&SUBSYS_52291849&REV_C7\3&267A616A&0&90
I/O Port   0x0000FF00-0x0000FF0F
Driver   c:\windows\system32\drivers\aliide.sys (1.20, 5,13 KB (5 248 bytes), 2001-08-17 23:51)

What now? (IMG:style_emoticons/default/huh.gif) my board it 939 dual stata2 with chip Uli 1695 / Uli 1567

This post has been edited by maciokoki: Jul 18 2007, 09:59 AM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: bobinsset on July 22, 2007, 11:25:00 AM

Nom   NVIDIA nForce 430/410 Serial ATA Controller
Fabricant   NVIDIA Corporation
Statut   OK
ID du périphérique Plug-and-Play   PCI\VEN_10DE&DEV_0266&SUBSYS_81C01043&REV_A1\3&2411E6FE&0&70
Port E/S   0x000009F0-0x000009F7
Port E/S   0x00000BF0-0x00000BF3
Port E/S   0x00000970-0x00000977
Port E/S   0x00000B70-0x00000B73
Port E/S   0x0000E000-0x0000E00F
Adresse mémoire   0xFE02D000-0xFE02DFFF
Canal IRQ   IRQ 22
Pilote   c:\windows\system32\drivers\nvata.sys (5.10.2600.0650 built by: WinDDK, 97,25 Ko (99 584 Octets), 13/12/2006 13:14)

tanks you

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: NathanJC on August 18, 2007, 04:06:00 AM

I need some help obtaining hex values:

Name   Initio inic1620 S-ATA Adapter
Manufacturer   INITIO Corp.
Status   OK
PNP Device ID   PCI\VEN_1101&DEV_1622&SUBSYS_16221101&REV_02\4&25296D99&0&58F0
I/O Port   0x00003400-0x000034FF
I/O Port   0x00003000-0x000030FF
I/O Port   0x00002C00-0x00002CFF
I/O Port   0x00002800-0x000028FF
I/O Port   0x00002400-0x000024FF
Memory Address   0xE8110000-0xE8110FFF
IRQ Channel   IRQ 23
Driver   c:\windows\system32\drivers\inic1620.sys (4.06.05.0830 built by: WinDDK, 19.13 KB (19,584 bytes), 8/18/2007 5:14 PM)

Any help is greatly appreciated. Thanks!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: NS91 on August 20, 2007, 04:15:00 PM

I'm completely lost here. Can anyone tell me what values to use from my SATA Controller (although I don't think it's possible with mine):

Name - Intel® 82801FBM Ultra ATA Storage Controllers - 2653
Manufacturer - Intel
Status - OK
PNP Device ID - PCI\VEN_8086&DEV_2653&SUBSYS_01891028&REV_03\3&61AAA01&0&FA
I/O Port - 0x0000BFA0-0x0000BFAF
Driver - c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3.25 KB (3,328 bytes), 8/10/2004 7:00 AM)

Thanks in advance!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on August 20, 2007, 05:21:00 PM

QUOTE(maciokoki @ Jul 18 2007, 02:26 AM)

SCSI:

Name   D347PRT SCSI Controller
Producent   (Standard mass storage controllers)
Status   OK
PNP devices   PCI\D347PRT\0000
Driver   c:\windows\system32\drivers\d347prt.sys (3.47.0.0 built by: WinDDK, 5,13 KB (5 248 bytes), 2007-06-19 08:47)
IDE:
Name   Controler ALi M5229 PCI Bus Master IDE
Producent   Acer Labs Inc
Status   OK
PNP devices   PCI\VEN_10B9&DEV_5229&SUBSYS_52291849&REV_C7\3&267A616A&0&90
I/O Port   0x0000FF00-0x0000FF0F
Driver   c:\windows\system32\drivers\aliide.sys (1.20, 5,13 KB (5 248 bytes), 2001-08-17 23:51)
What now?

my board it 939 dual stata2 with chip Uli 1695 / Uli 1567

install the driver for your sata controller

QUOTE(bobinsset @ Jul 22 2007, 11:01 AM)

de10 6602 f009 7009

QUOTE(NathanJC @ Aug 18 2007, 03:42 AM)

0111 2216 0034 002c

QUOTE(NS91 @ Aug 20 2007, 03:51 PM)

thats an ide controller, try installing your sata chipset's driver.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: NS91 on August 20, 2007, 07:39:00 PM

QUOTE

thats an ide controller, try installing your sata chipset's driver.

Where can I find those at? And is it a definite that I have a SATA controller in my computer?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: NathanJC on August 21, 2007, 05:54:00 AM

Now that I have my hex value (0111 2216 0034 002c), where do I inject it into mtkflash using Hex Workshop? Every tutorial I have found is no help to me as they only edit values for chipsets listed that they own (mine's a Initio inic1620 S-ATA Adapter).

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: NathanJC on August 22, 2007, 06:22:00 PM

QUOTE(NathanJC @ Aug 21 2007, 10:30 PM)

C'mon guys, I know someone out there has an answer!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: dalink36 on August 25, 2007, 01:35:00 AM

whats good people!! can i get a little help here please im trying to flash my sammy/tos m28 dive but im running into mad problems...i have a vt6421 pci card but its not reconizing my drive...heres the specs:::

Name   VIA VT6421 RAID Controller
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&5C2F873&0&10F0
I/O Port   0x0000EF00-0x0000EF0F
I/O Port   0x0000EE00-0x0000EE0F
I/O Port   0x0000ED00-0x0000ED0F
I/O Port   0x0000EC00-0x0000EC0F
I/O Port   0x0000EB00-0x0000EB1F
I/O Port   0x0000E800-0x0000E8FF
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\viamraid.sys (6.0.6000.6142, 110.50 KB (113,152 bytes), 6/26/2007 10:59 PM)

Name   SCSI/RAID Host Controller
Manufacturer   (Standard mass storage controllers)
Status   OK
PNP Device ID   ACPI\PNPA000\4&5D18F2DF&0
I/O Port   0x0000FFE0-0x0000FFEF
IRQ Channel   IRQ 9

Name   Microsoft iSCSI Initiator
Manufacturer   Microsoft
Status   OK
PNP Device ID   ROOT\ISCSIPRT\0000
Driver   c:\windows\system32\drivers\msiscsi.sys (6.0.6000.16386, 164.60 KB (168,552 bytes), 11/2/2006 4:52 AM)

so since that didnt work i tried my onboard sata controller.. it reconize my drive but when i select it i get a fail to initial ide port error...can someone help me out pleeeaase? heres is the specs to my onboard on..

Name   Intel® 82801G (ICH7 Family) Ultra ATA Storage Controllers - 27DF
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27DF&SUBSYS_1B761019&REV_01\3&2411E6FE&0&F9
I/O Port   0x0000FA00-0x0000FA0F
Driver   c:\windows\system32\drivers\pciide.sys (6.0.6000.16386, 13.10 KB (13,416 bytes), 11/2/2006 4:51 AM)

Name   ATA Channel 0
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&1F89409C&0&0
I/O Port   0x000001F0-0x000001F7
I/O Port   0x000003F6-0x000003F6
IRQ Channel   IRQ 14
Driver   c:\windows\system32\drivers\atapi.sys (6.0.6000.16386, 18.60 KB (19,048 bytes), 11/2/2006 4:51 AM)

Name   Intel® 82801GB/GR/GH (ICH7 Family) Serial ATA Storage Controller - 27C0
Manufacturer   Intel
Status   OK
PNP Device ID   PCI\VEN_8086&DEV_27C0&SUBSYS_1B761019&REV_01\3&2411E6FE&0&FA
I/O Port   0x0000F900-0x0000F907
I/O Port   0x0000F800-0x0000F803
I/O Port   0x0000F700-0x0000F707
I/O Port   0x0000F600-0x0000F603
I/O Port   0x0000F500-0x0000F50F
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\pciide.sys (6.0.6000.16386, 13.10 KB (13,416 bytes), 11/2/2006 4:51 AM)

Name   ATA Channel 0
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&10F07810&0&0
Driver   c:\windows\system32\drivers\atapi.sys (6.0.6000.16386, 18.60 KB (19,048 bytes), 11/2/2006 4:51 AM)

Name   ATA Channel 1
Manufacturer   (Standard IDE ATA/ATAPI controllers)
Status   OK
PNP Device ID   PCIIDE\IDECHANNEL\4&10F07810&0&1
Driver   c:\windows\system32\drivers\atapi.sys (6.0.6000.16386, 18.60 KB (19,048 bytes), 11/2/2006 4:51 AM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: abrasmateus on August 27, 2007, 07:20:00 PM

OK. This is the first time i try to manual edit mtkflash. Ive flashed a lot of drives but was using VIA Chipset. The thing is, can i edit it since my chipset is INTEL now?I mean, if i edit, will it work?
thanks a lot.

This is my info:

Name    Intel® ICH8 4 port Serial ATA Storage Controller - 2820
Manufacturer   Intel
Status    OK
PNP Device ID   PCI\VEN_8086&DEV_2820&SUBSYS_514D8086&REV_02\3&18D45AA6&0&FA
I/O Port    0x00003138-0x0000313F
I/O Port    0x0000314C-0x0000314F
I/O Port    0x00003130-0x00003137
I/O Port    0x00003148-0x0000314B
I/O Port    0x00003110-0x0000311F
I/O Port    0x00003100-0x0000310F
IRQ Channel   IRQ 19
Driver   c:\windows\system32\drivers\intelide.sys (6.0.6000.16386, 16,10 KB (16.488 bytes), 02/11/2006 06:38)

MY sequence is
86802028
38313031
is that right?

PS: This info is under IDE not SCSI
and there is another one just like this but with some few diferences

This post has been edited by abrasmateus: Aug 28 2007, 02:22 AM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: jrokker69 on August 27, 2007, 07:50:00 PM

My info was under IDE as well. Mine worked fine contrary to someone telling me it wouldn't. Not sure how they came to that conclusions, but whatever. Those numbers/letters are correct. Mine worked without changing the second set of numbers/letters. Mtkflash should find the I/O port part by itself.

BTW if ne one needs a link to the enable0800.iso here it is:

http://www.360mods.net/files/activate.zip

This post has been edited by jrokker69: Aug 28 2007, 02:54 AM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: abrasmateus on August 27, 2007, 09:24:00 PM

jrokker69 what is your chipset brand?
is it VIA?
cause im afraid mine is not going to work cause my chipset is from INTEL and not VIA.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: jrokker69 on August 27, 2007, 10:25:00 PM

My Motherboard is a Gigabyte K8N51PVM9-RH. Chipset is NForce 430 by Nvidia. Did you try editing your MTKflash? And remember you have to use the 0800 disc process to disable firmguard (if your current firmware has firmguard.) If you're worried about it not working the worst thing that can happen is it doesn't work. After all you're just reading/backing up the firmware that is currently on the drive. I mean, that is the first step unless you don't need your original firmware for safe keeping. But reading it first would be a good way to test rather than just trying to write the new firmware to the drive.

Read my original post http://forums.xbox-scene.com/index.php?s=&...t&p=4094503

and follow everything i did. This took me about 12 hours of searching for an answer that i already had and just forgot. The enable 0800 disc. I had already flashed my drive with Xtreme 4.2. It has firmguard which prevents you from writing or reading the firmware. You have to unlock it to read or write. I noticed alot of people posting the same problem which is when they select (in MTKflash) which port their drive is connected to and they get something similar to this: port: 1f0, Master:b0

And then it just hangs there. Mine kept doing that and i (the dumbshit i am) forgot about the disabling of the firmguard.

This post has been edited by jrokker69: Aug 28 2007, 05:39 AM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: abrasmateus on August 28, 2007, 07:45:00 AM

jrokker69 thanks for the answer. As i said before i do know how to flash and reflash drives. And i know about 0800 disc. I almost throwed my MS28 in the wall cause it wouldnt read (before i knew about the 0800 disc). But thanks any way.
Just one more thing, when i edited it on Hex Workshop there was no B370, there was only B360. So i edited exactly where Grim187 selected to edit ("0611 4931 F001 7001"), but didnt put my Chipset cause i dont know what to put.
If you could give me a help, id apprecciate a lot, thanks.

thanks a lot

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: jrokker69 on August 28, 2007, 09:25:00 PM

abrasmateus I don't think putting the chipset in matters. I'd search around the web for a modified version of Mtkflash for your chipset (that is if it even needs a modified one). My chipset needed a modifed version, because mine wouldn't work with any other version of MTKflash. I'm not sure if that's because previously i did not hex edit it. Either way, i downloaded a modified version of MTKflash for my NForce 430 chipset and i also hex edited it. I only modifed the first 8 letters/numbers. In your case it would just be the 0611 4931 part. . I do not think putting the name of the chipset matters, even if it comes up with something else. What i think matters is knowing which port your xbox drive is connected to. This can be determined by hooking up the xbox drive to the pc. Powering on both at the same time (or xbox first). Then going into the bios setup utility and looking for where it shows what port the drive is connected to.

I.E: port1, master

Then when you run mtkflash, pick the right one. Hell, pick 1 at a time if one eventually works then you know that's the one to pick next time.

I HAVE A MAJOR CORRECTION FOR YOU: You said (and i quote) "there was no B370, there was only B360"
Both of these are wrong!!! When you go into the hex editing program. Hold CTRL and hit G. Type in: B3D6 and hit search/go/whatever

The program Then brings the flashing cursor down to exactly the B3D6 spot. Maybe you are looking at the left of the screen where it shows the start of a line. You should not be looking at this number. You may be getting confused or do not fully understand how hex works. I did this same screw up too the first few times i tried to hex edit my MTKFlash. Just trust me!!! When you search for B3D6 it will bring you exactly there. You should then change the 8 numbers to the right of the flashing cursor to 0611 4931. Those are the numbers you said you found in your msinfo32. thingy.

This post has been edited by jrokker69: Aug 29 2007, 04:33 AM

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: abrasmateus on August 29, 2007, 07:33:00 PM

Ok thanks a lot for the answer. But if i change back to 0611 4931 it will become the same as the original mtkflash. Except for the 8 others bit. I changed 16bits from it.
This was the original one: 0611 4931 F001 7001

The numbers i got reading the tutorial was: 8680 2028 3831 3031

So i changed it.

The original MTKFLASH wont work with my pc. So the only solution is to edit.
So the thing is, shoud i replace all the 16bits i got from my pc, or just the 8bits as you said?
thanks a lot.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: jrokker69 on August 29, 2007, 09:57:00 PM

I would replace just the first 8. Which would be 8680 2028. And pay attention to the first post i made and all the steps i went through, because those specific steps might help you with no drive detected errors.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on August 29, 2007, 10:45:00 PM

QUOTE(NS91 @ Aug 20 2007, 07:15 PM)

Where can I find those at? And is it a definite that I have a SATA controller in my computer?

no, i just assumed if your trying to edit mtkflash for your sata chipset that you can looked and found a sata port in your computer.

QUOTE(NathanJC @ Aug 21 2007, 05:30 AM)

well you can use my tut.

p.s. the name of the chipset doesnt matter, but you can change it in the text side of hexworkshop just by overriding it.

QUOTE(dalink36 @ Aug 25 2007, 01:11 AM)

0611 4932 00ef 00ed
remember to do the 10sec trick.

QUOTE(abrasmateus @ Aug 27 2007, 06:56 PM)

unless your doing the vcc trick or the drive is already flashed and you use the 0800 disk this wont work for ms28, yes that is right.

p.s. Intel along with some others are always in ide, where via and many more are always in SCSI.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on August 29, 2007, 11:05:00 PM

QUOTE(abrasmateus @ Aug 28 2007, 07:21 AM)

Just one more thing, when i edited it on Hex Workshop there was no B370, there was only B360. So i edited exactly where Grim187 selected to edit ("0611 4931 F001 7001"),

b370 is a marker in hex that i used to get you in the general location, if i hadn't put that part in i would have had to tell you to scroll down until you found chipset names in the text part which would have been really frustrating for most.

QUOTE(jrokker69 @ Aug 27 2007, 07:26 PM)

Mine worked fine contrary to someone telling me it wouldn't.

i have edited the tut with some per drive answers to "will your chipset work".

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: abrasmateus on August 29, 2007, 11:20:00 PM

thanks a lot Grim187.
Just one more thing, do you think i should replace all those 16bits?or only the 8 first bits as jrokker69 said?
And do you think there will be any big difference between these two ways?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: Grim187 on August 30, 2007, 11:37:00 AM

QUOTE(abrasmateus @ Aug 29 2007, 10:56 PM)

well with most of the chipsets its fine just replacing the first 8 since that's the device id (so mtkflash can recognize the decive) with some (like the A rev of the via card) you have to edit in the last 8 because mtkflash will not automatically find the ports, you can try with just the first 8 and if that doesnt work do the whole 16.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: jrokker69 on August 30, 2007, 12:47:00 PM

Grim187 Thanks for your editing tutorial. I was able to read a lot of your answers to other questions and find solutions without asking you directly. Great Job!!!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: abrasmateus on August 30, 2007, 03:52:00 PM

QUOTE(Grim187 @ Aug 30 2007, 07:13 PM)

Ok, thanks a lot Grim187. I will try first 8 and if it doesnt work will try with all 16bits.
Just have to wait to get my new 360, cause i sold mine last month.
Ill post here if i get it right.....or not heheh..

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: DemonI81 on November 15, 2007, 11:34:00 AM

I can't find any SATA info in msinfo32. I have a Biostar TForce4 SLI mobo. It has a NForce4 chipset I believe. I've found no drivers for download on the biostar site. My mobo has 4 SATA ports. Any ideas?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: dbarwi1 on November 18, 2007, 03:52:00 AM

Someone please help me. I have been at this thing for hours and tried every possible suggest on countless message boards. I purchased a SY-VIA-150R SAT card (VIA VT6421L), installed v560a drivers. I have used Extreme33.rar files along with Extreme Boot Maker to setup a bootable USB. I believe this program does the Hex Edit, correct? It located my SATA card (which shows as being setup correctly in Windows, no yellow or red) and assigned the Device ID and I/O port. 11063249 / DE00DD00

I have been using several video and text tutorials that are directed at the Toshiba TS-H943 dvd drive (MS28). I have tried every possible combination of starting one device before the other, connecting multi components to the SATA card including even a cable that led to nothing. If I wait until the command prompt before starting the xbox, often it will lock up the entire computer.

All of this and when I run SAMREAD r /m orgin.bin, there are no devices found. When I had a dvd player attached to the IDE port, I received the ... a04 error and it would sit there until I hit ESC. Other than that, the SATA card has never once been found.

Everything has been disconnected and disable from Bios as well.

There is a SATA Raid Controller Card Bios that comes up prior to my USB drive booting. If I have the xbox up and connected during this process I get the following message:

Hardware Initiate Failed, Please Check Device!!! The Bios does not be installed. Press <g> to Continue!

- Terrible English, but that is beside the point.

I cannot think of anything else to try. I have seen this particular card and chipset promoted all over these boards. I've been told that following the tutorials shoud be a breeze. Is there something I am just missing?

Any help is greatly appreciated.

- Daniel

--------

Name   VIA RAID Controller - 3249
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&DC268A3&0&4080

I/O Port   0x0000DF00-0x0000DF0F
I/O Port   0x0000DE00-0x0000DE0F
I/O Port   0x0000DD00-0x0000DD0F
I/O Port   0x0000DC00-0x0000DC0F
I/O Port   0x0000DB00-0x0000DB1F
I/O Port   0x0000D800-0x0000D8FF

IRQ Channel   IRQ 16

Driver   c:\windows\system32\drivers\viamraid.sys (5.1.6000.562, 112.25 KB (114,944 bytes), 11/18/2007 1:37 AM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: dbarwi1 on November 18, 2007, 04:25:00 AM

Someone please help me. I have been at this thing for hours and tried every possible suggest on countless message boards. I purchased a SY-VIA-150R SAT card (VIA VT6421A), installed v560a drivers. I have used Extreme33.rar files along with Extreme Boot Maker to setup a bootable USB. I believe this program does the Hex Edit, correct? It located my SATA card (which shows as being setup correctly in Windows, no yellow or red) and assigned the Device ID and I/O port. 11063249 / DE00DD00

I have been using several video and text tutorials that are directed at the Toshiba TS-H943 dvd drive (MS28). I have tried every possible combination of starting one device before the other, connecting multi components to the SATA card including even a cable that led to nothing. If I wait until the command prompt before starting the xbox, often it will lock up the entire computer.

All of this and when I run SAMREAD r /m orgin.bin, there are no devices found. When I had a dvd player attached to the IDE port, I received the ... a04 error and it would sit there until I hit ESC. Other than that, the SATA card has never once been found.

Everything has been disconnected and disable from Bios as well.

There is a SATA Raid Controller Card Bios that comes up prior to my USB drive booting. If I have the xbox up and connected during this process I get the following message:

Hardware Initiate Failed, Please Check Device!!! The Bios does not be installed. Press <g> to Continue!

- Terrible English, but that is beside the point.

I cannot think of anything else to try. I have seen this particular card and chipset promoted all over these boards. I've been told that following the tutorials shoud be a breeze. Is there something I am just missing?

Any help is greatly appreciated.

- Daniel

--------

Name   VIA RAID Controller - 3249
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&DC268A3&0&4080

I/O Port   0x0000DF00-0x0000DF0F
I/O Port   0x0000DE00-0x0000DE0F
I/O Port   0x0000DD00-0x0000DD0F
I/O Port   0x0000DC00-0x0000DC0F
I/O Port   0x0000DB00-0x0000DB1F
I/O Port   0x0000D800-0x0000D8FF

IRQ Channel   IRQ 16

Driver   c:\windows\system32\drivers\viamraid.sys (5.1.6000.562, 112.25 KB (114,944 bytes), 11/18/2007 1:37 AM)

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: dbarwi1 on November 19, 2007, 09:42:00 PM

Can anyone help here?

- Daniel

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: fits79 on November 20, 2007, 02:47:00 AM

Hi. Can i do anything to work with my intel ich5 sata chipset controller the dosflash 1.4beta at the benq drives?

A lot of thanks

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: fits79 on November 20, 2007, 04:44:00 AM

Ok i'm sorry i don't see it(And cypher21 can you be more polite...).
So i refrase the question.

Is there any way that i can flash with mtkflash the benq drives and i can do that with intel ich5 sata controller?

Finally is there any other way so i can flash the benq drive with my intel ich5 onboard controller???

A lot of thanks.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: antiochos on December 19, 2007, 06:44:00 PM

Adı   ATI SATA Controller IDE mode
Üretici   ATI Technologies Inc
STATUS OK
PNP Aygıt Kimliği   PCI\VEN_1002&DEV_4380&SUBSYS_73271462&REV_00\3&267A616A&0&90
G/Ç Bağlantı Noktası   0x0000B000-0x0000B007
G/Ç Bağlantı Noktası   0x0000A000-0x0000A003
G/Ç Bağlantı Noktası   0x00009000-0x00009007
G/Ç Bağlantı Noktası   0x00008000-0x00008003
G/Ç Bağlantı Noktası   0x00007000-0x0000700F
Bellek Adresi   0xFE7FF800-0xFE7FFBFF
IRQ Kanalı   IRQ 22
Sürücü   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3,25 KBayt (3.328 Bayt), 04.08.2004 15:00)

Adı   Birincil IDE Kanalı
Üretici   (Standart IDE ATA/ATAPI denetleyiciler)
Durum   Tamam
PNP Aygıt Kimliği   PCIIDE\IDECHANNEL\4&1F2585B7&0&0
Sürücü   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93,13 KBayt (95.360 Bayt), 04.08.2004 15:00)

Adı   İkincil IDE Kanalı
Üretici   (Standart IDE ATA/ATAPI denetleyiciler)
Durum   Tamam
PNP Aygıt Kimliği   PCIIDE\IDECHANNEL\4&1F2585B7&0&1
Sürücü   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93,13 KBayt (95.360 Bayt), 04.08.2004 15:00)

Adı   ATI IDE Controller
Üretici   ATI Technologies Inc
Durum   Tamam
PNP Aygıt Kimliği   PCI\VEN_1002&DEV_438C&SUBSYS_73671462&REV_00\3&267A616A&0&A1
G/Ç Bağlantı Noktası   0x0000FF00-0x0000FF0F
Sürücü   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3,25 KBayt (3.328 Bayt), 04.08.2004 15:00)

Adı   Birincil IDE Kanalı
Üretici   (Standart IDE ATA/ATAPI denetleyiciler)
Durum   Tamam
PNP Aygıt Kimliği   PCIIDE\IDECHANNEL\4&146CABAB&0&0
G/Ç Bağlantı Noktası   0x000001F0-0x000001F7
G/Ç Bağlantı Noktası   0x000003F6-0x000003F6
IRQ Kanalı   IRQ 14
Sürücü   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93,13 KBayt (95.360 Bayt), 04.08.2004 15:00)

Adı   İkincil IDE Kanalı
Üretici   (Standart IDE ATA/ATAPI denetleyiciler)
Durum   Tamam
PNP Aygıt Kimliği   PCIIDE\IDECHANNEL\4&146CABAB&0&1
G/Ç Bağlantı Noktası   0x00000170-0x00000177
G/Ç Bağlantı Noktası   0x00000376-0x00000376
IRQ Kanalı   IRQ 15
Sürücü   c:\windows\system32\drivers\atapi.sys (5.1.2600.2180 (xpsp_sp2_rtm.040803-2158), 93,13 KBayt (95.360 Bayt), 04.08.2004 15:00)

CAN YOU HELP ME?

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: djekl on January 16, 2008, 04:52:00 PM

help me with mine plz

IPB Image

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: podger on January 16, 2008, 05:04:00 PM

@djekl.....
It would help if you told us what you need help with.....

check out this tutorial

http://www.360mods.n...al/Textbook.pdf

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: gmerk on August 24, 2008, 02:08:00 AM

Hi everybody... I spent too much time trying to figure this out but can someone help... Well GRIM you are a Saint helping people out like this.
Name   VIA RAID Controller - 3249
Manufacturer   VIA Technologies, Inc.
Status   OK
PNP Device ID   PCI\VEN_1106&DEV_3249&SUBSYS_32491106&REV_50\4&BB7B4AE&0&38F0
I/O Port   0x0000ECF0-0x0000ECFF
I/O Port   0x0000ECD0-0x0000ECDF
I/O Port   0x0000ECB0-0x0000ECBF
I/O Port   0x0000EC90-0x0000EC9F
I/O Port   0x0000EC60-0x0000EC7F
I/O Port   0x0000E800-0x0000E8FF
IRQ Channel   IRQ 10
Driver   e:\windows\system32\drivers\viamraid.sys (5.1.6000.574, 114.50 KB (117,248 bytes), 7/31/2008 11:17 AM)

Can anyone give me any advice on how i should edit HDDHACKR so my 120GB original drive gets recognized so i can copy onto a new WD 120BEV. I think that my head is about to burst looking at all the hexing. If I am correct it is the port=MPRT strong that must be changed. I have tried that but maybe it is just me. Help please.

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: tacitakar on November 05, 2008, 02:55:00 PM

QUOTE

Adı   Standart Çift Kanallı PCI IDE Denetleyici
Üretici   (Standart IDE ATA/ATAPI denetleyiciler)
Durum   Tamam
PNP Aygıt Kimliği   PCI\VEN_10DE&DEV_03EC&SUBSYS_82341043&REV_A2\3&267A616A&0&30
G/Ç Bağlantı Noktası   0x0000FFA0-0x0000FFAF
Sürücü   c:\windows\system32\drivers\pciide.sys (5.1.2600.0 (XPClient.010817-1148), 3,25 KBayt (3.328 Bayt), 15.04.2008 15:00)

Adı   Birincil IDE Kanalı
Üretici   (Standart IDE ATA/ATAPI denetleyiciler)
Durum   Tamam
PNP Aygıt Kimliği   PCIIDE\IDECHANNEL\4&2A835932&0&0
G/Ç Bağlantı Noktası   0x000001F0-0x000001F7
G/Ç Bağlantı Noktası   0x000003F6-0x000003F6
Sürücü   c:\windows\system32\drivers\atapi.sys (5.1.2600.5512 (xpsp.080413-2108), 94,25 KBayt (96.512 Bayt), 15.04.2008 15:00)

Adı   İkincil IDE Kanalı
Üretici   (Standart IDE ATA/ATAPI denetleyiciler)
Durum   Tamam
PNP Aygıt Kimliği   PCIIDE\IDECHANNEL\4&2A835932&0&1
G/Ç Bağlantı Noktası   0x00000170-0x00000177
G/Ç Bağlantı Noktası   0x00000376-0x00000376
Sürücü   c:\windows\system32\drivers\atapi.sys (5.1.2600.5512 (xpsp.080413-2108), 94,25 KBayt (96.512 Bayt), 15.04.2008 15:00)

Adı   NVIDIA MCP61 Serial ATA Controller
Üretici   NVIDIA Corporation
Durum   Tamam
PNP Aygıt Kimliği   PCI\VEN_10DE&DEV_03F6&SUBSYS_82341043&REV_A2\3&267A616A&0&40
G/Ç Bağlantı Noktası   0x0000D400-0x0000D407
G/Ç Bağlantı Noktası   0x0000D080-0x0000D083
G/Ç Bağlantı Noktası   0x0000D000-0x0000D007
G/Ç Bağlantı Noktası   0x0000CC00-0x0000CC03
G/Ç Bağlantı Noktası   0x0000C880-0x0000C88F
Bellek Adresi   0xDBFFC000-0xDBFFCFFF
IRQ Kanalı   IRQ 21
Sürücü   c:\windows\system32\drivers\nvata.sys (5.10.2600.0686 built by: WinDDK, 102,88 KBayt (105.344 Bayt), 01.09.2008 19:53)

Adı   NVIDIA MCP61 Serial ATA Controller
Üretici   NVIDIA Corporation
Durum   Tamam
PNP Aygıt Kimliği   PCI\VEN_10DE&DEV_03F6&SUBSYS_82341043&REV_A2\3&267A616A&0&41
G/Ç Bağlantı Noktası   0x0000C800-0x0000C807
G/Ç Bağlantı Noktası   0x0000C480-0x0000C483
G/Ç Bağlantı Noktası   0x0000C400-0x0000C407
G/Ç Bağlantı Noktası   0x0000C080-0x0000C083
G/Ç Bağlantı Noktası   0x0000C000-0x0000C00F
Bellek Adresi   0xDBFF7000-0xDBFF7FFF
IRQ Kanalı   IRQ 22
Sürücü   c:\windows\system32\drivers\nvata.sys (5.10.2600.0686 built by: WinDDK, 102,88 KBayt (105.344 Bayt), 01.09.2008 19:53)

what is my correct values? please help me...

thanks!!!

Title: Editing Mtkflash To Work With Your Sata Chipset
Post by: hakzo on June 30, 2009, 06:13:00 AM

I saw some people on the first page having trouble with the hex numerical system.

Its this basically,

0 1 2 3 4 5 6 7 8 9 A B C D E F

probably won't come to use for anyone and probably been answered already, but meh
