So I put a Phillips DVD-ROM in and tried to boot up and I get all the way threw the animation, then error 12.
DVD parameters (PIO/DMA). So what is going on? If I boot with the chip disabled it also makes it threw the flubber animation then the screen go's half green and half white
 thanks again.

[newhorizon]

OK put in Thompson DVD-ROM DRIVE & Now it’s making it to the ms dash, half of the time. But she's running real slowly and the picture is still all chopped up pieces in the wrong place. How is this possible?

[Chancer]

Sounds more like the HDD

[newhorizon]

Pics of boot up with HL data storage drive installed.

http://i144.photobuc...agedrive007.jpg

http://i144.photobuc...edrive006-1.jpg

http://i144.photobuc...agedrive008.jpg


Chancer have you seen this before? Thanks again.

[newhorizon]

IBM deskstar 40GB formatted with evox. This what I get
?

http://i144.photobuc...star40GB006.jpg

Ok this i have NEVER seen this befor ??     ERROR  CODE   135

Or maby it's ERROR CODE 13 & 5..............

http://i144.photobuc...tar40GB0061.jpg

Well i will try some differnt hard disk's-size/brand... and see what i get.

[Y26tav]

man... I work in a animal lab so i see things like this all the time... you need to put it out of its missery...
take it out back and just give it two in the head... or a bottle of coke while powered on. right now it would only be a drain on those still able to live.

[newhorizon]

Boy I'm sorry man I left out a huge chunk!!  I’m so damn tired. It only boots normal after it has ran threw the flubber animation and after it freezes. At that point I can hit eject and (only when there is a game in the drive) it will boot without any video problems I can even play a game! ??

http://s144.photobuc...

But I took some 4meg pics of any trouble IC spots and I have looked extremely close at both sides of the board now. And have vacuumed the board with esd vacuum and cleaned up all soldier and flux with 100% ISOPROPYL alcohol. Here are the pics.

http://i144.photobuc...izon_01/112.jpg
http://i144.photobuc...izon_01/114.jpg
http://i144.photobuc...izon_01/111.jpg
http://i144.photobuc...izon_01/110.jpg
http://i144.photobuc...rizon_01/19.jpg
http://i144.photobuc...rizon_01/18.jpg
http://i144.photobuc...rizon_01/17.jpg
http://i144.photobuc...rizon_01/17.jpg
http://i144.photobuc...rizon_01/15.jpg
http://i144.photobuc...rizon_01/14.jpg

Maybe someone’s master eye can see something I cant. Thanks again I am going to try your battle plan, step by step. And I will let yall know what has happened.
Quote DarkNMatter:
WHOA!!! If that's the case, then ignore what I've already suggested. That won't be it.
If your getting normal operation with the mod and LPC removed, then your going to have to look hard at the Aladdin modchip and/or your LPC rebuild method.
I have to admit that I've never come across a fault like your's due to a mod install. But if it works normally with everything removed, then you must be doing something wrong, or the Aladdin itself is faulty.
Here's how you should proceed next:
(1) Try doing the LPC rebuild again, but what ever you do, take your time with it.
Once you've completed it, DON'T ground the D0. Leave it for now. DON'T install the Aladdin yet either.
Re-assemble the mobo back into the case, install the drives and power it up. If it works , then good, go to the next step. If it fails, then you know you've done something wrong with the rebuild or LPC pin header.
(2) Remove the ROM drive and install the Aladdin onto the pin header. Still leave the D0 out for the time being. If it works, then continue with the next step. If it fails, then the Aladdin is at fault and would need to be replaced.
(3) Now you can attach the D0 to ground. If it fails, then you know its due to the Aladdin being faulty and as stated in step (2), it will need to be replaced.
Please let us know how you get on.
Regards,
DarkMatter
End Quote:

Thanks again       Be Back Soon

[DarkMatter]

Any progrees???
Regards,
DarkMatter

[DarkMatter]

Would I be correct in saying that you've only done the LPC rebuild and nothing else, and your getting the problem already???
The last of your pictures reminds me of a colour test pattern.
I have to admit that your LPC rebuild is well done. It seems you did take your time, thus giving you an excellent result.    But unfortunately it didn't seem to help.

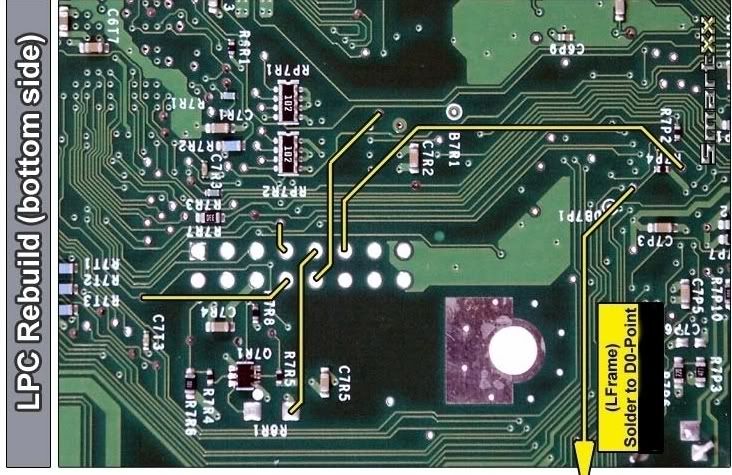

I'm just wondering if you've got one of your LPC wires in the wrong spot, so here's an LPC rebuild diagram courtesy of SmartXX.com:



Please let us know if I'm correct in my first question.
Regards,
DarkMatter
