Do The V1.0/1.1 Foxlink Psu's Have Any Kid Of Fuse?
« on: January 29, 2006, 12:47:00 PM »

I was working on a V1.1 yesterday, and it stopped powering up.

I don't think anything even touched the power supply, there was no noise, no smoke etc....

So I swapped it for my V1.0's PSU, and now the Xbox works.....so before I dish out the money for a new PSU, is there a fuse or somehting on this thing I can check/replace?
Logged

xboxgamer733

  • Archived User
  • Hero Member
  • *
  • Posts: 670
Do The V1.0/1.1 Foxlink Psu's Have Any Kid Of Fuse?
« Reply #1 on: January 29, 2006, 12:51:00 PM »

Yes, Foxlink power supplies have a fuse that you can replace.

This tutorial shows where it is located, and how to replace it.
Logged

00g

  • Archived User
  • Sr. Member
  • *
  • Posts: 255
Do The V1.0/1.1 Foxlink Psu's Have Any Kid Of Fuse?
« Reply #2 on: January 29, 2006, 01:01:00 PM »

I appreciate the quick response.

The PSU pictured appears to be different from mine.

I have an object that's heat shrinked in the same area as the fuse in the picture, but mine doesn't look like and fuse I've ever seen.

In either case. I checked the points under this object for continuity, and got nothing.

Here's a pic
IPB Image
Logged

xboxgamer733

  • Archived User
  • Hero Member
  • *
  • Posts: 670
Do The V1.0/1.1 Foxlink Psu's Have Any Kid Of Fuse?
« Reply #3 on: January 29, 2006, 01:46:00 PM »

I think that the orange cylindrical object is your power supply's fuse, because it has a rating for voltage and amperage.

The object that's heatshrinked should be a capacitor.
Logged

00g

  • Archived User
  • Sr. Member
  • *
  • Posts: 255
Do The V1.0/1.1 Foxlink Psu's Have Any Kid Of Fuse?
« Reply #4 on: January 29, 2006, 02:30:00 PM »

QUOTE(xboxgamer733 @ Jan 29 2006, 03:53 PM) View Post

I think that the orange cylindrical object is your power supply's fuse, because it has a rating for voltage and amperage.

The object that's heatshrinked should be a capacitor.

Yeah, I think you may be right, because one of the legs is on a pad that's only shared with one of main plugs leads.

So if there's no continuity between that orange cylindrical thing, than there would be no connection between one of the leads from the power plug, and the rest of the PSU.
Logged

AfterTheInsanity

  • Archived User
  • Sr. Member
  • *
  • Posts: 406
Do The V1.0/1.1 Foxlink Psu's Have Any Kid Of Fuse?
« Reply #5 on: January 29, 2006, 09:04:00 PM »

QUOTE(00g @ Jan 29 2006, 04:37 PM) View Post

So if there's no continuity between that orange cylindrical thing, than there would be no connection between one of the leads from the power plug, and the rest of the PSU.

Correct. By the way, whats with the name 'double ought gauge'? Have stretchers in or something?
Logged

00g

  • Archived User
  • Sr. Member
  • *
  • Posts: 255
Do The V1.0/1.1 Foxlink Psu's Have Any Kid Of Fuse?
« Reply #6 on: January 29, 2006, 11:10:00 PM »

QUOTE(AfterTheInsanity @ Jan 29 2006, 11:11 PM) View Post

Correct. By the way, whats with the name 'double ought gauge'? Have stretchers in or something?

Actually, I'm in between 00ga and 000ga
http://img.photobuck...nl/fac7cc4c.jpg
Logged

bongwater

  • Archived User
  • Newbie
  • *
  • Posts: 36
Do The V1.0/1.1 Foxlink Psu's Have Any Kid Of Fuse?
« Reply #7 on: January 29, 2006, 11:12:00 PM »

That's a 4 amp fuse but what you'll find is that unless you repair the psu it will just blow the fuse again. Try etech4sale.com for a $10 refurb psu. They refurb these and I've been to their shop and $10 for a psu is a great price.
Logged

00g

  • Archived User
  • Sr. Member
  • *
  • Posts: 255
Do The V1.0/1.1 Foxlink Psu's Have Any Kid Of Fuse?
« Reply #8 on: January 29, 2006, 11:18:00 PM »

QUOTE(bongwater @ Jan 30 2006, 01:19 AM) View Post

That's a 4 amp fuse but what you'll find is that unless you repair the psu it will just blow the fuse again. Try etech4sale.com for a $10 refurb psu. They refurb these and I've been to their shop and $10 for a psu is a great price.

Yeah, I googled the Foxlink model number and found them earlier this evening. $17 shipped.

I know I said nothing touched the PSU, but it's just really hard to believe the PSU worked fine for years, and then right when I had it apart, it just failed on me.

I'm at a loss for what could have happened.....but throwing a new fuse in there can't hurt.

I'm sure I won't be able to find the same type of fuse....so if I were to rig up a glass fuse, is there any certain type of wire I should be using?
Logged

xboxgamer733

  • Archived User
  • Hero Member
  • *
  • Posts: 670
Do The V1.0/1.1 Foxlink Psu's Have Any Kid Of Fuse?
« Reply #9 on: January 29, 2006, 11:29:00 PM »

QUOTE(00g @ Jan 29 2006, 11:25 PM) View Post
if I were to rig up a glass fuse, is there any certain type of wire I should be using?
Not really, as long as it's 22 AWG or thicker.
Logged

00g

  • Archived User
  • Sr. Member
  • *
  • Posts: 255
Do The V1.0/1.1 Foxlink Psu's Have Any Kid Of Fuse?
« Reply #10 on: January 30, 2006, 10:18:00 AM »

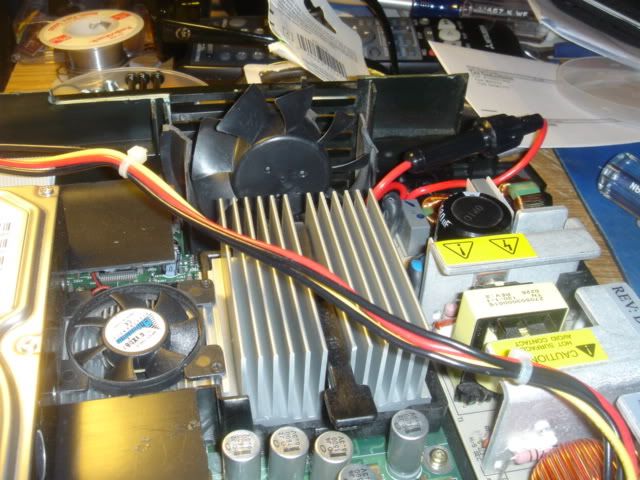

Finished successfully.

IPB Image
IPB Image
Logged

whiteblazer01

  • Archived User
  • Full Member
  • *
  • Posts: 211
Do The V1.0/1.1 Foxlink Psu's Have Any Kid Of Fuse?
« Reply #11 on: January 30, 2006, 11:02:00 AM »

QUOTE(00g @ Jan 29 2006, 10:17 PM) View Post

Actually, I'm in between 00ga and 000ga
http://img.photobuck...nl/fac7cc4c.jpg


 blink.gif  blink.gif  blink.gif  blink.gif  blink.gif  blink.gif

I could have done without seeing that.  ohmy.gif

Me being a car audio guy, I was thinking 00g meant 00g power wire!  jester.gif
Logged

AfterTheInsanity

  • Archived User
  • Sr. Member
  • *
  • Posts: 406
Do The V1.0/1.1 Foxlink Psu's Have Any Kid Of Fuse?
« Reply #12 on: January 30, 2006, 12:10:00 PM »

QUOTE(whiteblazer01 @ Jan 30 2006, 01:09 PM) View Post

Me being a car audio guy, I was thinking 00g meant 00g power wire!  jester.gif

Same size actually. Im not allowed to do anything like that though sad.gif
Logged

00g

  • Archived User
  • Sr. Member
  • *
  • Posts: 255
Do The V1.0/1.1 Foxlink Psu's Have Any Kid Of Fuse?
« Reply #13 on: January 30, 2006, 05:57:00 PM »

QUOTE(whiteblazer01 @ Jan 30 2006, 01:09 PM) View Post

blink.gif  blink.gif  blink.gif  blink.gif  blink.gif  blink.gif

I could have done without seeing that.  ohmy.gif

Me being a car audio guy, I was thinking 00g meant 00g power wire!  jester.gif

lol, I just left that industry.
I sold car stereo at a major high end chain for a long time.
Logged
