Code-Runner · « **Reply #30 on:** December 12, 2005, 04:20:00 PM »

QUOTE(cyd0g @ Dec 12 2005, 01:10 PM)

Here is a list of ALL commands you can type into the terminal.

http://www.mytempdir.com/315990

Be carefull ! You can KILL your harddisk.

I allready killed 3 ACE drives during development of the tutorial.

Would like to some photos @ coderunner

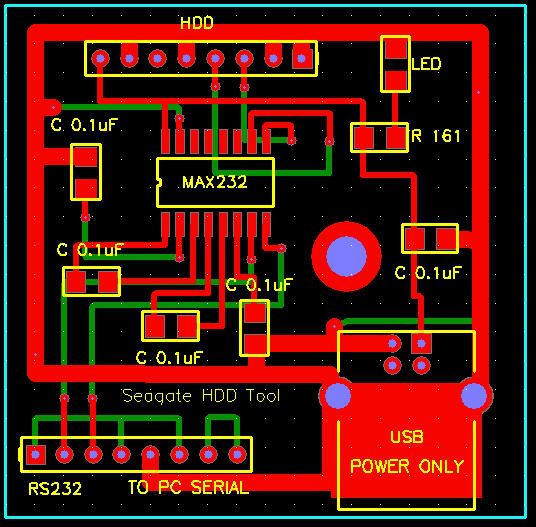

Here is just a rough pic of the developement stage. I will add more when I get it all together and finalize.

IPB Image

HerCule667 · « **Reply #31 on:** December 18, 2005, 07:41:00 AM »

Build it, plugged it in and so far everything is going great. Now i'm going to plug it in in a PC here and install Windows on it... Let's cross fingers...

This post has been edited by HerCule667: Dec 18 2005, 03:42 PM

HerCule667 · « **Reply #32 on:** December 18, 2005, 04:35:00 PM »

Yes, Windows installed. Superb

cyd0g · « **Reply #33 on:** December 18, 2005, 05:37:00 PM »

nice to see successful unlocking reports

consilio · « **Reply #34 on:** December 20, 2005, 12:36:00 AM »

QUOTE(Speckles @ Dec 8 2005, 05:58 AM)

Does anybody have the codes for different model seagate drives like the ST3160021A as my 160 gig drive is locked and my board is stuffed.

I would be interested in this too. I manually locked that seagate 160gig drive with a password I thought right. Found its not right and now cannot seem to manually unlock it as the lock password is longer then what atapwd allows (my pass is 40 chars). Maybe someone can suggest something else?

cyd0g · « **Reply #35 on:** December 20, 2005, 04:19:00 PM »

try www.hddguru.com

Subside · « **Reply #36 on:** December 26, 2005, 08:58:00 PM »

QUOTE(fr_dr @ Dec 10 2005, 11:25 PM)

I wasnt able to unlock it.

Like i said previously, i can get to the point that i see all the info about the hdd in HyperTerminal, but i'm not able to get the t> prompt. Each time i press ctrl+y or +z, it return an ascii character, each time different, it's pretty weird (actually i get same result with any key). Do u think i need to check my solder, or can i assumed that my device is ok because it can upload hdd current ver and firmware?

PS i added a led and a 150ohm resistor between 5v and grnd so i can know theres power, can it alter the data in any way and be the cause of my problems?

i had the same issue, i checked the board a few times but couldnt find any issues

anyhow i decided to try another keyboard and everything works fine with it.
so try another kb see how you go

Stingers · « **Reply #37 on:** December 29, 2005, 06:33:00 PM »

I tried to download the instruction file but it is expired already.
If anyone has the English version (or even German) can you email it to me.
Email address should be with profile.

TKramka · « **Reply #38 on:** December 29, 2005, 07:02:00 PM »

Have a mirror, they're free... (for a worthy cause)

This post has been edited by TKramka: Dec 30 2005, 03:57 AM

Subside · « **Reply #39 on:** December 30, 2005, 02:40:00 PM »

so what exactly do the commands do?

/2
S006b
R21,01
C0,570
W20,01

with more understanding of these commands, perhaps we can work out a way to
unlock other models?

Stingers · « **Reply #40 on:** January 02, 2006, 04:37:00 PM »

QUOTE(TKramka @ Dec 30 2005, 12:33 PM)

Have a mirror, they're free... (for a worthy cause)

Thanks so much TKramka. I only just checked the site yesterday and found your post. And big thanks to cyd0g for the effort you made in doing the tutorial,,, three drives gave their lives for a worthy cause,,,at least I hope so.

When I got into the drive it is giving an err=001D as soon as it boots, so I couldn't use your commands which were locked out. Did your dead drives give an error code? No matter, I never knew there was a serial access to a drive and I tried out lots of other commands in that list since the drive was a writeoff anyway.

FSUNolez336 · « **Reply #41 on:** January 09, 2006, 02:11:00 AM »

Does anyone have one of these premade that I can buy? I would also need the cable that hooks up to the jumpers.

Epaige · « **Reply #42 on:** January 15, 2006, 10:48:00 PM »

Yeah has somebody made 1 that works they can sell? this sounds promising ikew i held onto the paper weight for a reason..

Squiggle2 · « **Reply #43 on:** January 15, 2006, 11:21:00 PM »

The file was removed.
Reason: Hosting period expired.

.. cant DL it...

xboxgamer733 · « **Reply #44 on:** January 15, 2006, 11:30:00 PM »

Here is the mirror that the tutorial is now being hosted on.
