Author Topic: New Version Of Xbox 360 Slim Motherboard. No More Tsop.  (Read 104 times)

k0mpresd

  • Archived User
  • Sr. Member
  • *
  • Posts: 289
New Version Of Xbox 360 Slim Motherboard. No More Tsop.
« on: October 19, 2011, 11:02:00 PM »

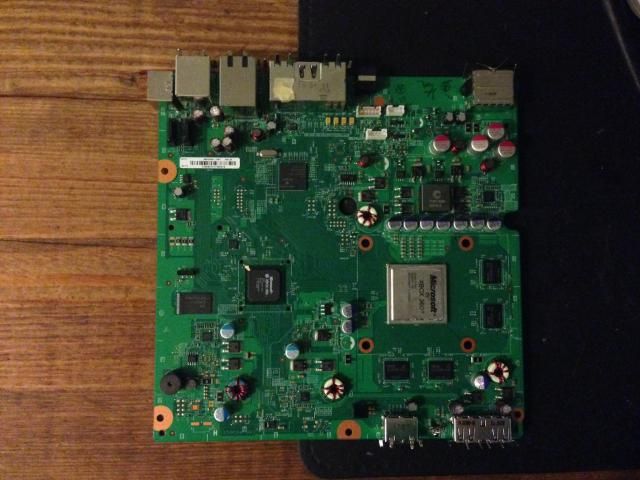

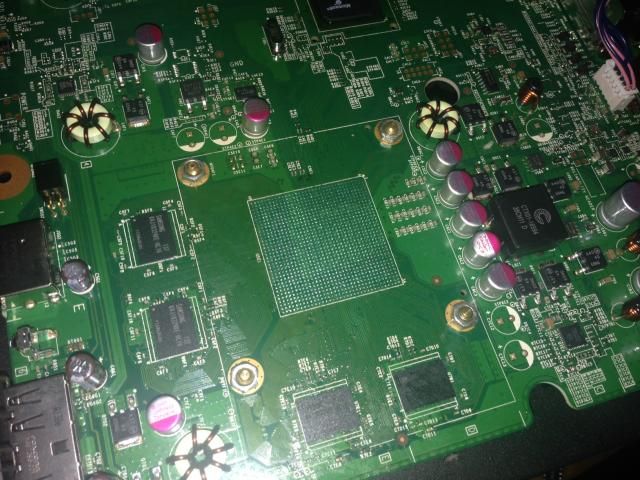

and no more 4gb module. dg-16d5s dvdrom too.

IPB Image

IPB Image

IPB Image

IPB Image
Logged

Antman1

  • Archived User
  • Hero Member
  • *
  • Posts: 887
New Version Of Xbox 360 Slim Motherboard. No More Tsop.
« Reply #1 on: October 19, 2011, 11:23:00 PM »

wonder what would happen if you try to hook a nand reader up and read it with it missing the chip.  Gotta store the dash somewere
Logged

hangover

  • Archived User
  • Sr. Member
  • *
  • Posts: 462
New Version Of Xbox 360 Slim Motherboard. No More Tsop.
« Reply #2 on: October 20, 2011, 04:13:00 AM »

QUOTE(Antman1 @ Oct 20 2011, 04:23 PM) View Post

wonder what would happen if you try to hook a nand reader up and read it with it missing the chip.  Gotta store the dash somewere


 Yes unless the dash files are pre flashed onto a chip somewhere, there must be a way to read/ write to the mobo.
Logged

k0mpresd

  • Archived User
  • Sr. Member
  • *
  • Posts: 289
New Version Of Xbox 360 Slim Motherboard. No More Tsop.
« Reply #3 on: October 20, 2011, 09:56:00 AM »

spoke too soon. tsop has migrated to the bottom. still no hana chip though.

IPB Image

IPB Image
Logged

warbeast

  • Archived User
  • Hero Member
  • *
  • Posts: 509
New Version Of Xbox 360 Slim Motherboard. No More Tsop.
« Reply #4 on: October 20, 2011, 03:05:00 PM »

Thanks for the pics now if rgh works looking at the images ce point for nand has a trace to pad making it easy to dual Boot without lifting the leg or soldering to the trace plus maybe hook up nand 2 to top side
