(Just noticed I posted in the incorrect place, mods please move to correct location, I'm sorry for the inconvenience, thanks in advance!)

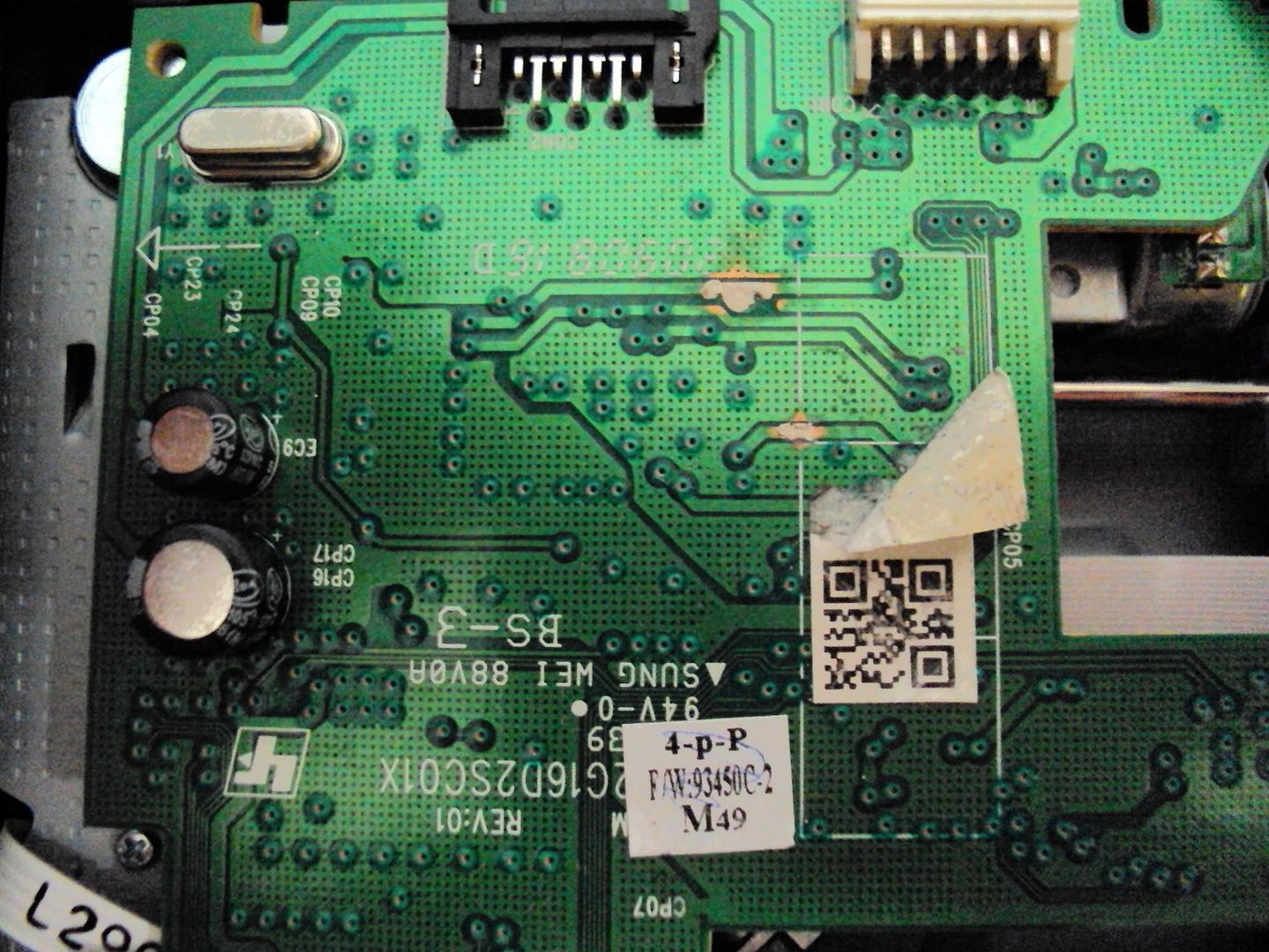

Hello, I've modded a few Liteon 93450C without hiccups but this one seems to not be going to well. I open up the drive and made the cuts on the pcb as usual. I connected to drive to the CK3 pro and placed the Probe V2 on the correct wholes. I clicked on "intro device ID" and it didn't go through, so I hit esc and refreshed the port the drive was in and it didn't come out, I lifted the Probe V2 and placed it again and the ck3 shut off.

And ever since then, it shuts off every time I connect the drive. It doesn't happen when I connect other drives.
I repaired the traces to see if that would help but it still does the same thing. This is obviously a short but no traces are connected to ground. And the board looks in good shape, I don't see anything burned.

Could me putting the Probe V2 on the wrong whole cause this? Is there a way to check if there's a short with a multimeter? I wouldn't know where to place it...

Thank you for taking you time to read this. Any help you can provide is greatly appreciated.

Thanks in advance.

(IMG:http://img.photobucket.com/albums/v211/Lyfe_In_DR/DSC00749-1.jpg)

This post has been edited by jss61790: Dec 12 2010, 06:48 PM
