Topic: How To Install A Psone Lcd (Read 182 times)

Sord_Fish · « **on:** January 13, 2005, 06:22:00 PM »

This connects the lcd via the Composite Video
connect pin 23 from the AVIP to pin 6 of the lcd
connect pin 21 from the AVIP to pin 8 of the lcd

If you want Audio also:
Right Audio
connect pin 2 from the AVIP to pin 2 of the lcd
connect pin 4 from the AVIP to pin 3 of the lcd
Left Audio
connect pin 3 from the AVIP to pin 4 of the lcd
connect pin 5 from the AVIP to pin 1 of the lcd

You can also try and set it up via RGB scart. You may also need a csync signal, you can get this via a sync seperator circuit.
Green
connect pin 22 from the AVIP to pin 12 of the lcd
connect pin 20 from the AVIP to pin 8 of the lcd
Blue
connect pin 18 from the AVIP to pin 9 of the lcd
connect pin 16 from the AVIP to pin 8 of the lcd
Red
connect pin 19 from the AVIP to pin 11 of the lcd
connect pin 17 from the AVIP to pin 8 of the lcd

you will need the correct video settings switched

AVIP labeled here

image of connector was borrowed from Starfox's site

Xxervio · « **Reply #1 on:** January 13, 2005, 10:32:00 PM »

thank you for that, where is the power to the LCD coming from?? or maybe i am overlooking something.

Sord_Fish · « **Reply #2 on:** January 14, 2005, 01:25:00 AM »

the lcd runs of 7.5v the same voltage as the psone.
you cannot find 7.5v in the xbox on its own. you will have to provide it by either
using the existing wallwart and have a wire running into the lcd,
or you can buy a psone car lighter adapter and solder that to 12v.

Xxervio · « **Reply #3 on:** January 14, 2005, 08:57:00 AM »

i thought i read some where that you need to have a 5V source to the DCC IN of the psone, true???

Sord_Fish · « **Reply #4 on:** January 14, 2005, 09:41:00 AM »

yes i think you might need the 5v aswell but according to the tutorial on bit-tech here its only for the PAL lcds.

you will have to test it and see what happens

Xxervio · « **Reply #5 on:** January 14, 2005, 11:45:00 PM »

one more question then i think iam done. After doing the psone install i need a switch right so that i can choose which display i want?? the regular A/V from the xbox or the PSone lcd??

Ishmo · « **Reply #6 on:** January 16, 2005, 02:12:00 PM »

Ishmo · « **Reply #7 on:** January 16, 2005, 05:50:00 PM »

bump...some1 have the answer?

mr_kill_666 · « **Reply #8 on:** January 22, 2005, 11:08:00 PM »

for some reason the pic isnt working anymore. could you update the pic. thanks

mr_kill_666 · « **Reply #9 on:** February 01, 2005, 04:01:00 PM »

i am having a bit of a problem, i am installing the psone screen to my xbox through the Composite Video wires, but even though i have everything soldered right it still doesnt show up. i noticed my scart is different from the one that is in the hip pad tut. i have a 1.6, so i dont know if the diagram changed for that version. can anyone help.

Gazcoigne · « **Reply #10 on:** March 11, 2005, 09:08:00 AM »

I have a v1.1 xbox with x3 installed and using an advanced av pack with RGB scart and optical out.
theres a few things i need answered before i try this mod........

1. can you only have one display working at once ie only tv or only lcd?

2. if so, do you have to install switches to switch from outputs?

3. are the diagrams shown for ntsc or pal?

4. Can it all be fitted inside the xbox or do i have to provide external power to the lcd??

thanks for the help

Gaz

bobthenob · « **Reply #11 on:** March 15, 2005, 03:05:00 AM »

bump
id like to know those question too please
thanks

Gazcoigne · « **Reply #12 on:** March 16, 2005, 07:51:00 AM »

bump anyone answer this at all please??

Sord_Fish · « **Reply #13 on:** May 11, 2005, 04:26:00 PM »

Ok so i finally got my PSone screen today so i have chopped up some pics for a better tut.

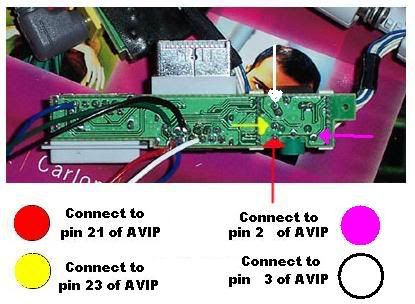

COMPOSITE VIDEO

user posted image

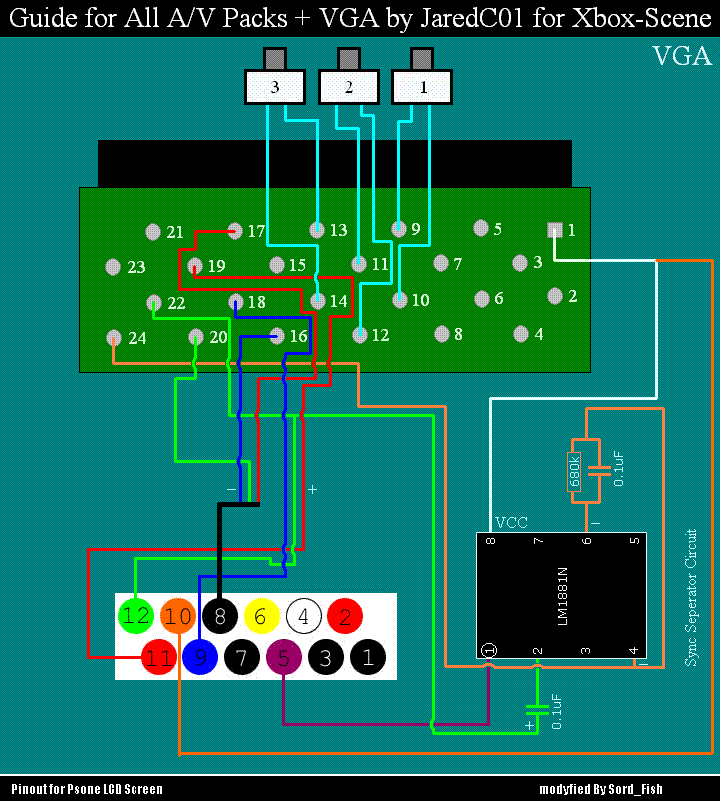

VGA*

the lcd runs of 7.5v the same voltage as the psone.
You cannot find 7.5v in the xbox on its own.
you will have to provide it by either, using the existing wallwart and have a wire running into the lcd or you can buy a psone car lighter adapter and solder that to 12v.

I dont have the car adapter so i cannot comment on how big it is but from what I've read, its pretty large and wont fit.
There are car voltage regulatars that you can buy that let you various voltages and these are a little smaller and easier to fit in the xbox.

--------------FAQ------------------

Q. can you only have one display working at once ie only tv or only lcd?
A. depending on what cable you are using to connect to your tv, if its the basic 3 rca plugs then yes that will work but any other cable the lcd will not work.**

Q. are the diagrams shown for ntsc or pal?
A. afaik this will work for both signals.

-------------------------------------

* this vga wiring diagram is untested as of yet.
** if your using the rgb scart cable it still may work together.

S-video diagram coming soon

[FAO any moderator]
please can you replace this post with the first post thanks.
[/FAO any moderator]

dougMod · « **Reply #14 on:** June 08, 2005, 07:13:00 AM »

any updates? and i think the thread is still alive...when i wired mine i just used the 2 pins and the screen is only black and white. Does anyone know why
