Topic: Scratching The Mother Board .... (Read 94 times)

somacast · « **on:** October 07, 2007, 06:39:00 PM »

hello ppl

while trying for many hours all the mods in the world on 1 of the xboxs i tried 2 repair for my friends , i was removing the pennies after the complete failure of that mod , but due to anger and less focus , i tried 2 remove the pennies from on of the bottom rams with a screw driver , but i scratched the mother board and seems on a crtical place , i tried to clean the place 2 find out the damages , looks like the the copper color is exposed now , but cant really tell if its cut or not

now the 3 damn lights doesnt go , and i boxed up the xbox , but thought maybe some1 has got any idea how bad is the case

thank u

MarutiDriver · « **Reply #1 on:** October 07, 2007, 07:03:00 PM »

Post a good picture of the damage. Then the experts can help.

somacast · « **Reply #2 on:** October 07, 2007, 07:16:00 PM »

QUOTE(MarutiDriver @ Oct 8 2007, 02:03 AM)

Post a good picture of the damage. Then the experts can help.

ok i will try ...

somacast · « **Reply #3 on:** February 03, 2020, 10:32:00 AM »

hello

this is the picture of the damaged area , and the error code i keep getting now is 0022

this is the link to view the picture , so plz help experts

the picture is here , plz click

This post has been edited by somacast: Yesterday, 06:33 PM

somacast · « **Reply #4 on:** February 03, 2020, 03:38:00 PM »

picture not examined yet

(IMG:style_emoticons/default/uhh.gif) (IMG:style_emoticons/default/uhh.gif) (IMG:style_emoticons/default/unsure.gif)

RDC · « **Reply #5 on:** February 03, 2020, 04:42:00 PM »

I'm not gonna be looking at it...

QUOTE

Sorry. You can not download this file today. Download traffic for your country is empty.

...and one bump per day is more than enough, things on a forum don't move as fast as ya like sometimes.

The flash reflecting off the board, from what I can make out in the small image of it anyway, doesn't help either.

Resize it to around 800x600 or so and upload it to someplace like PhotoBucket and post in in the thread that way.

somacast · « **Reply #6 on:** February 03, 2020, 06:46:00 PM »

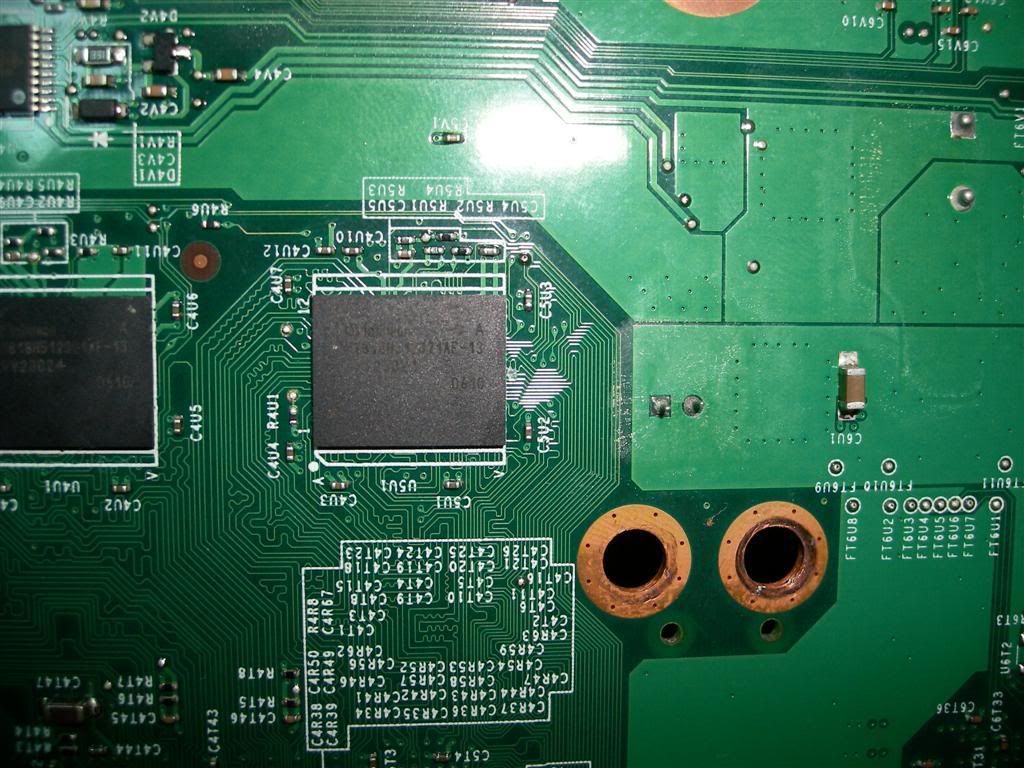

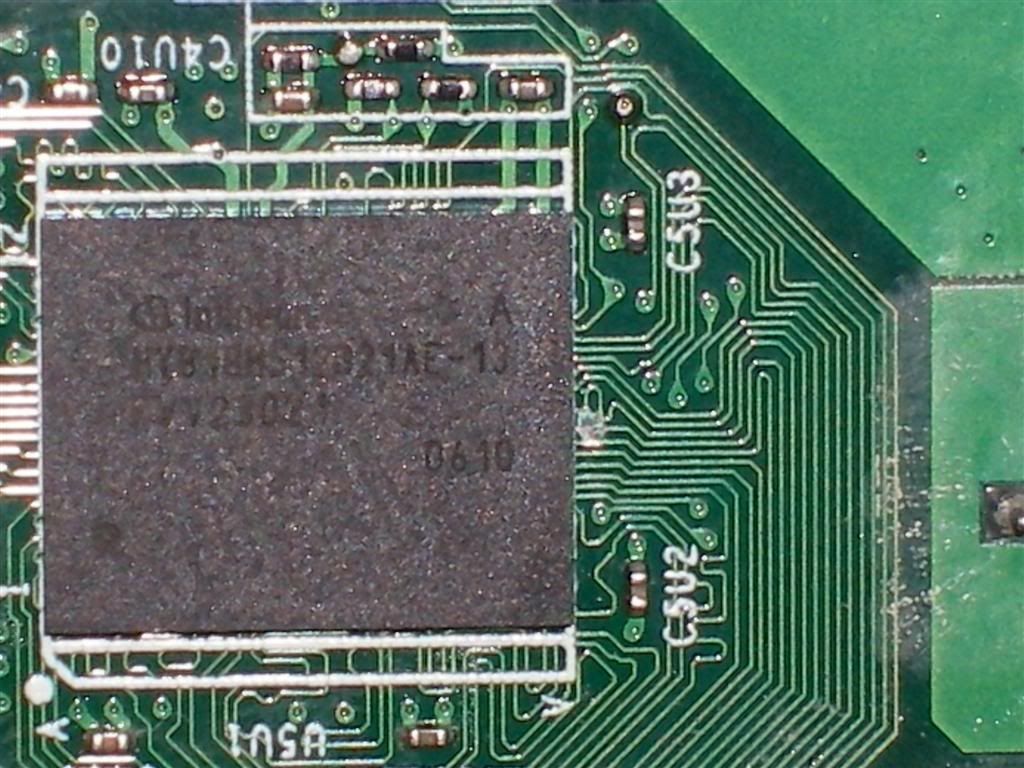

ok thnx , i did resize the picture as u said... iam not a professional camera man , so this is the best i could get with a 6 mega pixel camera.... the damage is the notch on right side of the ram

(IMG:http://i223.photobucket.com/albums/dd51/somacast/SANY0013Large.jpg)

(IMG:http://i223.photobucket.com/albums/dd51/somacast/SANY0025Large.jpg)

RDC · « **Reply #7 on:** February 03, 2020, 07:03:00 PM »

I can tell ya right now without knowing exactly where that spot was at, there's almost no way to see it in the larger pic there, the close up is pretty good though and it can be seen alright.

I still can't tell 100% though if the trace has been severed, it does look it from that pic, but without having it or a much more detailed pic I can't say for certain. If it is severed though that's going to make for one wild repair job and take some serious patience and skill, being as close to the RAM chip as it is and all.

somacast · « **Reply #8 on:** February 03, 2020, 07:14:00 PM »

thnx for ur several responds anyway (IMG:style_emoticons/default/smile.gif)

RDC · « **Reply #9 on:** February 03, 2020, 07:37:00 PM »

I wasn't implying give up, just that it's most likely something ya aren't gonna be able to fix on your own and will be a right difficult job no matter who does it. If that 360 had problems before though ya may not want to bother with having it repaired.

pimpmaul69 · « **Reply #10 on:** February 03, 2020, 08:30:00 PM »

i used the zoom function on my tablet and can see that there are 3 traces you messed up.. however only the middle trace is damaged.. i can fix it.. pm me if you are interested
