Author Topic: Reflowed Board, Messed Up Jtag  (Read 22 times)

xboxhaxorz

  • Archived User
  • Hero Member
  • *
  • Posts: 573
Reflowed Board, Messed Up Jtag
« on: February 13, 2011, 03:04:00 AM »

I had a customer bring me a jtagged board to get reflowed. I did a quick test where it booted, so i proceeded to put the x clamps on it. After putting it back in i get e79 with no lights on the ROL. I lifted a wire so i redid the wiring, with the alternate point but it still didnt work.

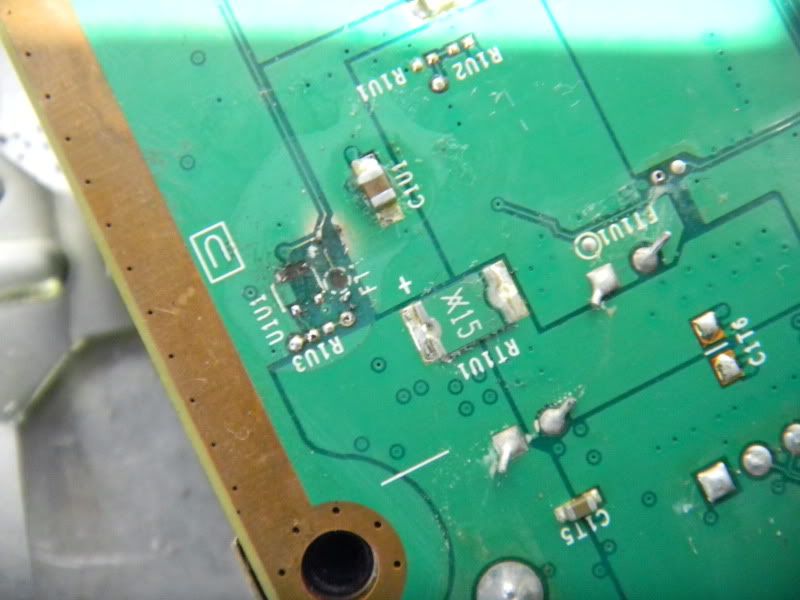

So the picture shows the damaged area, is there another alternate point for this, and do i have to repair those traces and points or no?
Logged

xboxhaxorz

  • Archived User
  • Hero Member
  • *
  • Posts: 573
Reflowed Board, Messed Up Jtag
« Reply #1 on: February 13, 2011, 03:52:00 PM »

thanks, great tut from that guy.

i just redid the entire wiring that the customer did as well since it was shoddy.
Logged
