Author Topic: Tools Released to Peform 'Timing Attack' to Downgrade Kernel  (Read 366 times)

DeViaT

  • Archived User
  • Newbie
  • *
  • Posts: 2
Tools Released to Peform 'Timing Attack' to Downgrade Kernel
« Reply #30 on: September 23, 2007, 03:54:00 AM »

I'm pretty sure R20 is a 10k.  It's just a pull-up for the switch (ie 1k or 10k would work but 10k is preferable).
Logged

Geremia

  • Archived User
  • Newbie
  • *
  • Posts: 47
Tools Released to Peform 'Timing Attack' to Downgrade Kernel
« Reply #31 on: September 23, 2007, 04:36:00 AM »

RS-232 pin2 and pin3 have most probably to be swapped
I mean, my board has it swapped, but i didn't tested if my cable is a pin-to-pin, but it should be

This post has been edited by Geremia: Sep 23 2007, 11:38 AM
Logged

ivc

  • Archived User
  • Newbie
  • *
  • Posts: 42
Tools Released to Peform 'Timing Attack' to Downgrade Kernel
« Reply #32 on: September 23, 2007, 04:07:00 AM »

QUOTE(DarkMatter @ Sep 23 2007, 05:48 AM) View Post

Here's a better schematic. Its a tad large, but at least its more legible.
I hope I got everything right, but I'm not 100% sure on R20, if its supposed to be 10k or 1k. Can someone validate which one it should be???


R20 is correct, it's supposed to be a 10K resistor pull-up. You might specify it's recommended to use 1/4 watt (0.25w) resistors for best resolution/precise values.

Edit: Sorry, you already did specify it. smile.gif
Logged

Mozbius

  • Archived User
  • Jr. Member
  • *
  • Posts: 69
Tools Released to Peform 'Timing Attack' to Downgrade Kernel
« Reply #33 on: September 23, 2007, 12:15:00 PM »

QUOTE(Frieza @ Sep 22 2007, 10:33 AM) *

Homebrew........ YUMMY! (IMG:style_emoticons/default/muhaha.gif)



Yeah looks like I'll be able to put my Xbox1 to rest after all... (IMG:style_emoticons/default/rolleyes.gif)
Logged

Libtoem

  • Archived User
  • Full Member
  • *
  • Posts: 132
Tools Released to Peform 'Timing Attack' to Downgrade Kernel
« Reply #34 on: September 23, 2007, 03:18:00 PM »

QUOTE(kermit007 @ Sep 23 2007, 11:34 AM) View Post

I thought Avalaunch was already ported to the 360 on a dev box almost a year ago? Wonder if that really got anywhere or not.


No it was not ported,Avalaunch is just running under emulation mode.

Logged

N0rdmann

  • Archived User
  • Newbie
  • *
  • Posts: 2
Tools Released to Peform 'Timing Attack' to Downgrade Kernel
« Reply #35 on: October 17, 2007, 02:11:00 PM »

Hooorayy!
Sounds great cool.gif

But creating that board besides the mod chip seems still pretty difficult atm huh.gif

QUOTE(pike @ Sep 22 2007, 05:26 PM) View Post

And here it goes again, let me repeat:

Team XBMC does not plan to work on "XBMC360".
But since we're Open Source anyone who wants can port our code!

Let the porting begin (not by us though)

Yeah but when u'r team (hopefully) complete the linux port in near future it should be possibly to compile it on ppc gentoo running on a 360 as soon they manage to get hardware gfx drivers instead of framebuffer love.gif
personally i'm just waiting for that to buy a 360 which will replace my xbox in my living room wink.gif


Greetz from Germany,
Nordmann
Logged

Surrido

  • Archived User
  • Full Member
  • *
  • Posts: 111
Tools Released to Peform 'Timing Attack' to Downgrade Kernel
« Reply #36 on: October 30, 2007, 02:20:00 AM »

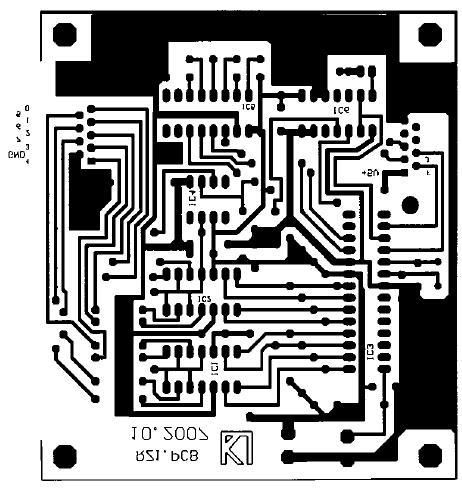

Hi, i made a PCB layout...

that will ease up the DYO a lot. for people who cant wait for the infectus stuff...

IPB Image

here are the high-res PDFs to do it. bottom layer:

Bottom layer PDF

here comes the top layer (a few bridges need to be soldered)

Top layer PDF
Logged

ben1989

  • Archived User
  • Full Member
  • *
  • Posts: 115
Tools Released to Peform 'Timing Attack' to Downgrade Kernel
« Reply #37 on: November 18, 2007, 06:23:00 AM »

QUOTE(robinsod)

Dont use that one its wrong, the 10K resistors on the outputs of the comparators should be pill ups NO pull downs - he got R20 right though Wink

Use the 9.50 boot loader I posted a link to at the beginning of this thread, the 9.0 has a bug (cjack noticed).


i have attached the correct diagram (IMG:style_emoticons/default/smile.gif)

(IMG:http://img340.imageshack.us/img340/9453/downsizeschematic1wr8.th.jpg)
Logged

Exthero

  • Archived User
  • Newbie
  • *
  • Posts: 40
Tools Released to Peform 'Timing Attack' to Downgrade Kernel
« Reply #38 on: December 06, 2007, 07:26:00 PM »

Is there any "leeway" in the crystal?

say could I use a 24.576 or 16.9344, Or does the best/only performance come from the 20Mhz?
Logged
